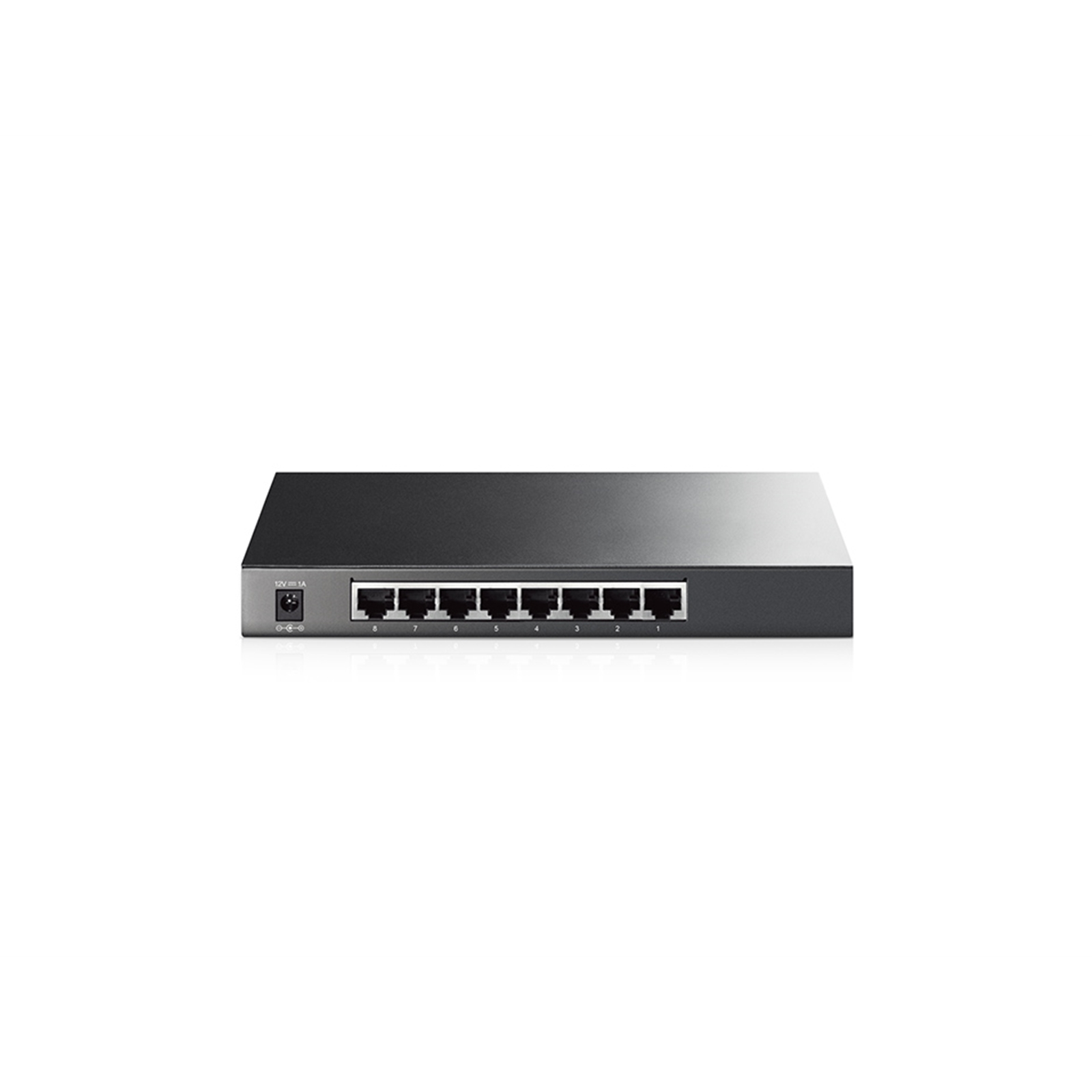

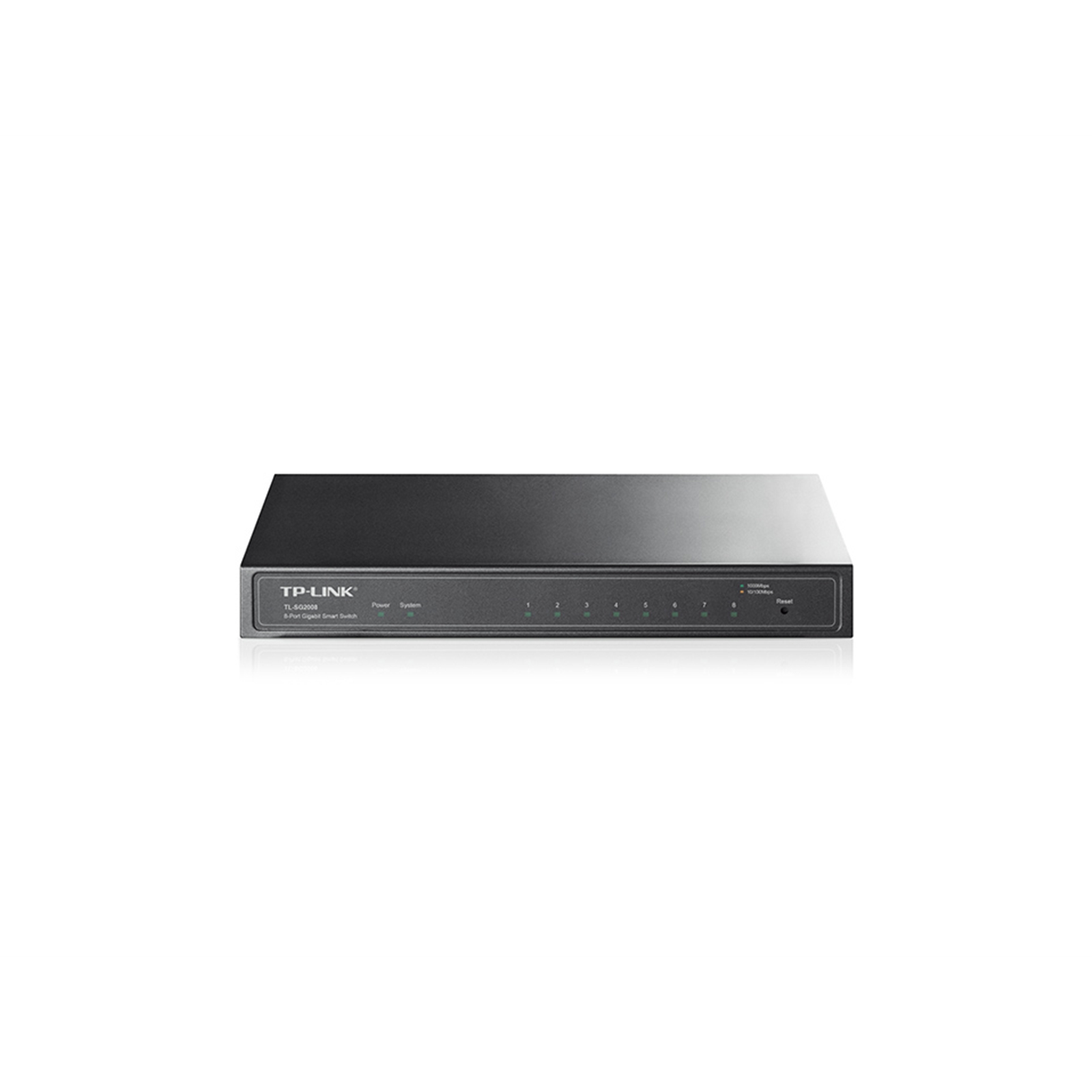

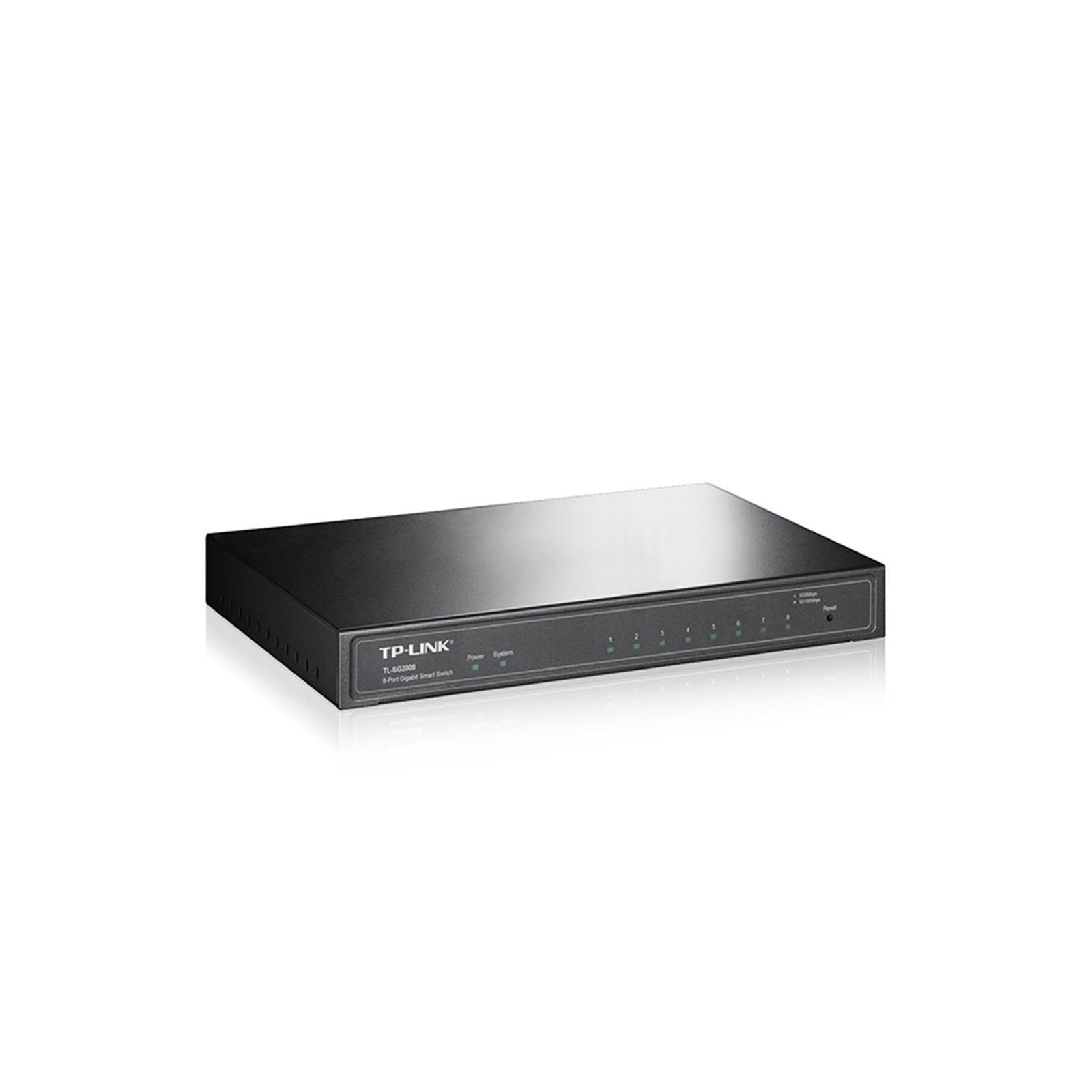

TP-LINK 8-Port Gigabit Smart Switch - TL-SG2008

TP-LINK Logo here

Manufacturer Part Code: TL-SG2008

Order Code: NPTPL-TLSG2008

Category: Smart Managed Network Switches

TP-Link 8-Port Gigabit Smart Switch TL-SG2008

Realize More Possibilities with Omada
JetStream 8-Port Gigabit Smart Switch

Software Defined Networking (SDN) with Cloud Access
Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

MAC address table
8000 entries
Switching capacity
16 Gbit/s
Jumbo frames support
Y
Store-and-forward
Y
Forwarding rate
11.9 Mpps
Number of static routes
32
Number of IP interfaces
16
Jumbo frames
9000
Static route
Y
Certification
CE, FCC, RoHS
LED indicators
Y
Wall mountable
Y
Product colour
Black
Power source
DC
Input voltage
12 V
Input current
1 A
Power consumption (max)
6.42 W
Power supply included
Y
Harmonized System (HS) code
85176990
MIB support
Y
Switch layer
L2/L2+
Quality of Service (QoS) support
Y
Web-based management
Y
System event log
Y
Switch type
Managed
ARP inspection
Y
Cloud-managed
Y
Multicast support
Y
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Flow control support
Y
Port mirroring
Y
Link aggregation
Y
Broadcast storm control
Y
Rate limiting
Y
Number of VLANs
4000
Spanning tree protocol
Y
VLAN support
Y
10G support
N
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Virtual LAN features
MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90%
Input voltage
12 V
Cables included
AC
User guide
Y
Internal memory
256 MB
Flash memory
32 MB
Fanless
Y
Harmonized System (HS) code
85176990
Gigabit Ethernet (copper) ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
8
Power connector
DC-in jack
Power over Ethernet (PoE)
N
Management protocols
SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)
Y
Security algorithms
SSH, SSH-2, SSL/TLS
Access Control List (ACL)
Y
SSH/SSL support
Y
IGMP snooping
Y
BPDU filtering/protection
Y
IP-MAC-Port binding
Y
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Height
26 mm
Width
209 mm
Depth
126 mm
