Smart Managed Network Switches | ZYXEL 28 Port Smart Managed PoE+ Switch - XGS1930-28HP | XGS1930-28HP-GB0101F | ServersPlus
L R
ZYXEL XGS1930-28HP-GB0101F | serversplus.comZYXEL XGS1930-28HP-GB0101F | serversplus.comZYXEL XGS1930-28HP-GB0101F | serversplus.comZYXEL XGS1930-28HP-GB0101F | serversplus.com

Illustration purposes only

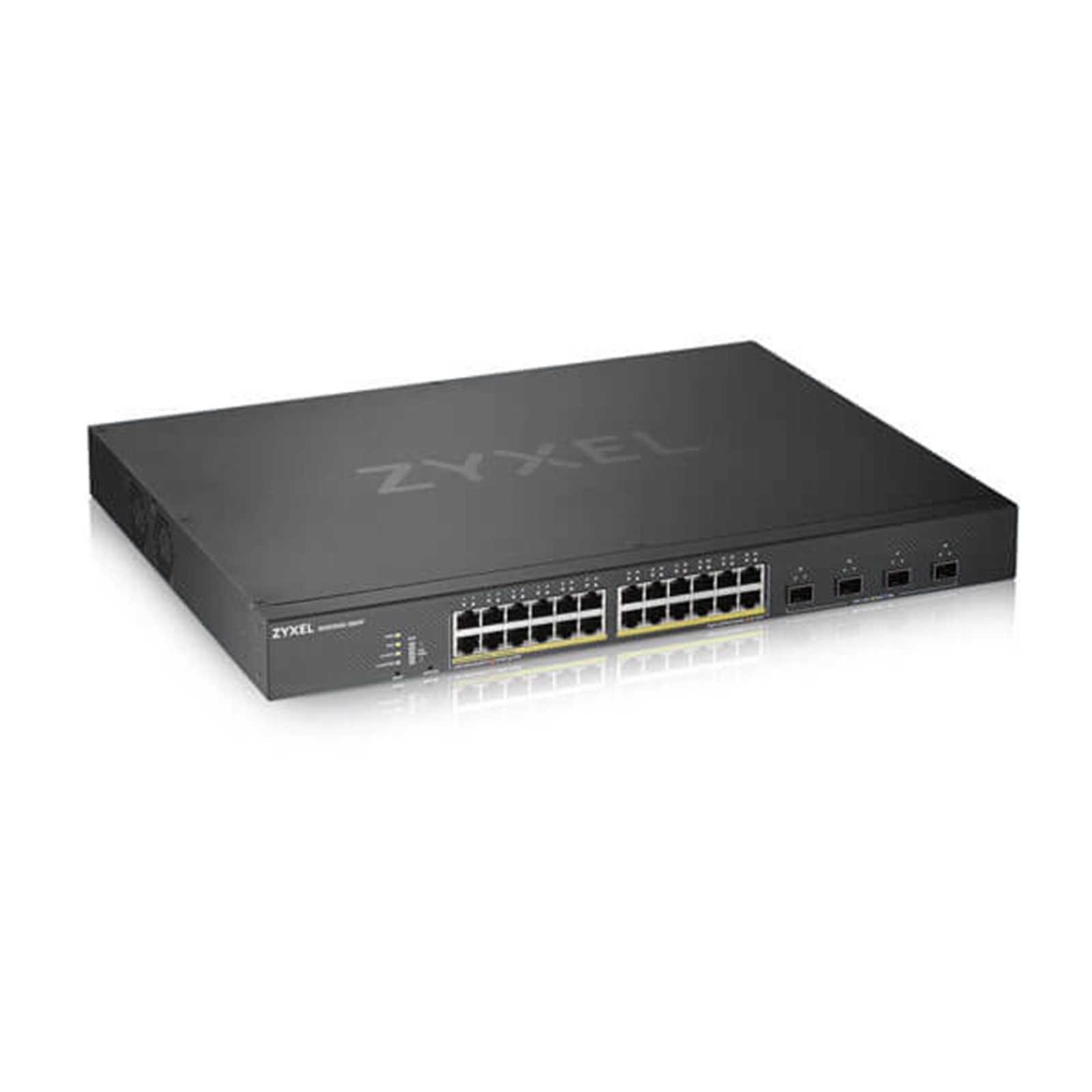

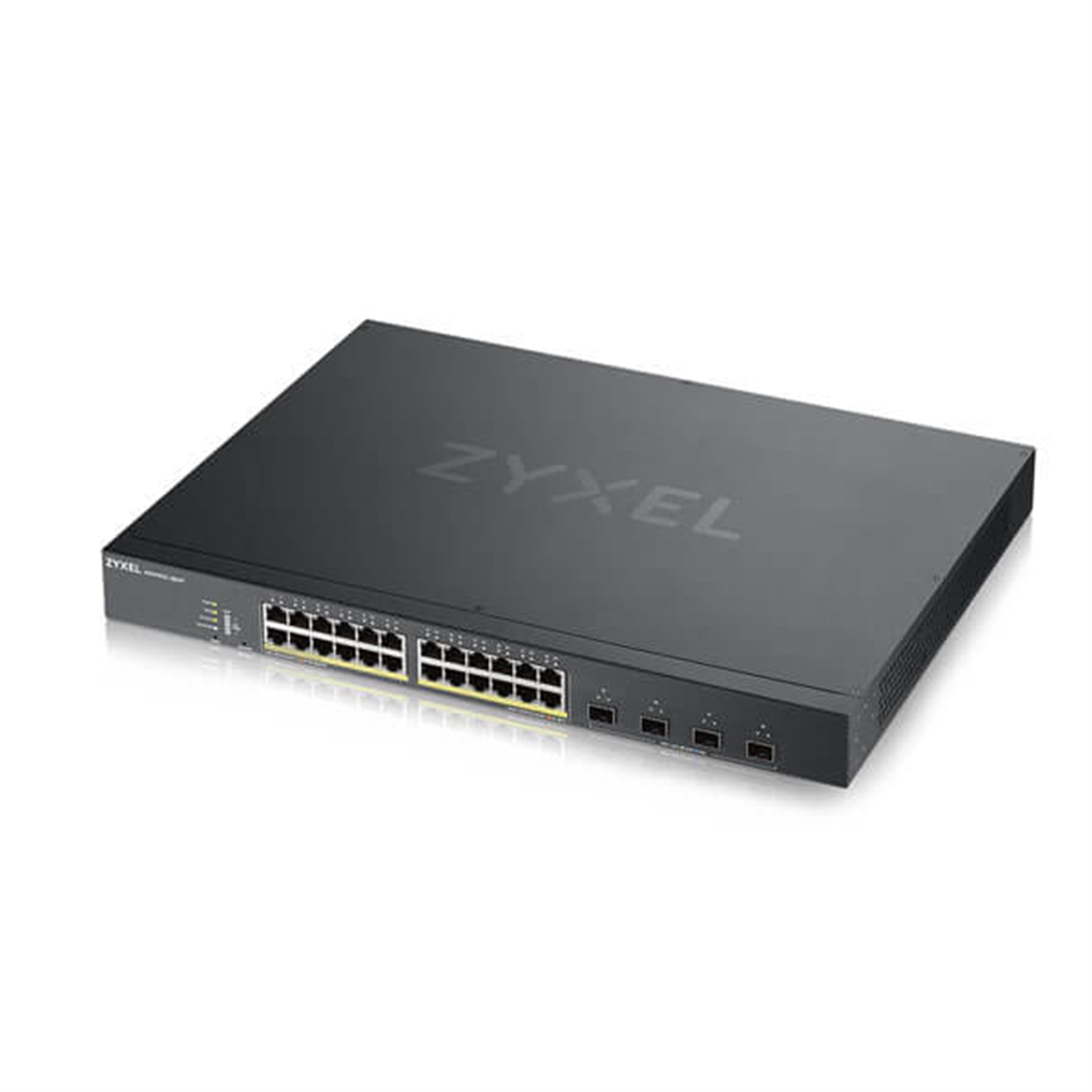

ZYXEL 28 Port Smart Managed PoE+ Switch - XGS1930-28HP

ZYXEL Logo here

Manufacturer Part Code: XGS1930-28HP-GB0101F

Order Code: NPZYX-XGS193028H

Category: Smart Managed Network Switches

28 PORT SMART MGD POE+ SWITCH

The most affordable choice for 10G migration The XGS1930 series, a new 10G uplink smart managed switch, comes with a stylish new look and enables cloud manageability with Zyxel NebulaFlexTM technology. Built for convenience This smart-looking switch features an intuitive design that simplifies daily network management for SMBs. Manage it your way! The XGS1930 series introduces Zyxel NebulaFlexTM, which allows you to easily switch between standalone mode and our license-free Nebula cloud management platform anytime with just a few simple clicks. Don't overspend to upgrade your wired network With Gigabit connectivity plus four 10G uplinks, the XGS1930 series is ideal for those seeking to upgrade to an easier-to-manage network—and at an affordable price. Whisper-quiet operation Smart fan and fanless designs for silent operation in your workplace. Power more devices more easily - Provides 30W per port and a high power budget of 375W, ideal for denser PoE deployments. - Default consumption mode boosts efficiency by delivering the actual power required. User-friendly LED indicators View real-time status instantly with cloud and PoE power-usage LED indicators. Zyxel ONE Network Use the complimentary ZON Utility to configure and discover switches, WLANs, and gateways in your network with one click. Designed for the long haul A web smart managed switch with an enterprise-grade hardware design. Built-in state-of-the-art hardware technology brings high quality and robustness to SMB networks.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Electromagnetic compatibility
FCC 15 A, CE A, BSMI EMC
MAC address table
16000 entries
Switching capacity
128 Gbit/s
Number of VLANs
4000
Forwarding rate
95.2 Mpps
Packet buffer memory
1.5 MB
Static route
Y
Rack mounting
Y
Electromagnetic compatibility
FCC 15 A, CE A, BSMI EMC
Colour of product
Black
Heat dissipation
1606.11 BTU/h
Power over Ethernet (PoE) Support
Y
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (max)
471 W
Switch layer
L3
Quality of Service (QoS) support
Y
Multicast support
Y
Web-based management
Y
Switch type
Managed
Internal memory
512 MB
Flash memory
32 MB
Packet buffer memory
1.5 MB
Multicast support
Y
MAC address table
16000 entries
Networking standards
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Flow control support
Y
Port mirroring
Y
Link aggregation
Y
Broadcast storm control
Y
IP routing
Y
IGMP snooping
Y
Number of VLANs
4000
Spanning tree protocol
Y
VLAN support
Y
Routing entries
32
Virtual LAN features
Port-based VLAN,Voice VLAN
Operating relative humidity range
10 - 95%
Storage temperature range (T-T)
-40 - 70 °C
Operating temperature range (T-T)
0 - 50 °C
Storage relative humidity range
10 - 95%
Heat dissipation
1606.11 BTU/h
Cables included
AC
Rack mount kit
Y
Package weight
5.82 kg
Cables included
AC
Packaging depth
503 mm
Packaging height
95 mm
Packaging width
585 mm
Package type
Box
Rack mount kit
Y
Internal memory
512 MB
Mean time between failures (MTBF)
1369432 h
Flash memory
32 MB
Noise level
28.5 dB
Packet buffer memory
1.5 MB
Power over Ethernet (PoE) ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24
SFP+ module slots quantity
4
Power over Ethernet (PoE) support
Y
Power over Ethernet (PoE) ports quantity
24
Total Power over Ethernet (PoE) budget
375 W
GARP VLAN Registration Protocol (GVRP)
Y
Access Control List (ACL)
Y
SSH/SSL support
Y
IGMP snooping
Y
Password protection
Y
Loop protection
Y
Authentication
Guest VLAN, MAC-based authentication, Port-based authentication
DHCP features
DHCP client,DHCP relay,DHCPv6 relay
Rack mounting
Y
Mean time between failures (MTBF)
1369432 h
Colour of product
Black
Noise level
28.5 dB
VLAN support
Y
Number of VLANs
4000
VLAN support
Y
Virtual LAN features
Port-based VLAN,Voice VLAN
Weight
4.6 kg
Height
44 mm
Width
441 mm
Depth
330 mm
