D-LINK DEM-431XT

D-LINK Logo here

Manufacturer Part Code: DEM-431XT

Order Code: NPDLI-DEM431XT

Category: Switch Modules

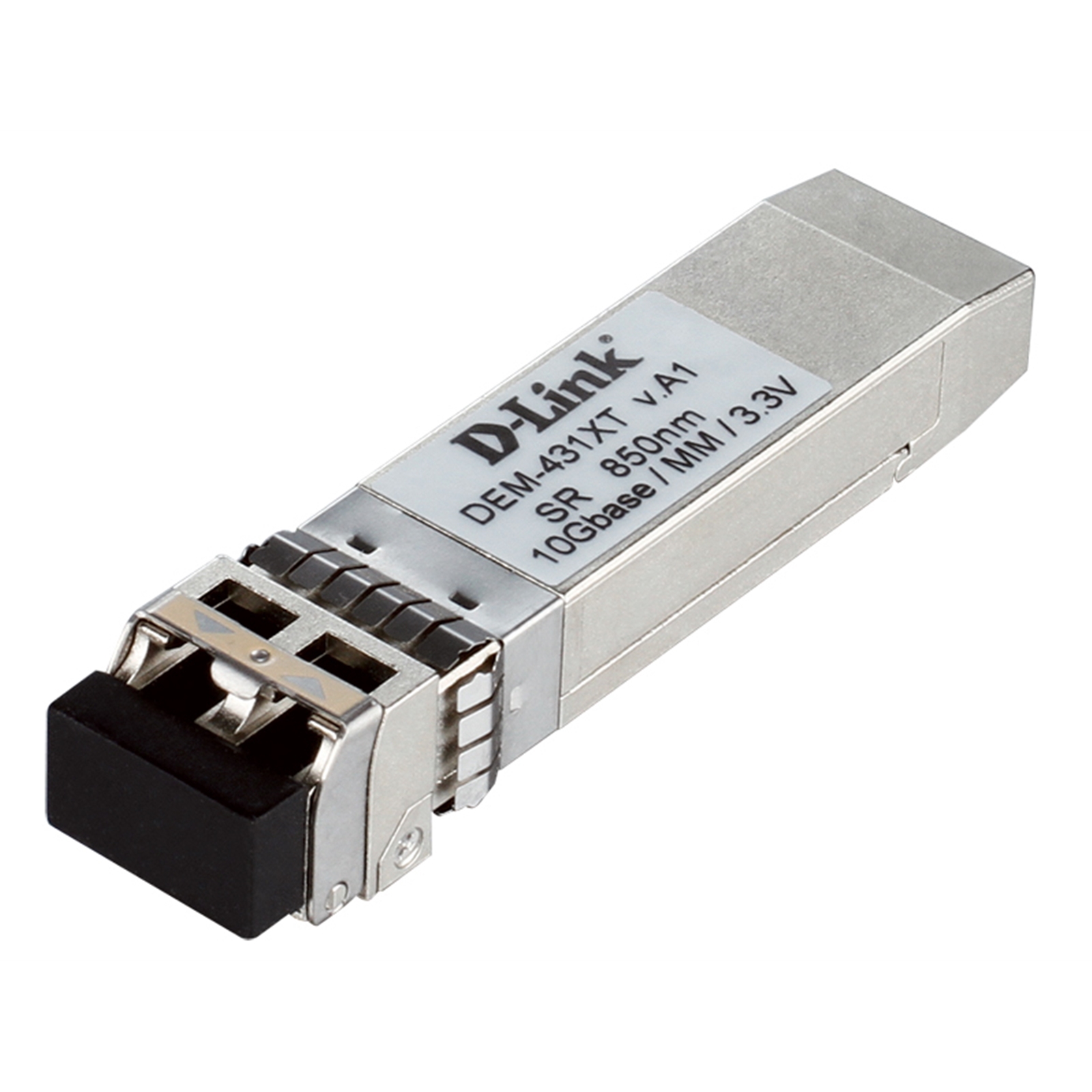

D-Link 10GBase-SR SFP+ Transceiver 80/300m

Designed to support distances up to 550 metres, the DEM-431XT is a high performance 850nm Multi-Mode SFP+ transceiver. Supporting Full-duplex, 10 Gigabit speeds on Multi-Mode fibre cables. The DEM-431XT is 802.3ae 10GBASE-SR compliant and supports Full-duplex 802.3x Flow control. The DEM-431XT provides the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa.

D-Link's 10G SFP+ Module series are hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.

Enhanced Small Form-factor Pluggable Format

The transceivers use the Enhanced Small Formfactor Pluggable format (SFP+). The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa, for the port to receive data from the network cable.

Hot Pluggable

All D-Link transceivers are hot-pluggable. You can connect a transceiver while the system is powered on without causing any problems. This permits modules to be added or removed without interrupting the network.

10G Ethernet speeds

The transceivers all support 10G Ethernet, which results in very fast data transmissions of up to 10 Gbit/s. This is 10 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Certification
CE, FCC, VCCI, C-Tick, MSA
Safety
UL, TUV, CDRH
Compliance certificates
RoHS
Maximum current
300 A
Maximum voltage
3.3 V
Certification
CE, FCC, VCCI, C-Tick, MSA
Mean time between failures (MTBF)
3960000 h
Safety
UL, TUV, CDRH
Product colour
Gold, Metallic
Hot-Plug support
Yes
Pallet gross width
122 cm
Pallet gross length
102 cm
Shipping (inner) case width
26 cm
Shipping (inner) case length
36 cm
Shipping (inner) case height
31 cm
Shipping (inner) case gross weight
4.2 kg
Products per shipping (inner) case
50 pc(s)
Harmonized System (HS) code
85369010
Shipping (inner) case net weight
3.2 kg
Pallet gross weight (air)
272 kg
Master (outer) cases per pallet (air)
60 pc(s)
Products per pallet (air)
3000 pc(s)
Pallet height (air)
199 cm
Pallet gross weight (sea)
272 kg
Master (outer) cases per pallet (sea)
60 pc(s)
Products per pallet (sea)
3000 pc(s)
Pallet height (sea)
199 cm
Operating relative humidity (H-H)
5 - 85%
Storage temperature (T-T)
-40 - 85 °C
Operating temperature (T-T)
0 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Package weight
64 g
Package depth
131 mm
Package height
49 mm
Package width
74 mm
Interface type
SFP+
Maximum data transfer rate
10000 Mbit/s
Networking standards
IEEE 802.3ae
Wavelength
850 nm
Fiber optic connector
LC
Fiber ethernet cabling technology
10GBASE
Link budget
10.1 dB
Duplex system
Full
Maximum transfer distance
550 m
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
SFP transceiver type
Fiber optic
Tx power (max)
-1 dBmW
Tx power (min)
-6.5 dBmW
Rx power (min)
-11.1 dBmW
Rx power (max)
-1 dBmW
Harmonized System (HS) code
85369010
Multi-mode fiber (MMF) supported
Yes
Single-mode fiber (SMF) supported
No
SFP transceiver standard
SR
Sustainability certificates
RoHS
Compliance certificates
RoHS
Weight
18 g
Height
56.5 mm
Width
14.8 mm
Depth
11.8 mm
