Switch Modules | CISCO 1000BASE-LX SFP Transceiver | MGBLX1 | ServersPlus

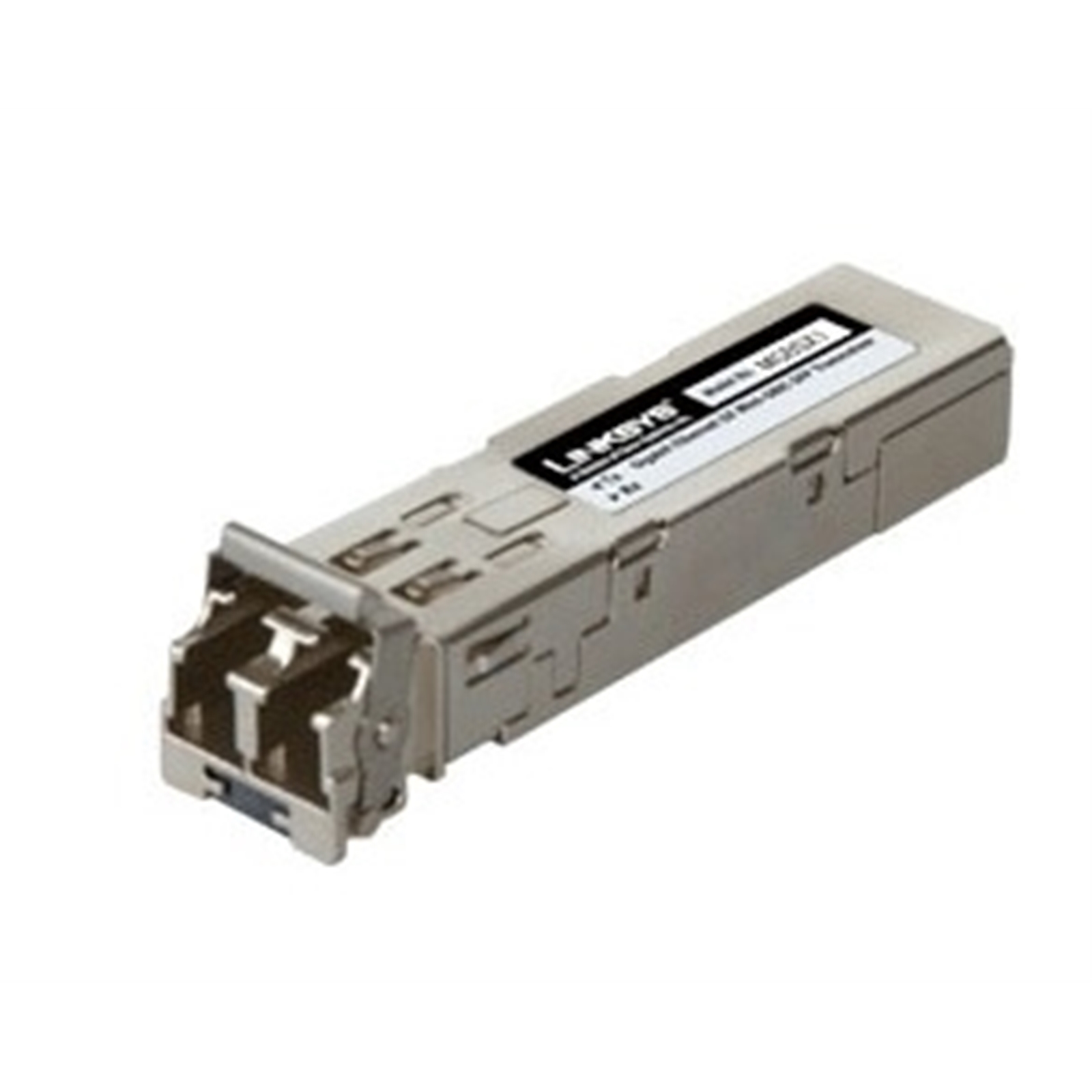

Illustration purposes only

CISCO 1000BASE-LX SFP Transceiver

CISCO Logo here

Manufacturer Part Code: MGBLX1

Order Code: NPCIS-MGBLX1

Category: Switch Modules

1000BASE-LX SFP Transceiver

Highlights
-Adds fiber-optic connectivity to Cisco Small Business and Cisco Small Business Pro Series switches.
-High-performance link for connecting networks within a building or small campus area.
-Easy removal with an integrated spring latch.
-Hot swappable to maintain network availability.

Product Overview
Cisco® MFE and MGE Small Form-Factor Pluggable (SFP) or mini Gigabit Interface Converter (mini-GBIC) transceivers are easy-to-install modules that provide a simple way to add fiber connectivity or to add an extra Gigabit Ethernet port to your Cisco Small Business or Cisco Small Business Pro Series switches. The transceivers are available for single-mode or multimode fiber-optic cabling and can support distances from 100 meters up to 40 kilometers.
The Cisco MFE and MGE transceivers provide fast and reliable connectivity between switches that are located on different floors, in separate buildings, or on a small campus network needing connectivity between sites. These transceivers can support both Fast and Gigabit Ethernet applications.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Certification
FCC Part 15 Class B,\nEN55022 Class B (CISPR 22B),\nVCCI Class B.
Safety
FDA 21 CFR 1040.10 & 1040.11, EN60950, EN (IEC) 60825-1,2
Certification
FCC Part 15 Class B,\nEN55022 Class B (CISPR 22B),\nVCCI Class B.
Safety
FDA 21 CFR 1040.10 & 1040.11, EN60950, EN (IEC) 60825-1,2
Power consumption (typical)
1 W
Plug and Play
Y
Hot-swap
Y
Cabling technology
1000Base-LX
Data transfer rate (max)
1000 Mbit/s
Operating relative humidity range
10 - 85%
Storage temperature range (T-T)
-40 - 85 °C
Operating temperature range (T-T)
0 - 70 °C
Storage relative humidity range
5 - 90%
Interface
SFP
Dimensions (WxDxH)
13.4 x 55.7 x 8.5 mm
Full duplex
Y
Cabling technology
1000Base-LX
Connector(s)
LC-LC
Fiber type
SMF
Transmit power
-9.5 - -3 dBmW
Plug and Play
Y
Wavelength
1310 nm
Hot-swap
Y
Source data-sheet
Icecat.biz
Maximum transfer distance
10000 m
Connectivity technology
Wired
Plug and Play
Y
Plug and Play
Y
Wavelength
1310 nm
Hot-swap
Y
Source data-sheet
Icecat.biz
Maximum transfer distance
10000 m
Dimensions (WxDxH)
13.4 x 55.7 x 8.5 mm
Weight
18 g
