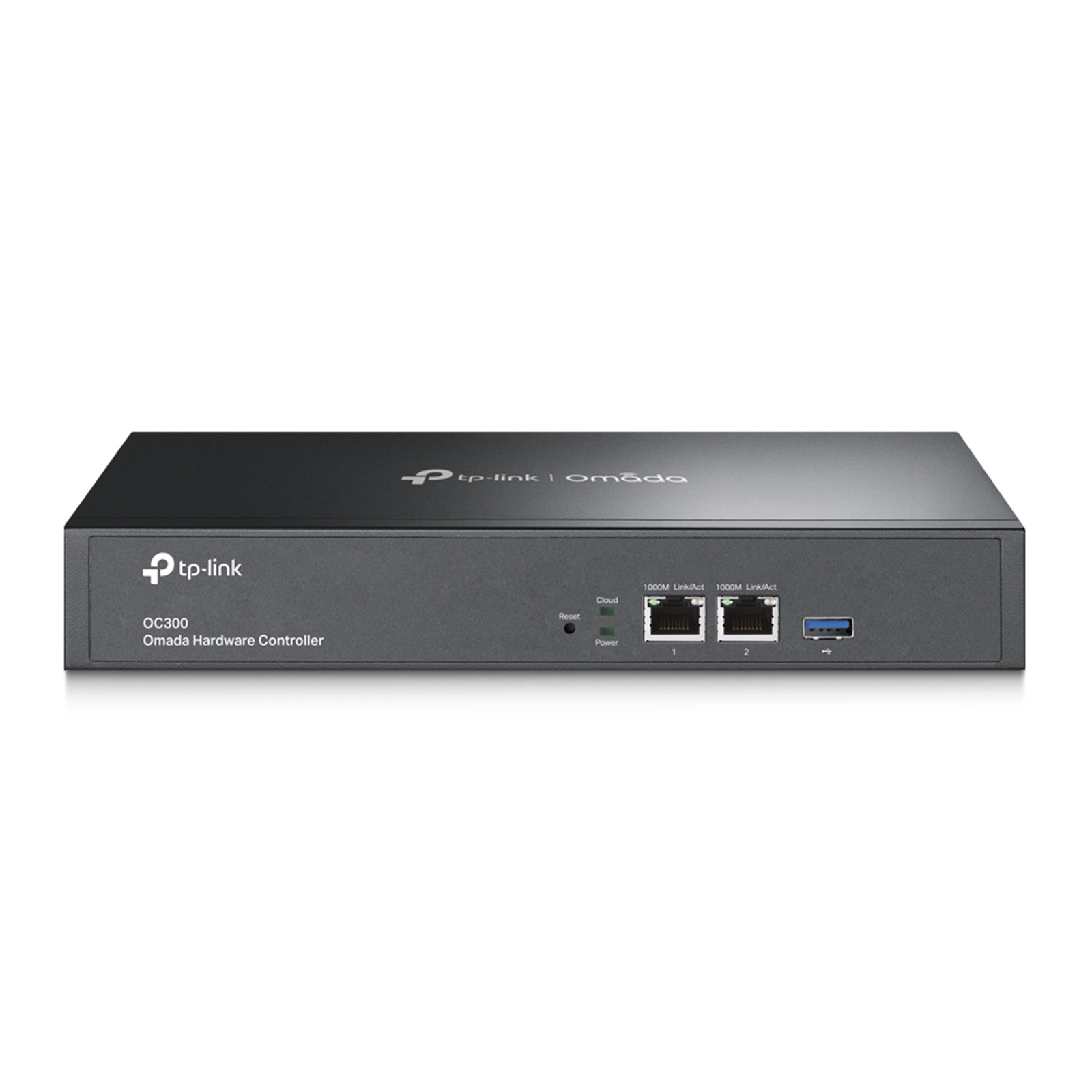

TP-LINK Omada Cloud Controller OC300

TP-LINK Logo here

Manufacturer Part Code: OC300

Order Code: NPTPL-OC300

Category: Switch Modules

TP-Link OC300 Omada Cloud Controller, Up to 500 Omada access points, 100 JetStream switches and 100 Omada routers

Centralised Management for Access Points, Switches, and Gateways
OC300, the hardware controller for the Omada Software Defined Networking (SDN) platform, provides 100% centralised management of access points, switches, and gateways—all controlled from a single interface.


Hybrid Cloud for Maximum Convenience
Featuring hybrid cloud technology, the Omada Hardware Controller OC300 allows you to remotely control the whole network wherever you are in the world with cloud access. Locally manage devices with the ultimate security and stability.


Industry-Leading Hardware Design
Equipped with an advanced design and the latest chipset, OC300 has enough processing power to support the massive management of your business network. Rackmount/desktop design benefits easier and flexible installation.


Easy and Intelligent Network Monitoring
The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and traffic distribution; receive network condition logs, abnormal event warnings, and notifications; or even track key data for better business results. Network topology helps IT admins quickly see and troubleshoot connections at a glance.

Specifications

Interface
2x 10/100/1000 Mbps Ethernet Ports
1x USB 3.0 Port

Power Supply
100–240 V~50/60 Hz, 0.6 A

Other Non-Network Ports
1 x USB

Includes
Mounting Kit

Dimensions (WxHxD)
294 x 44 x 180 mm

Model Number
OC300

Cloud Access
Yes

L3 Management
Yes

Multi-site Management
Yes


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Certification
CE, FCC, RoHS
Rack mounting
Yes
LED indicators
Yes
Product colour
Black
Input current
0.6 A
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Web-based management
Yes
Access Control List (ACL)
Yes
VLAN support
Yes
Ethernet LAN
Yes
Networking standards
IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates
10,100,1000 Mbit/s
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Storage relative humidity (H-H)
5 - 90%
Number of users
15000 user(s)
Number of Remote Access Points (max)
500
Number of LAN Access Points (max)
2
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
Security algorithms
SNMP, SSH
Security algorithms
SSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Package weight
1.91 kg
Height
44 mm
Width
294 mm
Depth
180 mm
Package depth
400 mm
Package height
80 mm
Package width
250 mm
