Switch Modules | TP-LINK TL-SM5110-LR 10GBase-LR SFP+ LC Single-Mode SFP Module | TL-SM5110-LR | ServersPlus

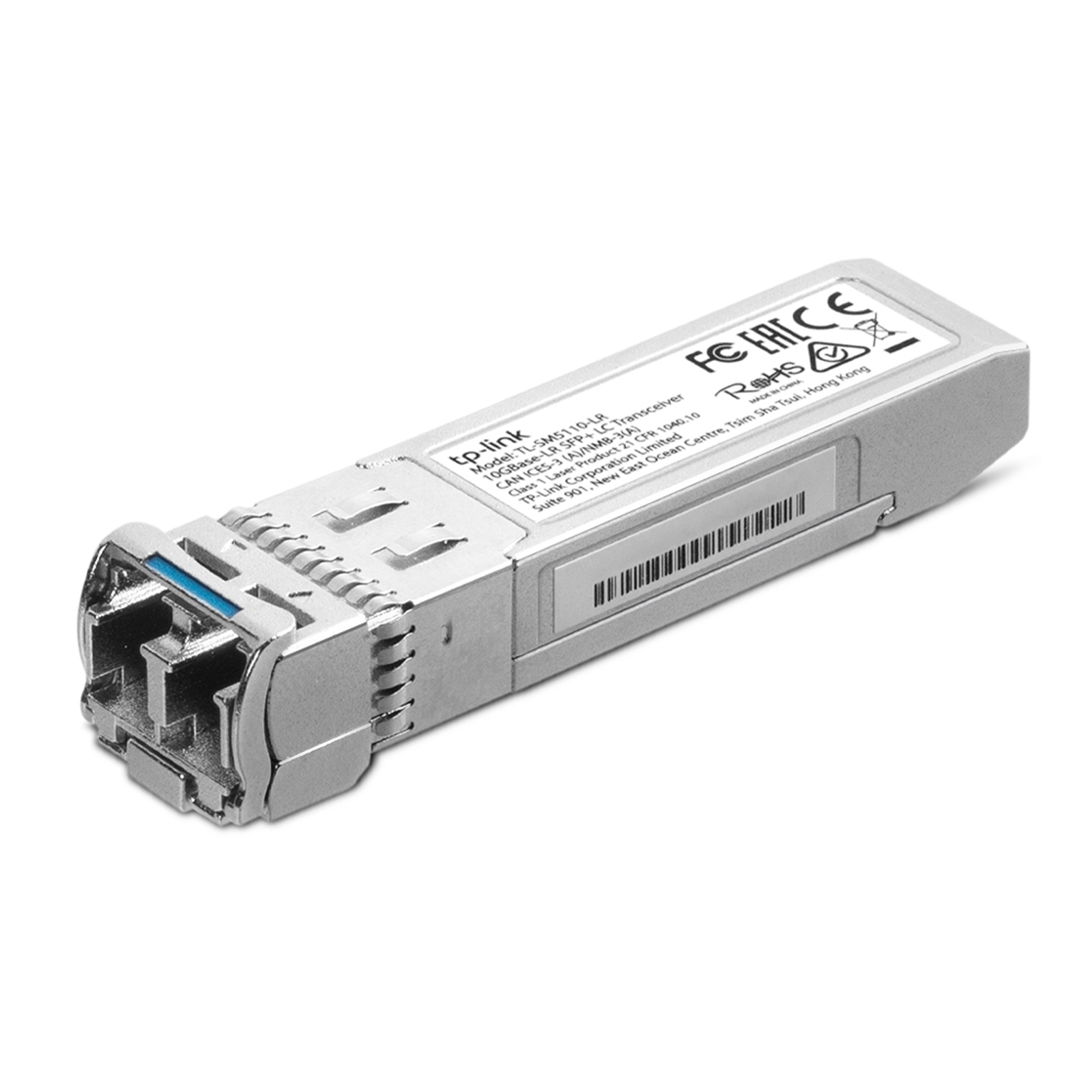

Illustration purposes only

TP-LINK TL-SM5110-LR 10GBase-LR SFP+ LC Single-Mode SFP Module

TP-LINK Logo here

Manufacturer Part Code: TL-SM5110-LR

Order Code: NPTPL-TLSM5110LR

Category: Switch Modules

TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Single-Mode SFP Module

What This Product Does
The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.


Specifications

PACKAGE CONTENTS

Package Contents:
• 10G SFP+ Module TL-SM5110-LR
• Installation Guide

HARDWARE FEATURES

DDM:
Yes

SFP-MSA:
Yes

Hot Swappable:
Yes

MEDIA CONVERTER & MODULE

Dimensions (W*D*H):
2.2*0.5*0.4 in (56.7*13.9*10.35 mm)

TRANSCEIVER

Standards and Protocols:
IEEE 802.3ae, TCP/IP

Wave Length:
1310 nm

Power Supply:
3.3V

Fiber Type:
9/125um Single-Mode

Max. Cable Length:
10 km

Data Rate:
10 Gbps

Port Type:
LC Duplex

Safety & Emission:
FCC, CE


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Certification
FCC, CE
Certification
FCC, CE
Input voltage
3.3 V
Input voltage
3.3 V
Certification
FCC, CE
Certification
FCC, CE
Compatible products
Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Hot-Plug support
Yes
Brand compatibility
TP-Link
Compatible products
Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Hot-Plug support
Y
Brand compatibility
TP-Link
Quantity per pack
1 pc(s)
Harmonized System (HS) code
85369010
Interface type
SFP+
Data transfer rate (max)
10000 Mbit/s
Networking standards
IEEE 802.3ae
Fiber optic connector
LC
SFP transceiver type
Fiber optic
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 85 °C
Operating temperature (T-T)
0 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating relative humidity range
10 - 90%
Storage temperature range (T-T)
-40 - 85 °C
Operating temperature range (T-T)
0 - 70 °C
Storage relative humidity range
5 - 90%
Quantity per pack
1 pc(s)
Number of products included
1 pc(s)
Package weight
60 g
Package depth
122.5 mm
Package height
38.5 mm
Package width
81.5 mm
Number of products included
1 pc(s)
Number of products included
1 pc(s)
Interface type
SFP+
Maximum data transfer rate
10000 Mbit/s
Networking standards
IEEE 802.3ae
Wavelength
1310 nm
Interface type
SFP+
Maximum data transfer rate
10000 Mbit/s
Networking standards
IEEE 802.3ae
Fiber optic connector
LC
Maximum transfer distance
10000 m
Fiber cable diameters supported (core/cladding)
9/125 µm
SFP transceiver type
Fiber optic
Compatible products
Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Wavelength
1310 nm
Hot-Plug support
Y
Digital Diagnostics Monitoring (DDM)
Yes
Harmonized System (HS) code
85369010
Multi-mode fiber (MMF) supported
No
Single-mode fiber (SMF) supported
Yes
SFP transceiver standard
LR
Fiber optic connector
LC
Maximum transfer distance
10000 m
Fiber cable diameters supported
9/125 µm
SFP transceiver type
Fiber optic
Digital Diagnostics Monitoring (DDM)
Y
Multi-mode fiber (MMF) supported
N
Single-mode fiber (SMF) supported
Y
SFP transceiver standard
LR
Compatible products
Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Wavelength
1310 nm
Hot-Plug support
Y
Maximum transfer distance
10000 m
Fiber cable diameters supported
9/125 µm
