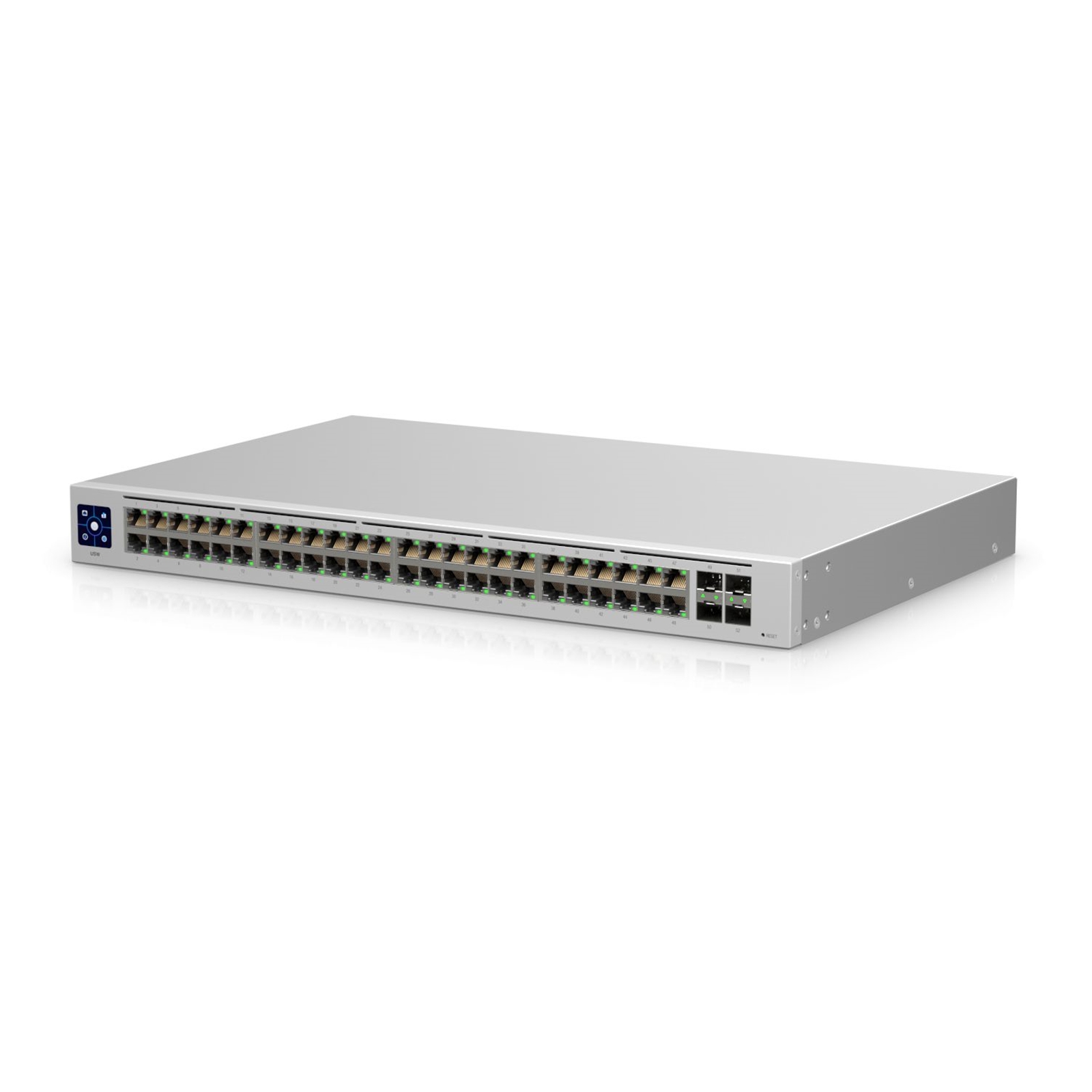

Ubiquiti UniFi 48-Port Switch - USW-48

Manufacturer Part Code: USW-48
Order Code: NPUBI-USW-48
Category: Switch Finder
Ubiquiti USW-48 UniFi Switch 48, 48 x 1GbE RJ45 ports, 4 x 1G SFP ports, 1.3-Inch LCM color touchscreen with AR switch management, Fanless silent cooling Layer 2 Switch
Layer 2 switch with (48) GbE RJ45 ports and (4) 1G SFP ports.
The Switch 48 (USW 48) is a fully managed, fanless switch with (48) GbE RJ45 ports and (4) 1G SFP ports. The versatile USW 48 provides Gigabit links to Ethernet devices while also supplying Gigabit fiber uplink options fit for an enterprise network. The switch also offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate), and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features
(1) 1.3" LCM color touchscreen with AR switch management
(48) GbE RJ45 ports
(4) 1G SFP ports
Fanless, silent cooling
Specifications
Dimensions
442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72")
Weight
Without Mount: 3.9 kg (8.6 lb)
With Mount: 3.99 kg (8.8 lb)
Enclosure Chartacteristics
SGCC Steel
Total Non-Blocking Line Rate
52 Gbps
Max. Power Consumption
40W
Forwarding Rate
77.376 Mpps
Power Method
Universal AC Input: 100-240VAC, 50/60 Hz
Power Supply
AC/DC, Internal, 60W
Supported Voltage Range
100 - 240VAC
Networking Interfaces
(48) 10/100/1000 Mbps Ethernet RJ45 Ports
(4) 1 Gbps SFP Ports
Management Interface
Ethernet In-Band
Modes
SMB Layer 2 Gigabit Ethernet Switch
Operating Temperature
-15 to 40° C (5 to 104° F)
Operating Humidity
10 - 90% Noncondensing
Certifications
CE, FCC, IC
System LEDs
(1) Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
Ethernet
Green: 1G, Amber: 10/100 Mbps
SFP
Green: 1G
