Ubiquiti AirFiber Radios | Ubiquiti  AF-5XHD AirFiber 5XHD True 1Gbps+ Spectrally Efficient LTU Radio | AF-5XHD | ServersPlus
L R
Ubiquiti AF-5XHD | serversplus.comUbiquiti AF-5XHD | serversplus.comUbiquiti AF-5XHD | serversplus.comUbiquiti AF-5XHD | serversplus.comUbiquiti AF-5XHD | serversplus.com

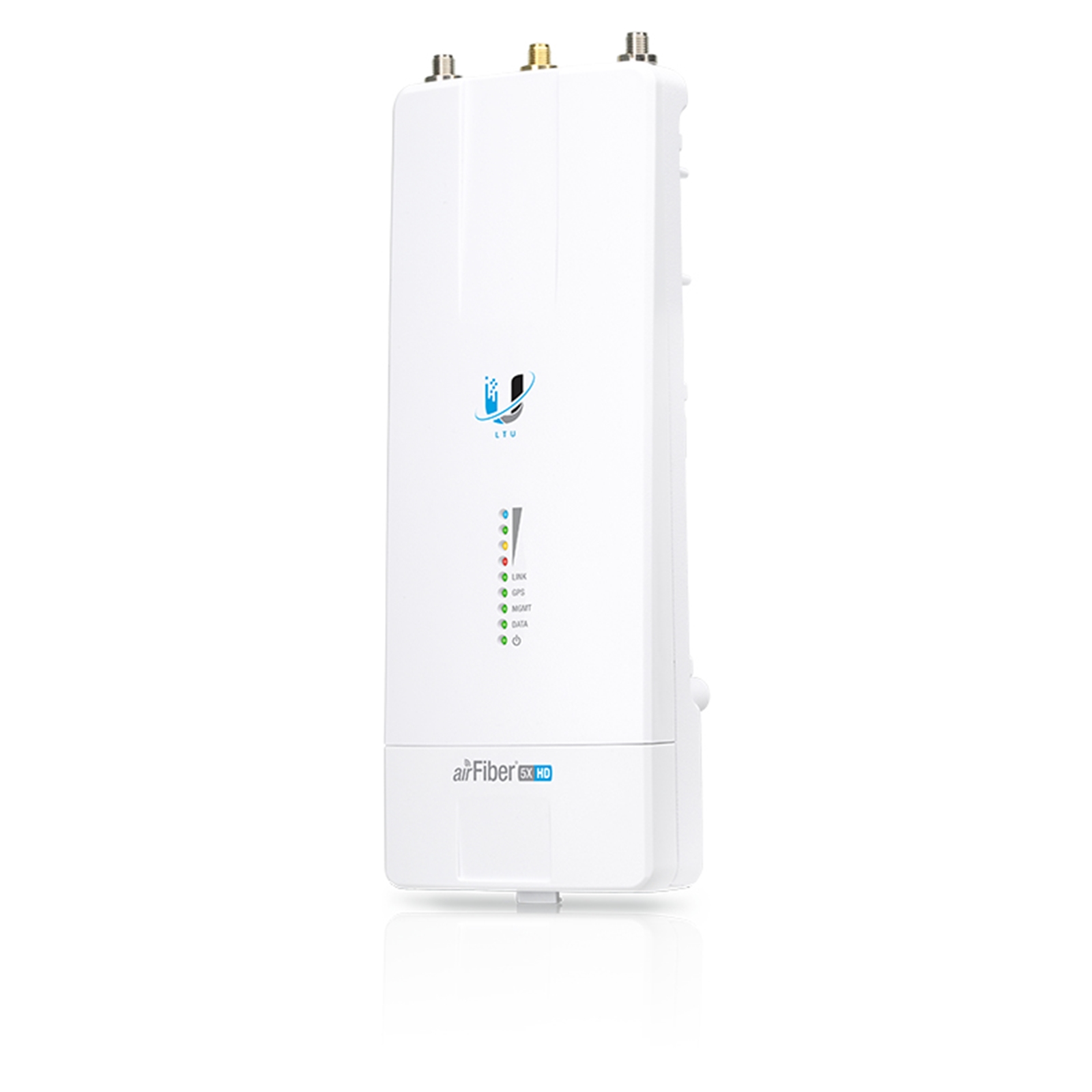

Illustration purposes only

Ubiquiti AF-5XHD AirFiber 5XHD True 1Gbps+ Spectrally Efficient LTU Radio

Ubiquiti Logo here

Manufacturer Part Code: AF-5XHD

Order Code: NPUBI-AF5XHD

Category: Ubiquiti AirFiber Radios

Ubiquiti AF-5XHD AirFiber 5XHD True 1Gbps+ Spectrally Efficient LTU Radio

The New Standard for WISP Backhaul Performance
True 1Gbps+ Spectrally Efficient, Noise Resilient PTP Technology Specifically Designed for WISP's

Complete Custom Hardware for the WISP, right down to the Silicon
Our core communications processing engine surpasses all of the limitations inherent to generic Wi-Fi chips.

Game-Changing LTU Technology
Spectral Efficiency Comparison of 802.11n, 802.11ac, airFiber Original, and LTU by year.

IP-67 Durability
airFiber 5XHD is Water Resistant and Perfect for any Weather Conditions.

Specifications

IP-67
Yes

GPS
External - Magnetic Base

Maximum Throughput
1Gbps+

Max PPS
2+ Million

Spectral Efficiency
21,2 bps/Hz

Modulation Symbols
4096 QAM

Spectral Widths Supported
10/20/30/40/50/60/80/100 MHz

UNMS App Bluetooth Support
Yes


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Channel bandwidth
100 MHz
Certification
FCC
Data transfer rate (max)
1000 Mbit/s
Ethernet LAN data transfer rates
10,100,1000 Mbit/s
Internal
N
Certification
FCC
Colour of product
White
International Protection (IP) code
IP67
Placement
Wall
Input voltage
20 - 50
Output voltage
24
Power over Ethernet (PoE) Support
Y
Output current
1 A
Power consumption (max)
12 W
Maximum data transfer rate
1000 Mbit/s
Channel bandwidth
100 MHz
Modulation
QAM
Frequency band
5.150 - 5.250 / 5.740 - 5.850
Operating system installed
AirOS
Ethernet LAN data rates
10,100,1000 Mbit/s
Maximum outdoor range
200000 m
Transmitting power
29 dBmW
5 GHz
Y
Internal
N
Operating temperature range (T-T)
-40 - 55 °C
Mounting kit
Y
Mounting kit
Y
Certification
FCC
Data transfer rate (max)
1000 Mbit/s
Channel bandwidth
100 MHz
Modulation
QAM
Frequency band
5.150 - 5.250 / 5.740 - 5.850
Operating system installed
AirOS
GPS (satellite)
Y
Ethernet LAN data rates
10,100,1000 Mbit/s
Maximum outdoor range
200000 m
Transmitting power
29 dBmW
5 GHz
Y
Ethernet LAN (RJ-45) ports quantity
2
Security algorithms supported
128-bit AES
Height
224 mm
Input voltage
20 - 50
Weight
350 g
Height
224 mm
Width
82 mm
Depth
48 mm
Modulation
QAM
Frequency band
5.150 - 5.250 / 5.740 - 5.850
