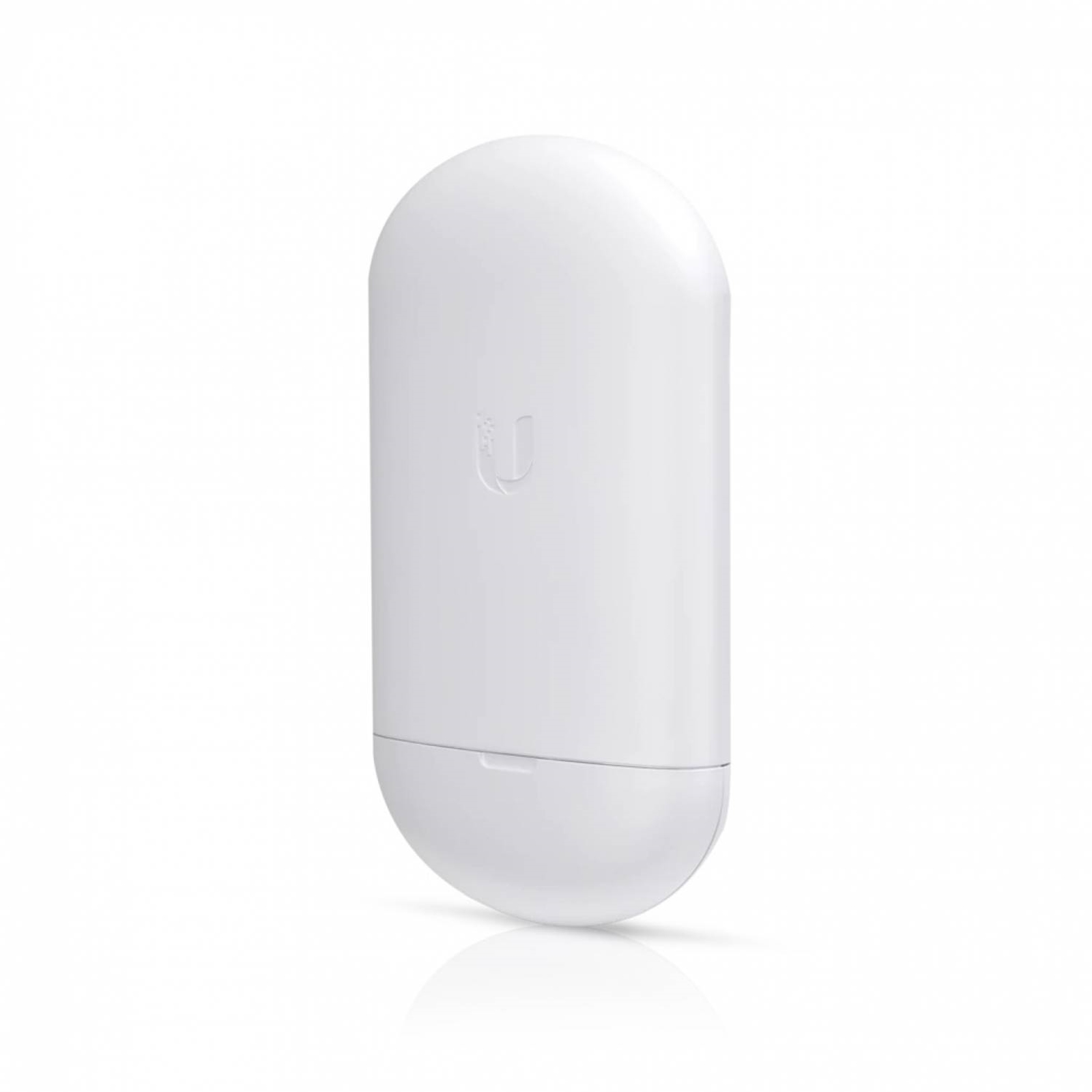

Ubiquiti LTU-LITE 5 GHz PtMP LTU Client Radio for use with LTU-Rocket

Ubiquiti LTU Point-to-MultiPoint Subscriber Station

The LTU-Lite Point-to-MultiPoint 5GHz Subscriber Station is part of the new LTU range from Ubiquiti. In a PtMP environment, the LTU Lite functions as CPE to the LTU Rocket

The LTU-Lite runs on Ubiquiti's proprietary LTU technology which allows it to overcome the limitations of the 802.11 standard. Support for multiple channel widths is included (10/20/30/40/50 MHz) as well as modulation rates up to 1024QAM.

Features
Up to 1024 QAM
10/20/30/40/50 MHz channel bandwidth
Central configuration management from AP side
Automatic power adjustment
Router mode support

Specifications

Dimensions
153 x 84 x 39.5 mm

Weight
250 g

Networking Interface

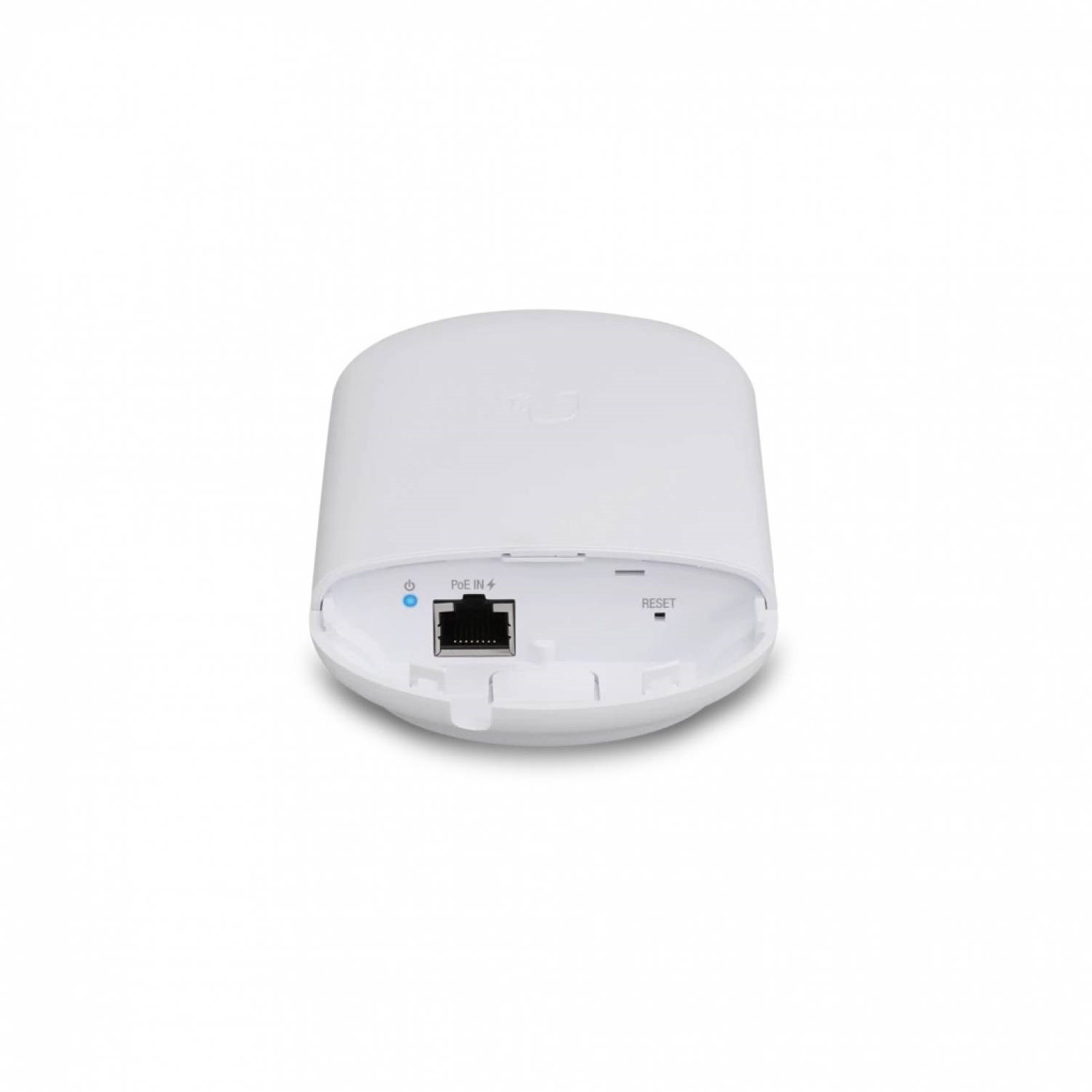

(1) 10/100/1000 Ethernet Port

Enclosure
Outdoor UV Stabilised Plastic

Max. Power Consumption
8.5W

Power Supply
24V, 0.5A Gigabit PoE Adapter (Included)

Power Method
24V Passive PoE (Pairs 4, 5+; 7, 8-)

Voltage Range
22-26 V

Max. Conducted TX Power
22 dBm (per Chain)

Gain
13 dBi

Cross-pol Isolation
20 dB Minimum

Max VSWR
1.8:1

Beamwidth
45 degrees H-pol/V-pol/Elevation

Polarisation
Dual Linear

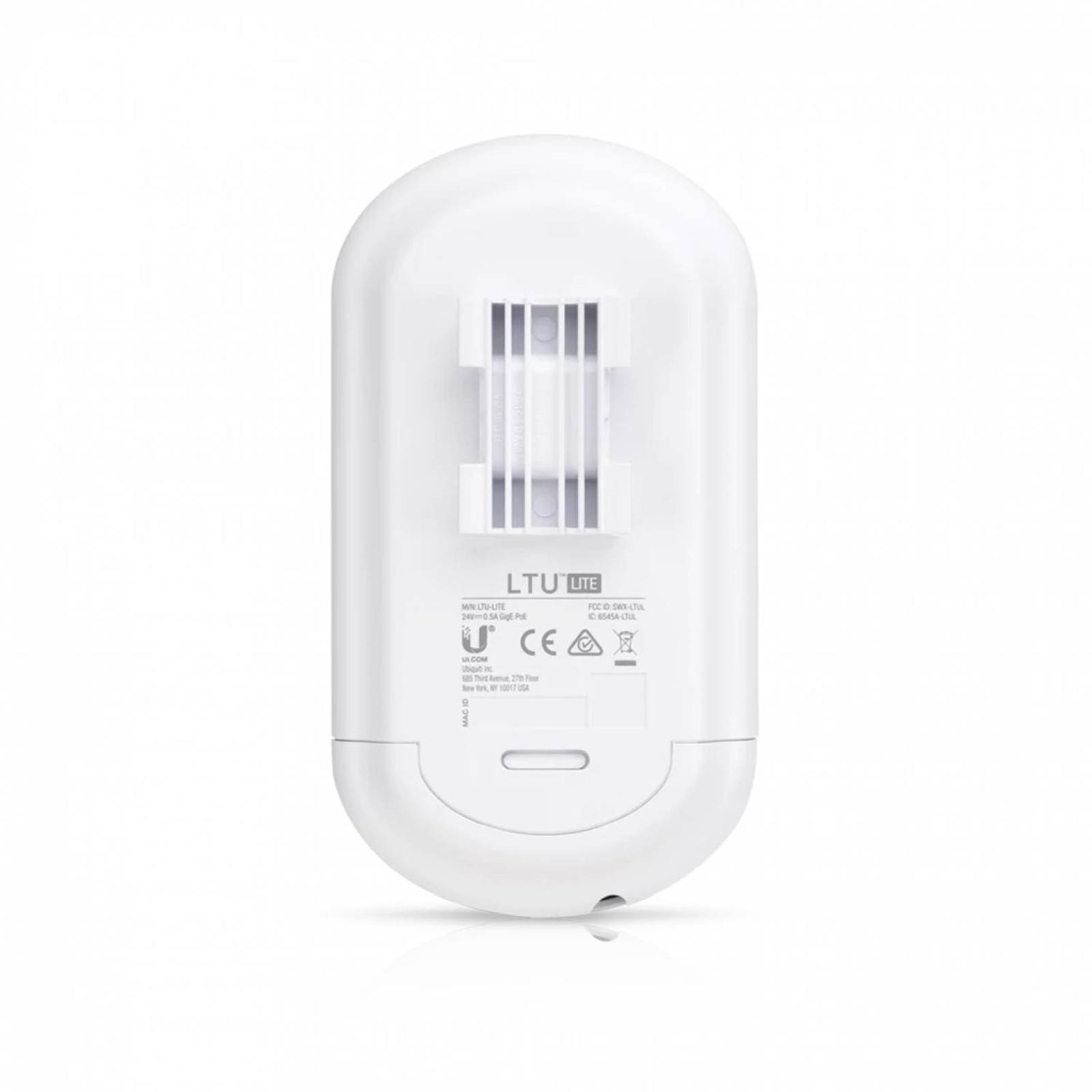

Mounting
Pole-Mount Wall Mount (Kit Included)

Wind Loading
20 N @ 200 km/h

Wind Survivability
200 km/h

ESD/EMP Protection
+/- 24k V Contact/Air

Operating Temperature
-40 to 60C

Operating Humidity
5 - 95% Noncondensing

Certifications
CE, FCC, IC

Box Contents
LTU-Lite
Wall Mount Bracket
Screws (Qty. 2)
Screw Anchors (Qty. 2)
Zip Tie
Gigabit PoE (24V, 0.5A) with Mounting Bracket
UK Power Cord
