Ubiquiti LTU-ROCKET 5 GHz PtMP LTU BaseStation Radio for LTU-PRO/LTU-LITE/LTU-LR Clients

Ubiquiti LTU-ROCKET 5 GHz PtMP LTU BaseStation Radio

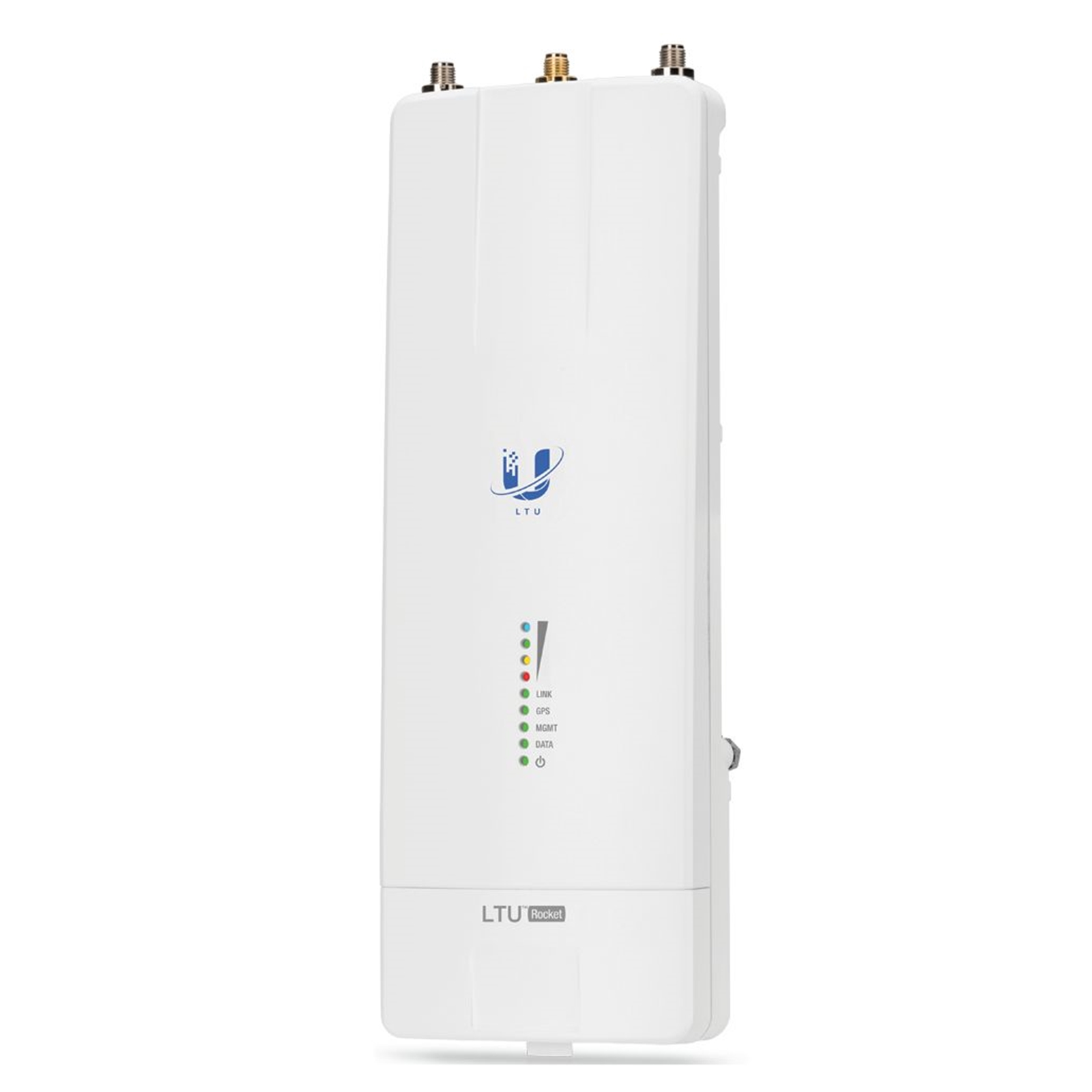

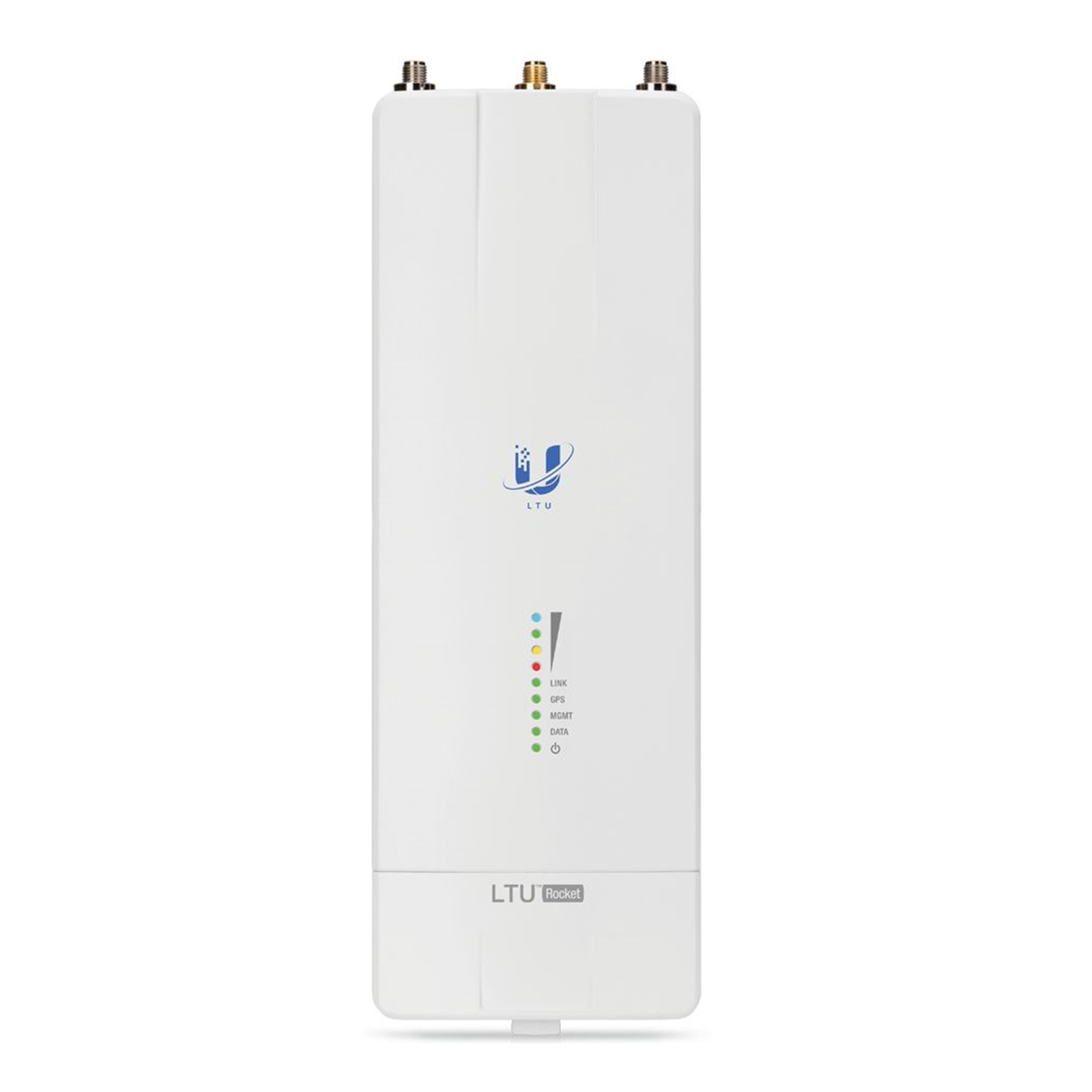

Introducing the Ubiquiti LTU Rocket, the first Point-to-Multi-Point (PtMP) BaseStation radio in the new Ubiquiti LTU product family lineup.

The LTU-ROCKET operates within the 5 GHz frequency band, and is a spectrally efficient, noise-resilient PtMP AP specifically designed for wireless ISPs (WISPs).

Key Features
600+ Mbps Point-to-MultiPoint Performance
Up to 64 Client Connections per AP
Up to 2+ Mpps Performance
Proprietary RF filtering

LTU-ROCKET features a proprietary technology with a custom silicon and radio design to break through the limitations of the well established 802.11 Wi-Fi technology. This enables LTU products to deliver far superior performance over previous Ubiquiti airMAX products.

The LTU Rocket is designed to be paired with a variety of existing Ubiquiti antennas, allowing you to cater to the needs of each individual installation. The radio includes mounting hardware that can be used with a 5 GHz airMAX Sector antenna or airMAX Omni-antenna for a complete 5 GHz PtMP BaseStation.

Three LTU Rocket radios can be Co-Located with the airPrism 5 GHz 3x30 HD Sector Antenna.

The LTU Rocket also works with any CPE device in the LTU family, such as the LTU-Pro.

Specifications

LTU-Rocket

Dimensions
244 x 82 x 48 mm

Weight
0.468 kg

Enclosure
Die-cast Aluminium and Poly-carbonate

RF Connectors
2 x RP-SMA Weatherproof (CH0, CH1)
1 x SMA Weatherproof (GPS)

GPS Antenna
External Magnetic Base

Power Supply
24V, 1A Gigabit PoE Adapter (Included)

Power Method
Proprietary 4-Pair Passive PoE
Pins 1, 2; 4, 5+ and Pins 3, 6; 7, 8-

Max Power Consumption
15W

Voltage Range
+18 to +54VDC

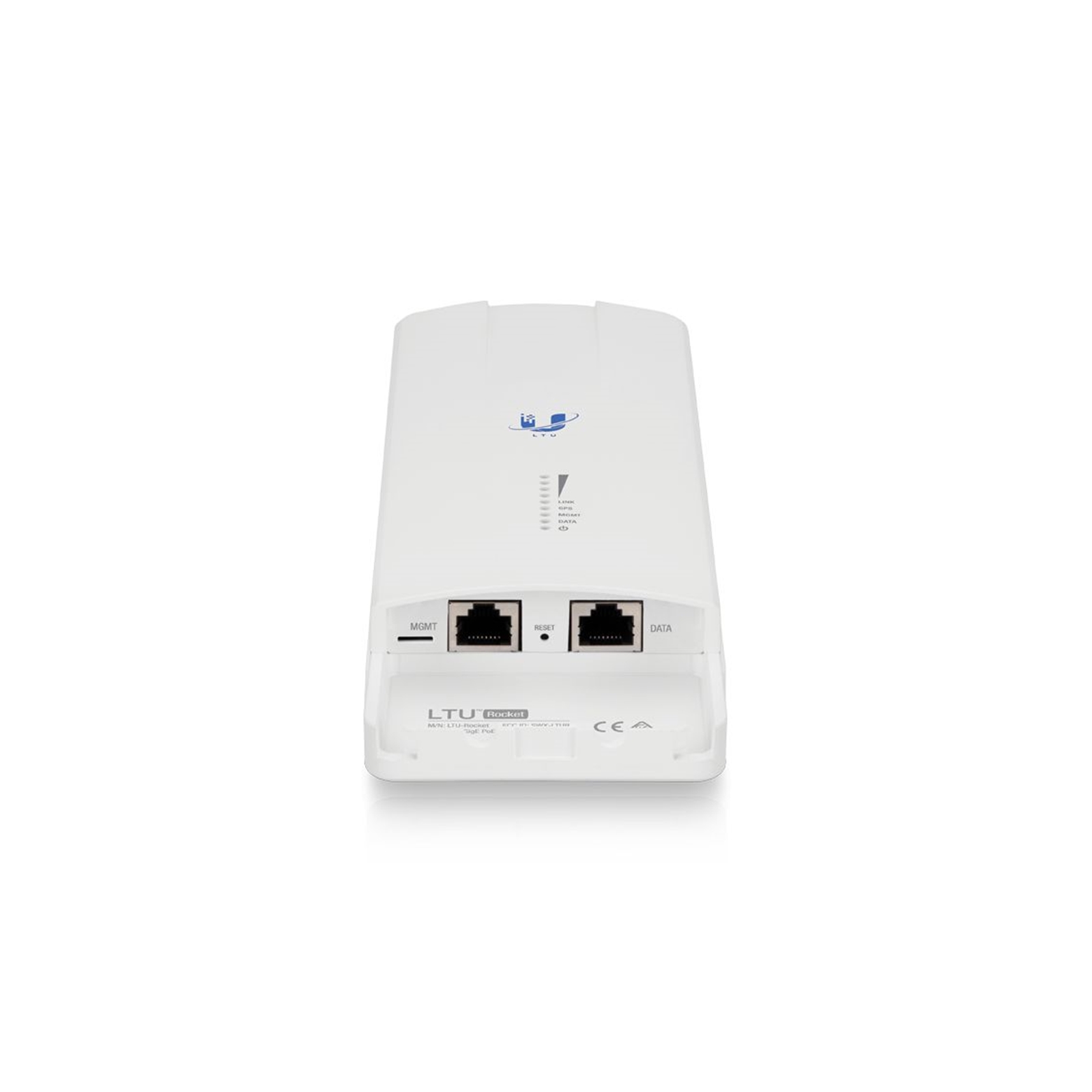

Networking Interface
1 x 10/100/1000 Ethernet Port

Mounting
Integrated Pole Mount (Included)
Rocket Mount Compatible
GPS Pole Mount (Included)

Operating Temperature
-40 to +55 C

Weatherproofing
IP67

Certifications
FCC Part 15.407
CE EN 302502 v1.2.1, EN 301 893 v1.7.1

System

Maximum Throughput
675.84 Mbps

Maximum Range
100+ km(Dependent on Regulatory Region)

Packets per Second
2+ Million

Encryption
WPA2-PSK (AES)

Forward Error Correction
LDPC

Uplink/Downlink Ratio
25/75, 33/67, 50/50

OS
airOS LTU

Wireless Modes
AP

Frequency Range Mhz

EU
5150 - 5875

Max Conducted TX Power
29 dBm (Dependent on Regulatory Region)

Frequency Accuracy
< 2 ppm

Channel Bandwidth
10/20/30/40/50 MHz Selectable
Programmable Up-link and Down-link Duty Cycles

Box Contents
LTU-Rocket
GPS Antenna Mount
External GPS Antenna
Metal Strap
Zip Ties (Qty. 2)
Universal Bracket
IP67 Upgrade Kit (Vent and Gasket)
Gigabit PoE (24V, 1A) with Mounting Bracket
UK Power Cord
