Ubiquiti AirMax | Ubiquiti  NSM2 NanoStation M2 airMAX Outdoor 11dBi Access Point CPE | NSM2 | ServersPlus
L R
Ubiquiti NSM2 | serversplus.comUbiquiti NSM2 | serversplus.comUbiquiti NSM2 | serversplus.comUbiquiti NSM2 | serversplus.com

Illustration purposes only

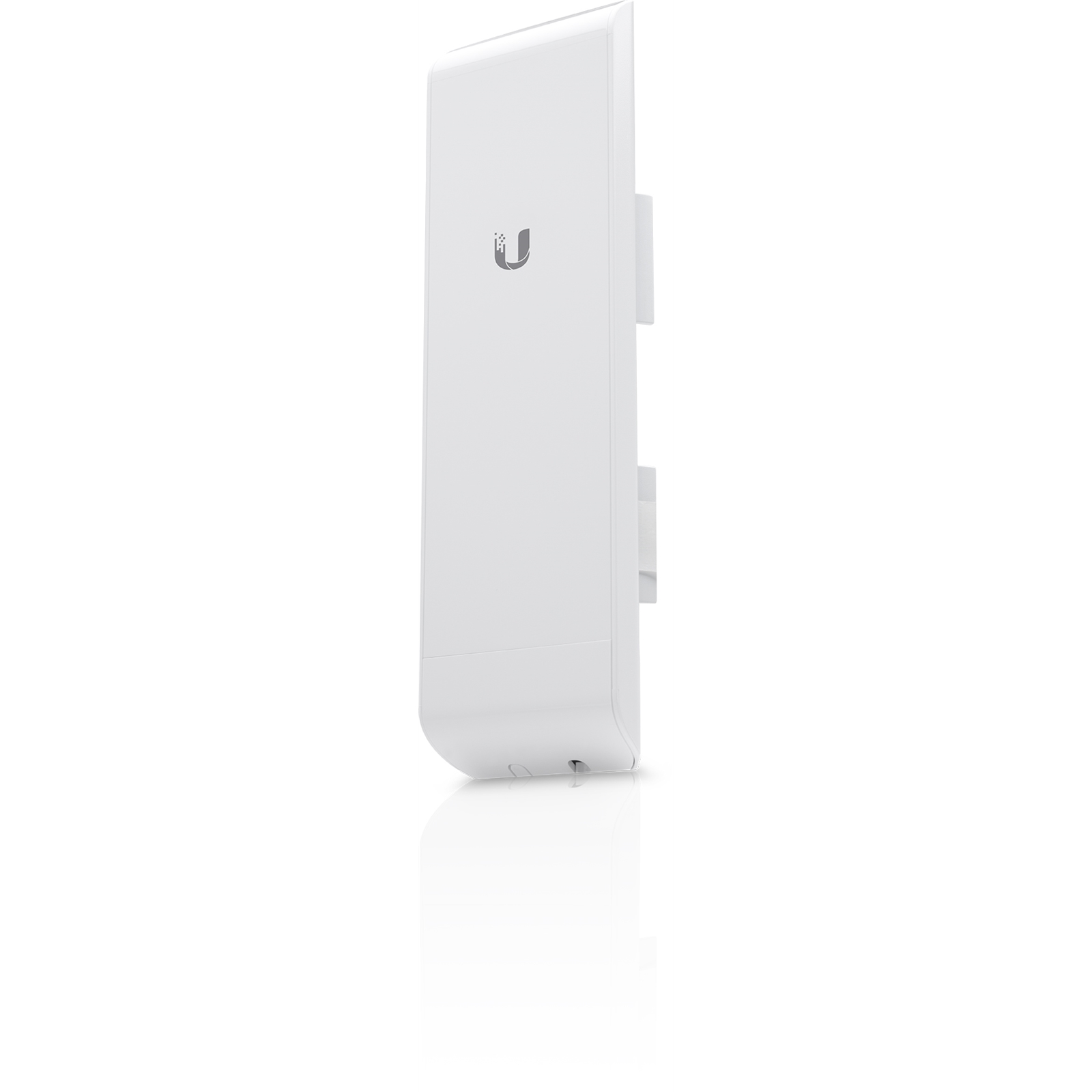

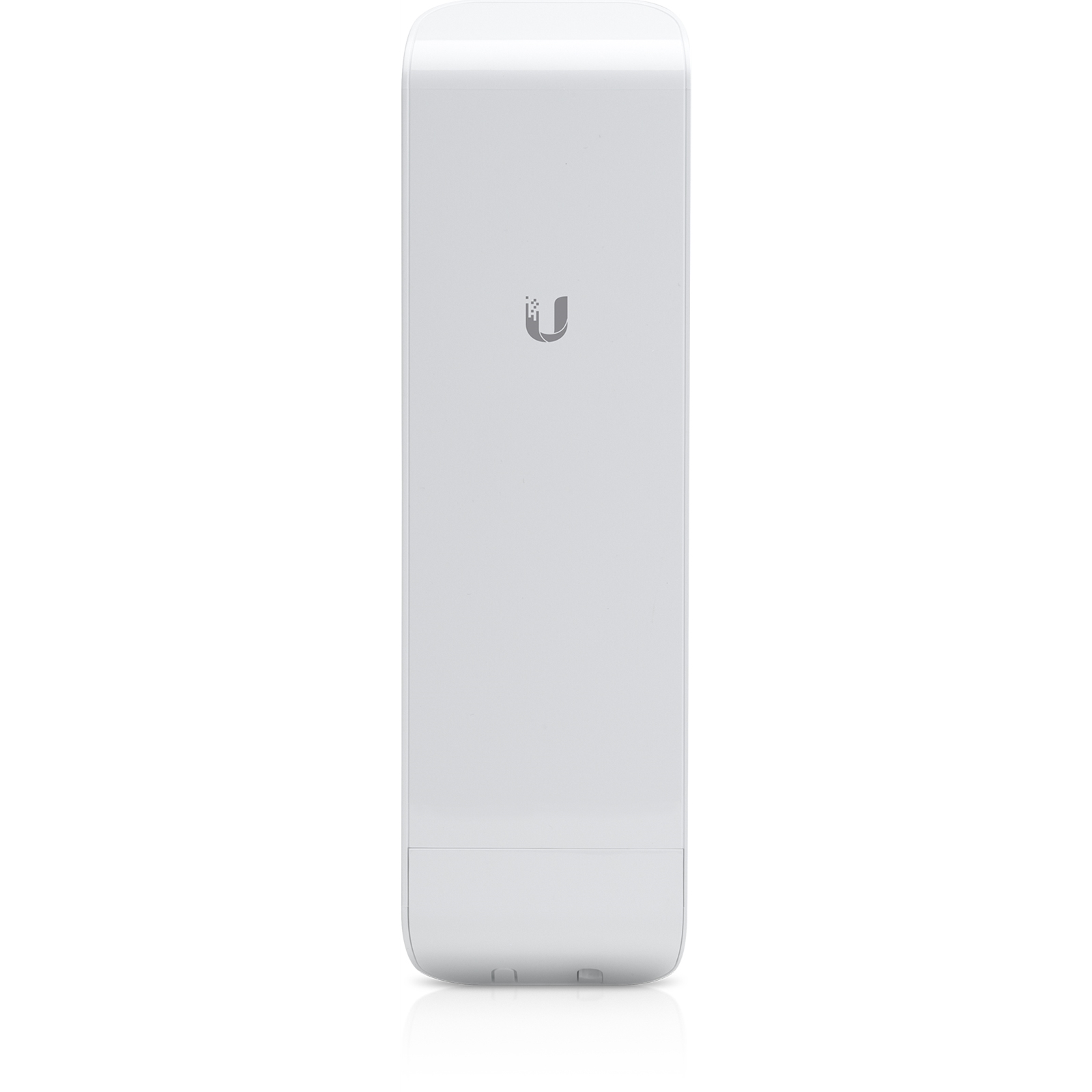

Ubiquiti NSM2 NanoStation M2 airMAX Outdoor 11dBi Access Point CPE

Ubiquiti Logo here

Manufacturer Part Code: NSM2

Order Code: NPUBI-NSM2

Category: Ubiquiti AirMax

Ubiquiti NSM2 NanoStation M2 airMAX Outdoor 11dBi Access Point CPE

Indoor/Outdoor airMAX CPE
Featuring a panel antenna and dual-polarity performance, the NanoStation M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.

Compact CPE Design
The NanoStation M features the CPE design that expanded the global Wireless ISP industry.

Plug and Play Installation

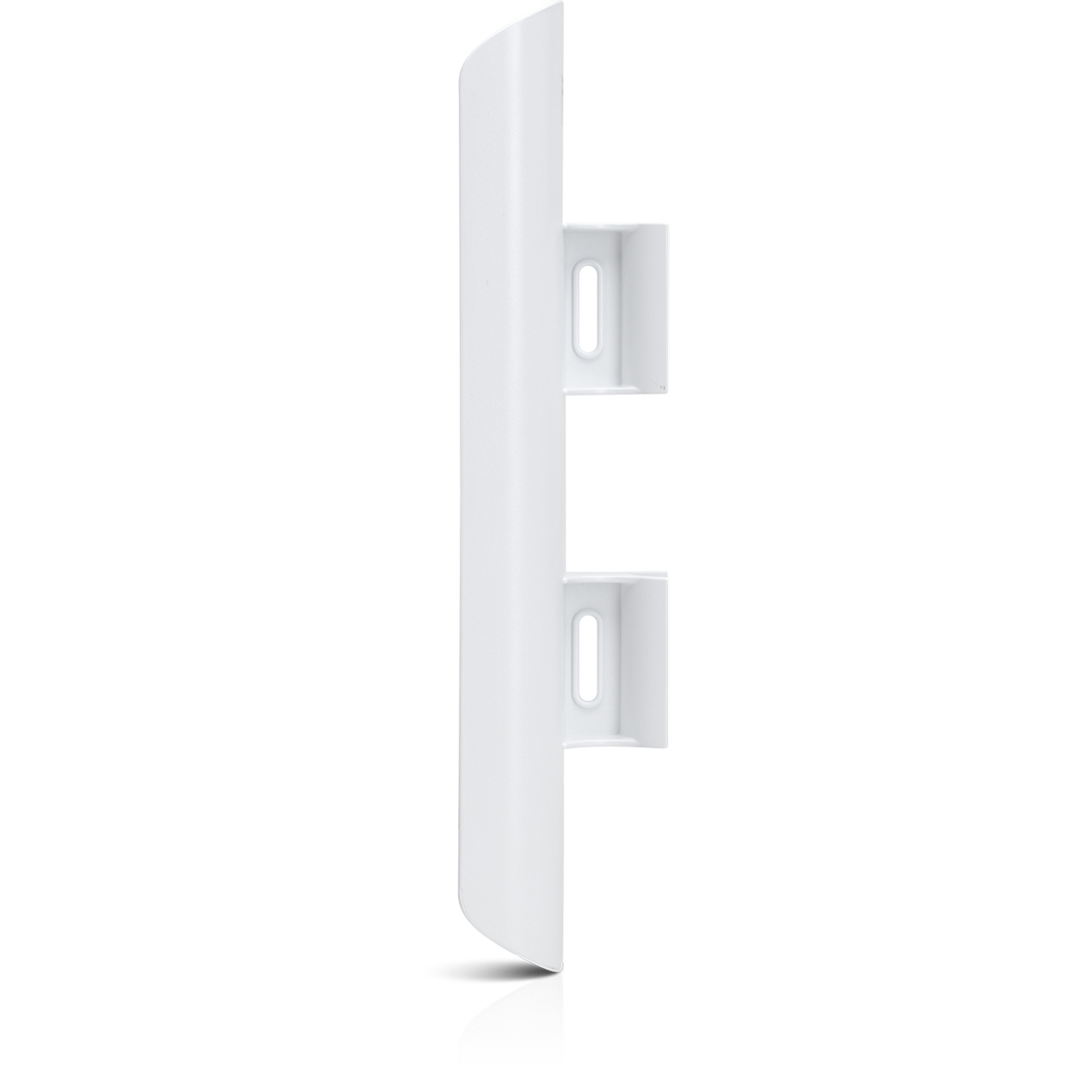

The NanoStation M requires no tools for assembly; only a single wrench is required for pole-mounting.

Versatile Application Use
The NanoStation M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX® CPE.

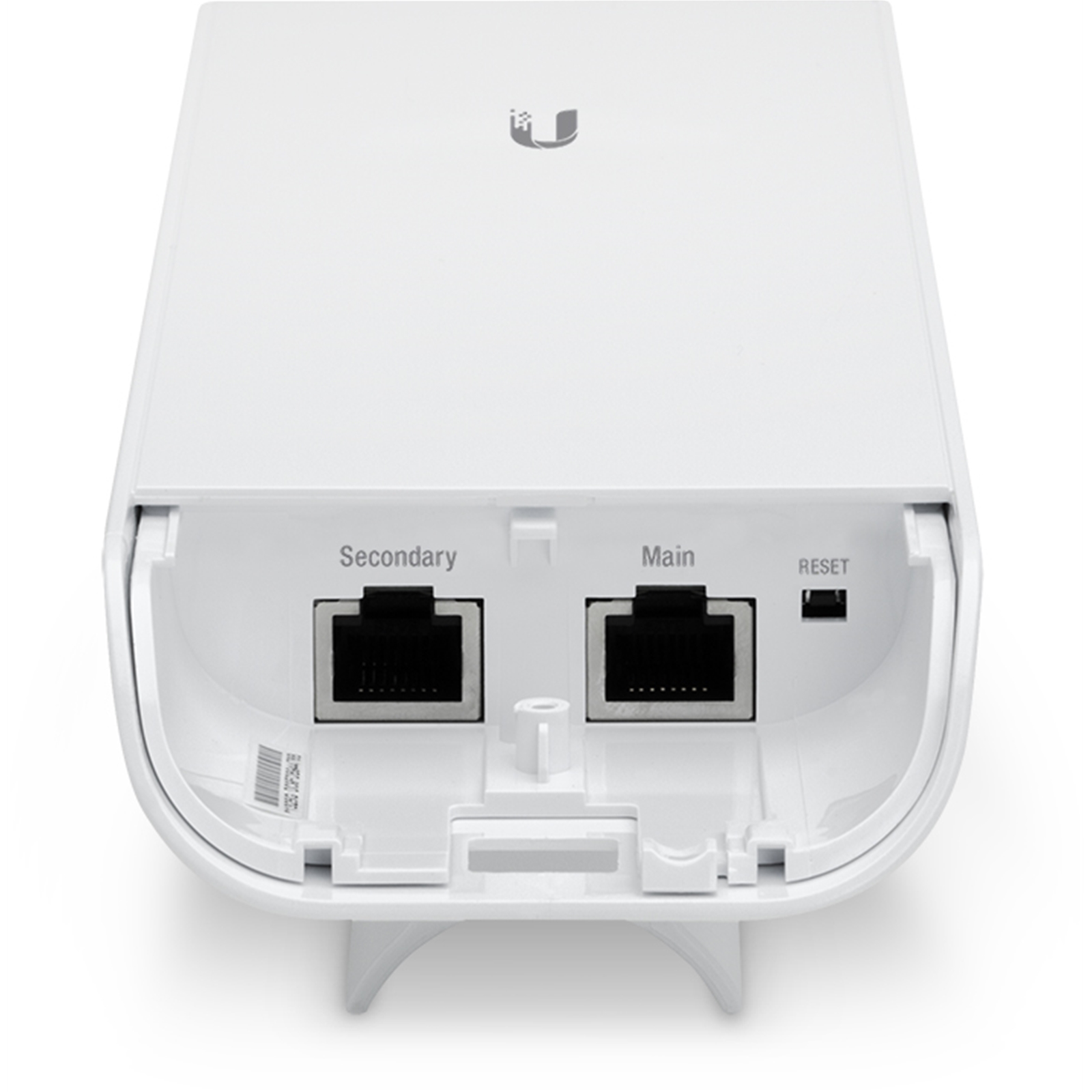

Dual Ethernet Connectivity
With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.

Powerful airOS Features
Ubiquiti's versatile airOS firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration and system management services.

Advanced Software Technology
Ubiquiti's airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Antenna gain level (max)
11.2 dBi
Antenna features
Integrated antenna
Internal
N
Certification
RoHS, FCC Part 15.247, IC RS210, CE
LED indicators
Y
Product colour
White
Power consumption (typical)
8 W
Power over Ethernet (PoE)
Y
Input current
0.5 A
AC input voltage
24 V
Maximum data transfer rate
150 Mbit/s
Frequency band
2.4 GHz
Networking standards
IEEE 802.3af
Ethernet LAN data rates
10,100 Mbit/s
Maximum outdoor range
15000 m
Transmitting power
28 dBmW
2.4 GHz
Y
Harmonized System (HS) code
85176990
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-30 - 80 °C
Processor frequency
400 MHz
Internal memory
32 MB
Processor model
Qualcomm Atheros
Flash memory
8 MB
Built-in processor
Y
Processor architecture
MIPS 24Kc
Ethernet LAN (RJ-45) ports
2
Harmonized System (HS) code
85176990
Weight
400 g
Height
294 mm
Width
80 mm
Depth
30 mm
