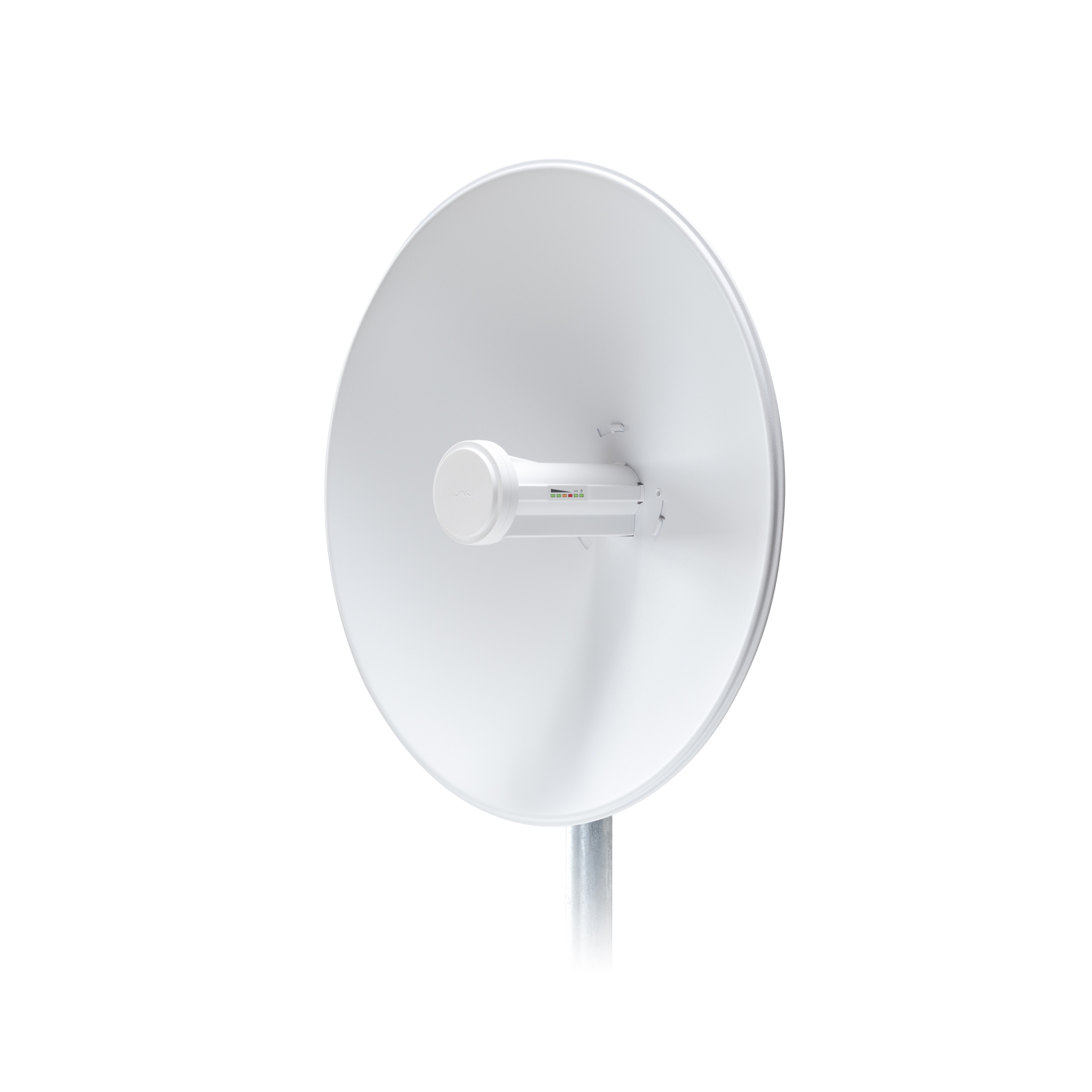

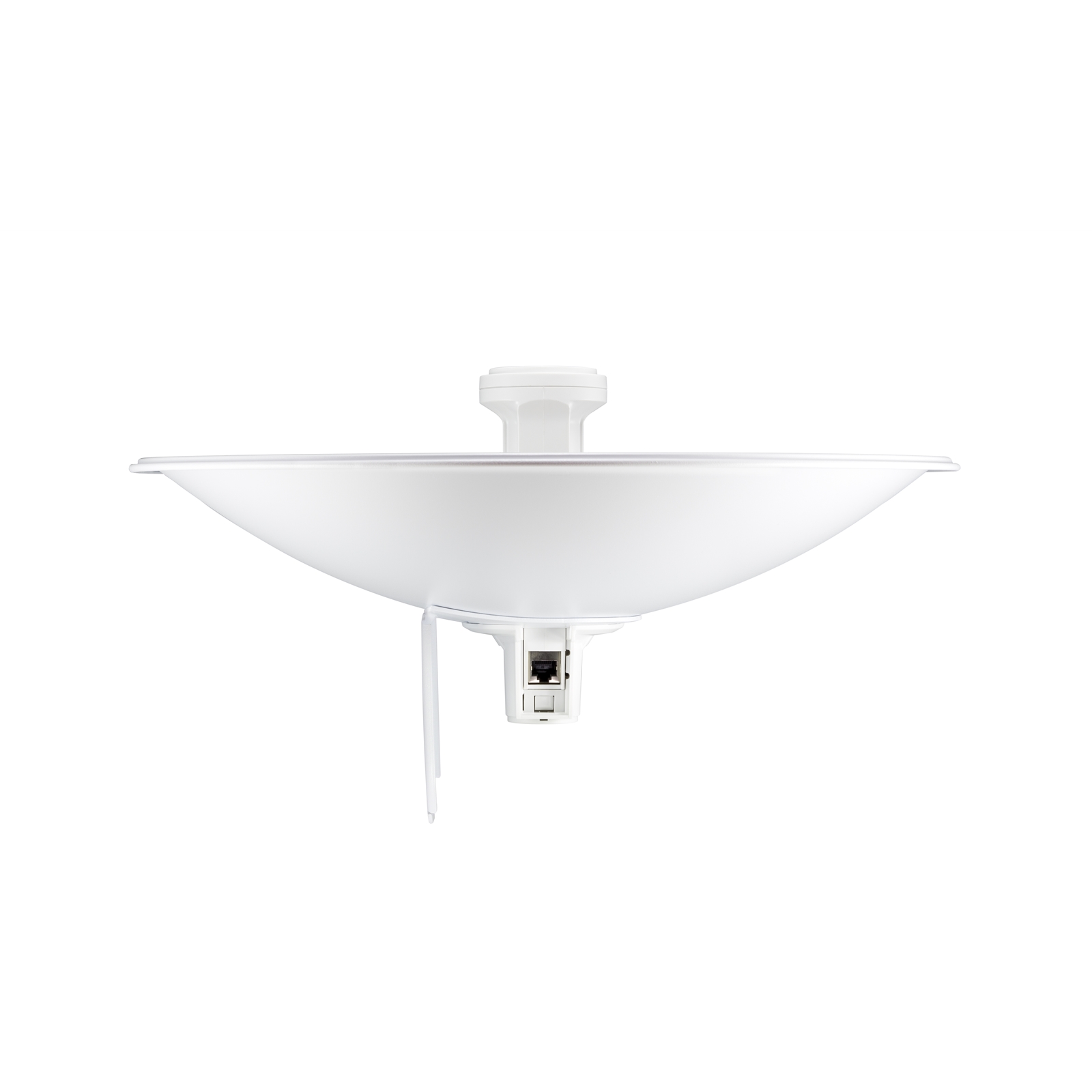

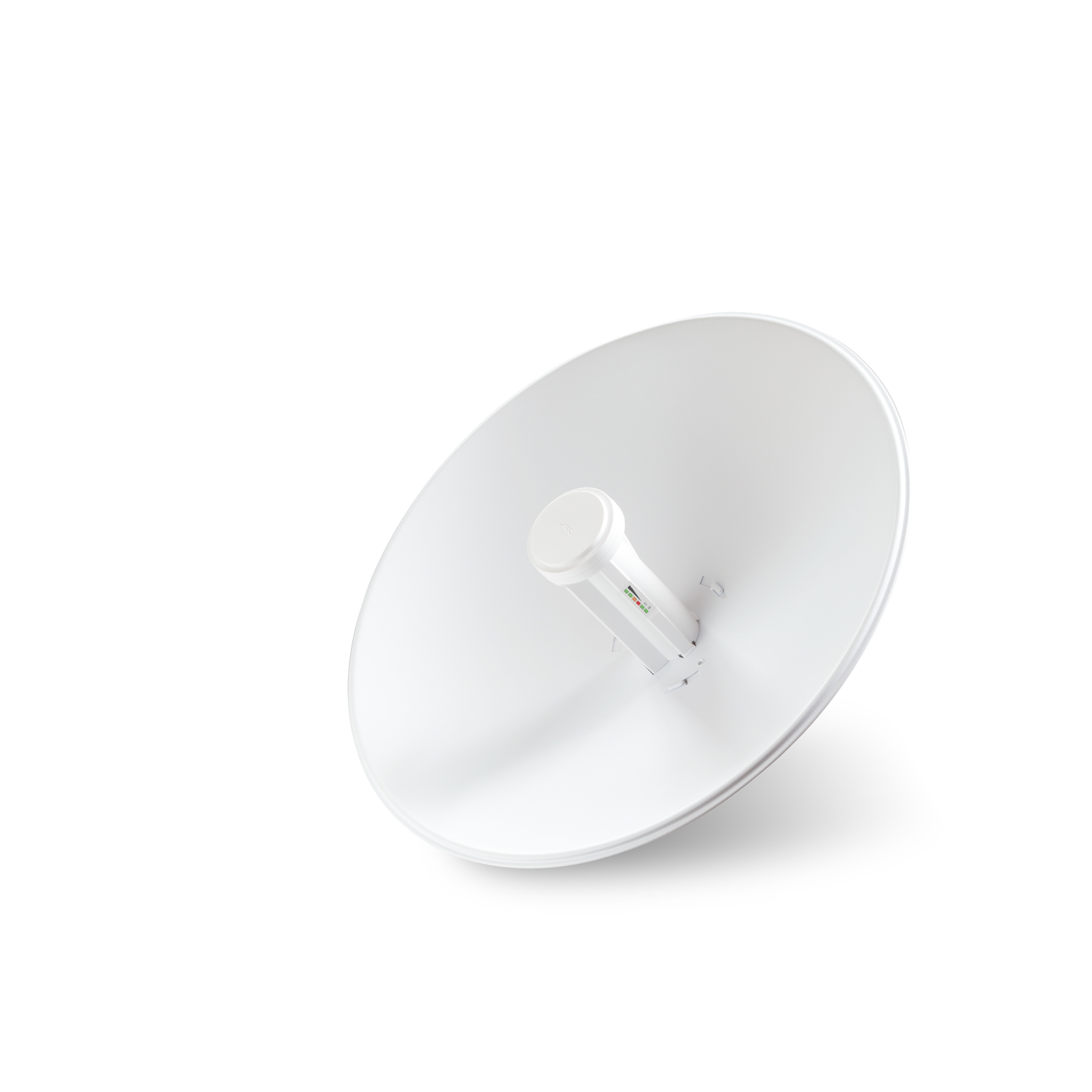

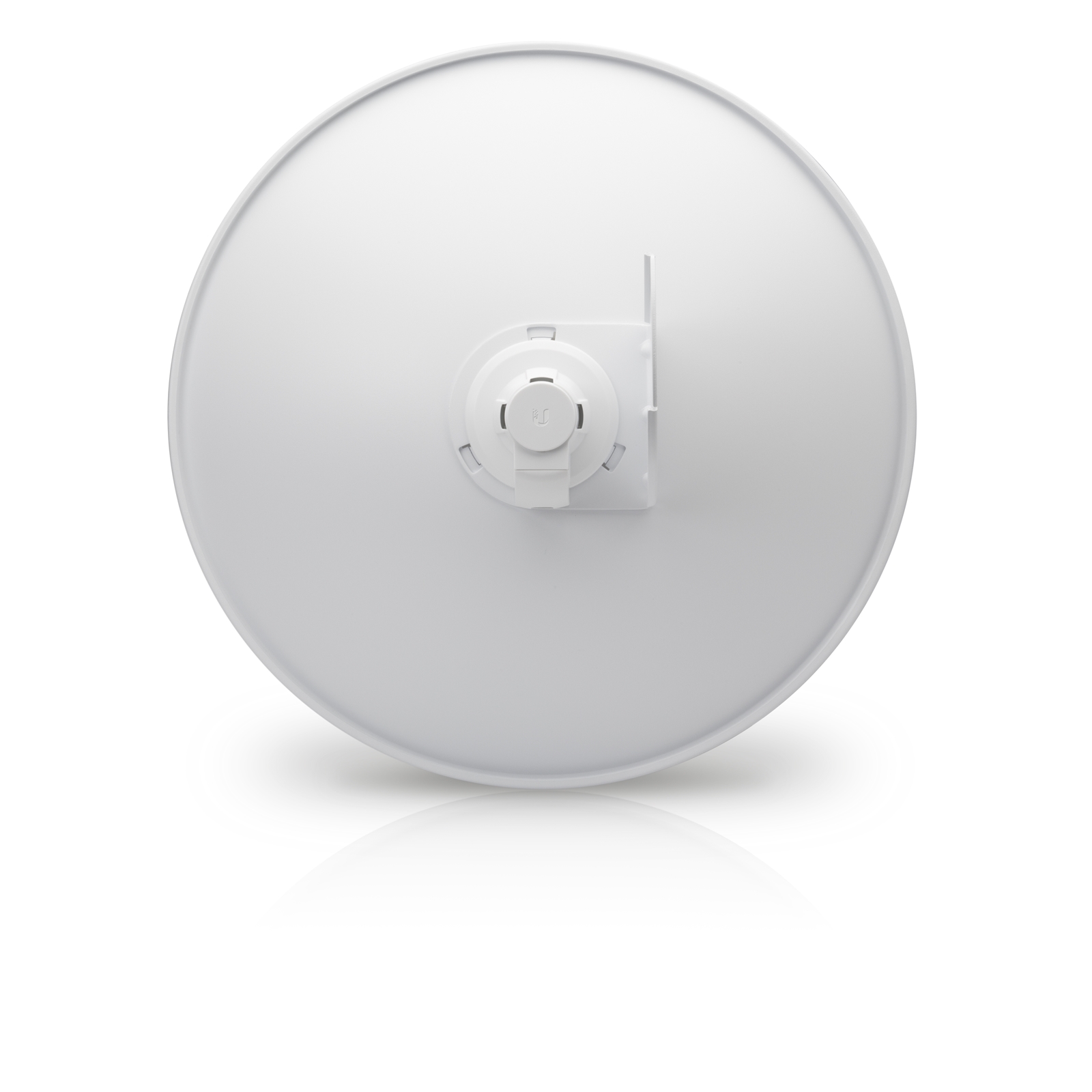

Illustration purposes only

Ubiquiti PBE-M5-400 PowerBeam M5 25dBi High Performance airMAX Wireless CPE Bridge

Ubiquiti Logo here

Manufacturer Part Code: PBE-M5-400

Order Code: NPUBI-PBEM5400

Category: Ubiquiti AirMax

Ubiquiti PBE-M5-400 PowerBeam M5 25dBi High Performance airMAX Wireless CPE Bridge

High-Performance airMAX Bridge

Incorporating a dish reflector design with advanced technology, the PowerBeam is the latest generation of Ubiquiti airMAX® CPE for customer locations.

Integrated Radio Design
Ubiquiti's InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.

Plug and Play Installation
The PowerBeam™ requires no tools for assembly; only a single wrench is required for pole-mounting.

Incredible Antenna ?Beam? Performance
The form factor of the PowerBeam features the highest gain for its size. The PowerBeam's excellent beam directivity provides the best performance in high-noise environments.

Advanced Software Technology
Ubiquiti's airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Protective Radome
The PBE-RAD-400 is a protective radome that shields the radio from the elements; it is available as an optional accessory for the PowerBeam PBE-M2-400 and PBE-M5-400.

Frequency
5 GHz

Throughput
150+ Mbps

Range
25+ km


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Antenna gain level (max)
25 dBi
Certification
FCC, IC, CE, RoHS
Maximum data transfer rate
1000 Mbit/s
Power consumption (typical)
8 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) voltage
24 V
Power source type
PoE
Power consumption (24V)
500 mA
Internal memory
64 MB
Material
Plastic
LED indicators
LAN, Power, WLAN
Product colour
White
Mounting type
Pole
Product type
Network bridge
Harmonized System (HS) code
85176990
Flash memory
8 MB
RAM capacity
64 MB
RAM type
DDR2
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet LAN interface type
Gigabit Ethernet
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-40 - 70 °C
Mounting bracket(s) included
Yes
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Power over Ethernet plus (PoE+) ports quantity
1
Processor frequency
560 MHz
Processor model
MIPS 74Kc
Processor family
Atheros
Harmonized System (HS) code
85176990
Dimensions (WxDxH)
420 x 420 x 275 mm
Weight
1.75 kg
Depth
275 mm
Antenna diameter
42 cm
Frequency band
5 GHz
