TENDA IP-COM 24-Port PoE+ Gigabit Switch - G1124P-24-250W
Manufacturer Part Code: G1124P-24-250W
Order Code: NPTEN-G1124P24
Category: Unmanaged Switches

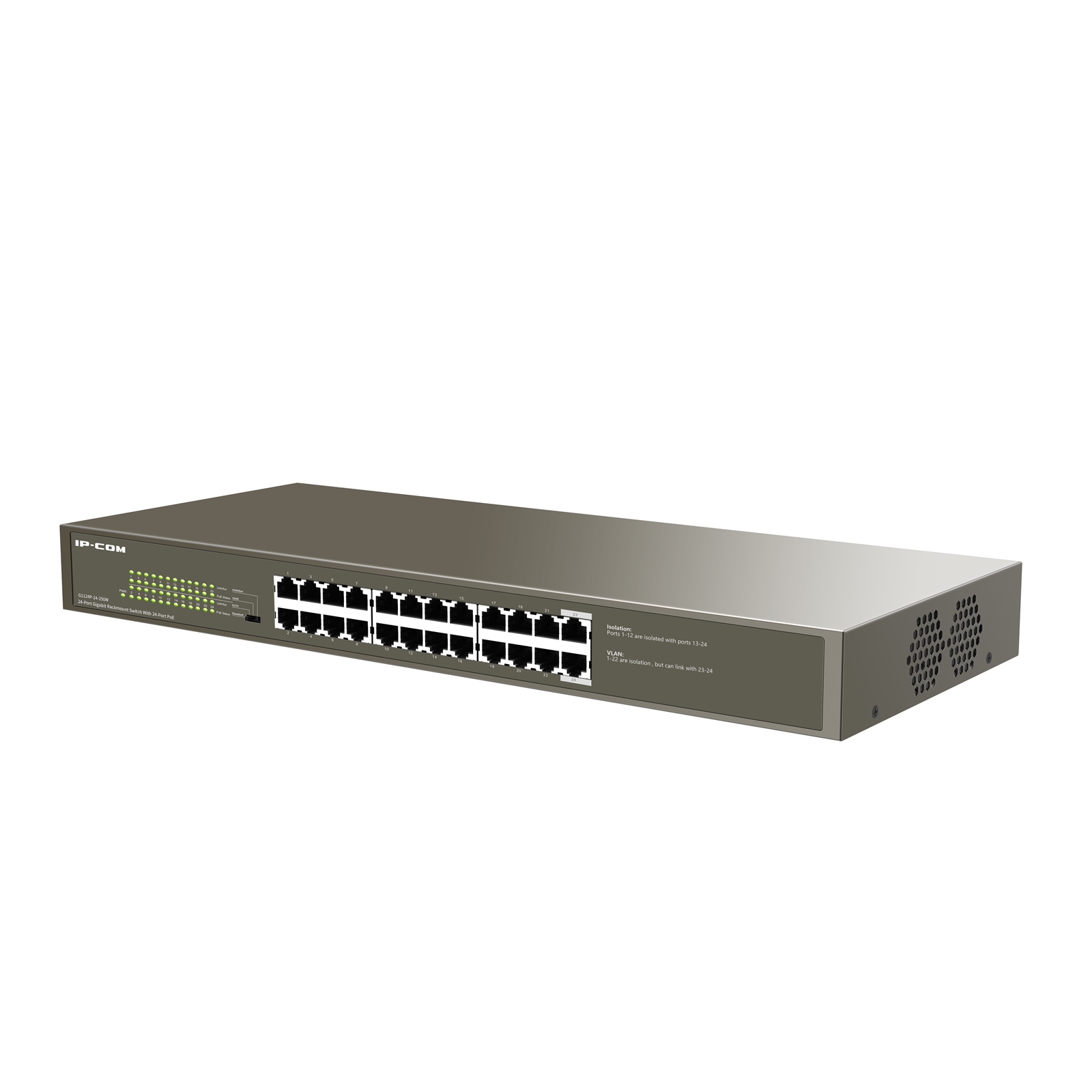

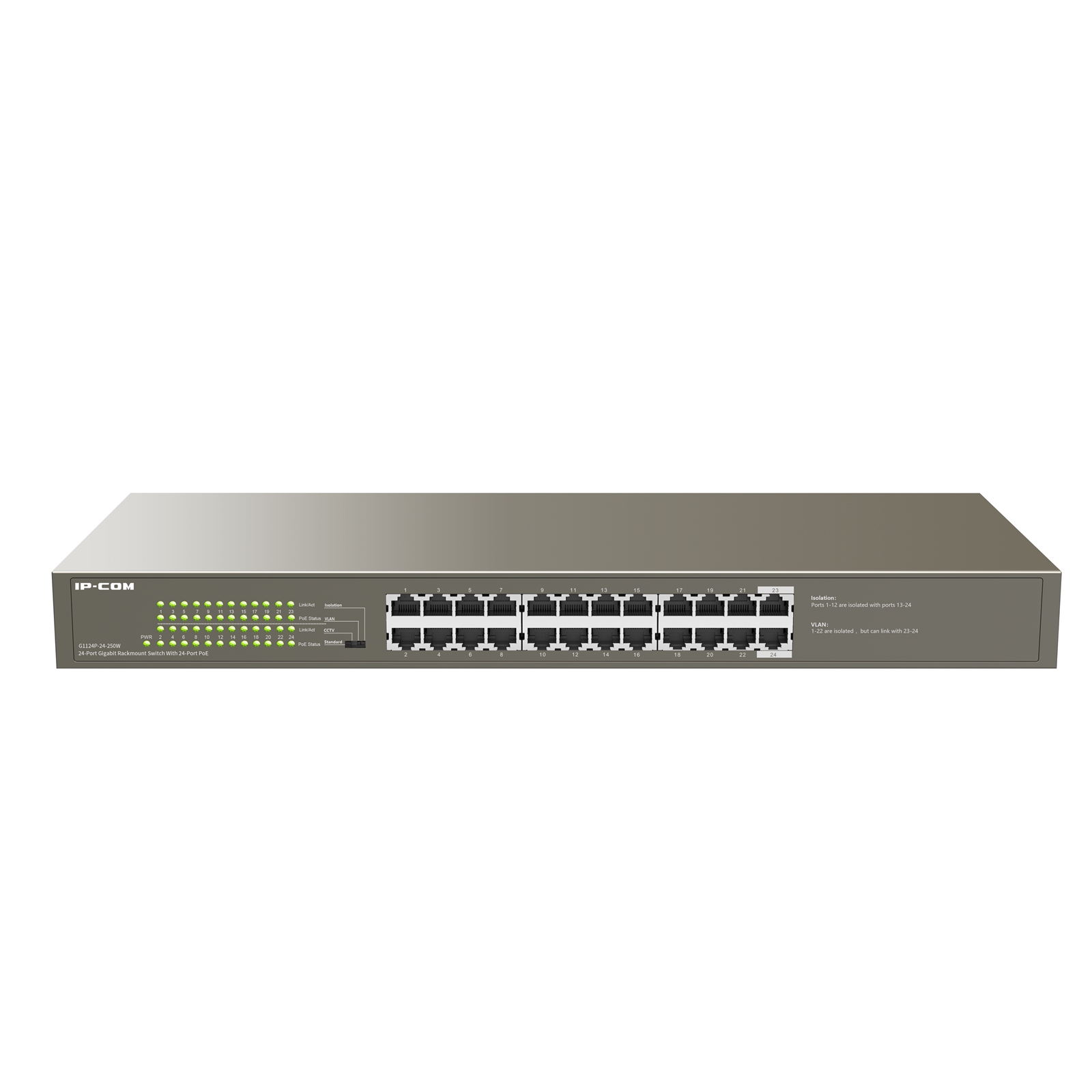

IP-COM by Tenda G1124P-24-250W 24-Port Gigabit Desktop/Rackmount Switch With 24-Port PoE
Compliant with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3af, IEEE802.3at
Store & forward, share memory, non-blocking architecture
Supports MAC address self-learning and auto MDI/MDIX
Provide 24 10/100/1000Mbps auto-negotiation ports with 24-port PoE
Ports 1-24: IEEE 802.3af/at PoE ports
Supports full-deplux 802.3x flow control and half-duplux backpressure flow control
Supports 8K MAC address list, MAC address learning and auto-ageing
Supports port Inductive Lightning Protection up to 6KV
maximum power output of the switch: 225W
Hardware DIP switch for selection among the Standard, CCTV, VLAN, and Isolation modes.
G1124P-24-250W is a IP-COM switch that offers 24 10/100/1000M RJ45 ports.Ports 1-24 comply with the IEEE802.3af standard (maximum PoE power output : 15.4w) and 802.3at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 225W and can supply power to exchange data with APs, IP cameras, and IP phones through CAT5e cables. It also provides simple management modes such as CCTV, VLAN, and Isolation to help reduce cabling costs of IP terminals : APs and IP cameras.
24 x 10/100/1000 Mbps auto-negotiation RJ45 ports, up to 2000 Mbps of full duplex transmission rate, line-speed forwarding by all ports, and large cache capacity ensure the timely transfer of large files and stable streaming video. Stay connected for 7*24.
225W PoE power supply
Ports 1-24 comply with the IEEE802.3af and IEEE802.3at power supply standards. The entire switch offers a maximum PoE power output of 225W, whereas each ports offers a maximum PoE power output of 30W. The ports can be used to supply power to and exchange data with APs and IP cameras.
Excellent Lightning-Proof design
Integrated professional lightning-proof circuit which supports port and power supply lightning-proof (common mode protection 6KV). Effectively reduce the damage to the network system caused by the thundery weather.
4 Network operation modes offered
Hardware DIP switch for selection among the Standard, CCTV, VLAN, and Isolation modes. Hardware DIP switch to isolate ports to prevent broadcast storm and defend against DHCP spoofing .
Standards and Protocol
IEEE 802.3?IEEE 802.3u?IEEE 802.3x?IEEE 802.3ab?IEEE802.3af?IEEE802.3at
24 x Link/Act per device
24 x PoE per device
1 x Power per device
24 x 10/100/1000Base-T ports(Data/Power)
Lightning Protection 6KV
Store and Forward
Packet Forwarding Rate
MAC Address Table
POE Supply Management
Port 1-24 support IEEE802.3at/af PoE standard
POE Through Pin
1 2 4 5 +;3 6 7 8 -
Voltage Input Range
440 x 178 x 44mm
In full configuration:<250W
PoE Max Power Supply:225W
Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
CCTV: the port cache is optimized and PoE ports 1-8 have higher priorities over the other ports. All the ports of the switch can communicate with each other.
VLAN: ports 1 to 22 are isolated from each other, but can communicate with ports 23 and 24 (uplink ports) respectively.
Isolation:ports 1 to 14 and ports 15 to 24 belong to two different VLAN.This mode can be used to isolate supervision network and wireless network to make them not interfere with each other.
