MERCUSYS MS105G 5 Port Gigabit Ethernet Network Switch

Five 10/100/1,000 Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported
Easily wired network expansion
Compact design for flexible arrangement
Plug and play setup, no configuration required
Green Ethernet technology saves power by up to 82%

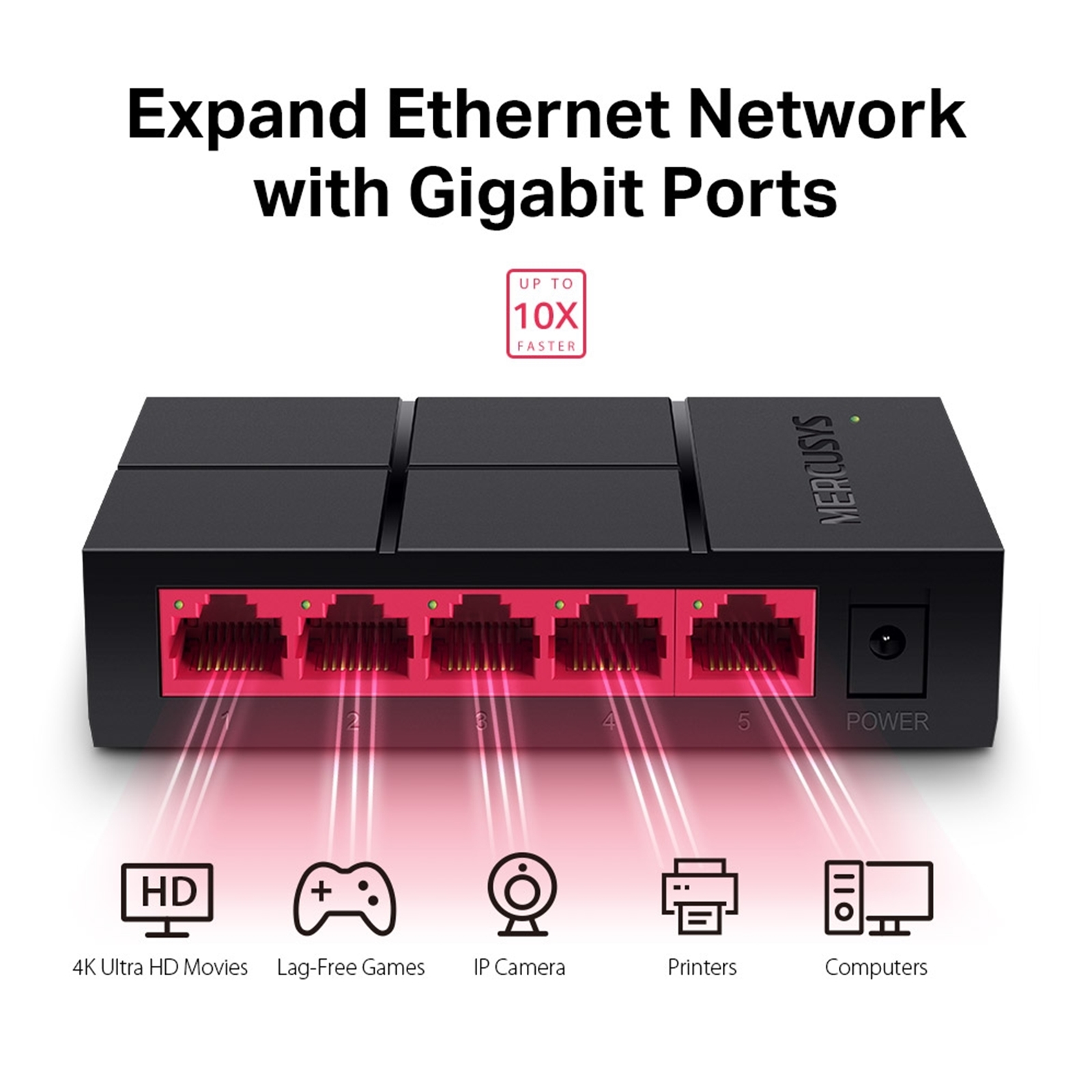

Expand Ethernet Network with Gigabit Ports
Quickly expand your wired network with five 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS105G is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.

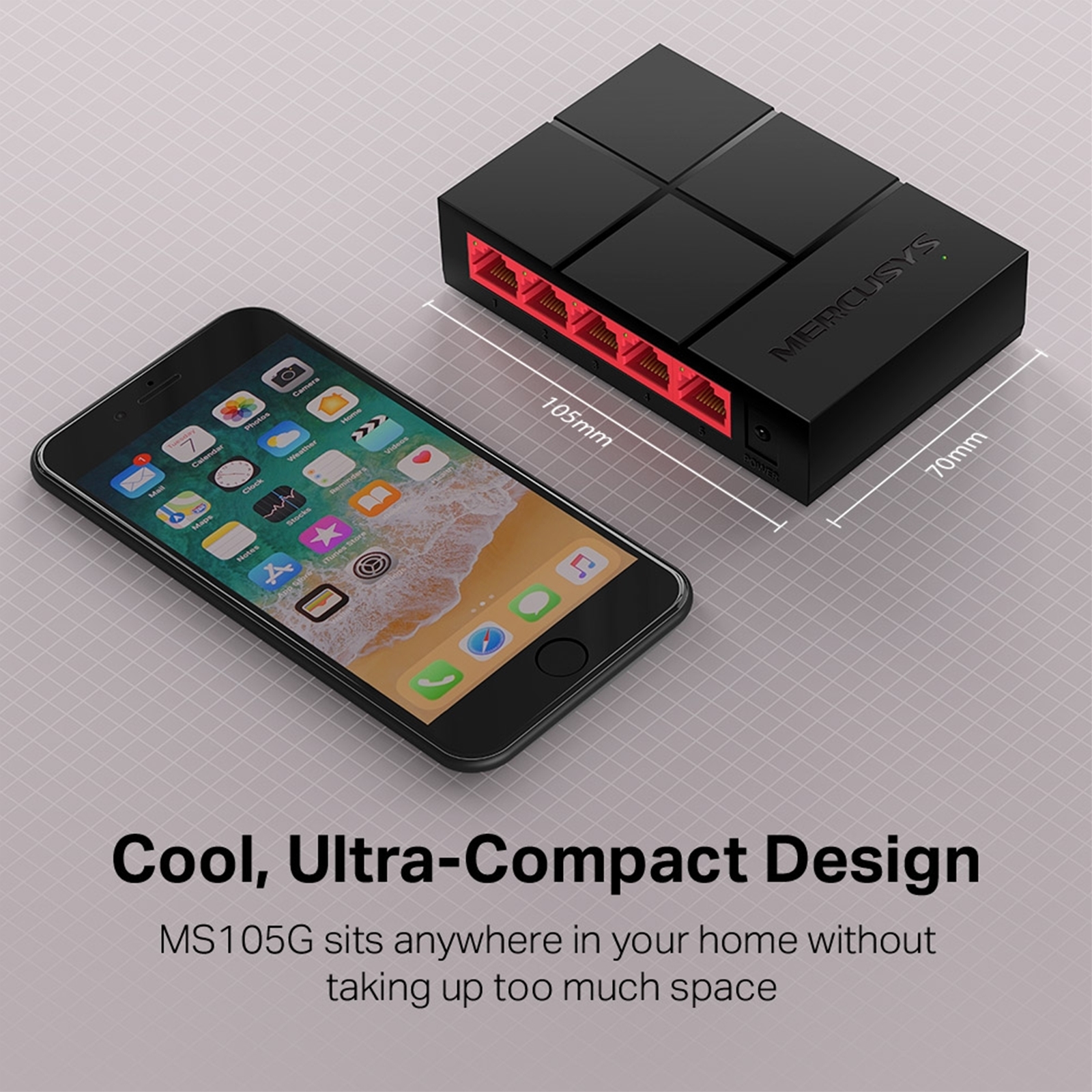

Cool, Ultra-Compact Design
A sleek, square build with a cool red and black color combination provides a high-tech look and feel. About the same size as a smartphone, MS105G sits anywhere in your home without taking up too much.

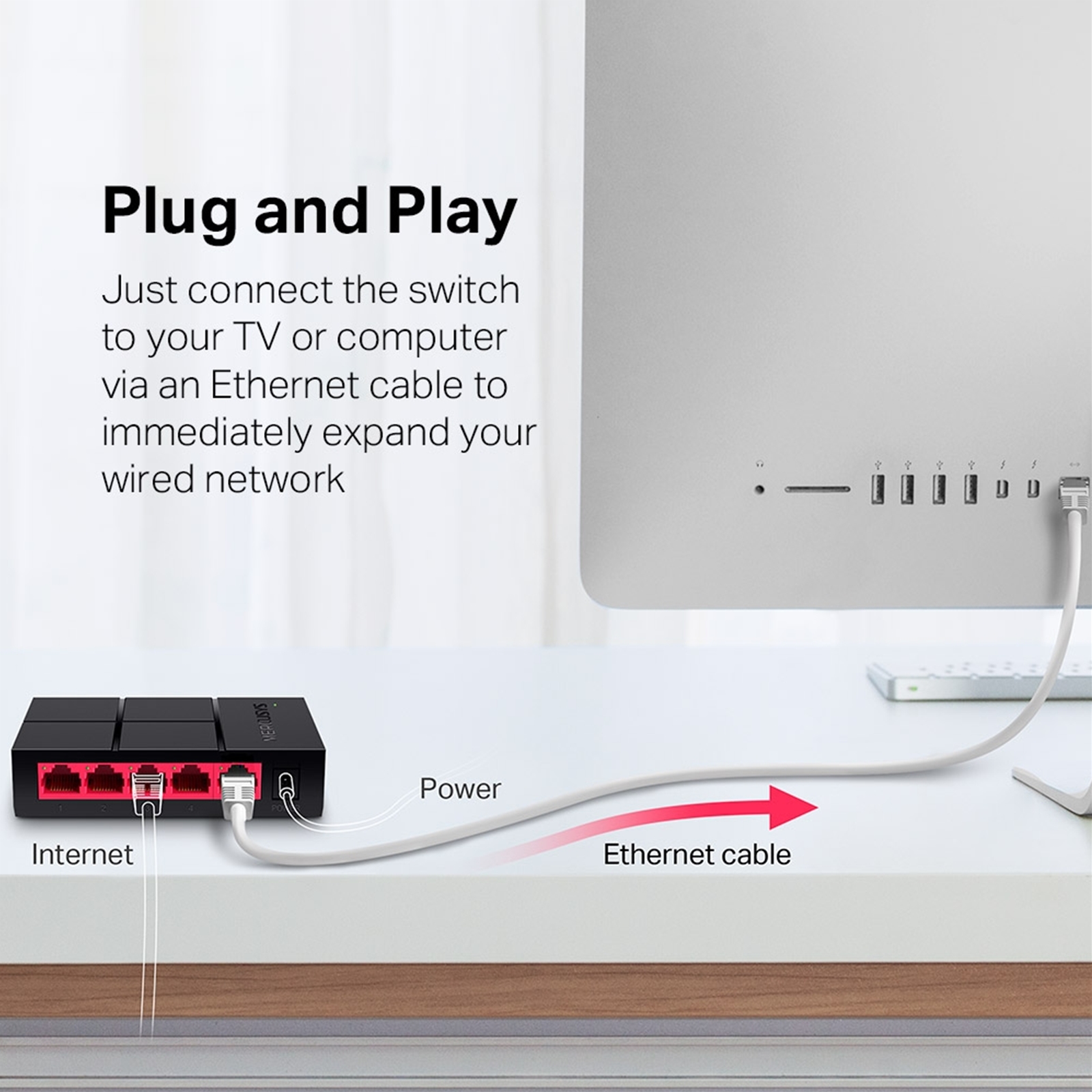

Plug and Play
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.

Reliable Performance
With Half/Full Duplex and MAC Address Learning Technology, MS105G provides up to 10 Gbps of stable switching bandwidth. Every unit undergoes extensive testing prior to shipment to ensure it will provide reliable, uninterrupted connections for years to come.

Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! MS105G features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Specifications

Interfaces
5 10/100/1000Mbps Ports,
Auto-Negotiation, Auto-MDI/MDIX

LED
Ethernet Ports (1, 2, 3, 4, 5), Power

External Power Supply
5V/0.6A

Dimensions (W X D X H)
105 x 70 x 24.9 mm

Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD

Data Rates
10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex

Buffer Capacity
512 Kbit

Jumbo Frame
9 KB

Transfer Method
Store and Forward

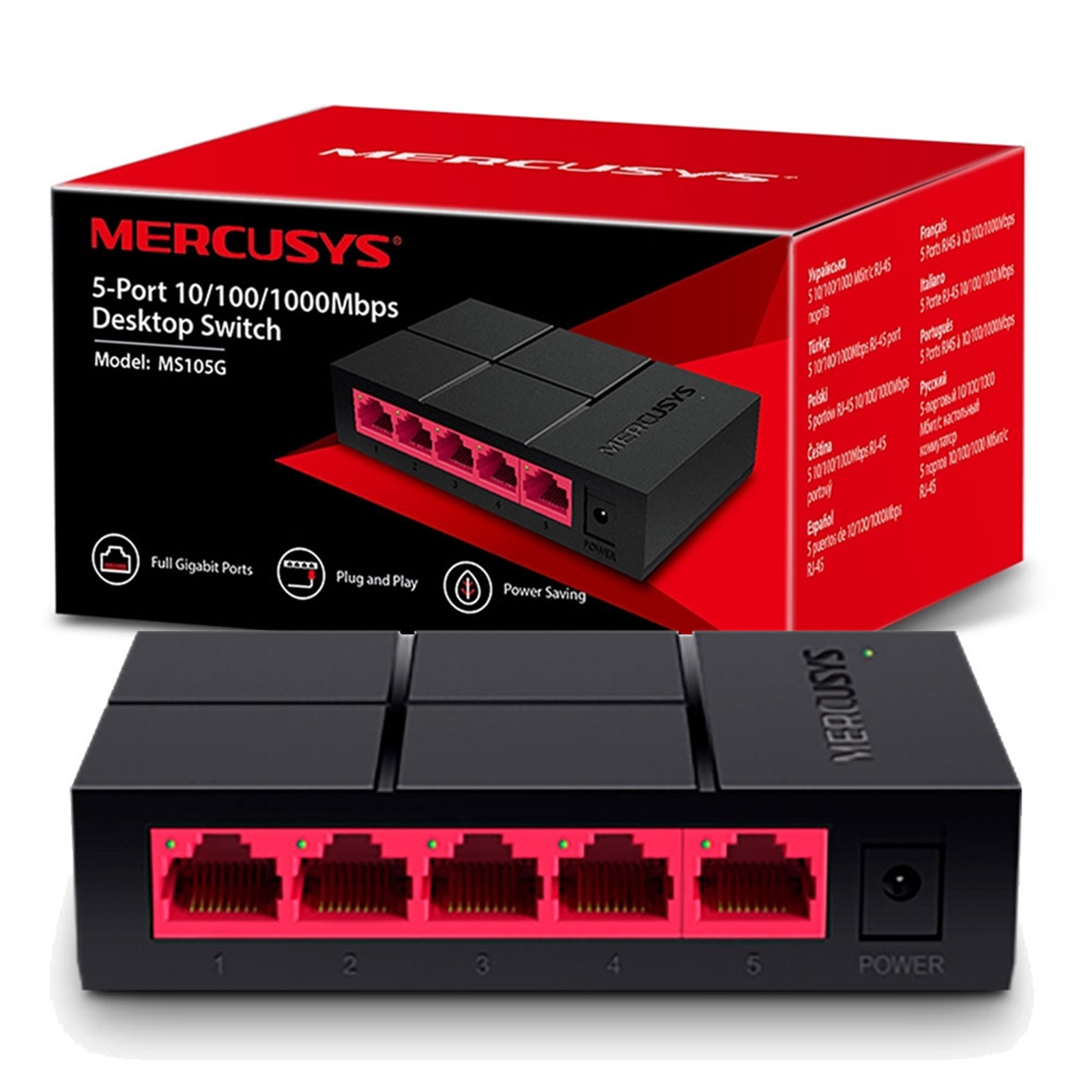

Package Contents
1. 5-Port 10/100/1000Mbps Desktop Switch (MS105G)
2. Power Adapter
3. Quick Installation Guide
