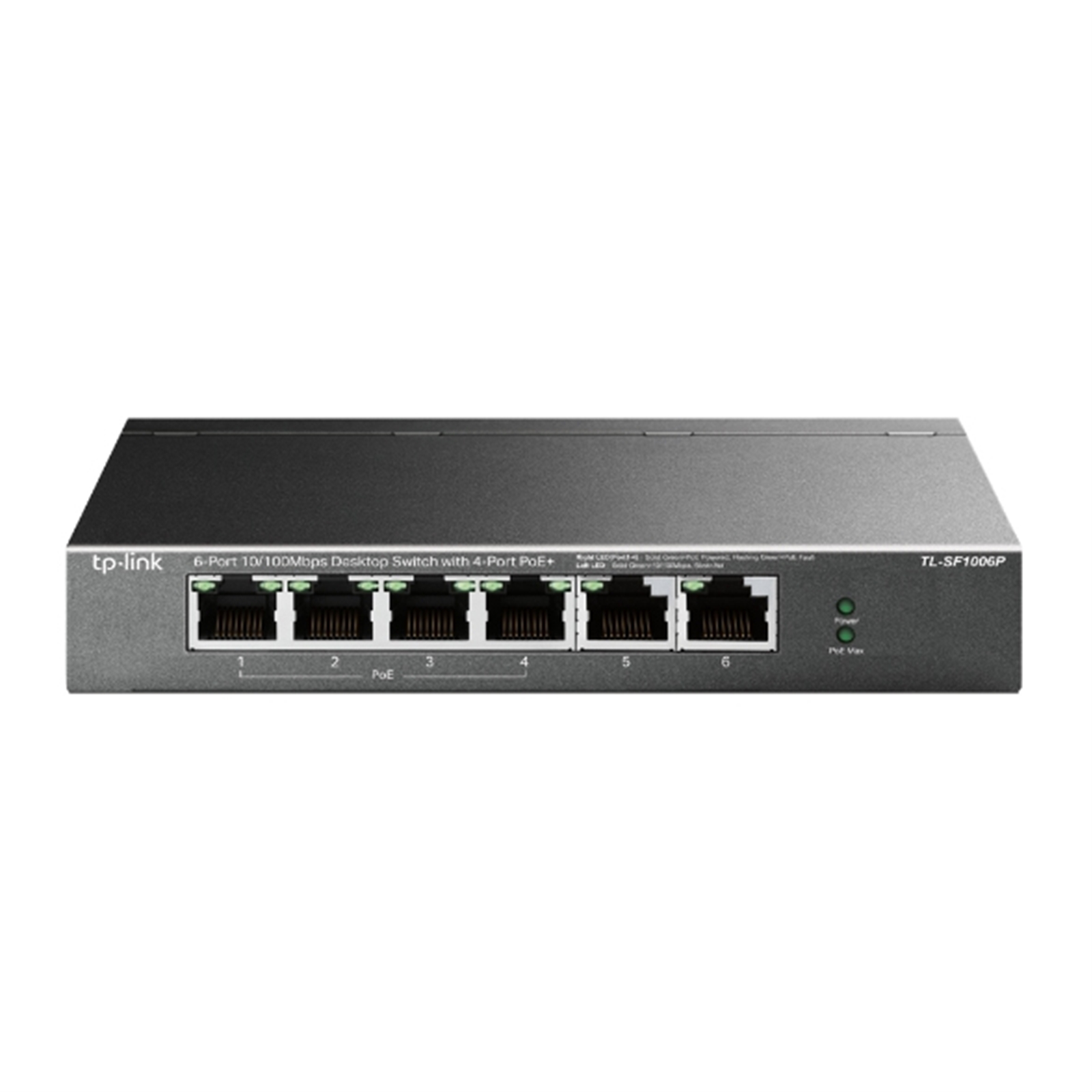

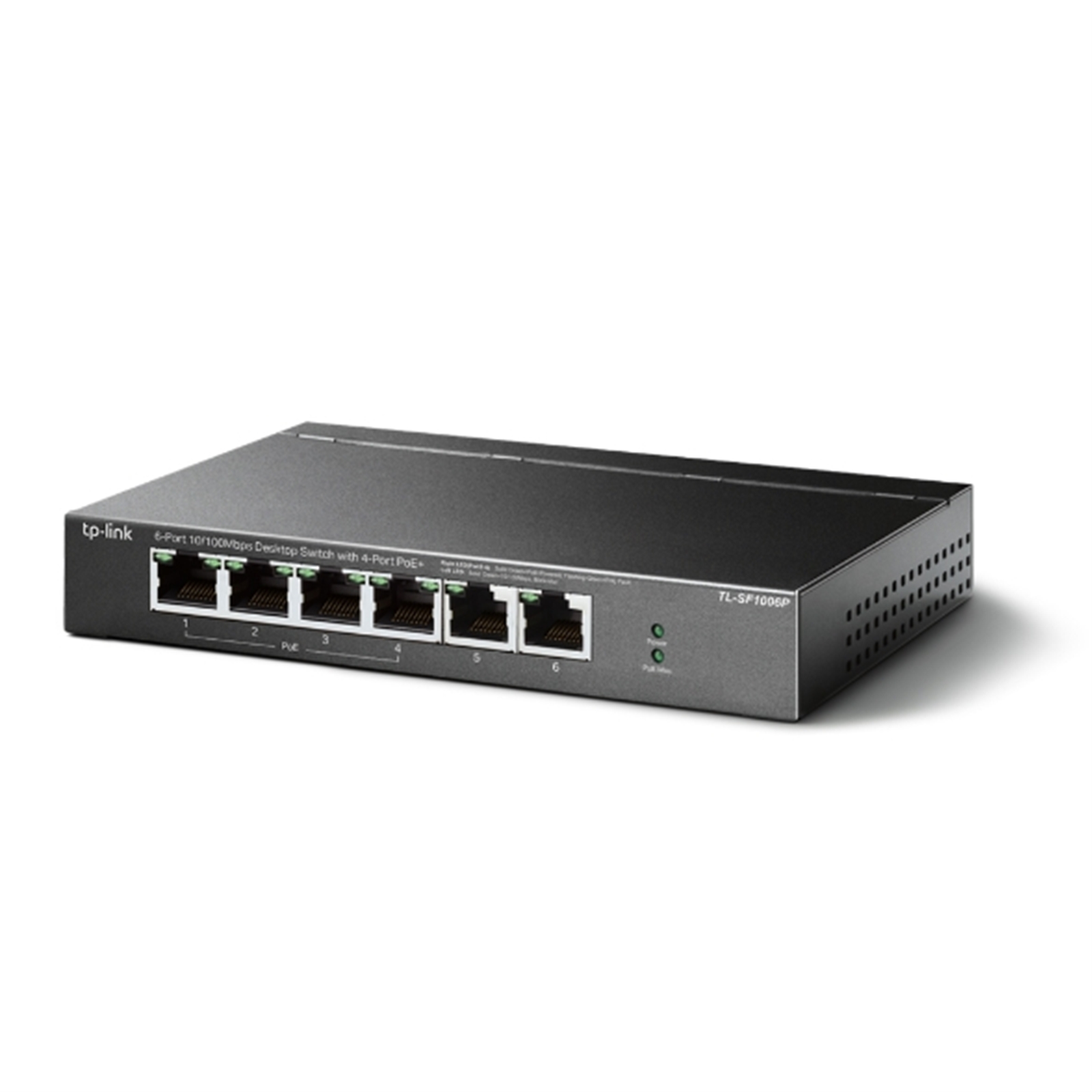

TP-LINK TL-SF1006P 6-Port 10/100 Mbps Desktop Switch with 4-Port PoE+ Switch

TP-LINK Logo here

Manufacturer Part Code: TL-SF1006P

Order Code: NPTPL-TLSF1006P

Category: Unmanaged Switches

TP-Link TL-SF1006P 6-Port 10/100 Mbps Desktop Switch with 4-Port PoE+ Switch

Professional High-Power Switch with 4 PoE+ Ports

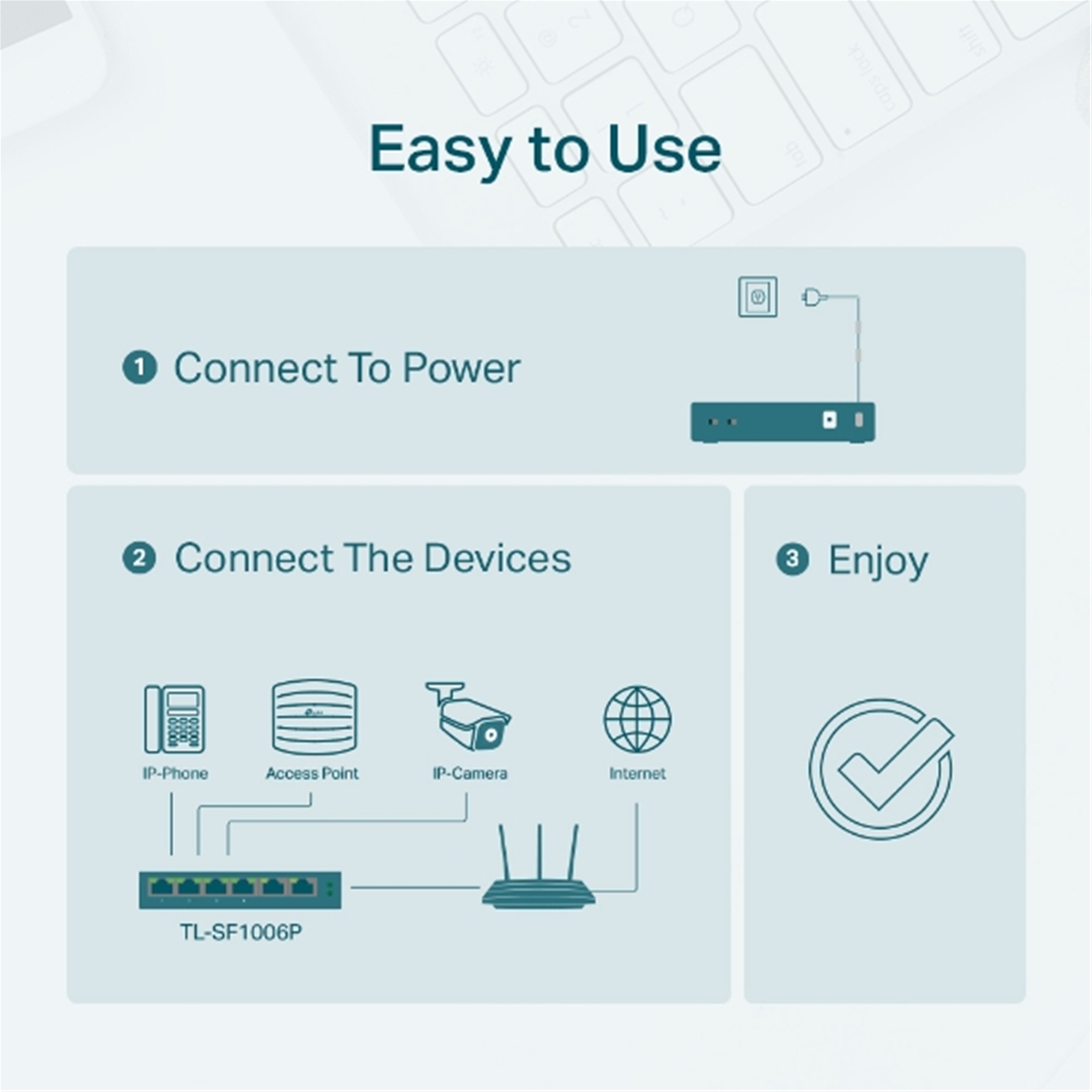

Plug and Play, with PoE Transmission for Surveillance up to 250 m

Dedicated 4-Poart PoE+ Switch (67 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget for the 4 PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

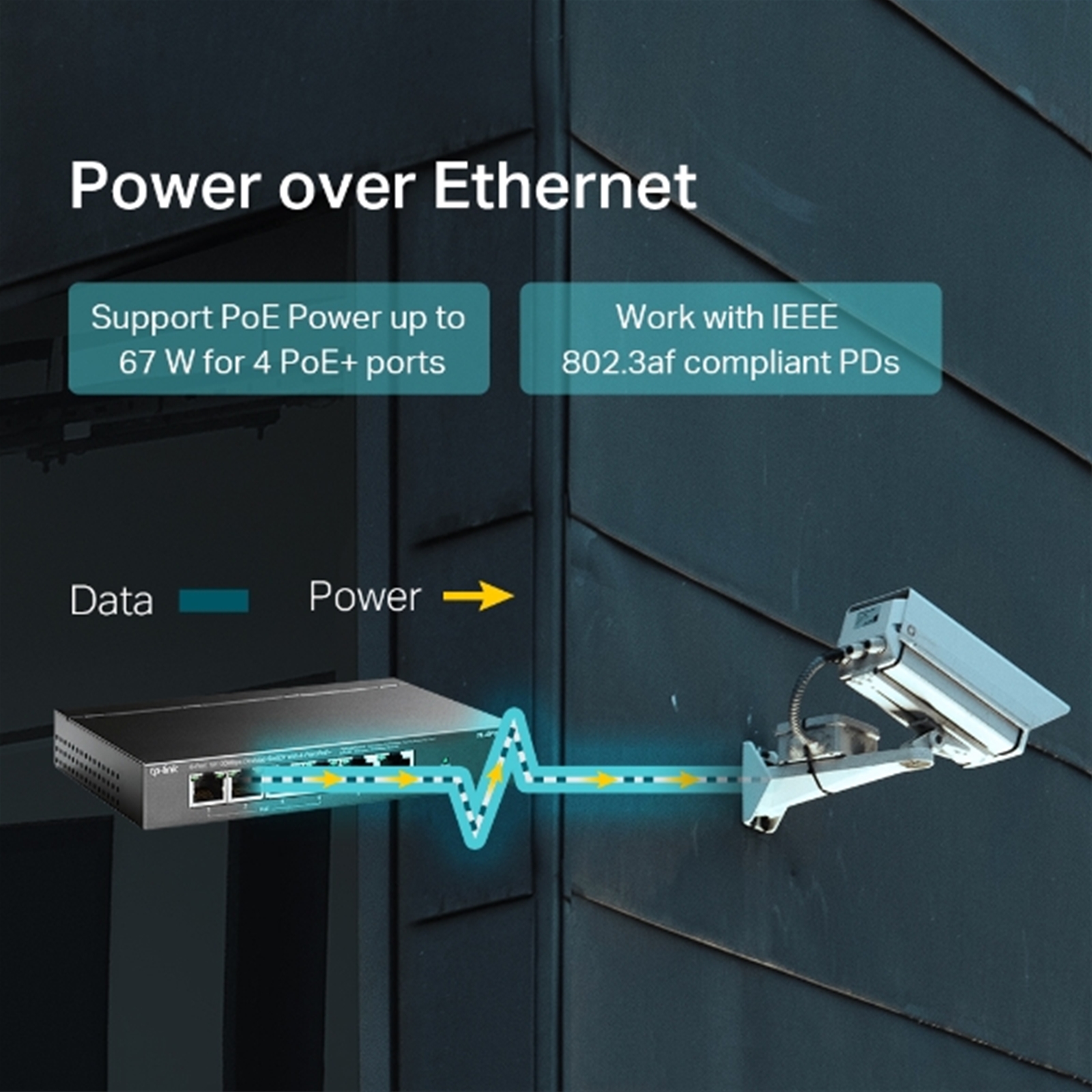

Ideal for IP Surveillance—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m—perfect for IP Camera deployment in large areas.

Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

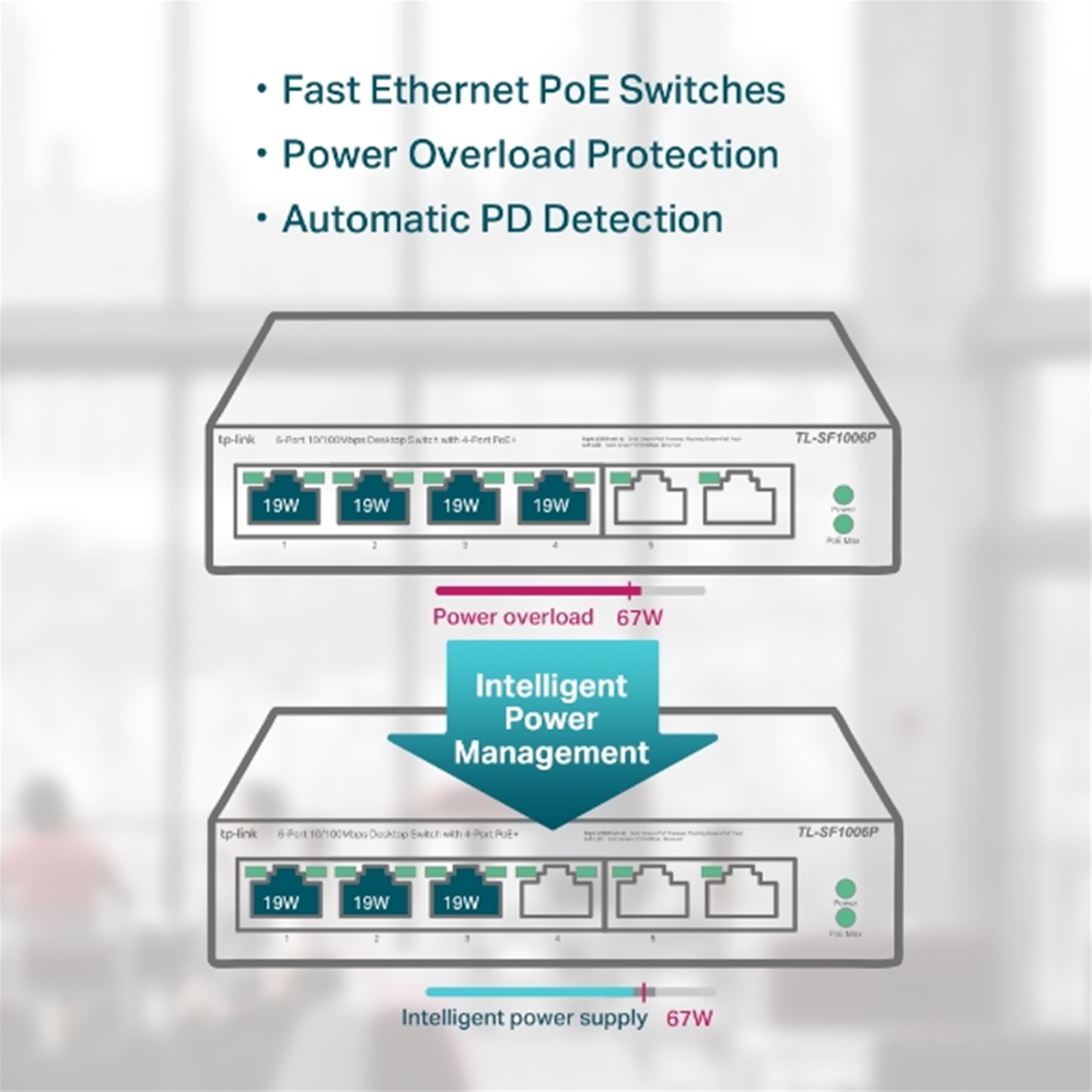

Intelligent Power Management
When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing
The interior components of TL-SF1006P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1006P delivers switching performance you can depend on.


Specifications

HARDWARE FEATURES
Interface:
• 6x 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+)
• AUTO Negotiation
• AUTO MDI/MDIX

Network Media:
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100 STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity:
Fanless

Physical Security Lock:
Yes

External Power Supply:
External Power Adapter (Output: 53.5 V DC / 1.31 A)

Packet Forwarding Rate:
0.8928 Mpps

PoE Ports (RJ45):
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 67 W

Mac Address Table:
2K

Jumbo Frame:
2 KB

Switching Capacity:
1.2 Gbps

Dimensions ( W x D x H ):
6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)

Max Power Consumption:
• 1.9 W (220 V / 50 Hz, no PD connected)
• 74 W (220 V / 50 Hz, with 67 W PD connected)

Max Heat Dissipation:
• 6.48 BTU/h(no PD connected)
• 252.34 BTU/h(with 67 W PD connected)

SOFTWARE FEATURES
Transmission Method:
Store-And-Forward

Advanced Functions:
• Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4)
• Priority Mode Button (Ports 1–2)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode

OTHERS
Certification:
FCC, CE, RoHS

Package Contents:
• TL-SF1006P
• Power Adapter
• Installation Guide

Environment:
• Operating Temperature: 0–40 (32–104 )
• Storage Temperature: -40–70 (-40–158 )
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

MAC address table
2000 entries
Switching capacity
1.2 Gbit/s
Jumbo frames support
Yes
Store-and-forward
Yes
Forwarding rate
0.8928 Mpps
Jumbo frames
2000
Certification
FCC, CE, RoHS
Rack mounting
No
LED indicators
Yes
Product colour
Black
Stackable
No
Housing material
Metal
Power source
DC/PoE
Input current
1.31 A
AC input frequency
50 Hz
AC input voltage
220 V
DC input voltage
53.5 V
Power consumption (max)
74 W
Power supply included
Yes
Harmonized System (HS) code
85176990
Switch type
Unmanaged
Full duplex
Yes
Networking standards
IEEE 802.3af, IEEE 802.3at
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 100BASE-T
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Auto-negotiation
Yes
MAC address auto-learning supported
Yes
MAC address auto-aging supported
Yes
Half duplex
Yes
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
252.34 BTU/h
Package weight
870 g
AC adapter included
Yes
Package depth
196 mm
Package height
121 mm
Package width
131 mm
Package type
Box
User guide
Yes
Fanless
Yes
Harmonized System (HS) code
85176990
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity
6
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
4
Total Power over Ethernet (PoE) budget
67 W
Sustainability compliance
Yes
Sustainability certificates
CE, Federal Communications Commission (FCC), RoHS
Sustainability compliance
Yes
Sustainability certificates
CE, Federal Communications Commission (FCC), RoHS
Height
25 mm
Width
158 mm
Depth
101 mm
