All Wireless Access Points | CISCO Aironet 1815w Access Point | AIR-AP1815W-E-K9 | ServersPlus
CISCO AIR-AP1815W-E-K9 | serversplus.comCISCO AIR-AP1815W-E-K9 | serversplus.com

Illustration purposes only

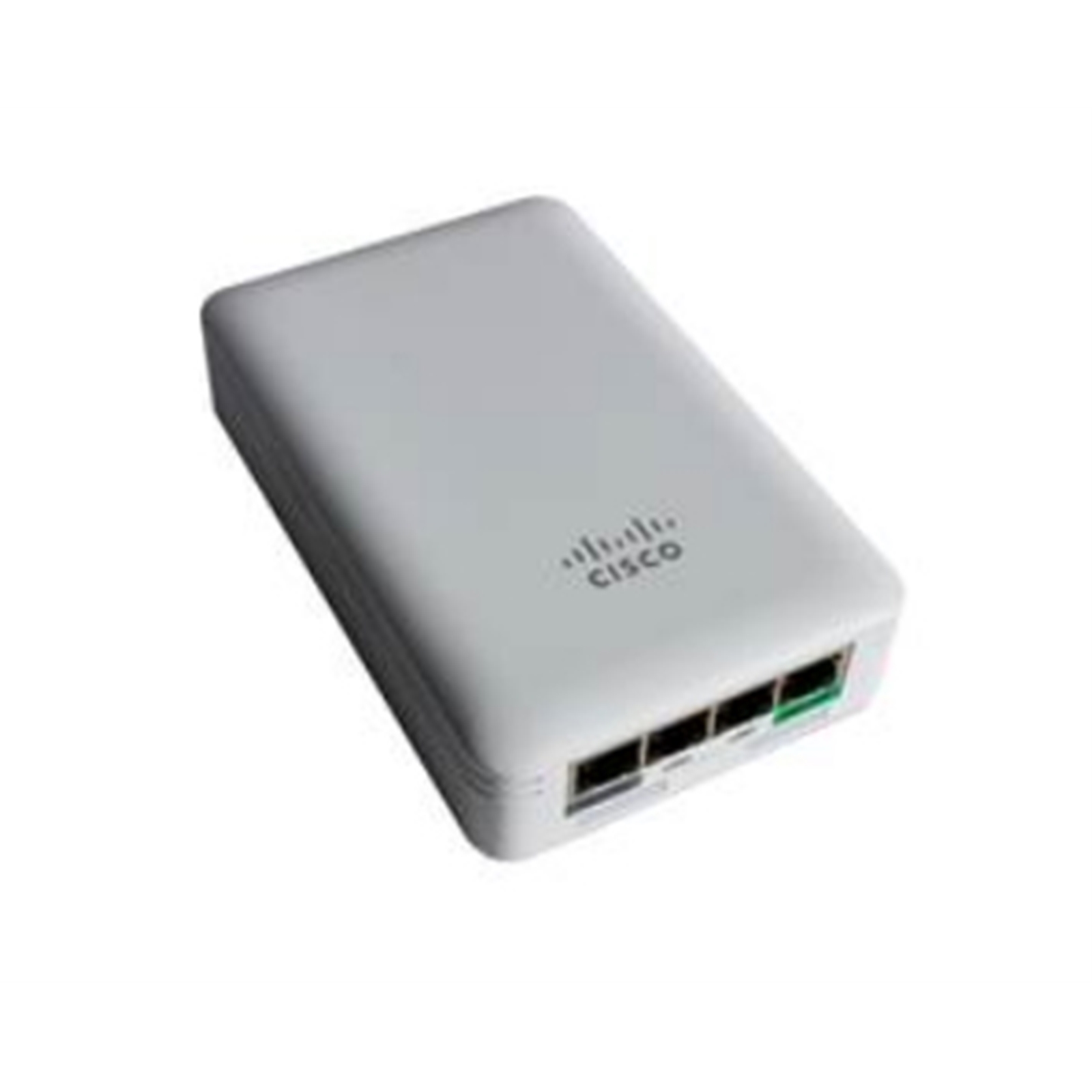

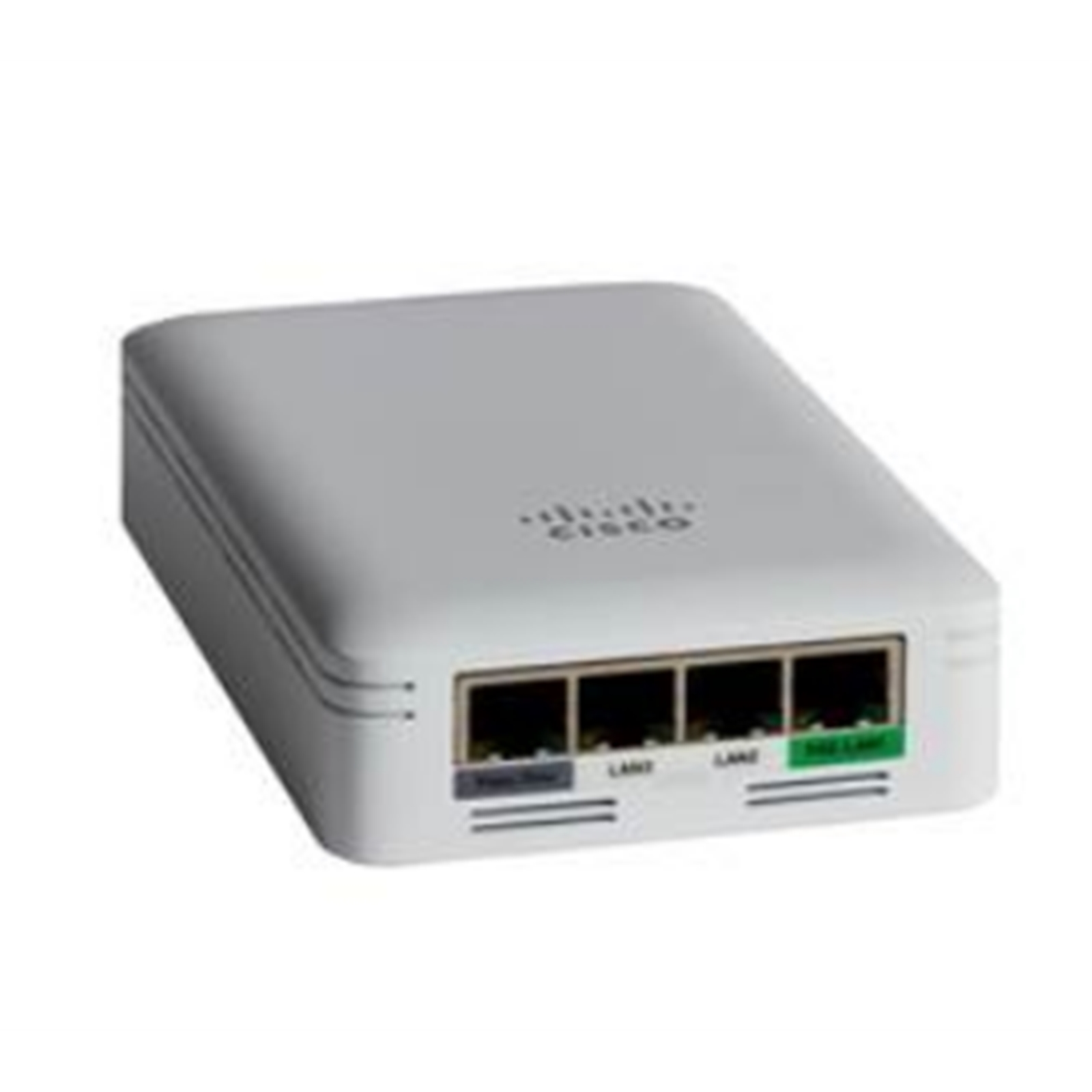

CISCO Aironet 1815w Access Point

CISCO Logo here

Manufacturer Part Code: AIR-AP1815W-E-K9

Order Code: NPCIS-AIRAP1815W

Category: All Wireless Access Points

Cisco Aironet 1815W - Radio access point - Bluetooth 4.1 802.11ac Wave 2 - Bluetooth Wi-Fi 5 - 2.4 GHz 5 GHz - in wall

The Cisco® Aironet® 1815w Access Point (Figure 1) offers a compact, wall plate–mountable access point, ideal for hospitality, cruise ships, residential halls, or other multiple-dwelling-unit deployments.

Packing 802.11ac Wave 2 wireless standards support and Gigabit Ethernet wired connectivity into a sleek device, the 1815w is built to take full advantage of existing cabling infrastructure while blending into the visual footprint. This combination provides best-in-class performance while reducing total cost of ownership.

By adhering to the 802.11ac Wave 2 standard, the 1815w provides a data rate of up to 867 Mbps on its 5-GHz radio. This exceeds the data rates offered by access points that support the 802.11n standard. It also enables a total aggregate dual-radio data rate of up to 1 Gbps. This provides the necessary foundation for enterprise and service provider networks to stay ahead of the performance expectations and needs of their wireless users.

In recent years corporate users have increasingly preferred wireless access as their form of network connectivity, due to its convenience. With this shift, there is an expectation that wireless should not slow down users' day-to-day activities, but should enable a high-performance experience while allowing users to move about freely. The 1815w delivers industry-leading performance with highly secure and reliable wireless connections that provide a robust, mobile end-user experience.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Antenna type
Internal
Antenna gain level (max)
3 dBi
Antenna features
Integrated antenna
Internal
N
Certification
UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 FCC 15.247, 15.407 RSS-247 (Canada) EN 300.328, EN 301.893 (Europe) ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) EMI (Class B) FCC 15.107 / 15.109 ICES-003 (Canada) VCCI (Japan) EN 301.489-1 /-17 (Europe) EN 50385
Cable lock slot
Y
LED indicators
Y
Product colour
White
Placement
Table, Wall
Cable lock slot type
Kensington
Power over Ethernet (PoE)
Y
Maximum data transfer rate
1000 Mbit/s
Frequency band
2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.6, 5.64 - 5.7 GHz
Number of users
400 user(s)
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11i,IEEE 802.11n,IEEE 802.11r,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u
Channels quantity
29 channels
Ethernet LAN data rates
10,100,1000 Mbit/s
VLAN support
Y
2.4 GHz
Y
5 GHz
Y
Wi-Fi Multimedia (WMM)/(WME)
Y
Maximum data transfer rate (5 GHz)
867 Mbit/s
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-30 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Non-operating altitude
0 - 4572 m
Mounting kit
Y
Mounting kit
Y
Internal memory
1024 MB
Flash memory
256 MB
Built-in processor
Y
WAN connection
Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports
3
Security algorithms
802.1x RADIUS,AES,EAP,EAP-FAST,EAP-PEAP,EAP-SIM,EAP-TLS,EAP-TTLS,MSCHAPv2,WPA,WPA2
MAC address filtering
Y
Remote Authentication Dial-In User Service (RADIUS)
Y
Weight
280 g
Height
31.5 mm
Width
89 mm
Depth
140 mm
