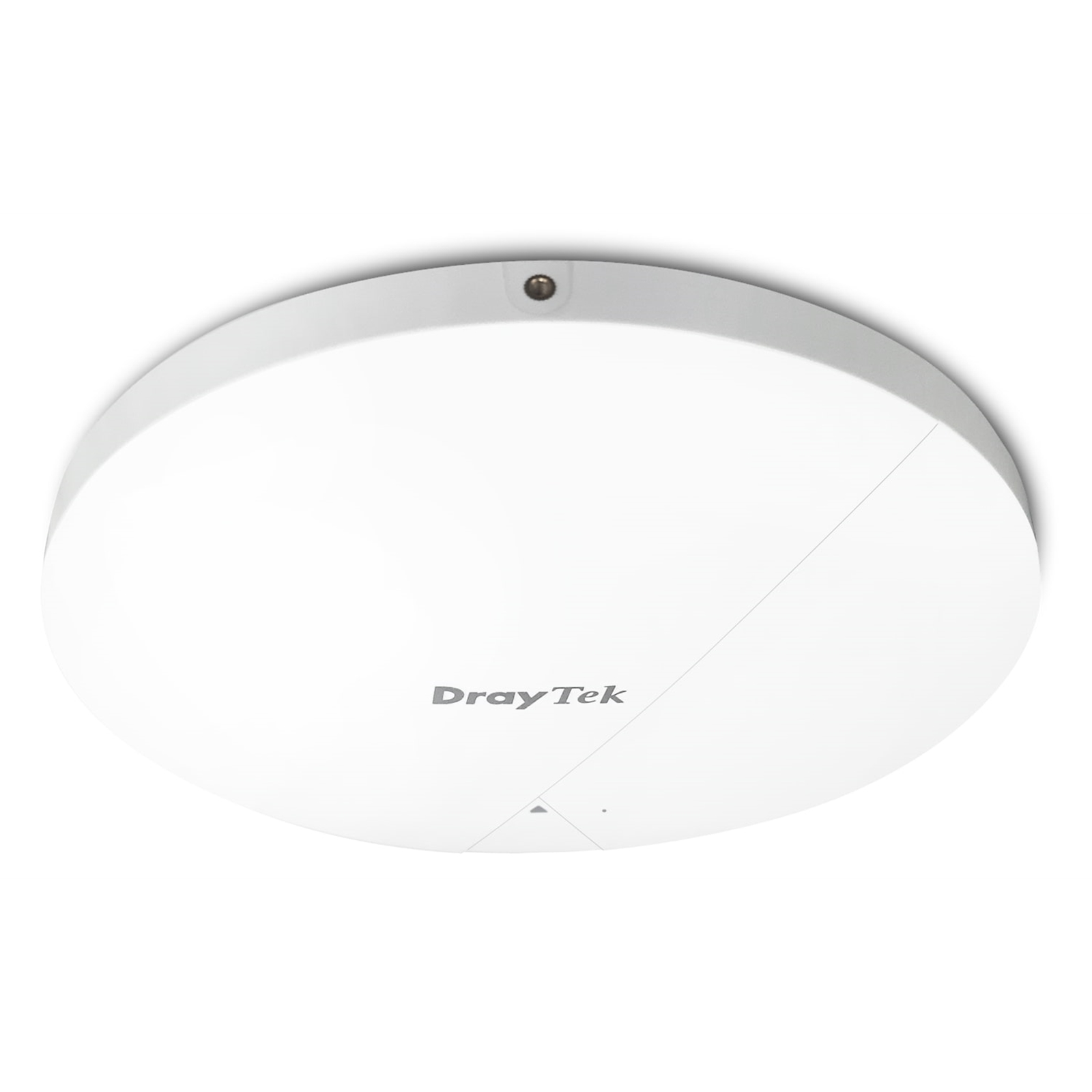

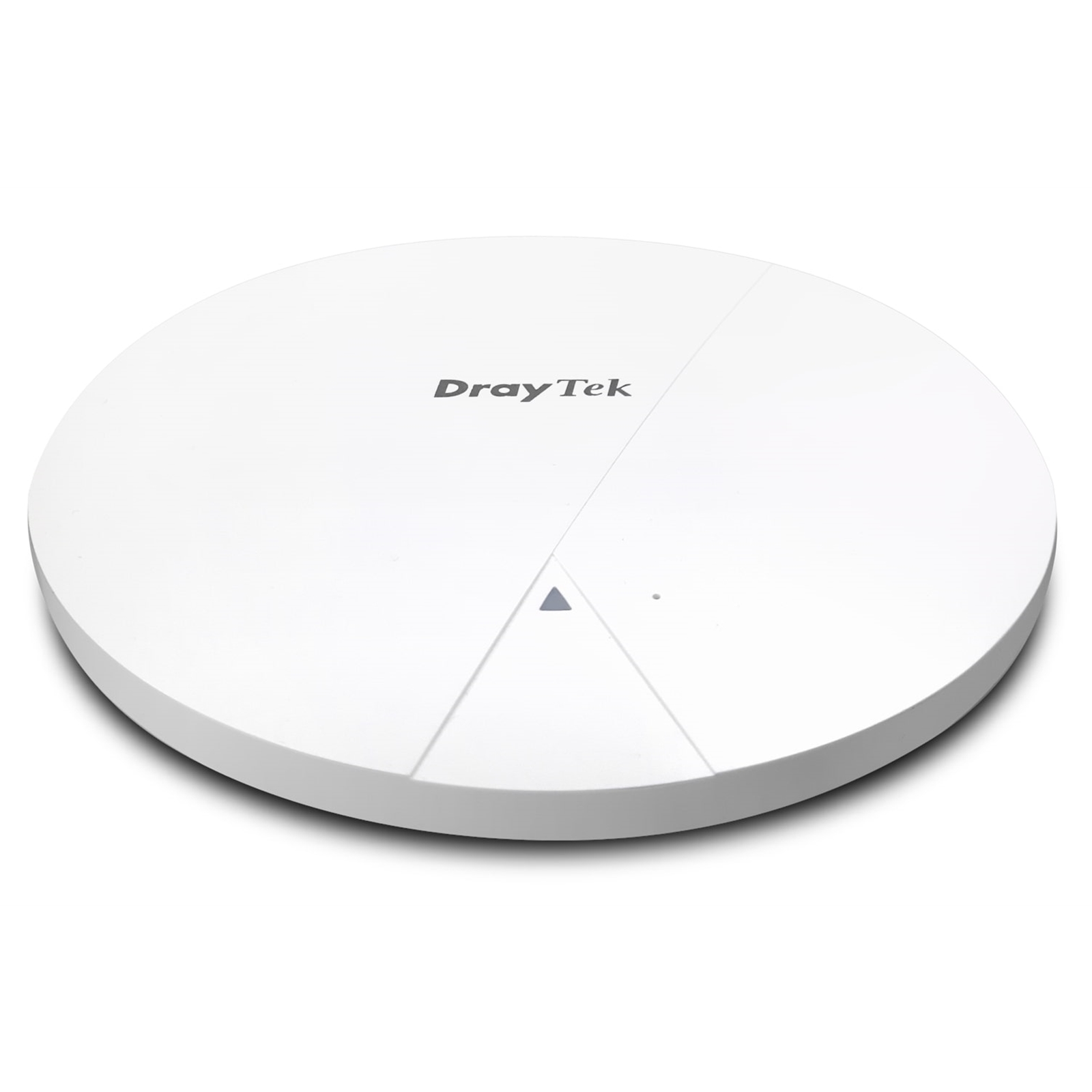

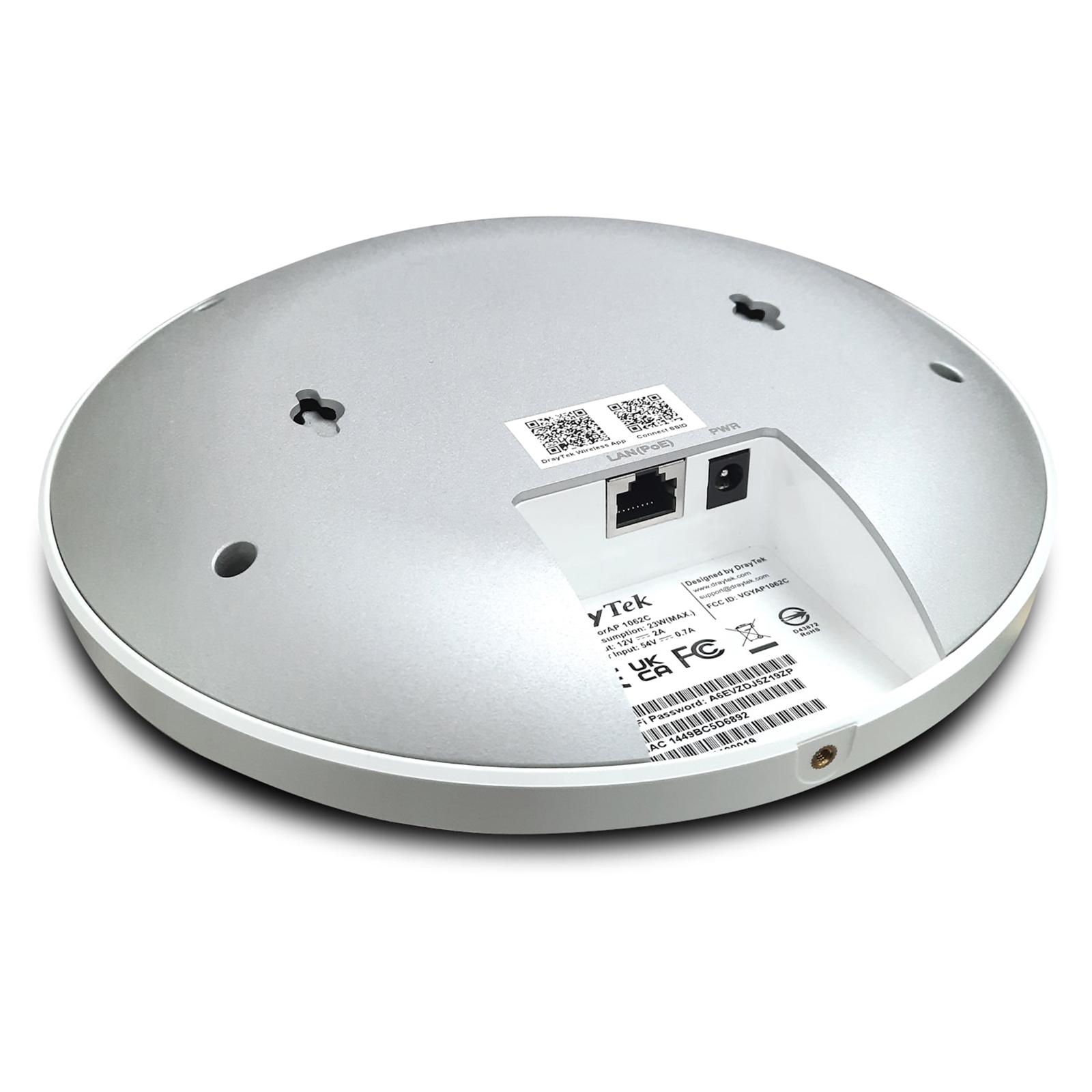

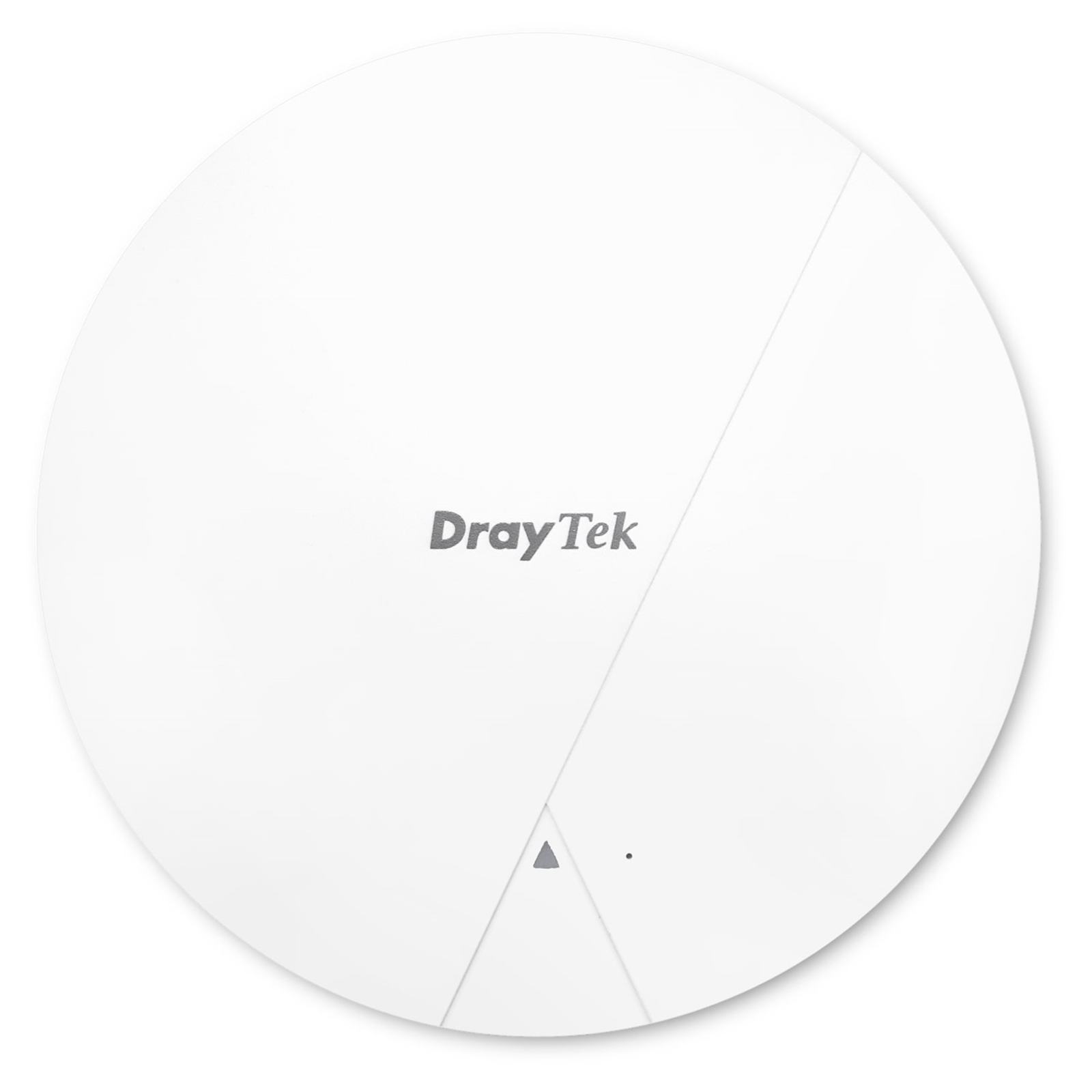

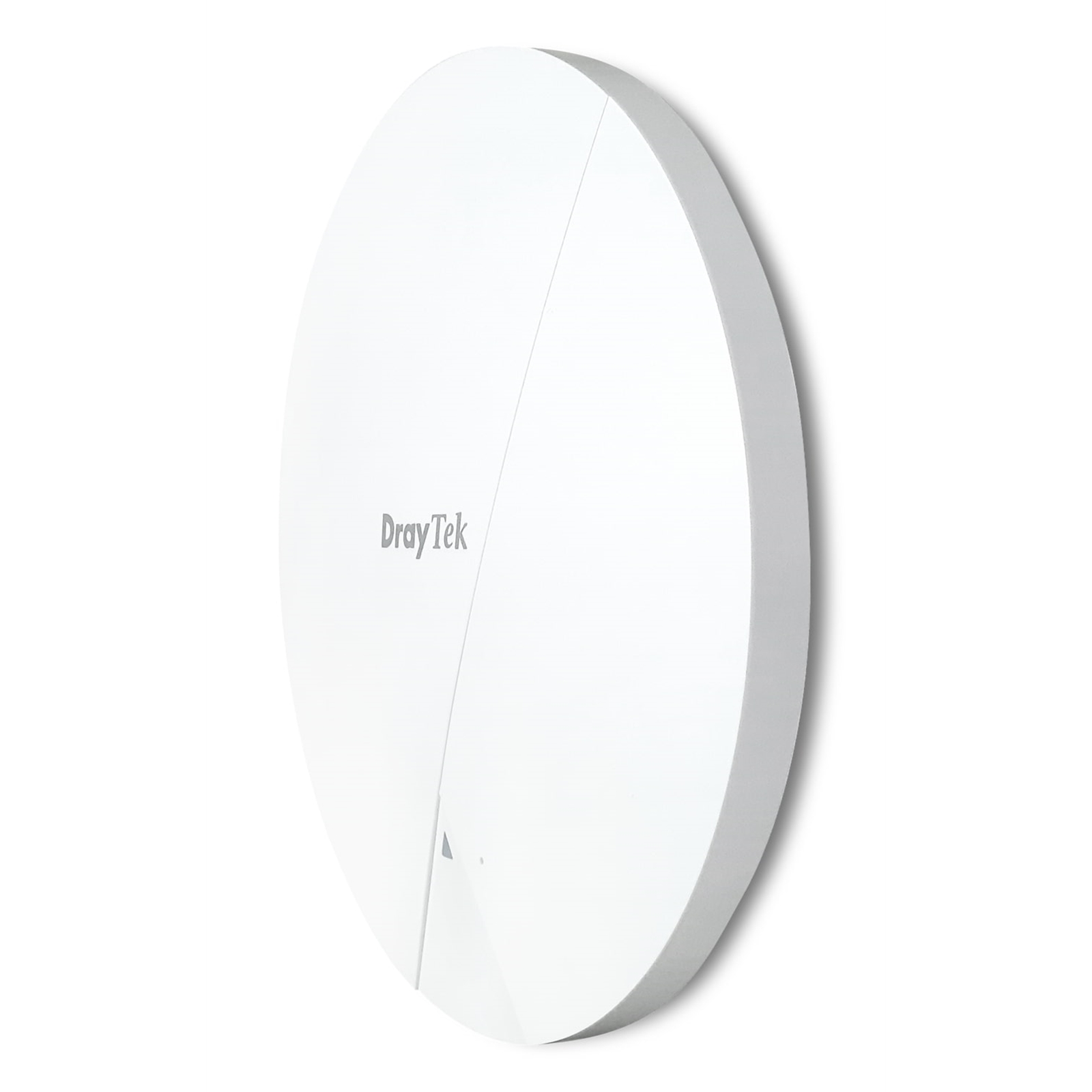

DRAYTEK VAP1062C-K VigorAP 1062C Wireless 6 AX6000 Ceiling Mounted Mesh Access Point

DRAYTEK Logo here

Manufacturer Part Code: VAP1062C-K

Order Code: NPDRA-VAP1062CK

Category: All Wireless Access Points

DrayTek VAP1062C-K VigorAP 1062C Wireless 6 AX6000 Ceiling Mounted Mesh Access Point

Please note: For next business day delivery, this item must be ordered before 2:00pm

The VigorAP 1062C is a high-performance ceiling or wall-mounted Mesh Wireless Access Point. It offers up to 6Gbps dual-band wireless performance and up to 2.5Gb Ethernet connectivity.

Fastest Wi-Fi 6 Access Point
Experience lightning-fast speeds with the DrayTek AX access point, which offers a combined speed of up to 6000Mbps. This device is perfect for businesses that require efficient networks for demanding applications such as video conferencing, gaming, and large file transfers.

Strong WPA3 Connection Encryption
Protect your network with robust wireless security using the latest WPA3-Personal or 802.1x Enterprise. Networks can transition to the new standard with mixed WPA3/WPA2 support and different SSIDs can be set with varying security levels.

Master AP Management
With VigorAP 1062C, you can effortlessly manage up to eight compatible mesh VigorAPs and as many as 50 access points through the easy-to-use Wireless Virtual Controller module. Enjoy the convenience of auto-provisioning and AP monitoring, both readily available upon initial use.

2.5 Gigabit Power Over Ethernet
The VigorAP 1062C can be powered through its 2.5Gb Ethernet interface using standard IEEE 802.3at PoE+ for a convenient and neat installation.

High-Density Performance
Easily accommodate high-density environments by linking up to 256 clients with our 802.11ax dual-band antennas and Wi-Fi 6 4x4 Multi-User MIMO technology.

Ceiling Mounting
The AP-1062C is a versatile shape that complements both business and home interiors. It can be installed on ceilings or walls and comes with a secure ceiling mounting plate and easy-to-install clips for suspended ceilings.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Antenna type
Internal
Antenna direction type
Omni-directional
LED indicators
System
Product colour
White
Reset button
Yes
Placement
Ceiling, Wall
Recommended usage
Indoor
Market segment
Business
Power over Ethernet (PoE)
Yes
Power consumption (max)
23 W
Full duplex
Yes
Cabling technology
10/100/1000Base-T(X)
Maximum data transfer rate
6000 Mbit/s
Number of users
256 user(s)
Networking standards
IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11r, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3at
Ethernet LAN data rates
2500 Mbit/s
Automatic channel selection
Yes
VLAN support
Yes
Cloud services supported
Draytek VigorACS
2.4 GHz
Yes
5 GHz
Yes
Wireless isolation
Yes
MIMO
Yes
Duplex mode auto-negotiation
Yes
Band steering
Yes
MIMO type
Multi User MIMO
Virtual LAN features
SSID-based VLAN assignment
Maximum data transfer rate (2.4 GHz)
1200 Mbit/s
Maximum data transfer rate (5 GHz)
4800 Mbit/s
Fit AP mode features
Mesh networking
BeamForming
Yes
Web-based management
Yes
Firmware upgradeable
Yes
Syslog
Yes
Command-line interface (CLI)
Yes
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating temperature range (T-T)
Yes
Quick start guide
Yes
Mounting kit
Yes
Quick start guide
Yes
Mounting kit
Yes
Ethernet LAN (RJ-45) ports
1
DHCP client
Yes
DHCP server
Yes
Security algorithms
802.1x RADIUS, HTTPS, SSID, WEP, WMM, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal, WPS
MAC address filtering
Yes
Number of SSID supported
16
Service Set Identifier (SSID) features
Hidden SSID, Multiple SSIDs, SSID broadcast on/off
Weight
813 g
Height
208 mm
Width
208 mm
Depth
32.1 mm
