Illustration purposes only

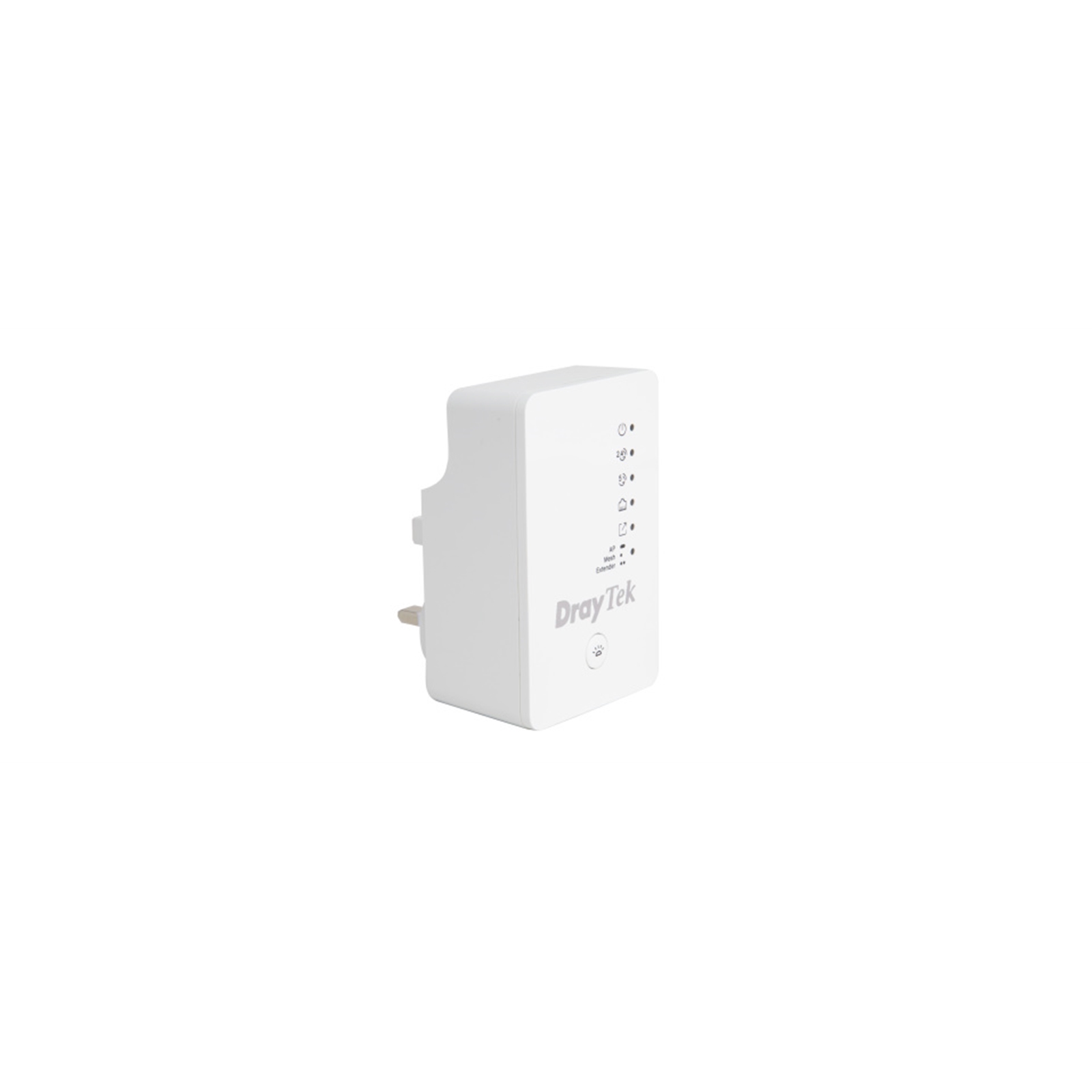

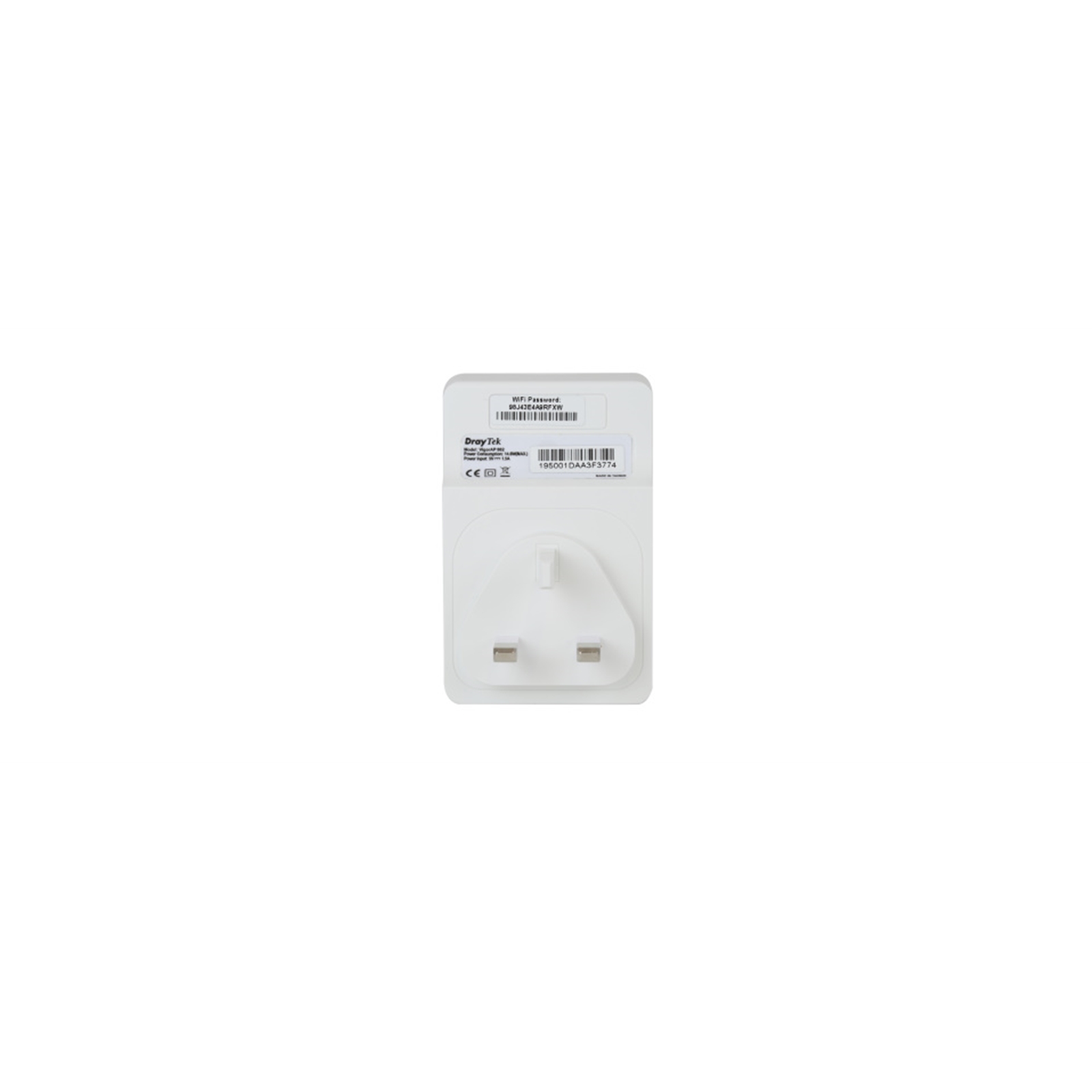

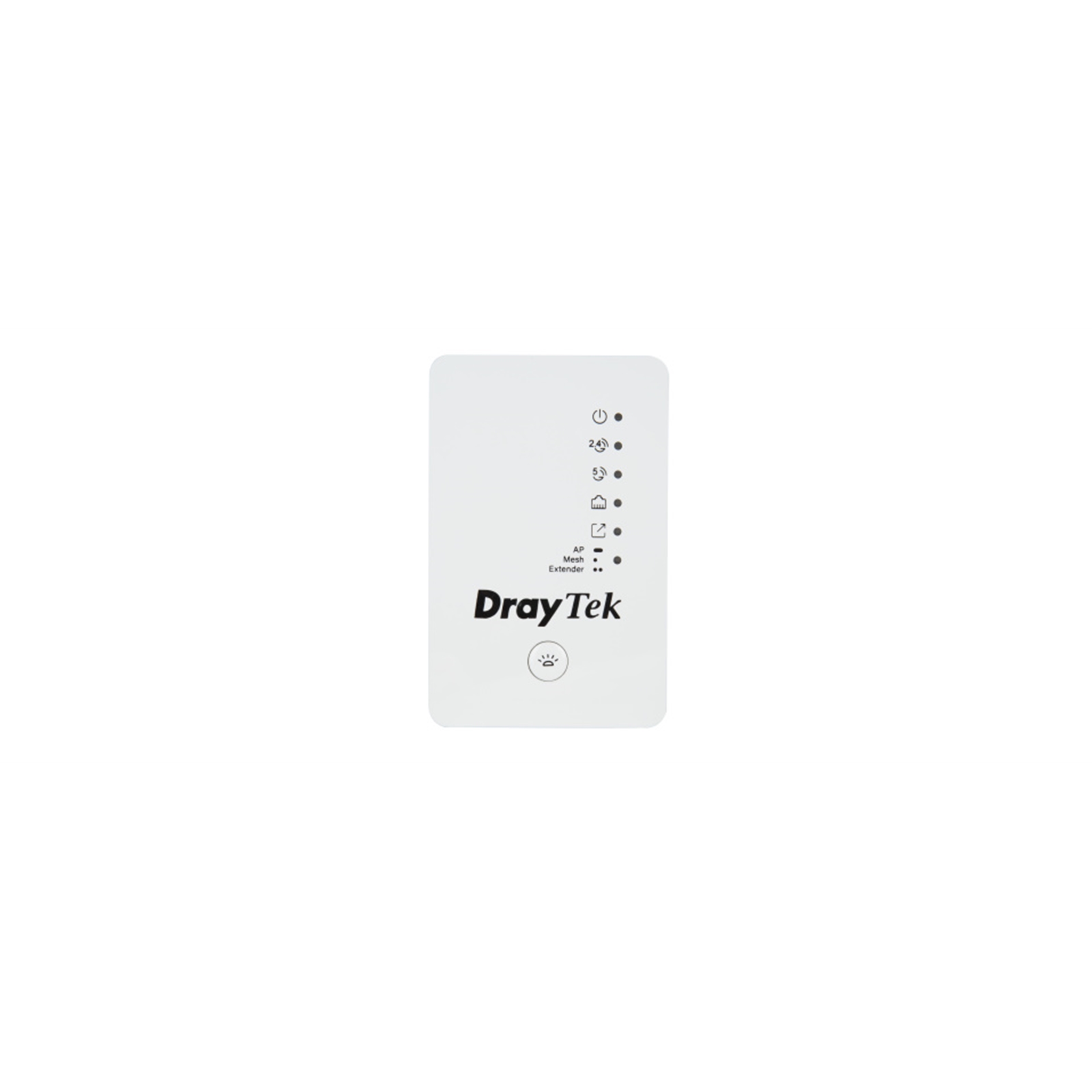

DRAYTEK VigorAP 802

DRAYTEK Logo here

Manufacturer Part Code: VAP802-K

Order Code: NPDRA-VAP802K

Category: All Wireless Access Points

DrayTek VigorAP 802

Please note: For next business day delivery, this item must be ordered before 2:00pm

VigorAP 802 is a high-performance Mesh Wireless Access Point and Range Extender. With a Mesh network, you can easily expand wireless coverage, eliminate Wi-Fi dead zones and significantly reduce the cost of network deployments. DrayTek's Mesh wireless solution supports VLAN tags, allowing you to provide two distint and separate wireless networks, such as an internal and a guest network, without any cable installation required.

The VigorAP 802 is a Mesh Node to be used in conjunction with a Mesh Root, such as the VigorAP 903 Mesh Wireless Access Point. It can also be used as a traditional Access Point to provide wireless connectivity for your network. Extend wireless coverage for regular wireless networks without Mesh with the Range Extender mode. This joins the VigorAP 802 to an existing wireless network, expanding its coverage.

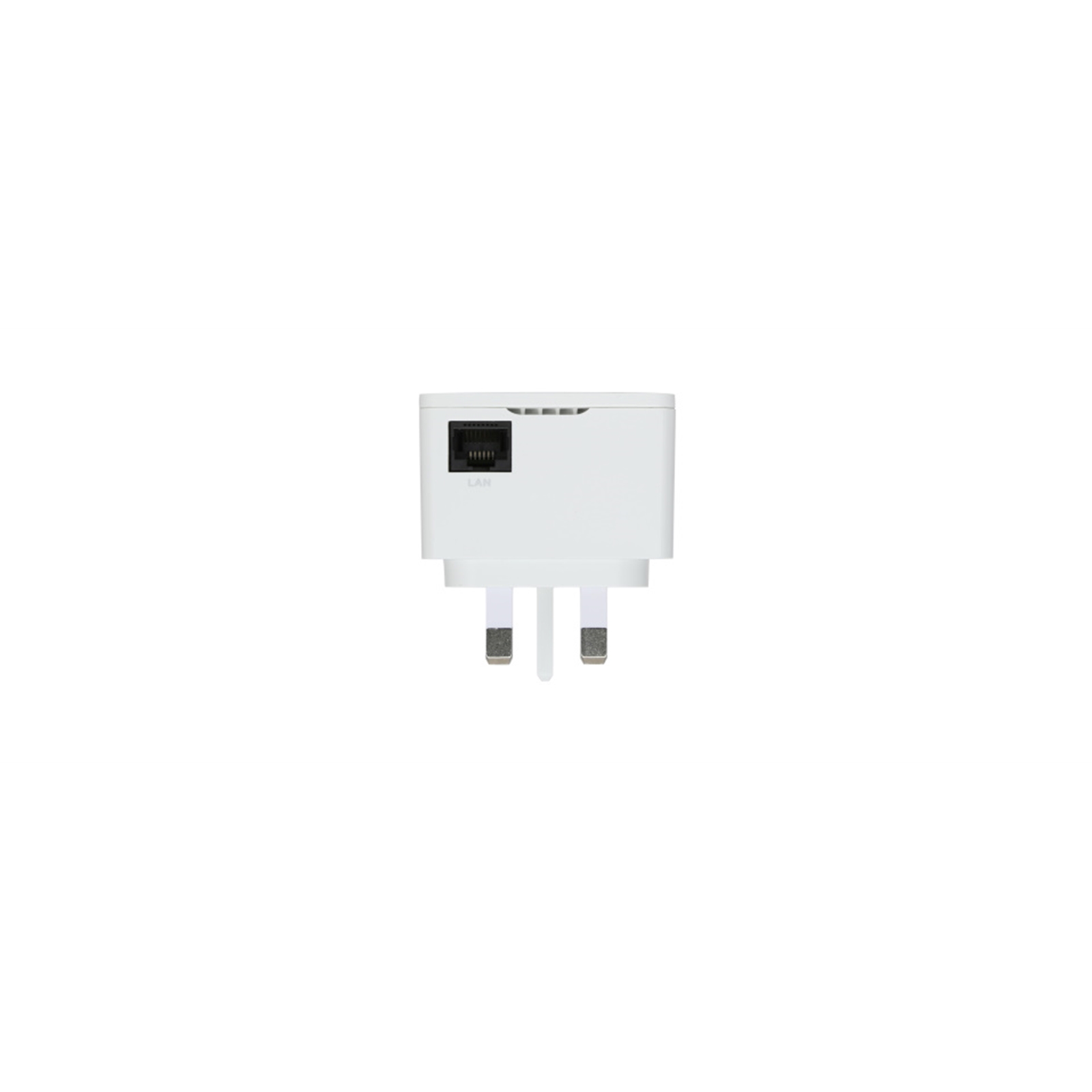

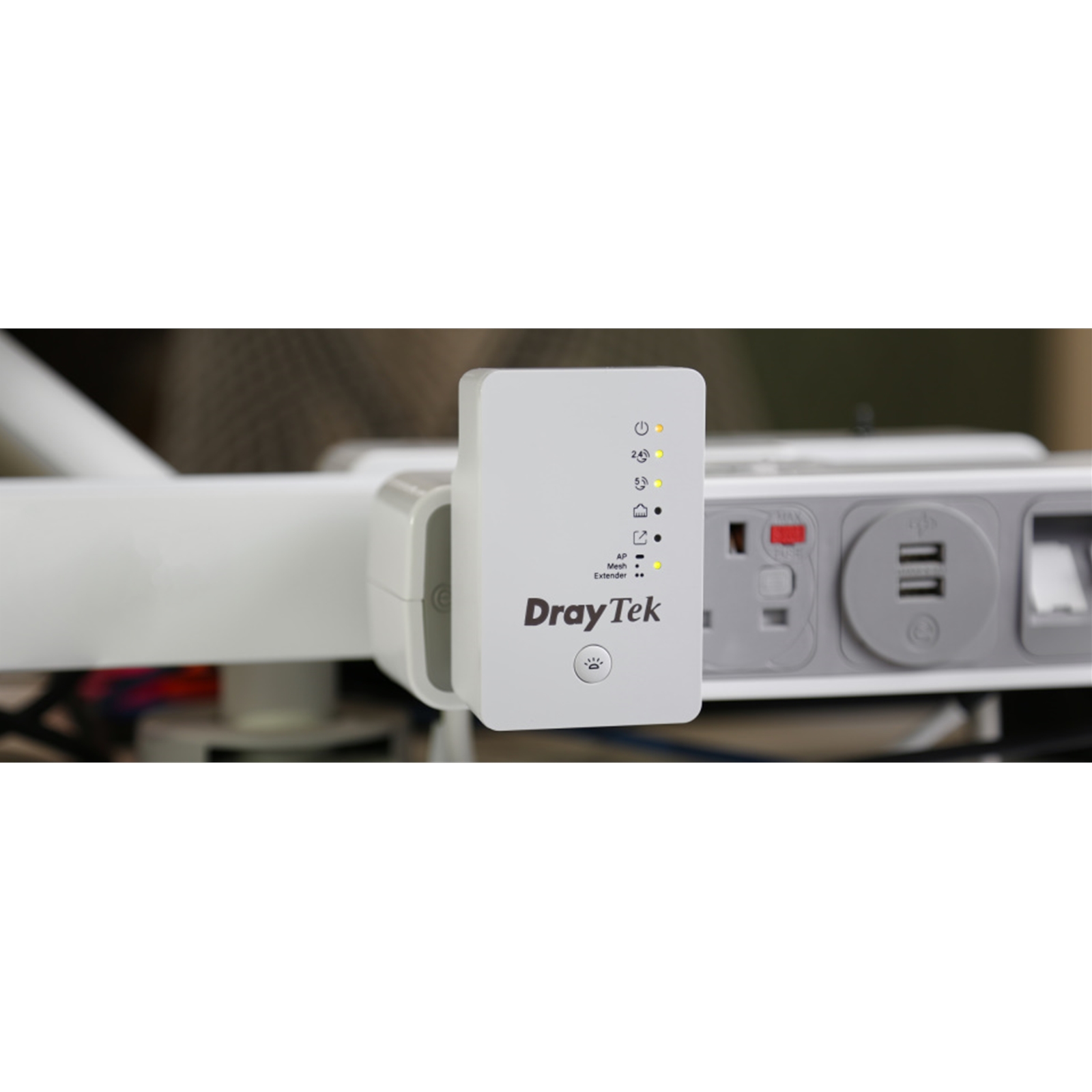

The plug design makes the VigorAP 802 easy to install and tidy once in place. With a Gigabit LAN port on the underside to connect Wired Ethernet devices into your Mesh network.

Initial setup of the VigorAP 802 is easy with the DrayTek Wireless app, whether it's joining an existing Mesh network or being set up in AP and Range Extender modes, the Quick Start Wizard assists throughout.
Manage the VigorAP 802 centrally through the VigorACS central management platform, VigorConnect, Router AP Management, or simply on its own as a stand-alone access point. The VigorAP 802 has the flexibility to be used how you need it.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Data transfer rate (max)
866 Mbit/s
Ethernet LAN data transfer rates
10,100,1000 Mbit/s
LED indicators
Activity, Power, Status
Colour of product
White
Reset button
Y
On/off switch
Y
Placement
Wall
Input voltage
100 - 240 V
Power consumption (max)
7.5 W
Maximum data transfer rate
866 Mbit/s
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Channels quantity
3 channels
Ethernet LAN data rates
10,100,1000 Mbit/s
VLAN support
Y
2.4 GHz
Y
5 GHz
Y
Wireless isolation
Y
Wi-Fi Multimedia (WMM)/(WME)
Y
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Maximum data transfer rate (5 GHz)
866 Mbit/s
WLAN channel features
WLAN channel management
LED indicators
Activity, Power, Status
Web-based management
Y
Firmware upgradeable
Y
VLAN support
Y
Syslog
Y
Local AP management
Telnet
Command-line interface (CLI)
Y
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Operating relative humidity range
10 - 90%
Storage temperature range (T-T)
-20 - 60 °C
Operating temperature range (T-T)
0 - 40 °C
Quick start guide
Y
Number of products included
1 pc(s)
Quick start guide
Y
Number of products included
1 pc(s)
Data transfer rate (max)
866 Mbit/s
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Channels quantity
3 channels
Web-based management
Y
Ethernet LAN data rates
10,100,1000 Mbit/s
Reset button
Y
Firmware upgradeable
Y
On/off switch
Y
VLAN support
Y
Syslog
Y
2.4 GHz
Y
5 GHz
Y
Wireless isolation
Y
Wi-Fi Multimedia (WMM)/(WME)
Y
Ethernet LAN (RJ-45) ports quantity
1
Internal RJ-45 ports quantity
1
DHCP client
Y
Security algorithms supported
EAP-TLS,HTTPS,PEAP,WEP,WPA,WPA2
MAC address filtering
Y
Number of SSID support
2
Service Set Identifier (SSID) features
Hidden SSID,Multiple SSIDs
Height
91 mm
Input voltage
100 - 240 V
Sustainability certificates
RoHS
Weight
130 g
Height
91 mm
Width
59 mm
Depth
40 mm
Channels quantity
3 channels
