Aruba Wireless Access Points | Aruba AP-365 (RW) - JX966A | JX966A | ServersPlus
Aruba JX966A | serversplus.com

Illustration purposes only

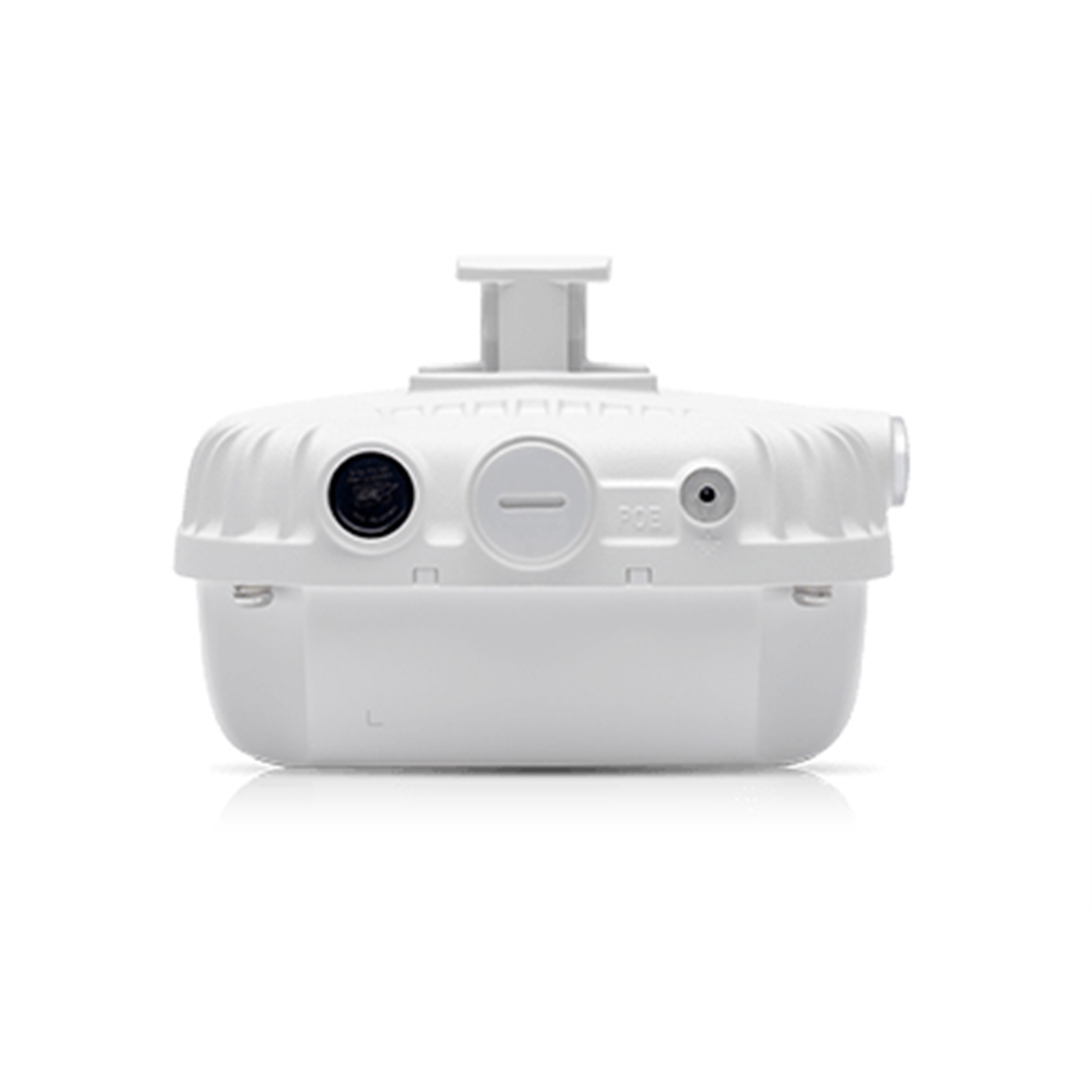

Aruba AP-365 (RW) - JX966A

Aruba Logo here

Manufacturer Part Code: JX966A

Order Code: NPHEW-JX966A

Category: Aruba Wireless Access Points

HPE Aruba AP-365 (RW) - Radio access point - Wi-Fi 5 - 2.4 GHz 5 GHz

Multifunctional 360 Series outdoor 802.11ac Wave 2 access points deliver cost-effective, wireless connectivity for mobile and IoT devices in educational, enterprise, retail, and industrial settings.

Able to survive in harsh outdoor environments, the 360 Series can withstand exposure to high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants.

Boost network efficiency
With multi-user MIMO (MU-MIMO), you can transmit to multiple Wave 2 clients from an AP, at the same time.

ClientMatch unleashes MU-MIMO
Aruba ClientMatch software groups Wave 2 clients together, enabling MU-MIMO. That means a faster, more efficient network.

Integrated Bluetooth Beacon
360 series APs have an integrated BLE Beacon to simplify management of a large-scale network of battery-powered Aruba Beacons.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Antenna design
Integrated antenna
Data transfer rate (max)
1000 Mbit/s
Ethernet LAN data transfer rates
10,100,1000 Mbit/s
Internal
N
LED indicators
Power, Status
Power over Ethernet (PoE) Support
Y
Power consumption (max)
12.5 W
Maximum data transfer rate
1000 Mbit/s
Modulation
16-QAM,64-QAM,256-QAM
Spread spectrum method
DSSS,OFDM
Networking standards
IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3af
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Y
2.4 GHz
Y
5 GHz
Y
Maximum data transfer rate (5 GHz)
867 Mbit/s
LED indicators
Power, Status
Internal
N
Spread spectrum method
DSSS,OFDM
Networking standards
IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3af
Operating relative humidity range
5 - 95%
Storage temperature range (T-T)
-40 - 70 °C
Operating temperature range (T-T)
-40 - 55 °C
Package weight
1.11 kg
Package depth
200 mm
Packaging depth
200 mm
Package height
128 mm
Packaging height
128 mm
Package width
198 mm
Packaging width
198 mm
Data transfer rate (max)
1000 Mbit/s
Modulation
16-QAM,64-QAM,256-QAM
Spread spectrum method
DSSS,OFDM
Networking standards
IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3af
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Y
2.4 GHz
Y
5 GHz
Y
WAN connection
Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports quantity
1
DHCP client
-40 - 55 °C
Height
110 mm
Weight
807 g
Package weight
1.11 kg
Height
110 mm
Width
165 mm
Depth
165 mm
Packaging depth
200 mm
Packaging height
128 mm
Packaging width
198 mm
Modulation
16-QAM,64-QAM,256-QAM
