D Link Wireless Access Points | D-LINK DAP-3666 - Radio access point - 2 ports - GigE 802.11ac Wave 1 - Wi-Fi - Dual Band | DAP-3666 | ServersPlus
D-LINK DAP-3666 | serversplus.comD-LINK DAP-3666 | serversplus.com

Illustration purposes only

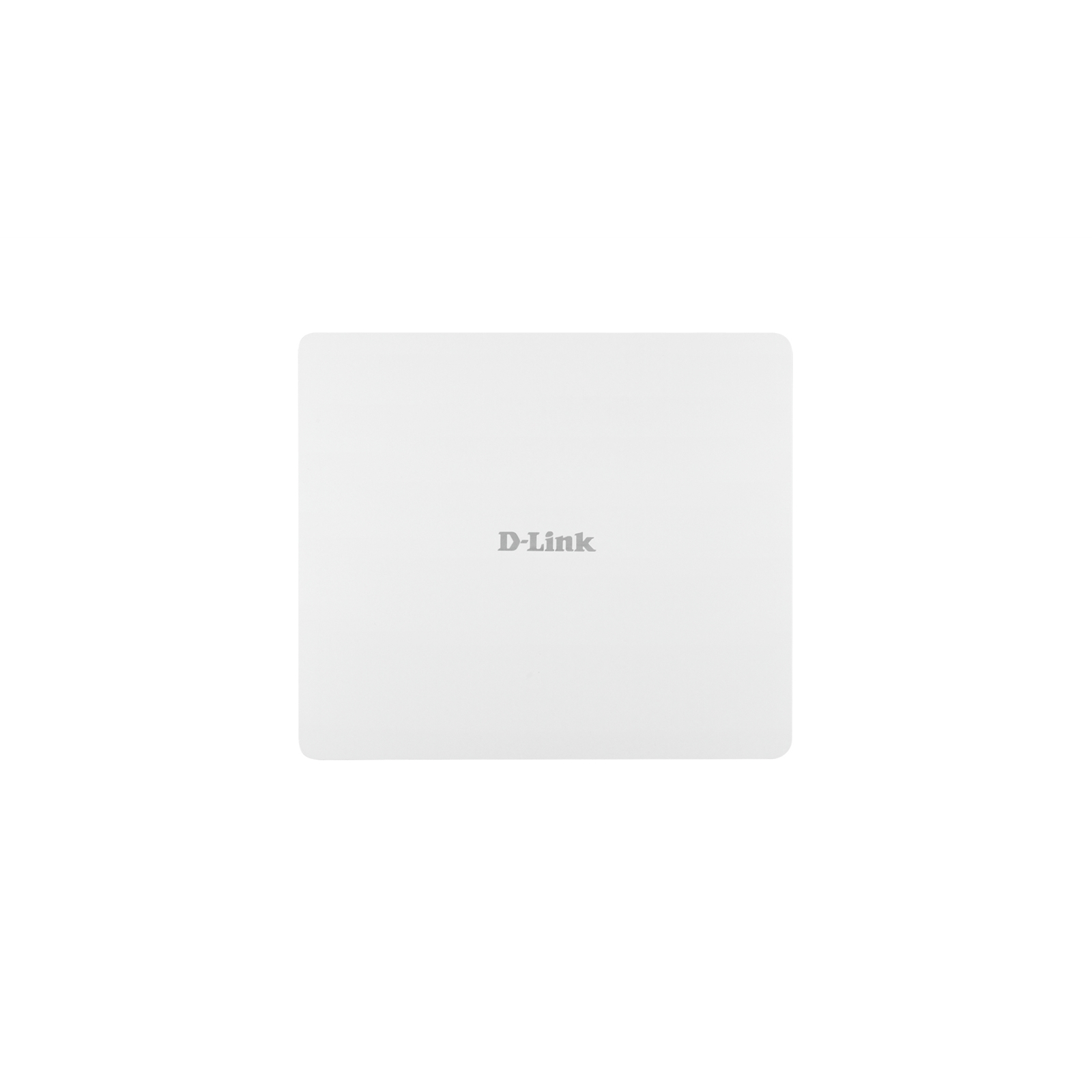

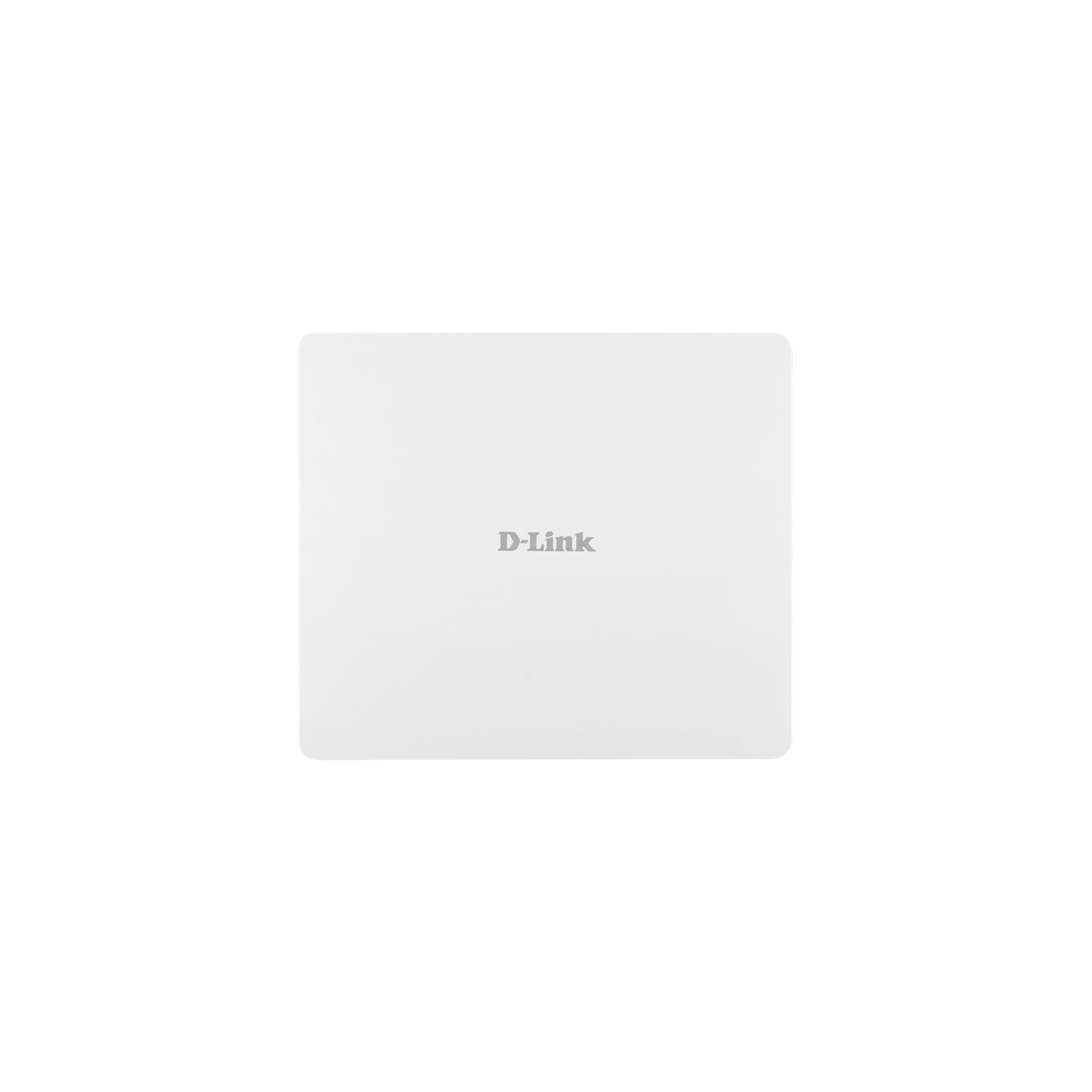

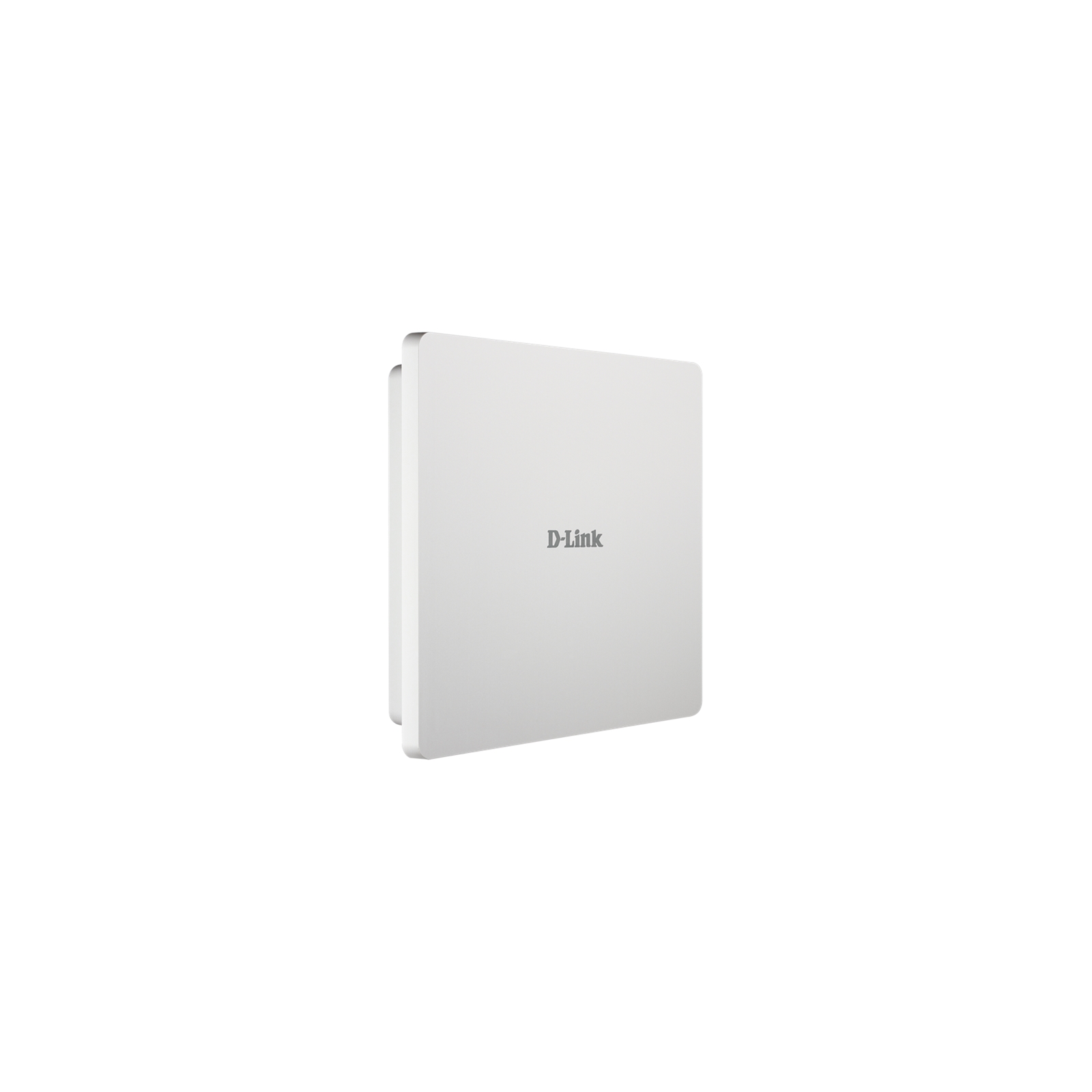

D-LINK DAP-3666 - Radio access point - 2 ports - GigE 802.11ac Wave 1 - Wi-Fi - Dual Band

D-LINK Logo here

Manufacturer Part Code: DAP-3666

Order Code: NPDLI-DAP3666

Category: D Link Wireless Access Points

D-Link DAP-3666 - Radio access point - 2 ports - GigE 802.11ac Wave 1 - Wi-Fi - Dual Band

The WiFi4EU ready DAP-3666 Wireless AC1200 Wave 2 Dual-Band Outdoor PoE Access Point is a versatile, high power outdoor access point designed with harsh weather resistant features making it an ideal solution for creating outdoor wireless hotspot networks. Utilising the cutting-edge speed of 802.11ac Wave 2, it delivers maximum combined wireless signal rates of up to 1200Mbps and supports MU-MIMO technology that allows multiple devices to get high-bandwidth Wi-Fi signal at the same time, distributing data more efficiently. It is Passpoint® certified by Wi-Fi Alliance and complies with Hotspot 2.0, making the process of devices finding and getting access to the known network seamless.
For centralised network management, administrators can use D-Link's free Nuclias Connect software or Nuclias Connect Hub (DNH-100) to configure and manage multiple access points. In addition to streamlining the management process, Nuclias Connect provides network administrators with the means to verify and conduct regular maintenance checks remotely, eliminating the need to send personnel out to physically verify proper operation.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Antenna type
Internal
Antenna gain level (max)
6 dBi
Antenna type
Internal
Antenna gain level (max)
6 dBi
Antennas quantity
2
Antenna features
Integrated antenna
Antennas quantity
2
Certification
FCC, IC, CE, UL, Wi-Fi Certified, Wi-Fi Certified Passpoint
Ethernet LAN data transfer rates
10,100,1000 Mbit/s
Certification
FCC, IC, CE, UL, Wi-Fi Certified, Wi-Fi Certified Passpoint
Cable lock slot
Yes
LED indicators
Power
Product colour
White
Cable lock slot
Y
Colour of product
White
Placement
Pole
Placement
Pole
Power over Ethernet (PoE)
Yes
DC voltage range
48 V
Power consumption (max)
10.5 W
Power over Ethernet (PoE) Support
Y
Mean time between failures (MTBF)
30000 h
Cabling technology
10/100/1000Base-T(X)
Maximum data transfer rate
1200 Mbit/s
Frequency band
2.4, 5 GHz
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Ethernet LAN data rates
10,100,1000 Mbit/s
Frequency band
2.4, 5 GHz
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3af
Transmitting power
26 dBmW
2.4 GHz
Yes
5 GHz
Yes
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Maximum data transfer rate (5 GHz)
867 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
6 GHz
No
Transmitting power
26 dBmW
2.4 GHz
Y
5 GHz
Y
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Maximum data transfer rate (5 GHz)
867 Mbit/s
Quantity per pack
1 pc(s)
Harmonized System (HS) code
85176990
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3af
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-30 - 65 °C
Operating temperature (T-T)
-30 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Number of products included
1 pc(s)
Quantity per pack
1 pc(s)
Number of products included
1 pc(s)
Number of products included
1 pc(s)
Number of products included
1 pc(s)
Frequency band
2.4, 5 GHz
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3af
Ethernet LAN data rates
10,100,1000 Mbit/s
Transmitting power
26 dBmW
2.4 GHz
Y
5 GHz
Y
WAN connection
Ethernet (RJ-45)
USB 2.0 ports quantity
0
Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes
WAN connection
Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports quantity
2
DC-in jack
Y
Security algorithms
64-bit WEP, SSID, 128-bit WEP
Cable lock slot
Y
Number of SSID supported
16
Number of SSID support
16
Harmonized System (HS) code
85176990
Height
240 mm
Width
277 mm
Depth
50 mm
Antenna type
Internal
Frequency band
2.4, 5 GHz
Antenna gain level (max)
6 dBi
Antennas quantity
2

#
