TP Link Wireless Access Points | TP-LINK AC1750 | EAP245 | ServersPlus
TP-LINK EAP245 | serversplus.comTP-LINK EAP245 | serversplus.comTP-LINK EAP245 | serversplus.com

Illustration purposes only

TP-LINK AC1750

TP-LINK Logo here

Manufacturer Part Code: EAP245

Order Code: NPTPL-EAP245

Category: TP Link Wireless Access Points

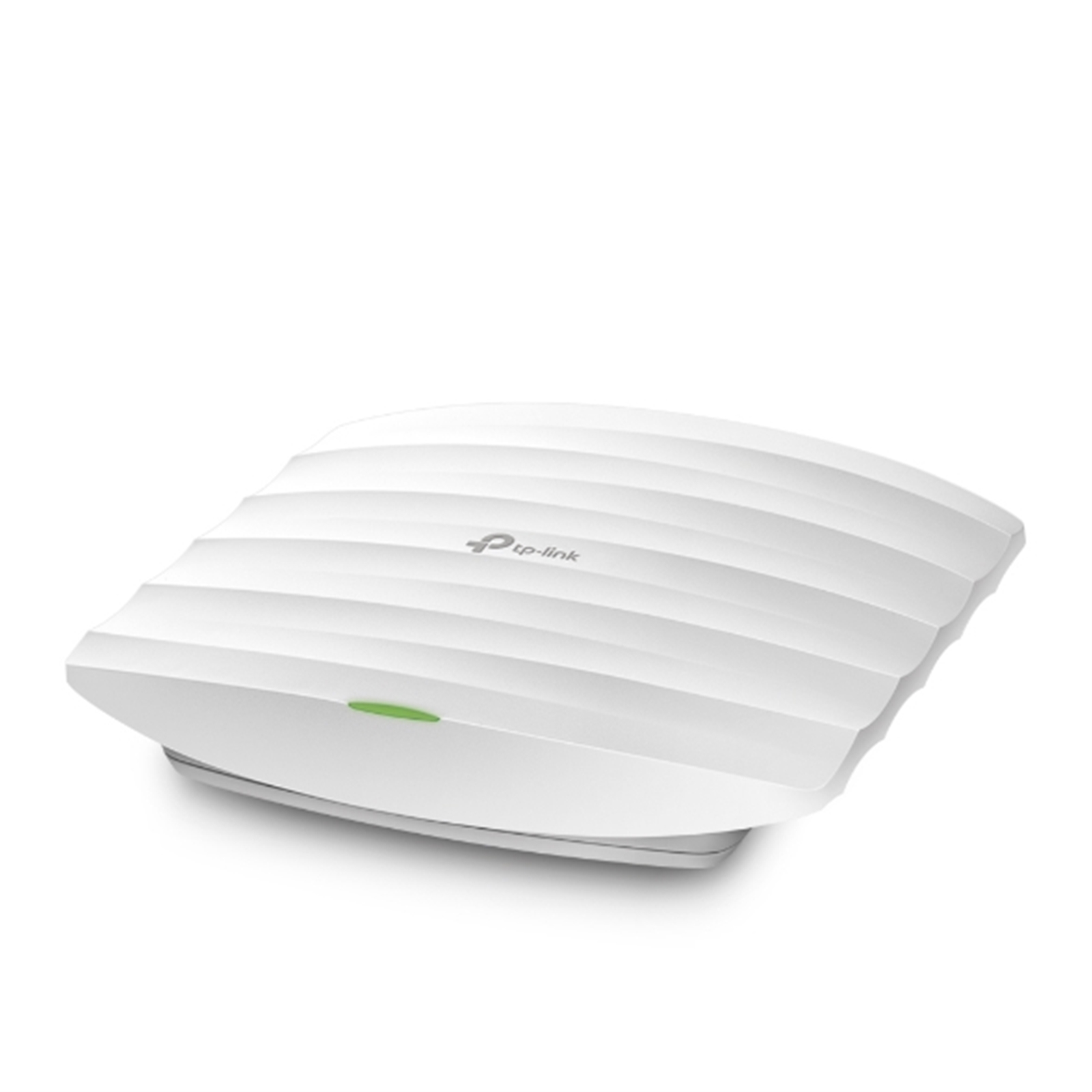

Auranet EAP245 - Radio access point - 802.11a/b/g/n/ac - Dual Band

- Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds
- Free EAP Controller Software lets administrators easily manage hundreds of EAPs
- Support Power over Ethernet(802.3at) for convenient and affordable installation
- Captive portal provides a convenient method for guest authentication
- Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
- Load balance ensures large numbers of users have smooth network experiences in high density business networks

Superior Wi-Fi
Speeds with 3x3 11ac
MIMO technology


The latest generation of 802.11ac Wi-Fi combined with advanced 3x3 MIMO technology ensures superior Wi-Fi speeds and coverage over 2.4GHz and 5GHz wireless bands.

- The EAP245 achieves Wi-Fi speeds of up to 1.75Gbps, with 1300Mbps on the 5GHz band and 450Mbps on the 2.4GHz band.
- The EAP225 provides speeds of up to 867Mbps and 300Mbps on the 5GHz and 2.4GHz respectively.

Easy for Centralized Management

Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Auranet Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There's no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.

Efficient Guest Authentication

Captive portal provides one convenient method of authentication for Wi-Fi guests by requiring users to perform certain actions before network access is allowed. It can Control connections to your network with a voucher system and customized authentication page that can provide a branded experience, advertise to customers, or offer coupons.

Flexible Deployment

The EAP's low profile design and easy mount chassis make it easy to install on any wall or ceiling surface and allow it to blend in with most interior decorating styles. EAP devices also support Power over Ethernet (PoE), making deployment effortless and flexible.


Unified Wi-Fi for Multi-user Business Environment

The Auranet business-grade 11ac Wi-Fi solution is engineered to handle heavy multi-user usage in large areas without encountering the same stability issues found with standard routers and access points purposed for home use. It's the perfect fit for motels, salons, chain-stores, schools, and restaurants.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Antenna type
Internal Omni
Antenna gain level (max)
4 dBi
Integrated antenna
Y
Certification
CE, FCC, RoHS
Data transfer rate (max)
1300 Mbit/s
Internal
N
Cable lock slot
Y
LED indicators
Power
Placement
Ceiling,Wall
Cable lock slot type
Kensington
Power consumption (typical)
12.7 W
AC adapter included
Y
Input voltage
12 V
Power over Ethernet (PoE) Support
Y
Input current
1.5 A
LED indicators
Power
Quality of Service (QoS) support
Y
Web-based management
Y
Internal
N
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x
Operating relative humidity range
10 - 90%
Storage temperature range (T-T)
-40 - 70 °C
Operating temperature range (T-T)
0 - 40 °C
Storage relative humidity range
5 - 90%
AC adapter included
Y
Mounting kit
Y
CD quick installation guide
Y
Certification
CE, FCC, RoHS
Data transfer rate (max)
1300 Mbit/s
Frequency band
2.4, 5 GHz
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x
Quality of Service (QoS) support
Y
Web-based management
Y
Rate limiting
Y
Reset button
Y
Automatic channel selection
Y
Syslog
Y
Transmitting power
27 dBmW
2.4 GHz
N
5 GHz
Y
Wireless isolation
Y
Ethernet LAN (RJ-45) ports quantity
1
DC-in jack
Y
Security algorithms supported
64-bit WEP,128-bit WEP,152-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK
Cable lock slot
Y
MAC address filtering
Y
Port-based Network Access Control (PNAC)
Y
Number of SSID support
16
Compatible operating systems
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Height
47.5 mm
Input voltage
12 V
Input current
1.5 A
Height
47.5 mm
Width
180 mm
Depth
180 mm
Antenna type
Internal Omni
Frequency band
2.4, 5 GHz
Antenna gain level (max)
4 dBi

#
