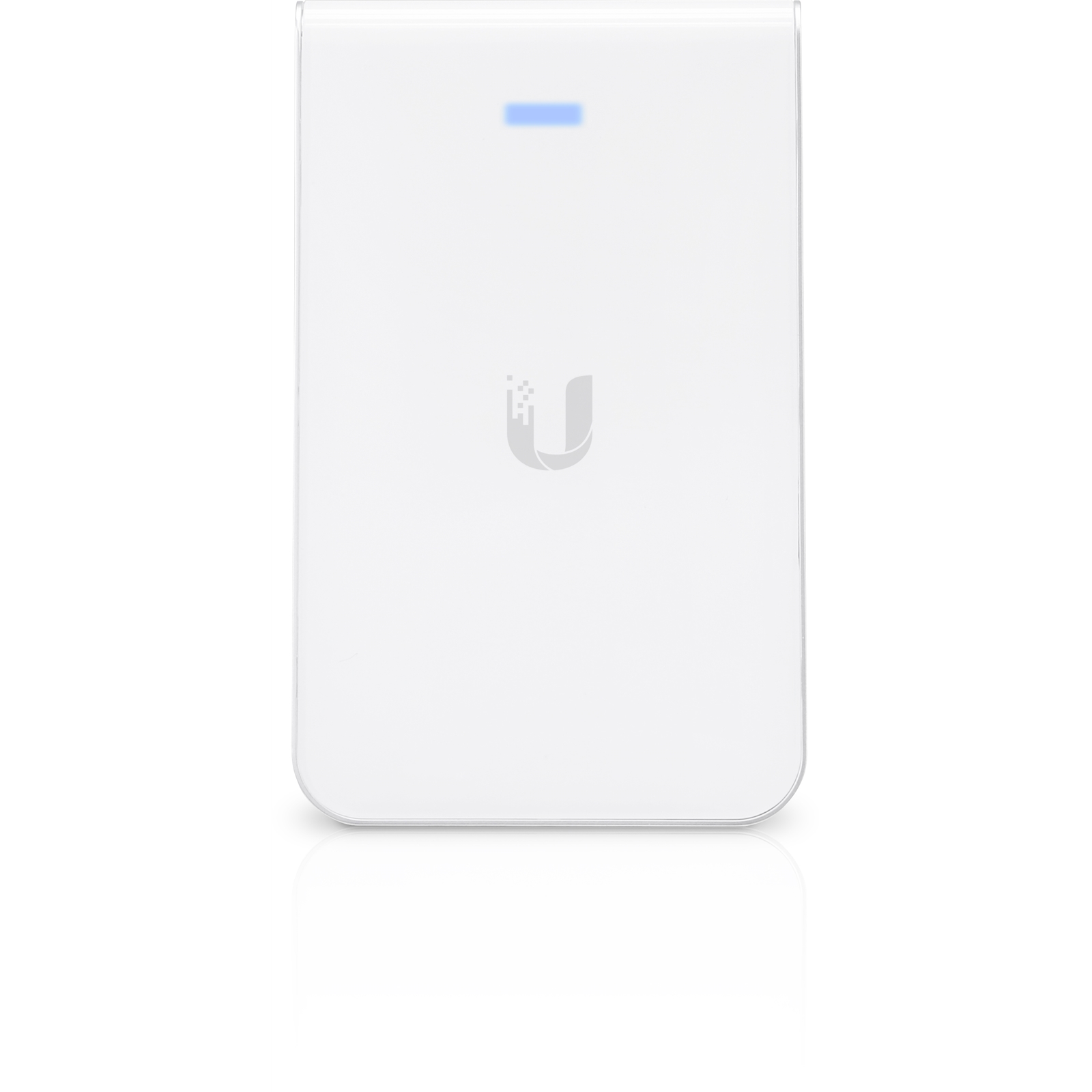

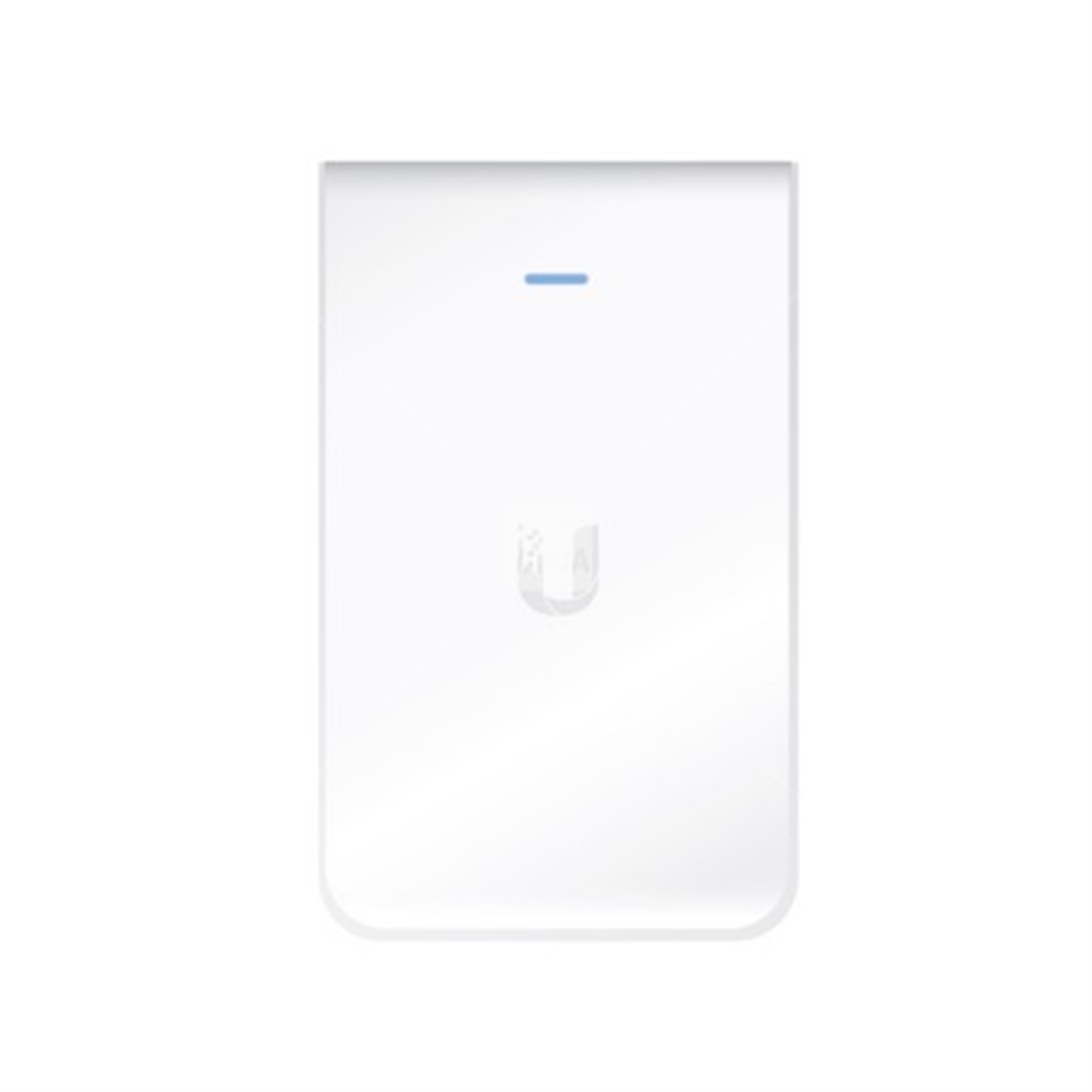

UBIQUITI UAP-AC-IW UniFi AC In Wall Wireless Access Point

UBIQUITI Logo here

Manufacturer Part Code: UAP-AC-IW

Order Code: NPUBI-UAPACIW

Category: Ubiquiti Wireless Access Points

Ubiquiti UAP-AC-IW UniFi AC In Wall Wireless Access Point

In–Wall 802.11ac Wi–Fi Access Point

Easier Than You Think

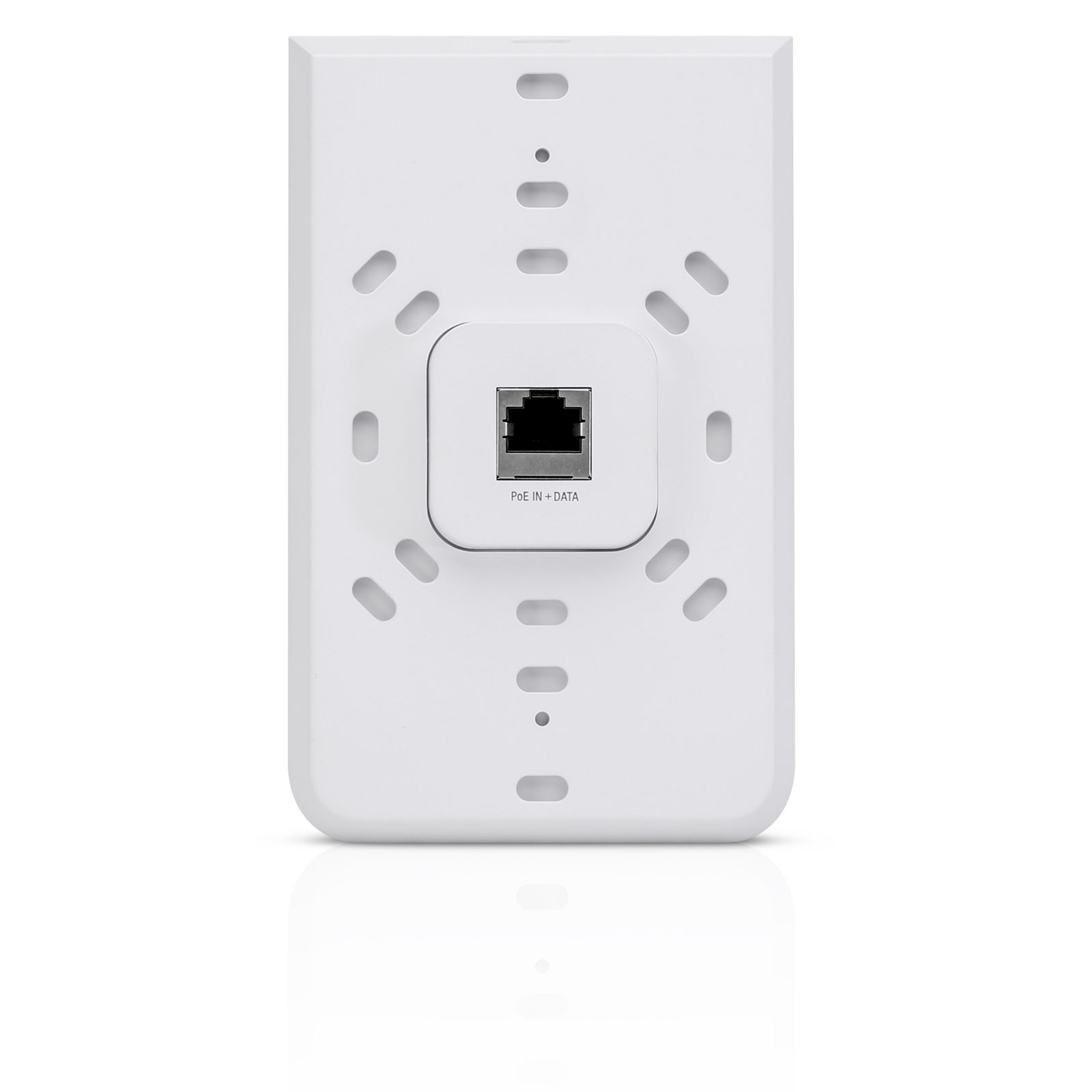

Ideal for new and retrofit installations, the UniFi AC In-Wall is designed to convert an Ethernet wall jack into a dual-band 802.11ac Wi-Fi access point with two Gigabit Ethernet ports.

Scalable. Dedicated Wi-Fi per room

Easy Setup, Monitoring, and Control

Fast. Two radios, 802.11ac

The Power of PoE
Turn existing wiring into per-room Wi-Fi with the UniFi PoE Switch series.

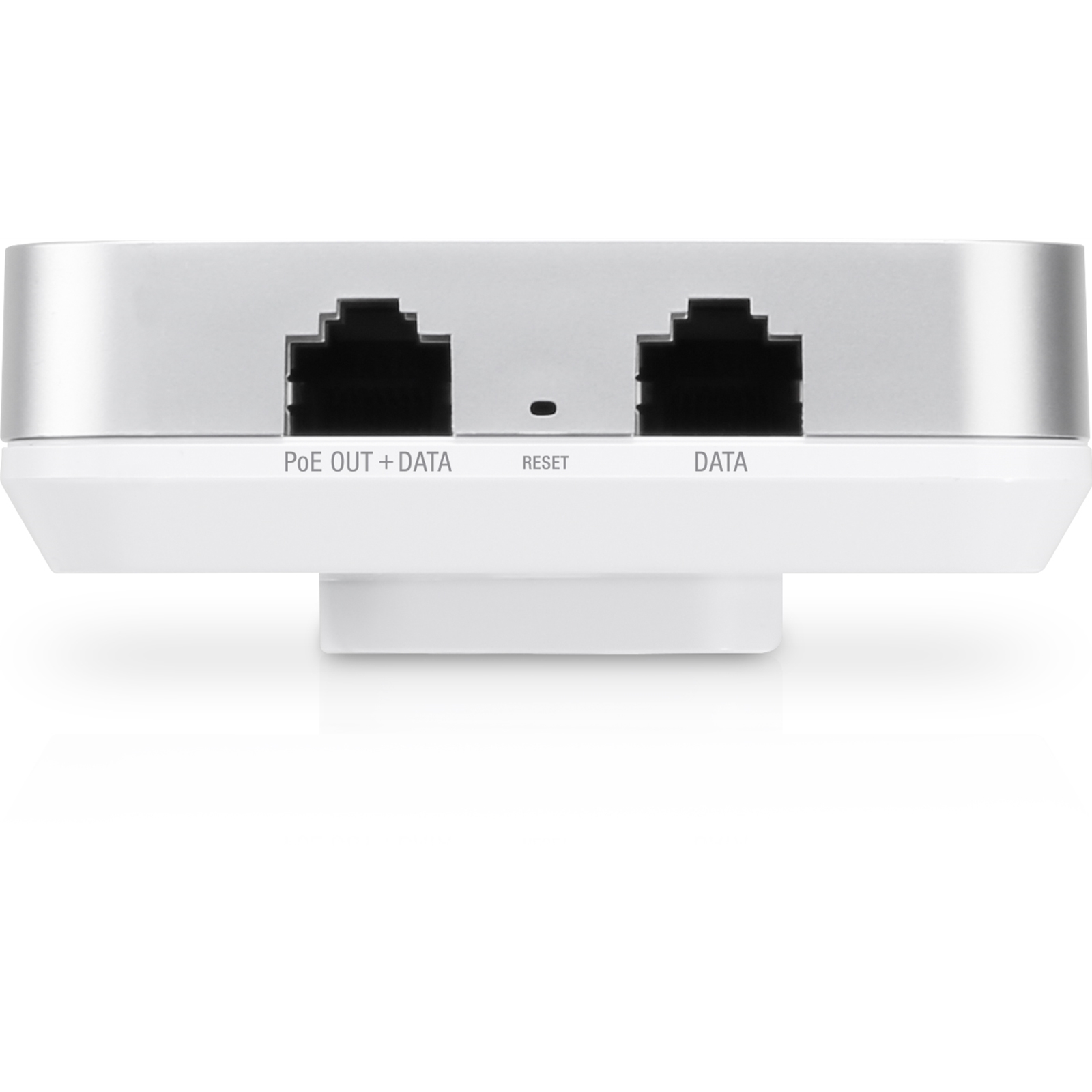

Versatile Data and PoE Output
An Ethernet wall jack becomes an access point, a gigabit switch, and a PoE power source.
Wire a workstation and power a VoIP phone. Or power a US-8 for even more Ethernet ports.

Specifications

Dimensions
139.7 x 86.7 x 25.75 mm

Environment
Indoor

2.4 GHz Data Rate
300 Mbps

5 GHz Data Rate
867 Mbps

PoE Mode
802.3at PoE+

Ports
(3) 10/100/1000 Ethernet


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Antenna type
Dual-Band, Single-Polarity
Antenna gain level (max)
2 dBi
Integrated antenna
Y
Antennas quantity
1
Certification
DFS, CE, FCC, IC
Data transfer rate (max)
867 Mbit/s
Wi-Fi data rate (max)
867 Mbit/s
Ethernet LAN data transfer rates
10,100,1000 Mbit/s
Internal
N
Certification
DFS, CE, FCC, IC
LED indicators
Y
Colour of product
White
Reset button
Y
Placement
In-wall
Power consumption (typical)
7 W
Input voltage
48
Power over Ethernet (PoE) Support
Y
Input current
0.5
Power consumption (max)
19 W
Maximum data transfer rate
867 Mbit/s
Frequency band
2.4 - 5
Number of users
250 user(s)
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1Q,IEEE 802.3at
Wi-Fi data rate (max)
867 Mbit/s
Quality of Service (QoS) support
Y
Rate limiting
Y
Ethernet LAN data rates
10,100,1000 Mbit/s
VLAN support
Y
Transmitting power
20 dBmW
2.4 GHz
Y
5 GHz
Y
Wireless isolation
Y
Wi-Fi Multimedia (WMM)/(WME)
Y
LED indicators
Y
Quality of Service (QoS) support
Y
Web-based management
Y
Firmware upgradeable
Y
VLAN support
Y
Internal
N
Number of users
250 user(s)
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1Q,IEEE 802.3at
Operating relative humidity range
5 - 95%
Operating temperature range (T-T)
-10 - 50 °C
Quick start guide
Y
Mounting kit
Y
Quick start guide
Y
Mounting kit
Y
Certification
DFS, CE, FCC, IC
Data transfer rate (max)
867 Mbit/s
Frequency band
2.4 - 5
Number of users
250 user(s)
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1Q,IEEE 802.3at
Wi-Fi data rate (max)
867 Mbit/s
Quality of Service (QoS) support
Y
Web-based management
Y
Rate limiting
Y
Ethernet LAN data rates
10,100,1000 Mbit/s
Reset button
Y
Firmware upgradeable
Y
VLAN support
Y
Maximum indoor range
100 m
Transmitting power
20 dBmW
2.4 GHz
Y
5 GHz
Y
Wireless isolation
Y
Wi-Fi Multimedia (WMM)/(WME)
Y
Ethernet LAN (RJ-45) ports quantity
3
DC-in jack
Y
Internal RJ-45 ports quantity
1
Security algorithms supported
AES,TKIP,WEP,WPA,WPA-Enterprise,WPA-PSK,WPA2
Height
139.7 mm
Input voltage
48
Input current
0.5
Weight
200 g
Height
139.7 mm
Width
86.7 mm
Depth
25.8 mm
Antenna type
Dual-Band, Single-Polarity
Frequency band
2.4 - 5
Antenna gain level (max)
2 dBi
Antennas quantity
1
