Ubiquiti Wireless Access Points | Ubiquiti UAP-AC-LITE UniFi AP AC Lite Wireless AC1200 Dual Band PoE Access Point | UAP-AC-LITE | ServersPlus
L R
Ubiquiti UAP-AC-LITE | serversplus.comUbiquiti UAP-AC-LITE | serversplus.comUbiquiti UAP-AC-LITE | serversplus.comUbiquiti UAP-AC-LITE | serversplus.com

Illustration purposes only

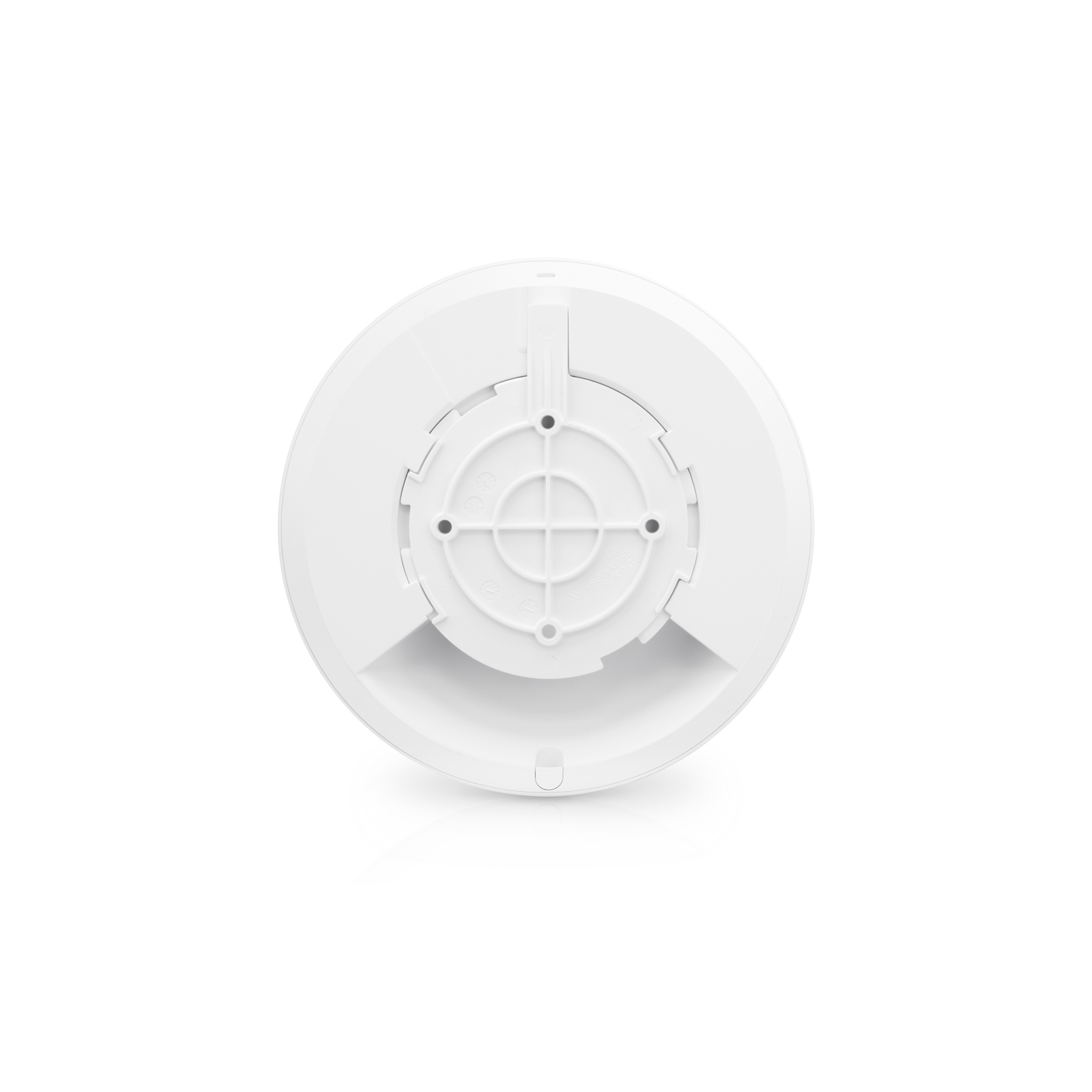

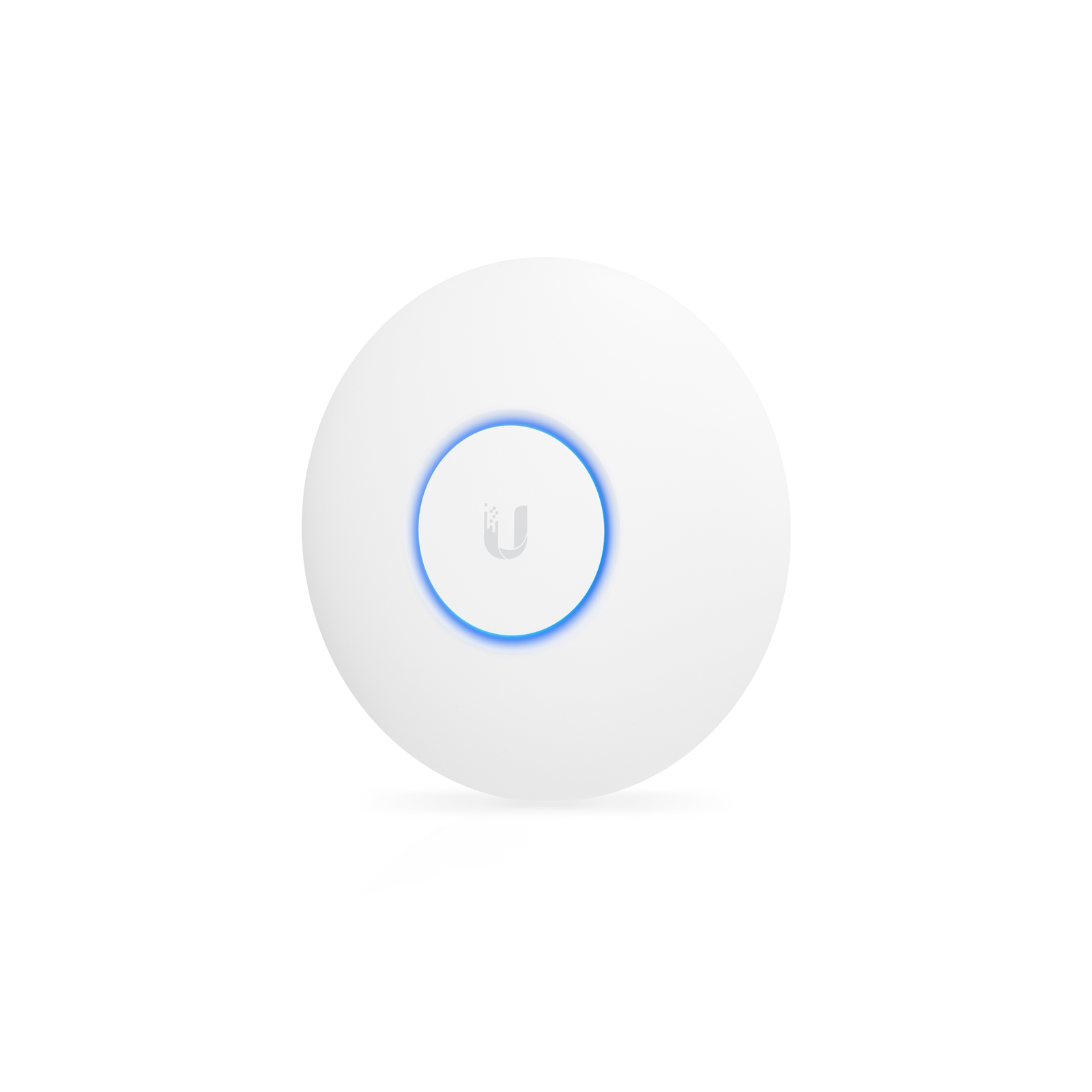

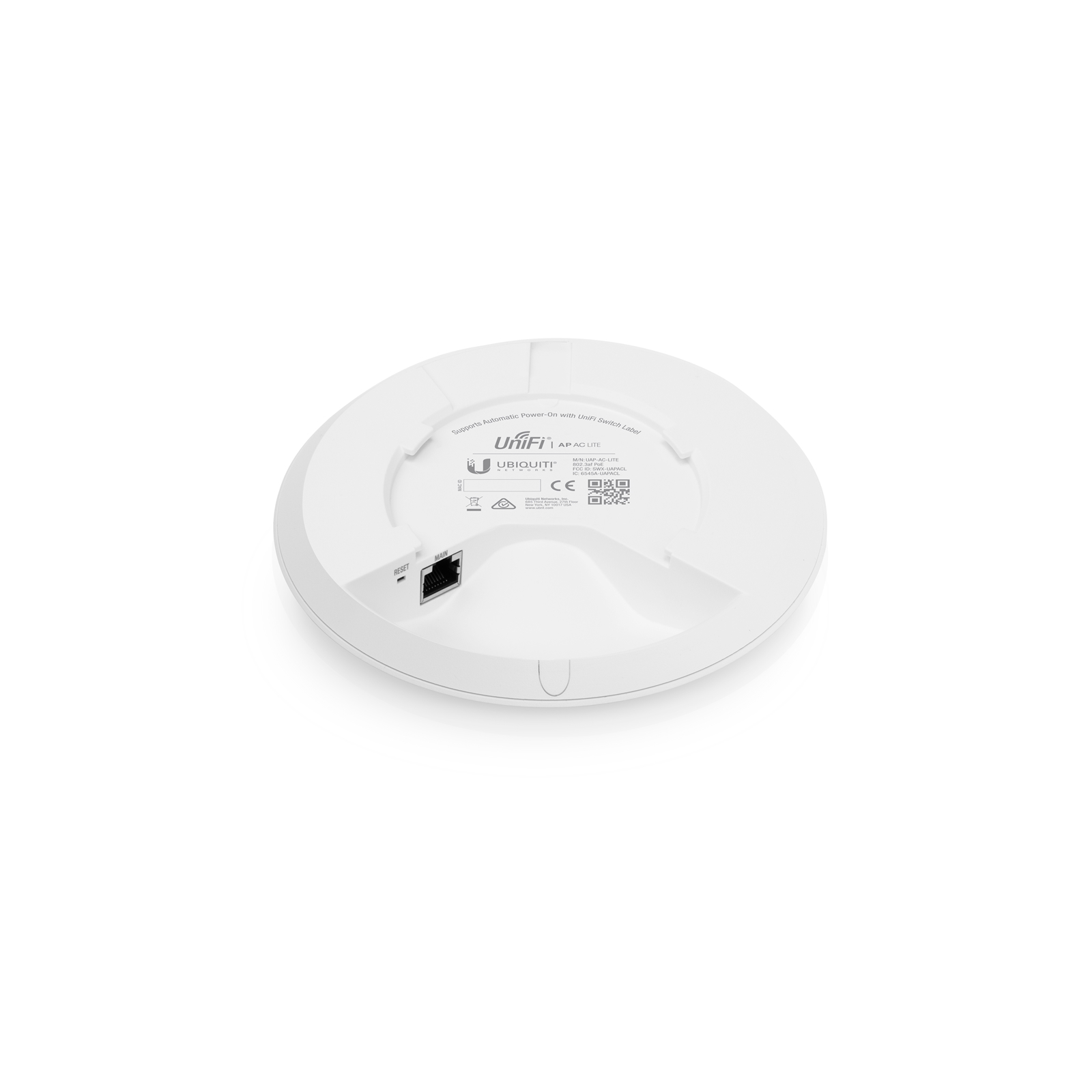

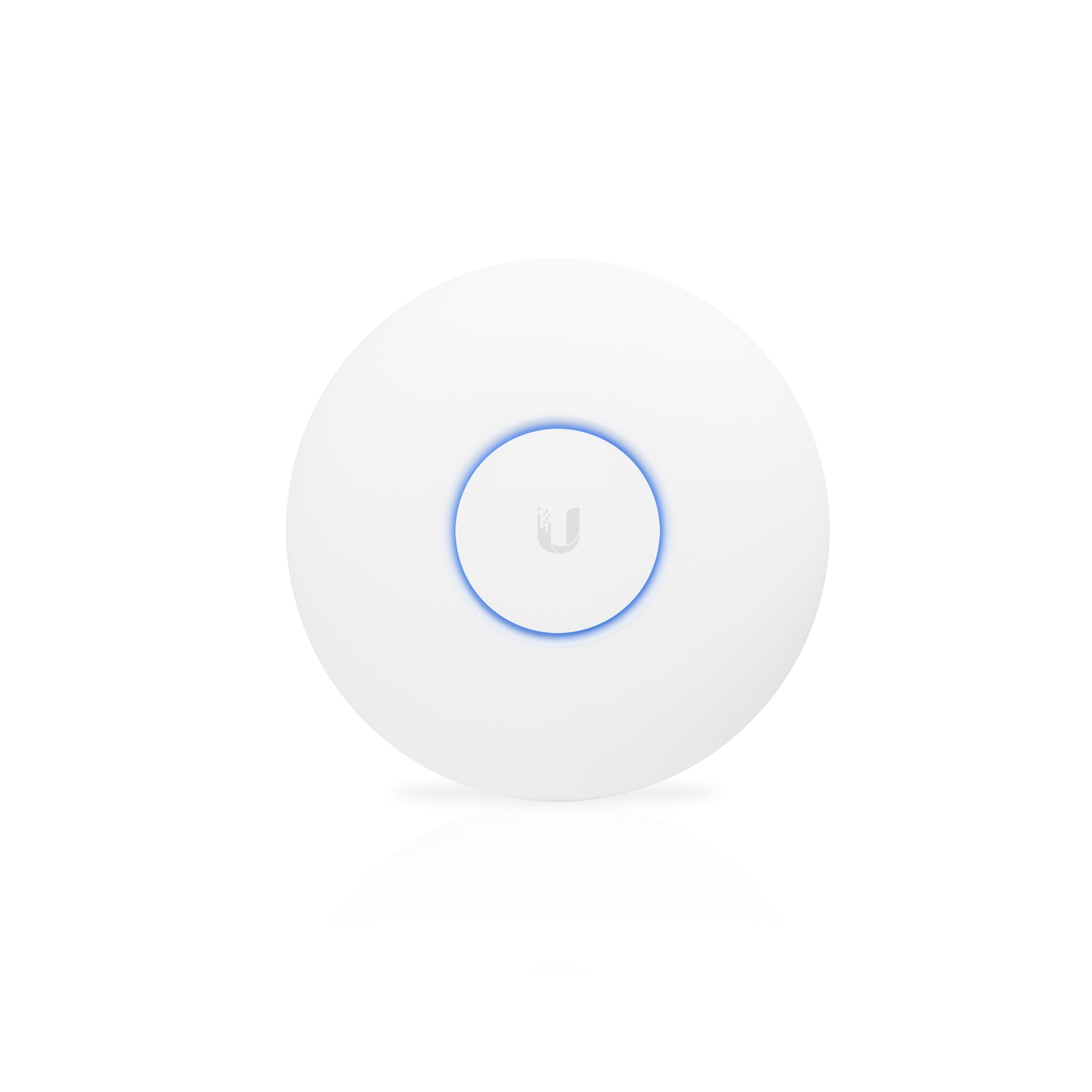

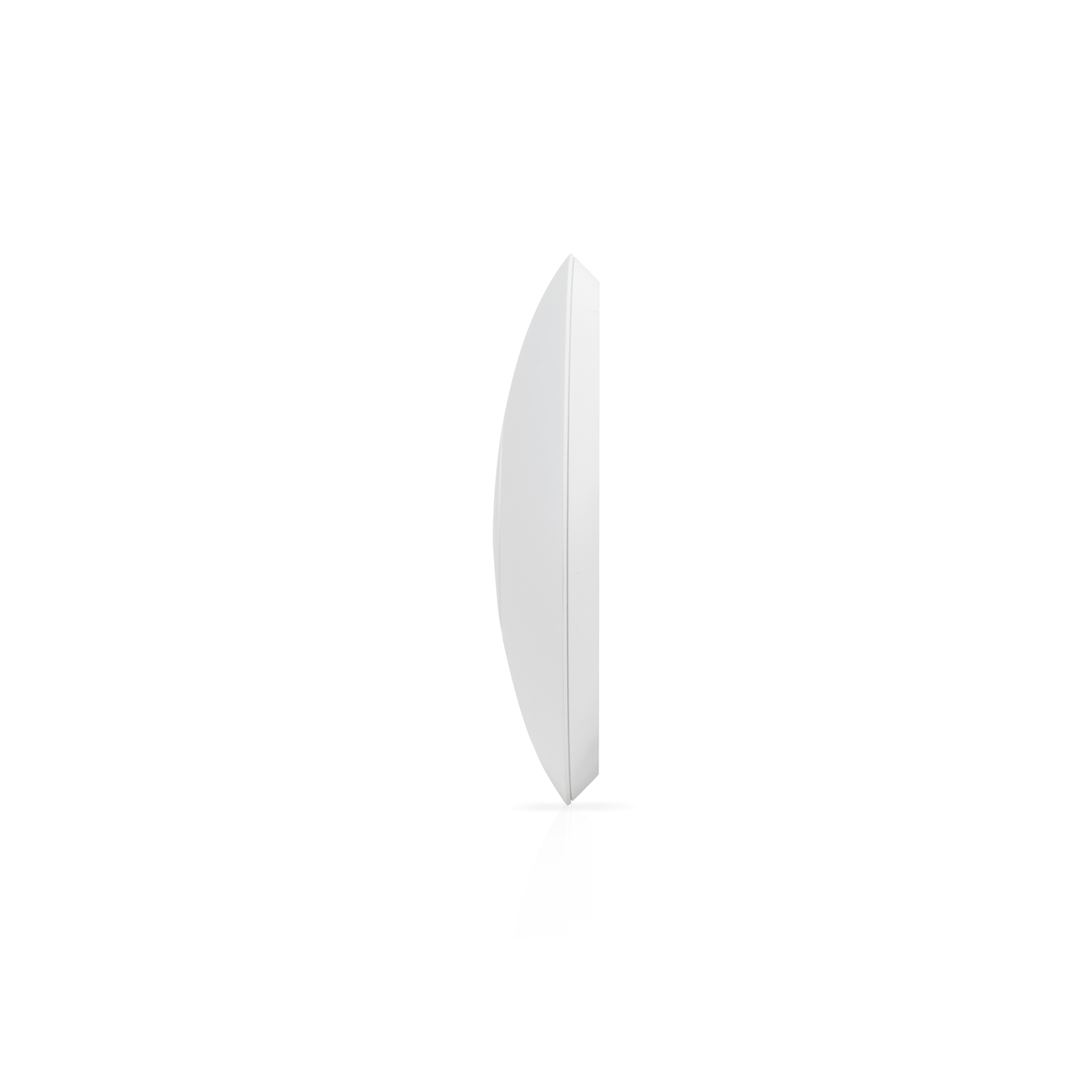

Ubiquiti UAP-AC-LITE UniFi AP AC Lite Wireless AC1200 Dual Band PoE Access Point

Ubiquiti Logo here

Manufacturer Part Code: UAP-AC-LITE

Order Code: NPUBI-UAPACLITE

Category: Ubiquiti Wireless Access Points

Ubiquiti UAP-AC-LITE UniFi AP AC Lite Wireless AC1200 Dual Band PoE Access Point

802.11ac Dual Radio Access Point

The UniFi AC Lite AP features the latest Wi-Fi 802.11ac technology in a refined industrial design and is ideal for cost-effective deployment of high-performance wireless networks.

Dual-Radio Performance, Gigabit Speeds
The UniFi AC Lite AP delivers 5x the performance of the first-generation UniFi AP while still maintaining Ubiquiti's disruptive pricing strategy.

Sleek, Ultra-Compact Design
The UniFi AC Lite AP features a cleaner design in a reduced footprint half the size compared to the standard UniFi AP.

Designed for Optimal RF Performance
The newly redesigned UniFi Controller optimizes RF performance:

Scalable Enterprise Wi-Fi Management
The UniFi Controller v5 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.

Specifications

Model: UAP-AC-LITE
Dimensions: 160x31.45mm
Environment: Indoor
2.4GHz Speed: 300Mbps
5GHz Speed: 867Mbps
PoE Mode: 802.3af/A PoE & 24V PoE
Ports: (1) 10/100/1000 Ethernet


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Essential Extras and Accessories

Technical Information

Antenna gain level (max)
3 dBi
Antenna gain level (max)
3 dBi
Antennas quantity
2
Antennas quantity
2
Certification
CE, FCC, IC
Data transfer rate (max)
1000 Mbit/s
Wi-Fi data rate (max)
867 Mbit/s
Ethernet LAN data transfer rates
10,100,1000 Mbit/s
Internal
No
Certification
CE, FCC, IC
Internal
No
Product colour
White
Certification
CE, FCC, IC
Reset button
Yes
Colour of product
White
Reset button
Yes
Power over Ethernet (PoE)
Yes
Input current
0.5 A
Input voltage
24
AC input voltage
24 V
Power consumption (max)
6.5 W
Power over Ethernet (PoE) Support
Yes
Input current
0.5
Power consumption (max)
6.5 W
Maximum data transfer rate
1000 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Maximum data transfer rate
1000 Mbit/s
Maximum indoor range
122 m
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi data rate (max)
867 Mbit/s
Maximum data transfer rate (5 GHz)
867 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Maximum indoor range
122 m
2.4 GHz
Yes
5 GHz
Yes
Harmonized System (HS) code
85176990
Internal
No
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-10 - 70 °C
Operating relative humidity range
5 - 95%
Operating temperature range (T-T)
-10 - 70 °C
Mounting kit
Yes
Mounting kit
Yes
Mounting kit
Yes
Mounting kit
Yes
Certification
CE, FCC, IC
Data transfer rate (max)
1000 Mbit/s
Wi-Fi data rate (max)
867 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Reset button
Yes
Maximum indoor range
122 m
2.4 GHz
Yes
5 GHz
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN (RJ-45) ports quantity
1
DHCP client
-10 - 70 °C
Security algorithms
AES, TKIP, WEP, WPA, WPA-PSK, WPA2
Security algorithms supported
AES, TKIP, WEP, WPA, WPA-PSK, WPA2
Height
3.14 cm
Input voltage
24
Harmonized System (HS) code
85176990
Input current
0.5
Weight
170 g
Height
31.4 mm
Weight
170 g
Width
160 mm
Depth
160 mm
Height
3.14 cm
Width
16 cm
Depth
16 cm
Antenna gain level (max)
3 dBi
Antennas quantity
2
