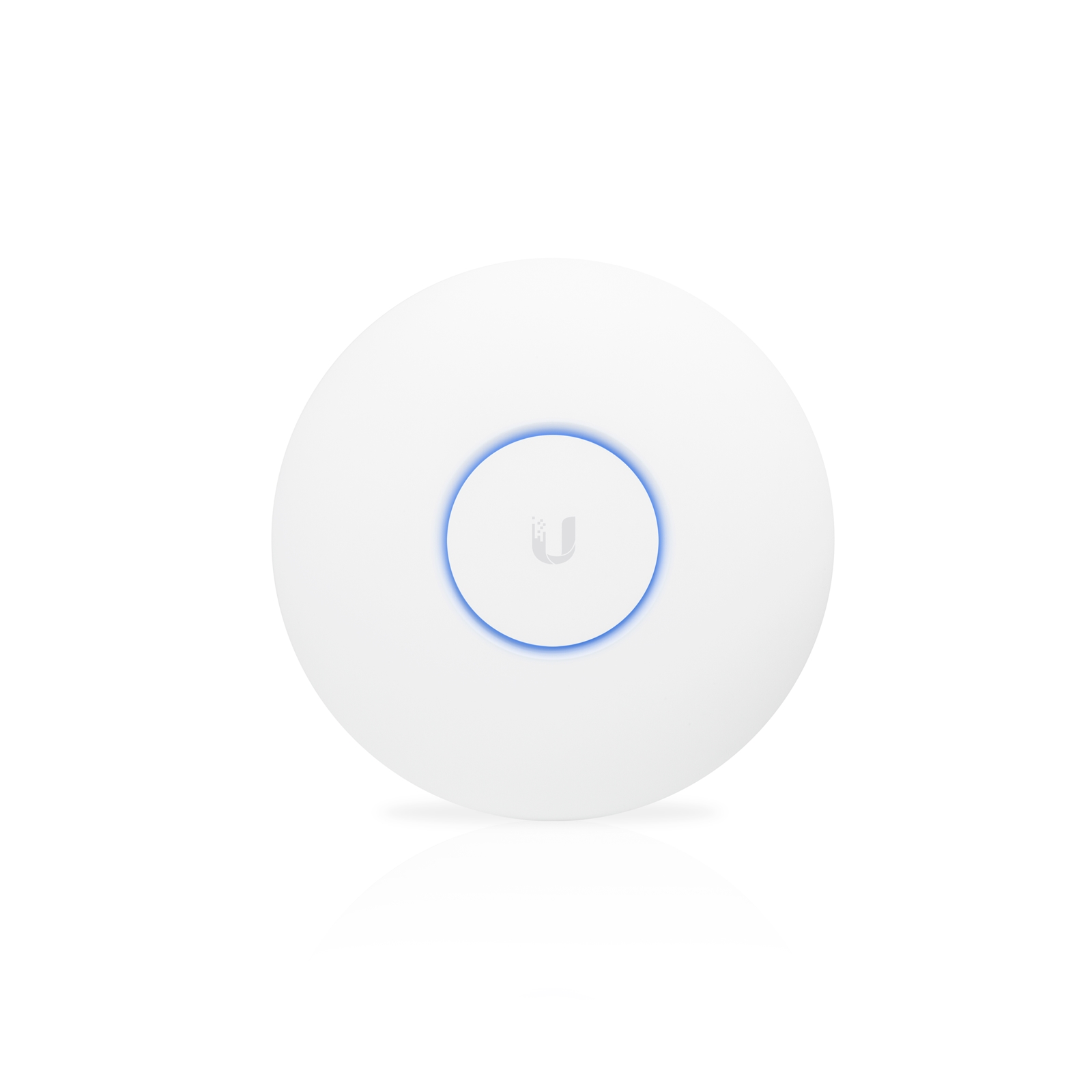

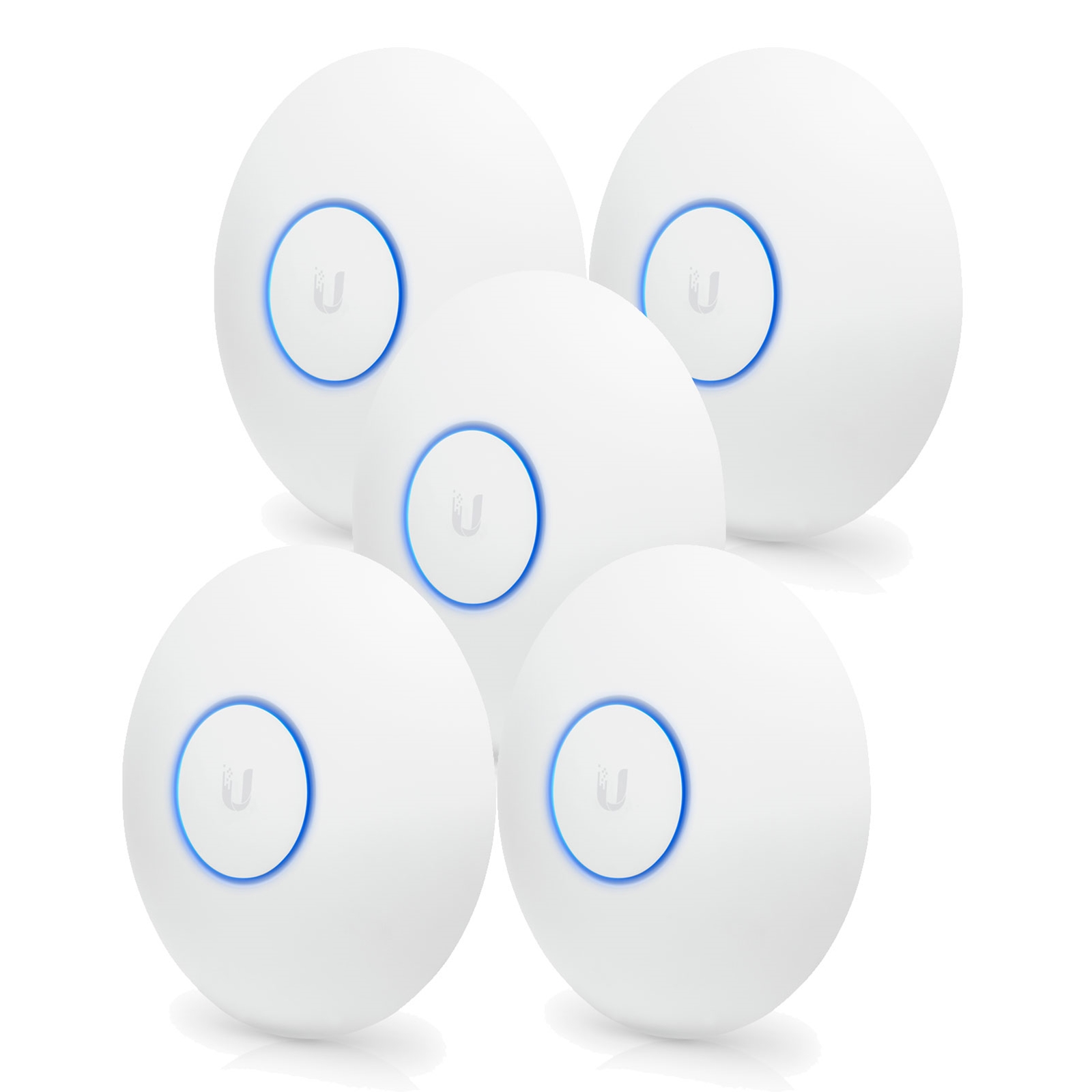

UBIQUITI UAP-AC-LR-5 UniFi Long Range Wireless AC1300 Dual Band PoE Access Point (5 Pack)

UBIQUITI Logo here

Manufacturer Part Code: UAP-AC-LR-5

Order Code: NPUBI-UAPACLR5

Category: Ubiquiti Wireless Access Points

Ubiquiti UAP-AC-LR-5 UniFi Long Range Wireless AC1300 Dual Band PoE Access Point (5 Pack)

802.11ac Long Range Access Point (5 PACK)

The UniFi AC LR AP features the latest Wi-Fi 802.11ac technology in a refined industrial design and is ideal for long-range deployment of high-performance wireless networks.

Innovative Antenna Design
The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the UniFi AC LR AP performs better than one-way, high transmit power does for connecting distant clients.

Designed for Optimal RF Performance
The newly redesigned UniFi Controller optimizes RF performance:

Scalable Enterprise Wi-Fi Management
The UniFi Controller v5 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.

Specifications

Model: UAP-AC-LR
Dimensions: 175.7x43.2mm
Environment: Indoor
2.4GHz Speed: 450Mbps
5GHz Speed: 867Mbps
PoE Mode: 802.3af/A PoE & 24V PoE
Ports: (1) 10/100/1000 Ethernet


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Antenna gain level (max)
3 dBi
Antennas quantity
1
Certification
CE, FCC, IC
Data transfer rate (max)
1000 Mbit/s
Wi-Fi data rate (max)
867 Mbit/s
Ethernet LAN data transfer rates
10,100,1000 Mbit/s
Internal
N
Colour of product
White
Input voltage
24
Input current
0.5
Power consumption (max)
6.5 W
Internal
N
Operating relative humidity range
5 - 95%
Operating temperature range (T-T)
-10 - 70 °C
Mounting kit
Y
Certification
CE, FCC, IC
Data transfer rate (max)
1000 Mbit/s
Wi-Fi data rate (max)
867 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Reset button
Y
Maximum indoor range
183 m
2.4 GHz
Y
5 GHz
Y
Ethernet LAN (RJ-45) ports quantity
1
Security algorithms supported
AES,TKIP,WEP,WPA,WPA-PSK,WPA2
Height
4.32 cm
Height
43.2 mm
Input voltage
24
Input current
0.5
Weight
240 g
Height
4.32 cm
Height
43.2 mm
Width
17.6 cm
Width
175.7 mm
Depth
17.6 cm
Depth
175.7 mm
Antenna gain level (max)
3 dBi
Antennas quantity
1
