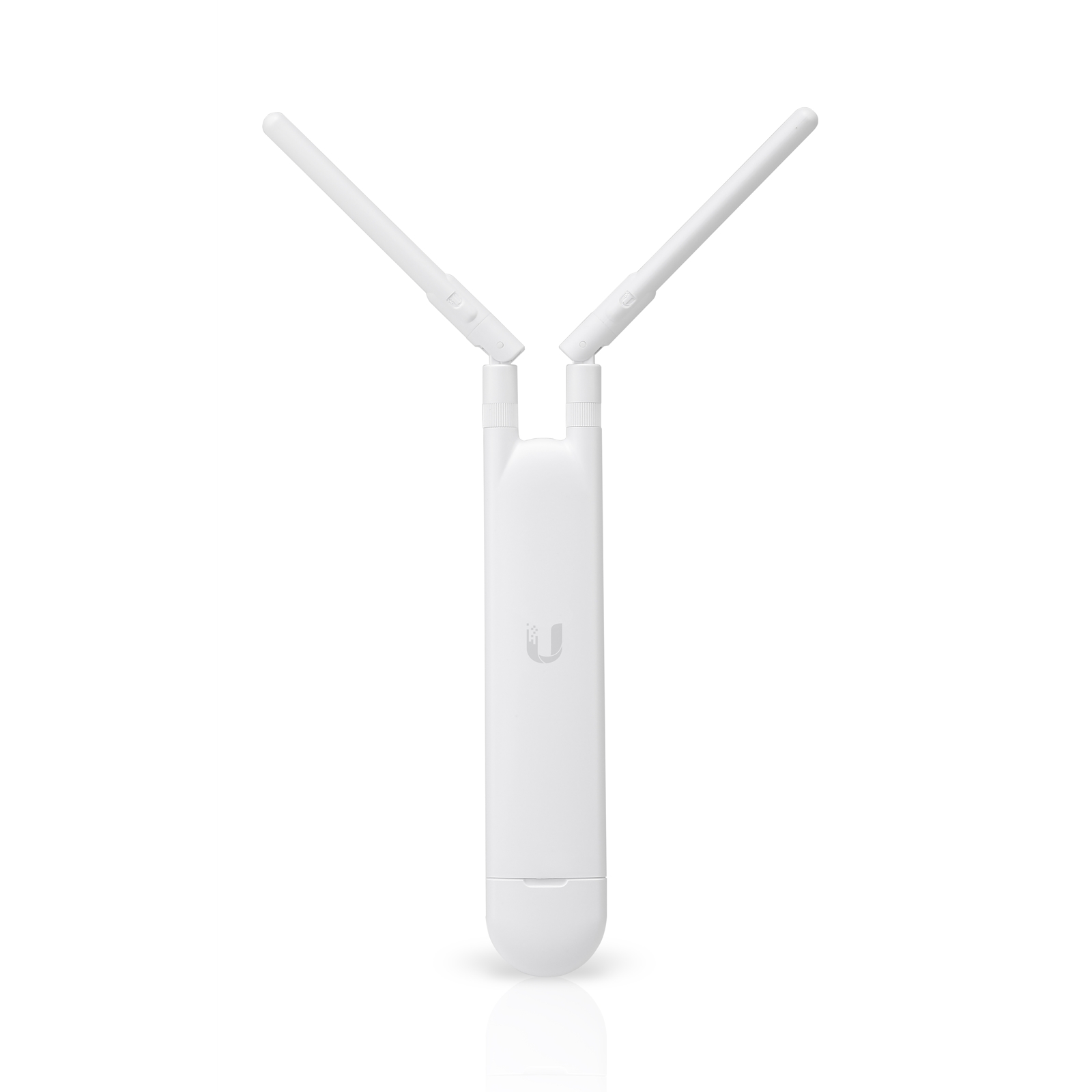

Ubiquiti UAP-AC-M UniFi Mesh Wireless AC1300 Dual Band PoE Access Point (5 Pack)

Ubiquiti Logo here

Manufacturer Part Code: UAP-AC-M-5

Order Code: NPUBI-UAPACM5

Category: Ubiquiti Wireless Access Points

Ubiquiti UAP-AC-M UniFi Mesh Wireless AC1300 Dual Band PoE Access Point (5 Pack)

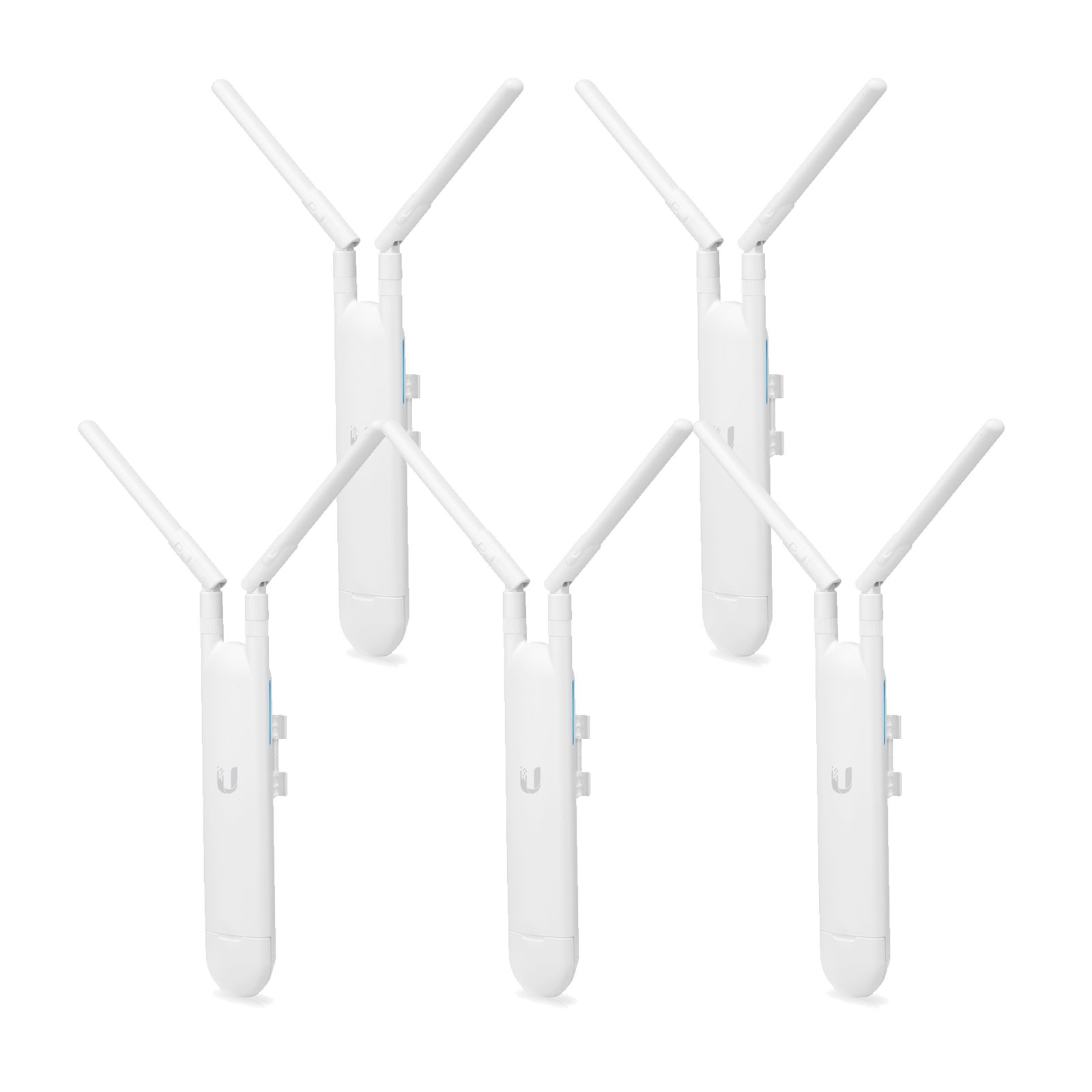

5 PACK

802.11AC Indoor/Outdoor Wi-Fi Access Point with Plug & Play Mesh Technology

Antenna Versatility
Adjustable dual-band omni-directional antennas and Fast-Mount included for expanded range coverage.

Optimal Performance
Dual-Band performance with aggregate speeds of up to 1167 Mbps.

Compact Form Factor
The UniFi AC Mesh base is just slightly larger than a standard pen, making it easy to deploy anywhere. Dimensions: 354 x 46 x 34 mm (H x W x D)

Multiple Power Options
Power the UniFi AC Mesh with an 802.3af compatible switch, a UniFi PoE Switch or the included Gigabit PoE adapter.

Mounting Flexibility
The UniFi AC Mesh can be mounted on a pole, wall, or Ubiquiti high-gain antenna.

Expand the limits of Wide-Area WiFi
UniFi creates a highly scalable, end-to-end system of devices spanning multiple locations across the world � all controlled by a single interface accessed via the Internet or local network.

Specifications

Dimensions: 353 x 46 x 34.4 mm
Environment: Indoor/Outdoor
2.4GHz Speed: 300 Mbps
5GHz Speed: 867 Mbps

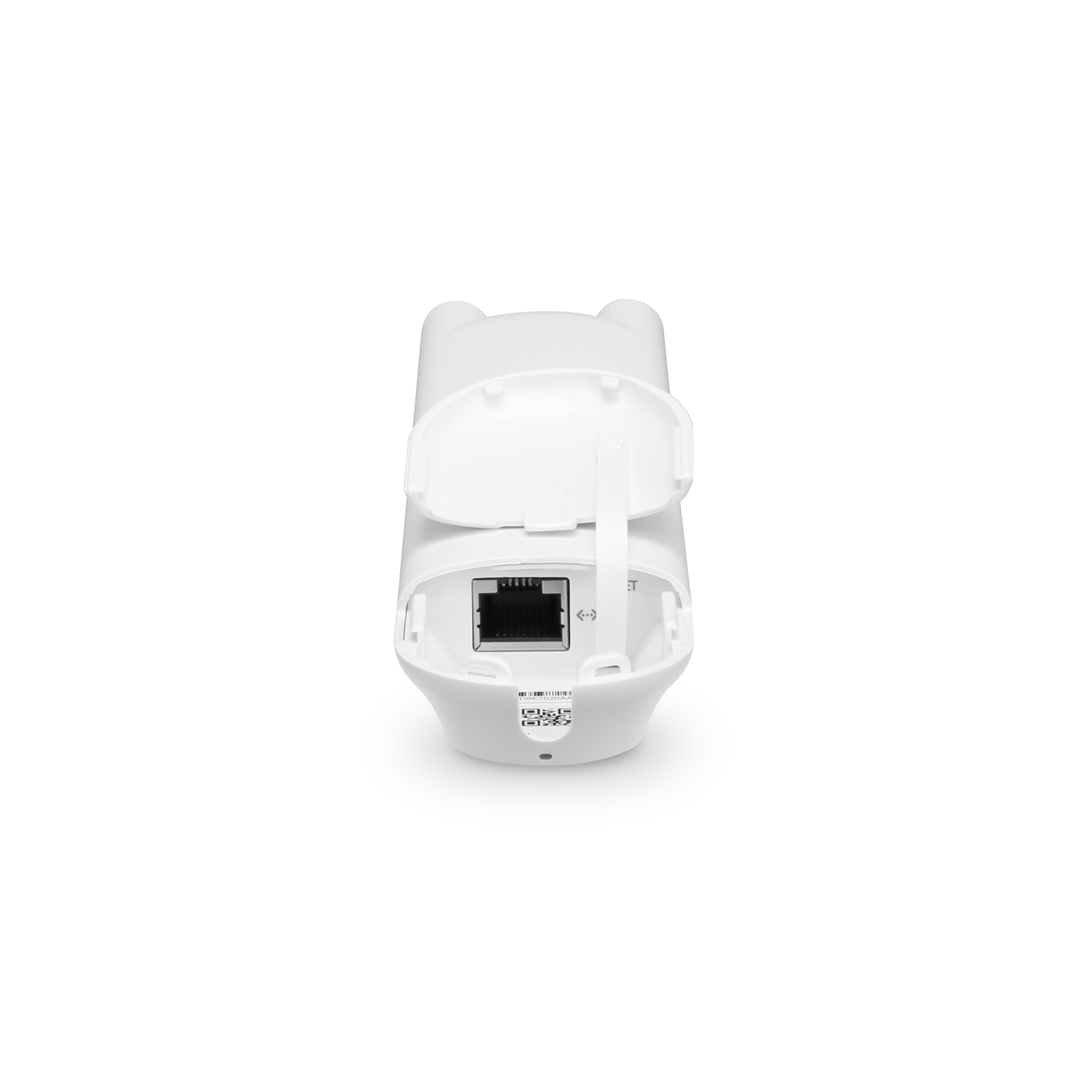

Ports: 1x 10/100/1000 Ethernet / 24V Passive PoE and 802.3af




Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Antennas quantity
2
Detachable antenna(s)
Y
Certification
CE, FCC, IC
Data transfer rate (max)
867 Mbit/s
Internal
N
Certification
CE, FCC, IC
Colour of product
White
Placement
Wall
Power consumption (typical)
8.5 W
Power supply
24 W
Power over Ethernet (PoE) Support
Y
Maximum data transfer rate
867 Mbit/s
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
2.4 GHz
Y
5 GHz
Y
Internal
N
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Operating relative humidity range
5 - 95%
Operating temperature range (T-T)
-30 - 70 °C
Certification
CE, FCC, IC
Data transfer rate (max)
867 Mbit/s
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
2.4 GHz
Y
5 GHz
Y
Ethernet LAN (RJ-45) ports quantity
1
Security algorithms supported
WEP,WPA,WPA-AES,WPA-PSK,WPA-TKIP,WPA2
Height
353 mm
Weight
152 g
Height
353 mm
Width
46 mm
Depth
34.4 mm
Antennas quantity
2
Detachable antenna(s)
Y
