Ubiquiti UISP Wave Nano 60GHz PtMP Station, Up to 5km Link Range, 2Gbps Max Throughput, 5GHz 800+Mbp

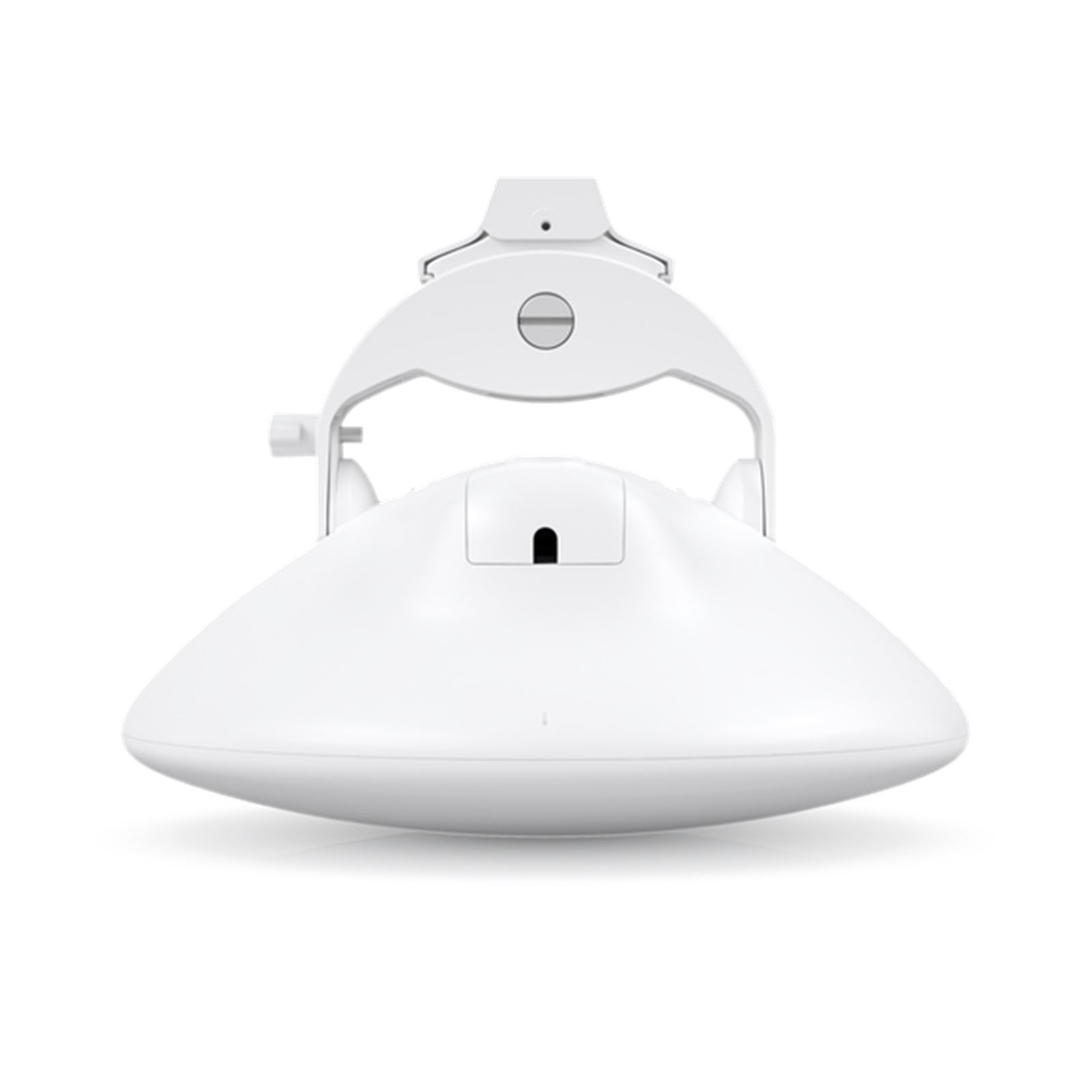

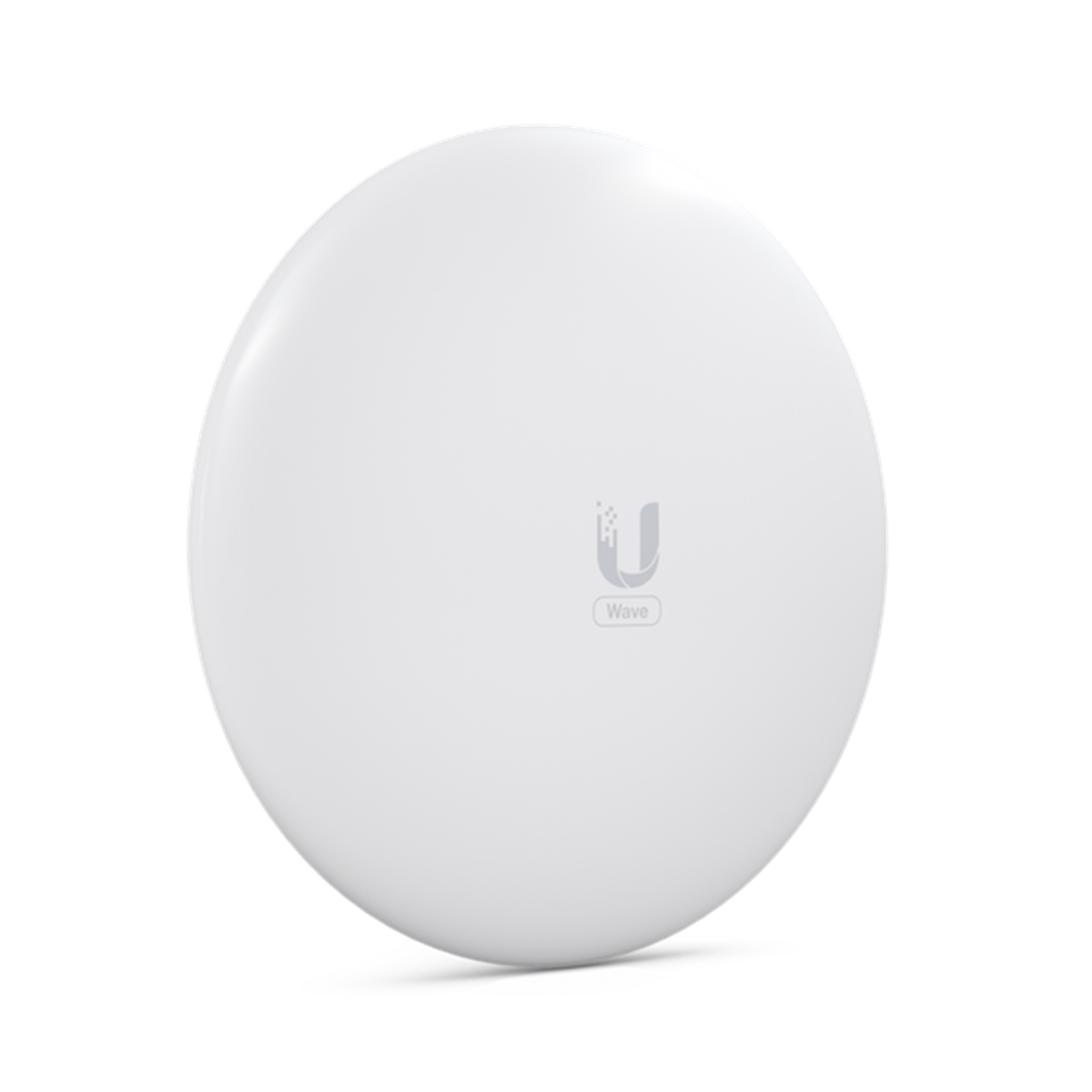

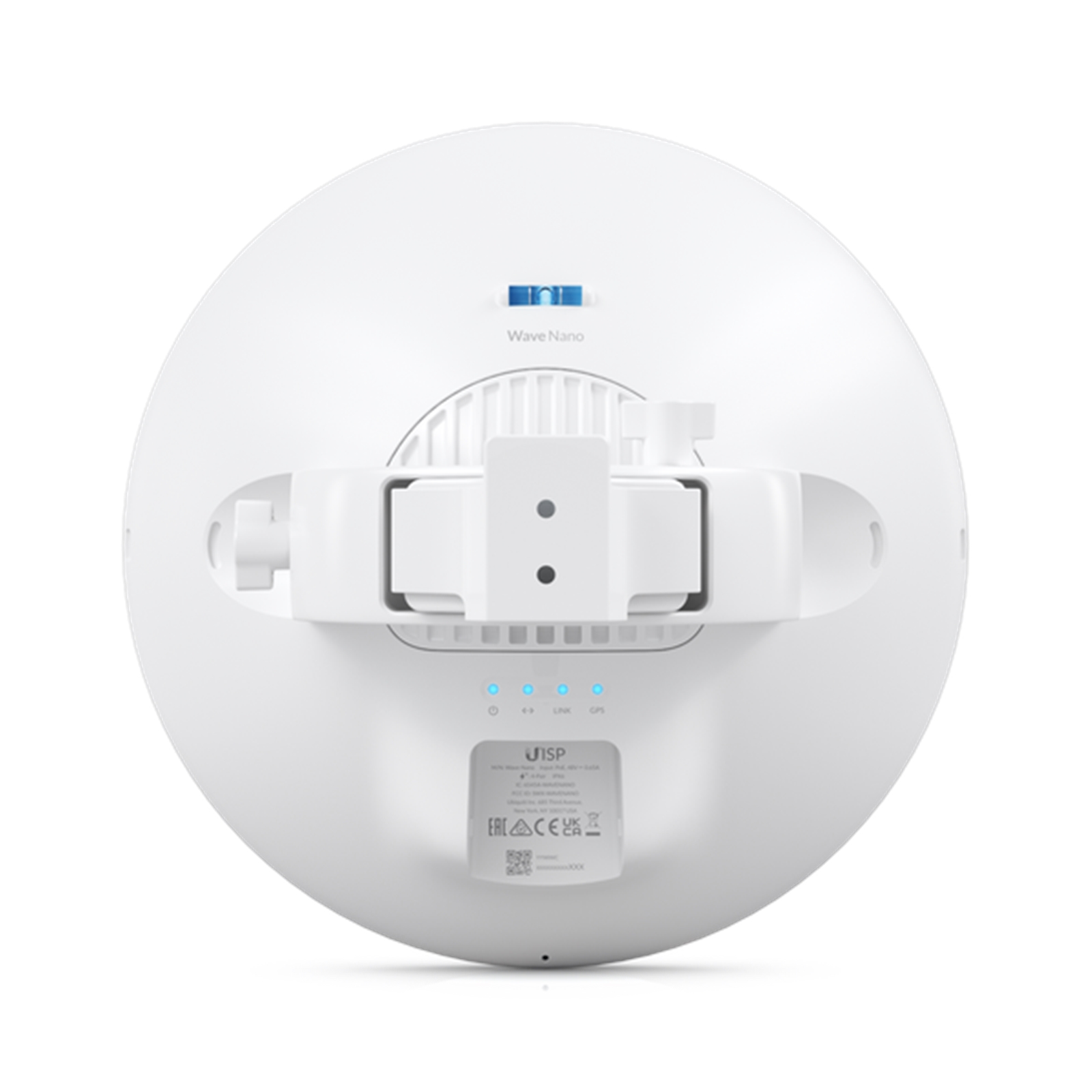

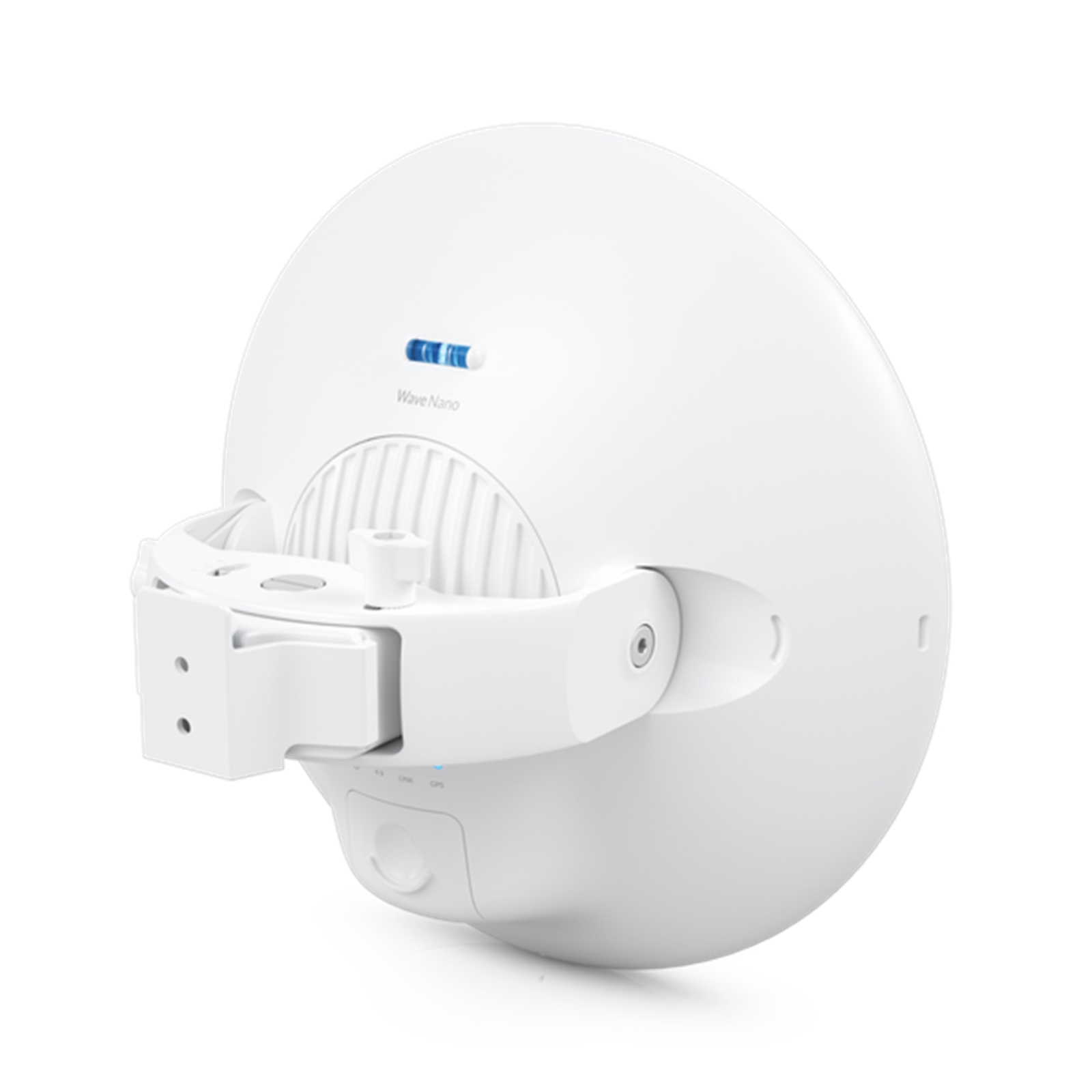

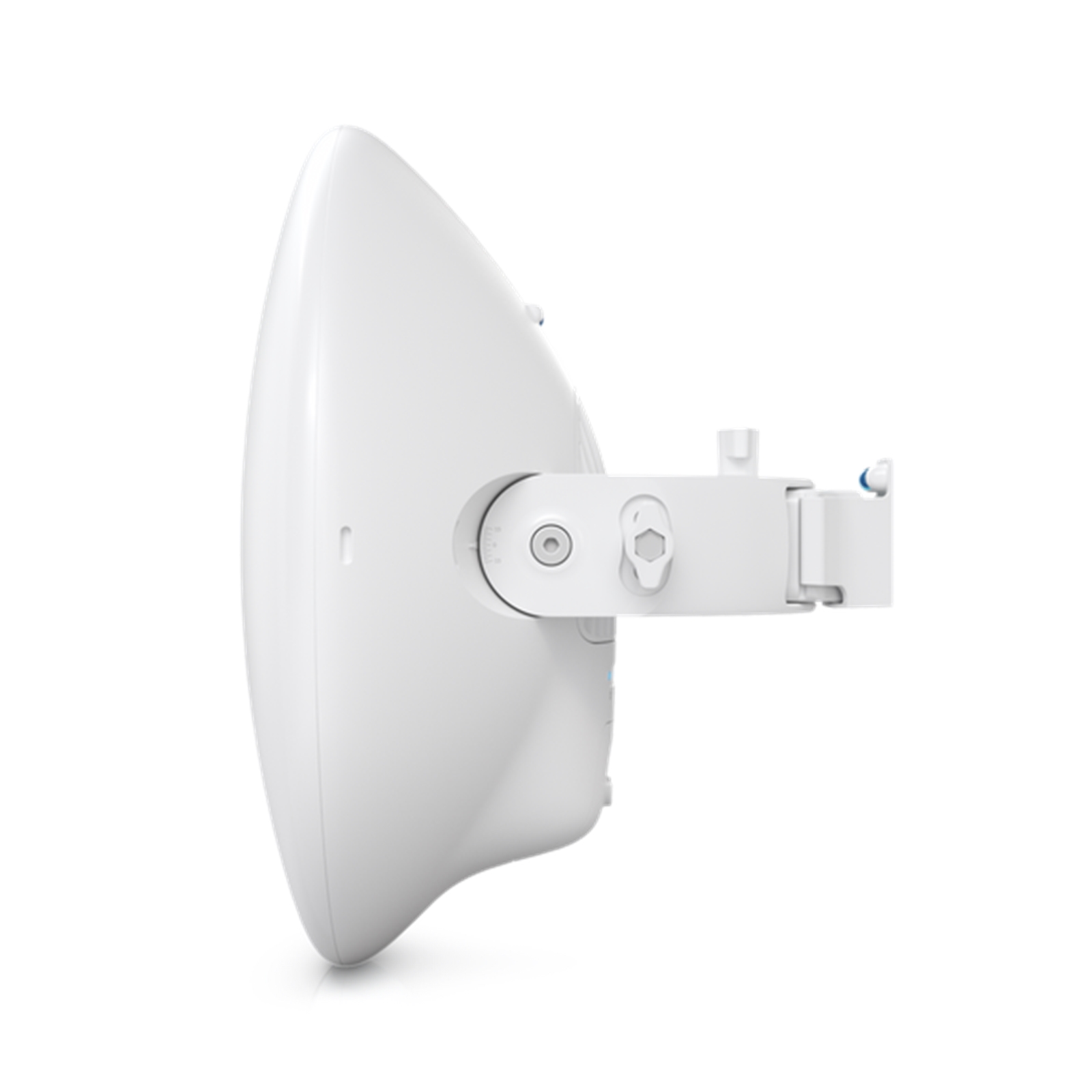

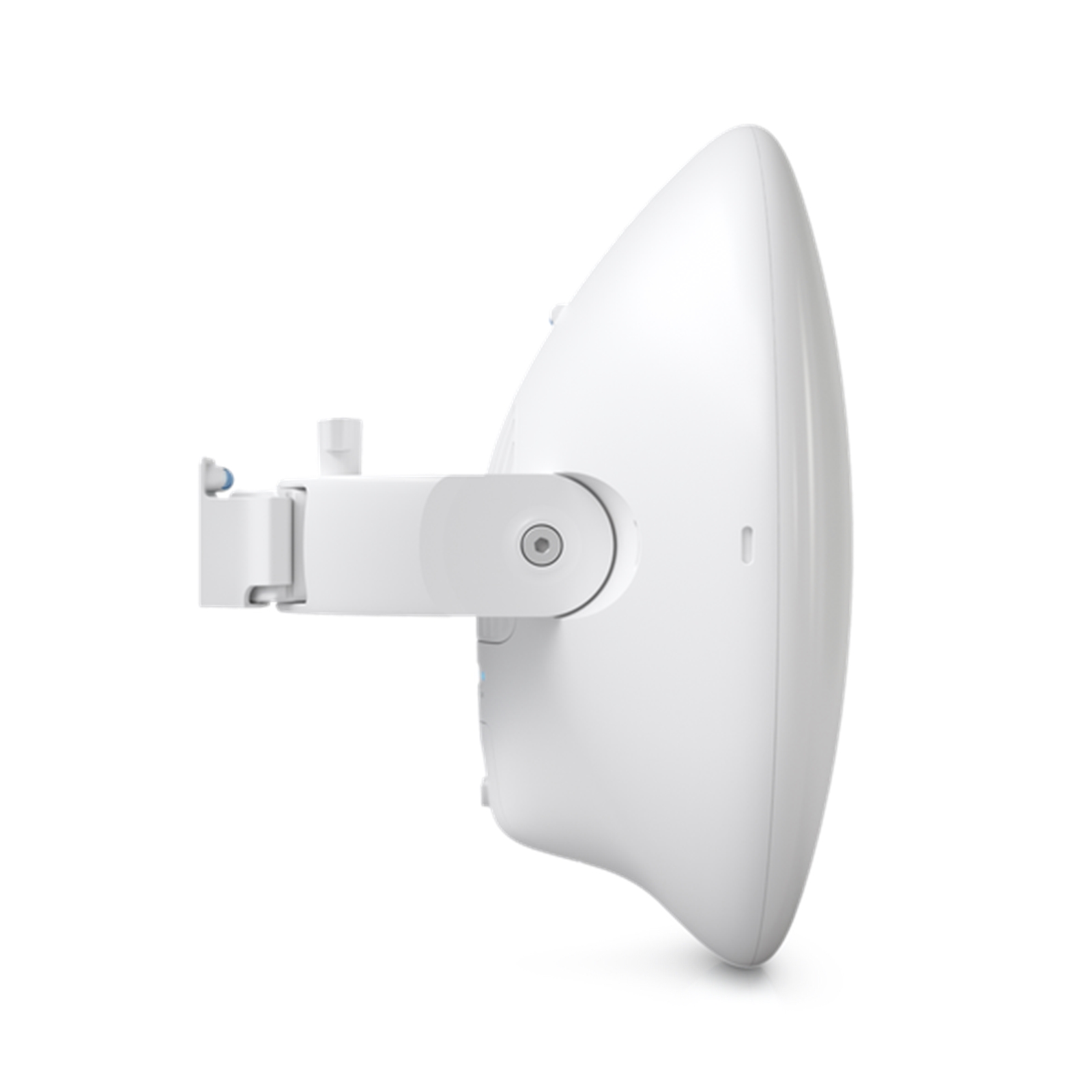

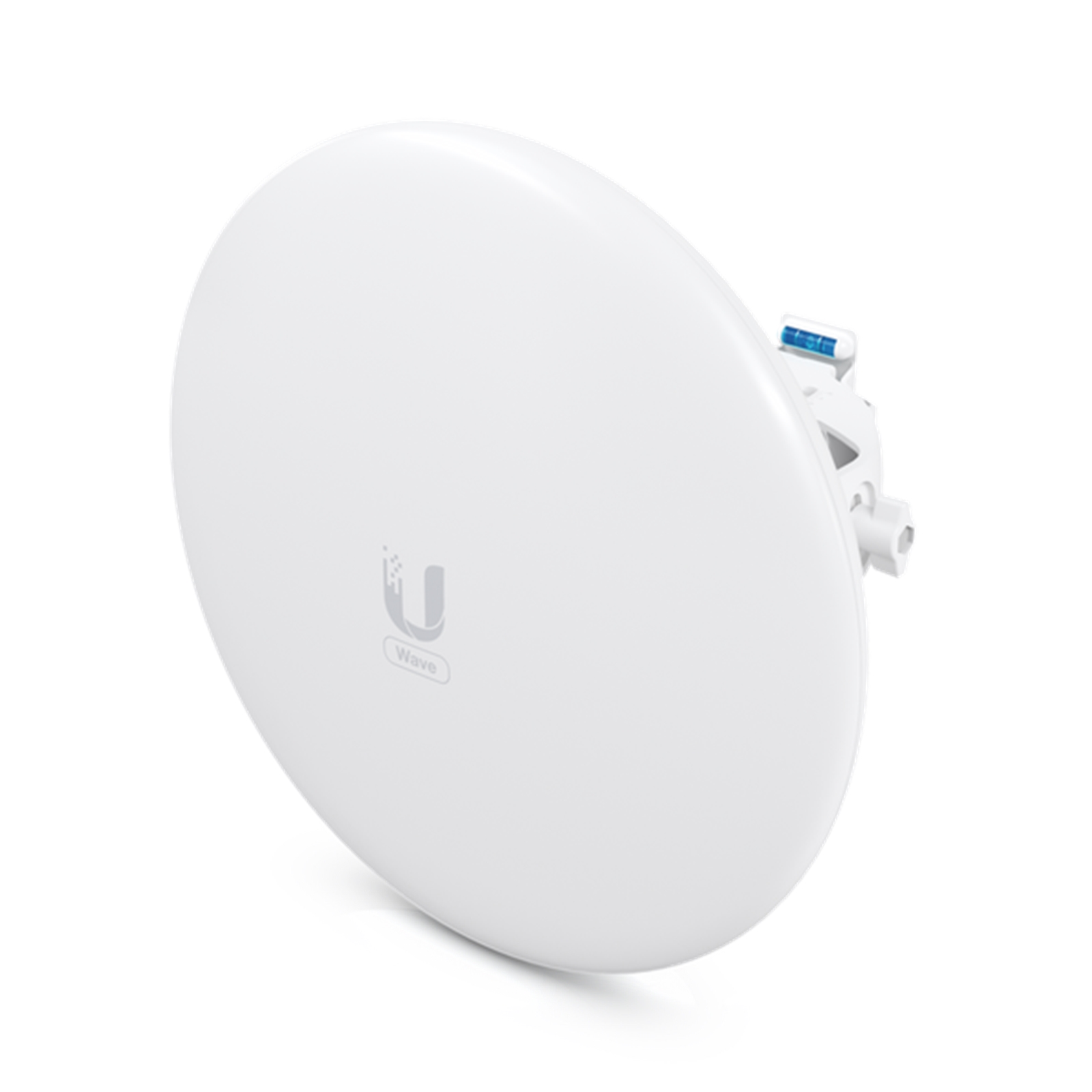

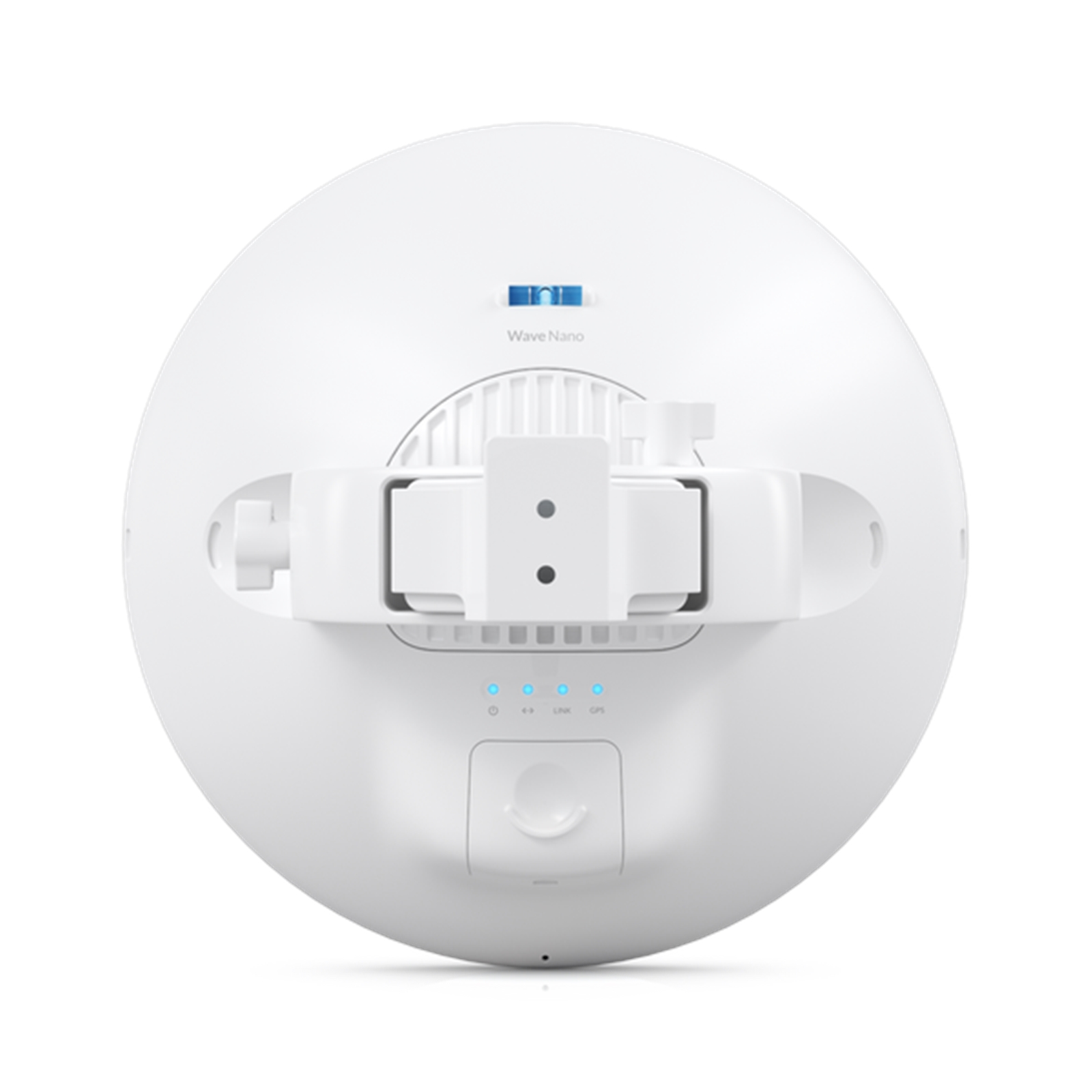

UISP Wave Nano 60GHz PtMP Station

Introducing the Ubiquiti UISP Wave Nano, which can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex).

The Wave Nano is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection, and a Bluetooth radio to simplify setup via the UISP Mobile app.

Key Features
5 GHz backup radio
Link range: up to 5 km
Router mode support
Integrated GPS antenna
Link planning support via ISP Design Center
Note: as of firmware 3.2.0-beta2 it is now possible to use two Wave Nano units in a PTP configuration.

Specifications

Mechanical

Dimensions
413 x 413 x 360 mm

Weight
Without Mount
1.5 kg
With Mount
2.7 kg

Enclosure
Aluminium, UV stabilised plastic

Hardware

Processor
Quad-Core ARM Cortex A7

Memory
256 MB DDR3

Networking Interface
10/100/1000 Mbps RJ45 Ethernet

RF Connections
Internal

Max. Power Consumption
18W

Power Method
Passive PoE (Pairs 4, 5+; 7, 8-)

Power Supply
48VDC, 0.65A Gigabit PoE Adapter (Included)

Supported Voltage Range
48VDC ± 10%

ESD/EMP Protection
Air/Contact: 24kV

Operating Temperature
-40 to 60° C

Operating Humidity
5 to 95% Noncondensing

Certifications
FCC, IC, CE

LEDs

Power
Flashing White: Bootup in Progress
White: Not Connected to Ubiquiti® Network Management System (UISP™)
Blue: Connected to UISP

Ethernet
Flashing Blue: Ethernet Trafic Detected

GPS
Blue: Receiving at Least (4) GPS Satellite Signals

System

Maximum Throughput
1.8 Gbps

Maximum Range
12 km in US, UK range to be confirmed

Encryption
WPA2-PSK (AES)

Software

OS
airOS

Modes
PtP Only

Services
UISP, Ping Watchdog, NTP Client, System Log

Utilities
Antenna Alignment Tool, Discovery Utility, Ping, Traceroute, Speed Test

Network
Bridge Mode

Management interface
Bluetooth management for easy setup over UISP™ App WEB UI

Minimum Software Requirements
Modern Web Browser or Android/iOS Smartphone

Technology
Wave

RF

Operating Frequency (regulatory region dependant)
57 to 71 Ghz

Max Conducted TX Power
21 dBm

GPS
Yes

Channel Bandwidth
2160, 1080 Mhz

Antenna Gain
43 dBi

Box Contents
UISP Wave Nano
Pole mount
Allen key
2 x M6 bolts
Jubilee clip
Wall mount + level
2 x wall plugs + M3.5 screws
M3 bolt
PoE injector
UK power cable
Alignment tool
