Zyxel Wireless Access Points | ZYXEL WAC500H | WAC500H-EU0101F | ServersPlus
L R
ZYXEL WAC500H-EU0101F | serversplus.comZYXEL WAC500H-EU0101F | serversplus.comZYXEL WAC500H-EU0101F | serversplus.comZYXEL WAC500H-EU0101F | serversplus.com

Illustration purposes only

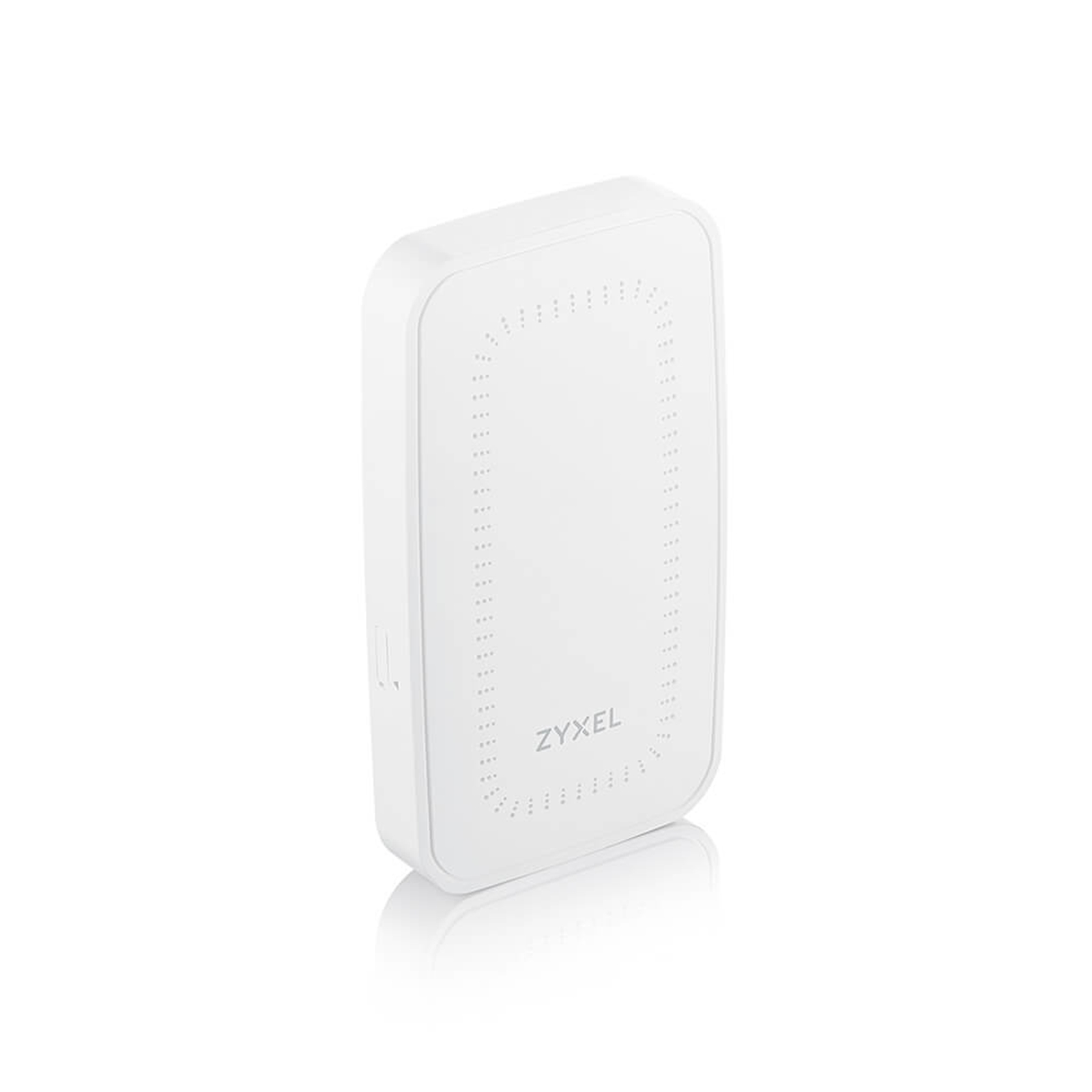

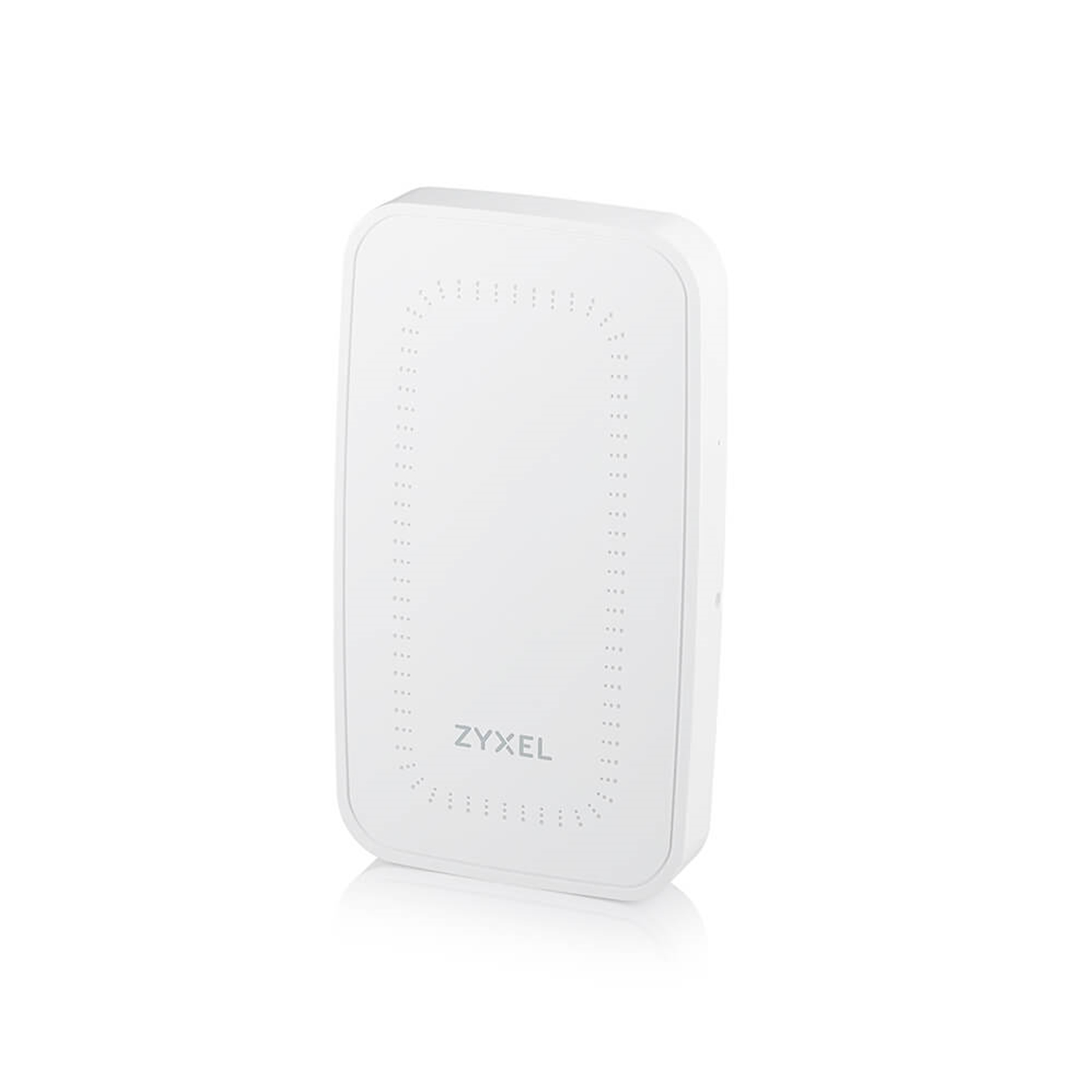

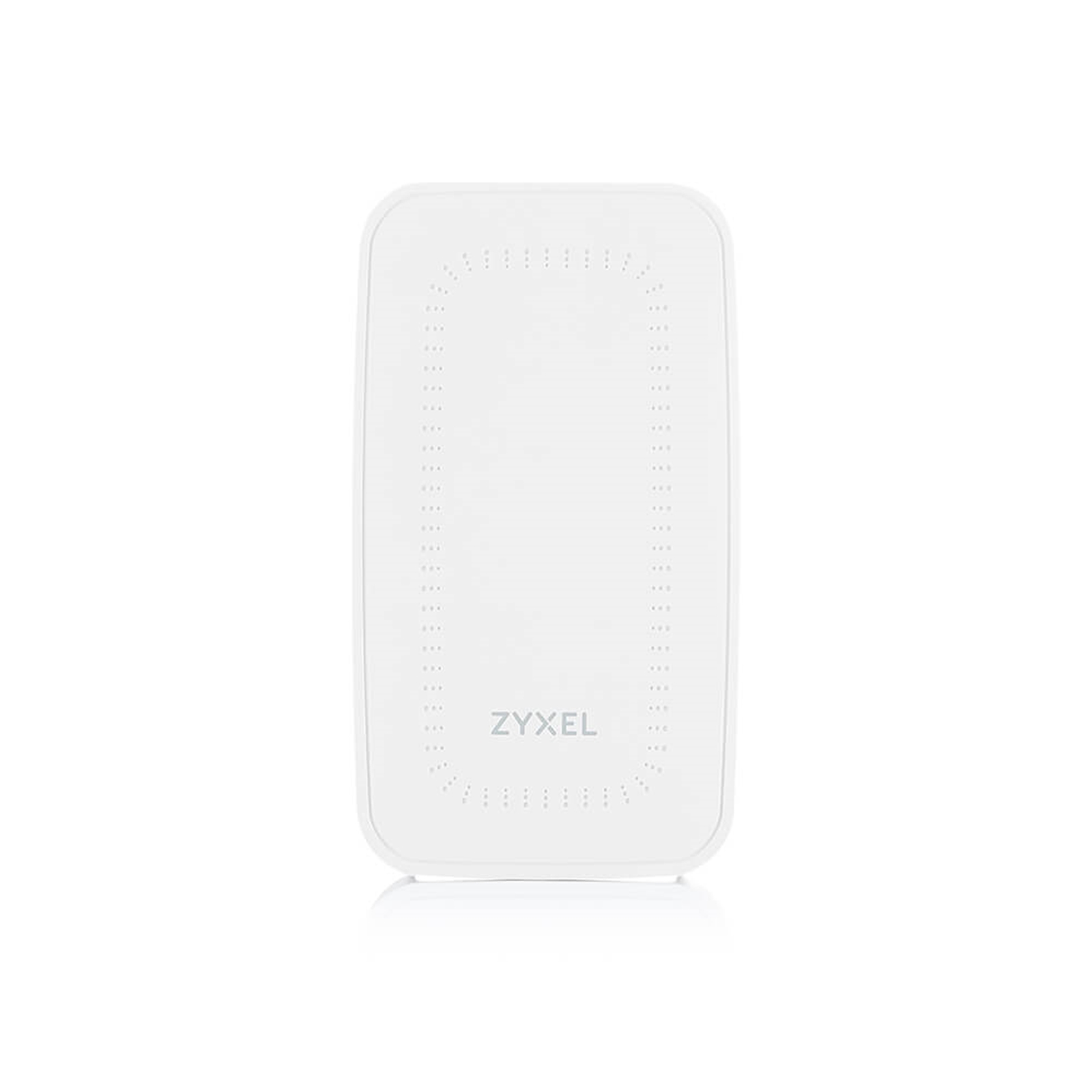

ZYXEL WAC500H

ZYXEL Logo here

Manufacturer Part Code: WAC500H-EU0101F

Order Code: NPZYX-WAC500HEU0

Category: Zyxel Wireless Access Points

WAC500H Single pk exclude Power Adaptor

Get not only wireless but wired and PoE connectivity, too
The Zyxel WAC500H is designed for per-room deployment scenarios. It turns an Ethernet wall plate into not only a wireless access point to provide WiFi service but also a Gigabit switch with PoE, powering a VoIP phone for last-mile network services.

Featuring NebulaFlexTM Pro, the WAC500H can be managed through a local web management interface, hardware controller, or with a one-year free license on the Nebula cloud management platform.

Versatile mounting options
The versatile yet low-profile mounting design allows the access point to blend seamlessly and tastefully into any decor while mounted directly on an outlet box, in an out-of-the-way location, or even simply on a desktop.

More than WiFi
As well as providing superb WiFi, the WAC500H supports 24/7 wired and PoE connectivity for mobile Point-of-sale (POS) applications for restaurants, bars, and cafés.

Work from home like a Pro!
Supporting the 802.11ac Wave 2 standards, the WAC500H provides fast and reliable connectivity with full support of video conferencing, secure data transfer and seamless connection of multiple devices.

The ?RF First? and MU-MIMO technology of WAC500H ensure the high-speed connectivity. And, the two downlink Gigabit Ethernet ports allow an easy connection to a wired printer or powering up a VoIP phone effortlessly.

Most flexible management
The WAC500H features NebulaFlex Pro technology, which allows the AP to be run in three different modes - standalone, controller, or Nebula Cloud Networking platform based on the need of each user. For a straightforward network it can be run in standalone mode, for a complex one that requires advanced features it can be run with an on-premises controller. And, Nebula cloud networking is designed to satisfy all situations with great scalability, feature-rich, and central management.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Antenna type
Internal
Antenna gain level (max)
4 dBi
Antenna type
Internal
Antenna gain level (max)
4 dBi
Channel bandwidth
80 MHz
Certification
FCC 15C, FCC 15E; ETSI EN 300 328, EN 301 893; LP0002, EN 60601-1-2 FCC 15B, EN 301 489-1; EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, BSMI CNS13438 EN 60950-1, IEC 60950-1; BSMI CNS14336-1
Data transfer rate (max)
1200 Mbit/s
Ethernet LAN data transfer rates
10,100,1000 Mbit/s
Certification
FCC 15C, FCC 15E; ETSI EN 300 328, EN 301 893; LP0002, EN 60601-1-2 FCC 15B, EN 301 489-1; EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, BSMI CNS13438 EN 60950-1, IEC 60950-1; BSMI CNS14336-1
Product colour
White
Certification
FCC 15C, FCC 15E; ETSI EN 300 328, EN 301 893; LP0002, EN 60601-1-2 FCC 15B, EN 301 489-1; EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, BSMI CNS13438 EN 60950-1, IEC 60950-1; BSMI CNS14336-1
Colour of product
White
Placement
Wall
Placement
Wall
Output voltage
12 V
Power over Ethernet (PoE)
Y
Input current
0.3 A
Output current
1 A
Input voltage
100 - 240 V
Output voltage
12 V
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Input frequency
50/60 Hz
Power over Ethernet (PoE) Support
Y
Input current
0.3 A
Output current
1 A
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Maximum data transfer rate
1200 Mbit/s
Channel bandwidth
80 MHz
Receiver sensitivity
-99 dBm
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates
10,100,1000 Mbit/s
Maximum data transfer rate
1200 Mbit/s
Channel bandwidth
80 MHz
Receiver sensitivity
-99 dBm
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11k,IEEE 802.11n,IEEE 802.11r,IEEE 802.11v,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
VLAN support
Y
Transmitting power
26 dBmW
2.4 GHz
Y
5 GHz
Y
Wireless isolation
Y
Wi-Fi Multimedia (WMM)/(WME)
Y
MIMO
Y
Fast roaming
Y
Band steering
Y
MIMO type
Multi User MIMO
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Maximum data transfer rate (5 GHz)
866 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
VLAN support
Y
Transmitting power
26 dBmW
2.4 GHz
Y
5 GHz
Y
Wireless isolation
Y
Wi-Fi Multimedia (WMM)/(WME)
Y
MIMO
Y
Fast roaming
Y
Band steering
Y
MIMO type
Multi User MIMO
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Maximum data transfer rate (5 GHz)
866 Mbit/s
Harmonized System (HS) code
85176990
Web-based management
Y
Command-line interface (CLI)
Y
Web-based management
Y
VLAN support
Y
Command-line interface (CLI)
Y
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11k,IEEE 802.11n,IEEE 802.11r,IEEE 802.11v,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-30 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Storage relative humidity (H-H)
10 - 90%
Operating relative humidity range
10 - 90%
Storage temperature range (T-T)
-30 - 70 °C
Operating temperature range (T-T)
0 - 50 °C
Storage relative humidity range
10 - 90%
Number of products included
1 pc(s)
Mounting kit
Y
Number of products included
1 pc(s)
Mounting kit
Y
Package weight
444 g
Package weight
444 g
Package depth
120 mm
Package height
53 mm
Package width
195 mm
Number of products included
1 pc(s)
Mounting kit
Y
Package depth
120 mm
Packaging depth
120 mm
Package height
53 mm
Packaging height
53 mm
Package width
195 mm
Packaging width
195 mm
Number of products included
1 pc(s)
Mounting kit
Y
Certification
FCC 15C, FCC 15E; ETSI EN 300 328, EN 301 893; LP0002, EN 60601-1-2 FCC 15B, EN 301 489-1; EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, BSMI CNS13438 EN 60950-1, IEC 60950-1; BSMI CNS14336-1
Data transfer rate (max)
1200 Mbit/s
Channel bandwidth
80 MHz
Receiver sensitivity
-99 dBm
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11k,IEEE 802.11n,IEEE 802.11r,IEEE 802.11v,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Web-based management
Y
Ethernet LAN data rates
10,100,1000 Mbit/s
VLAN support
Y
Transmitting power
26 dBmW
2.4 GHz
Y
5 GHz
Y
Wireless isolation
Y
Auto Wireless Distribution System (WDS)
Y
Wi-Fi Multimedia (WMM)/(WME)
Y
MIMO
Y
Band Steering
Y
MIMO type
Multi User MIMO

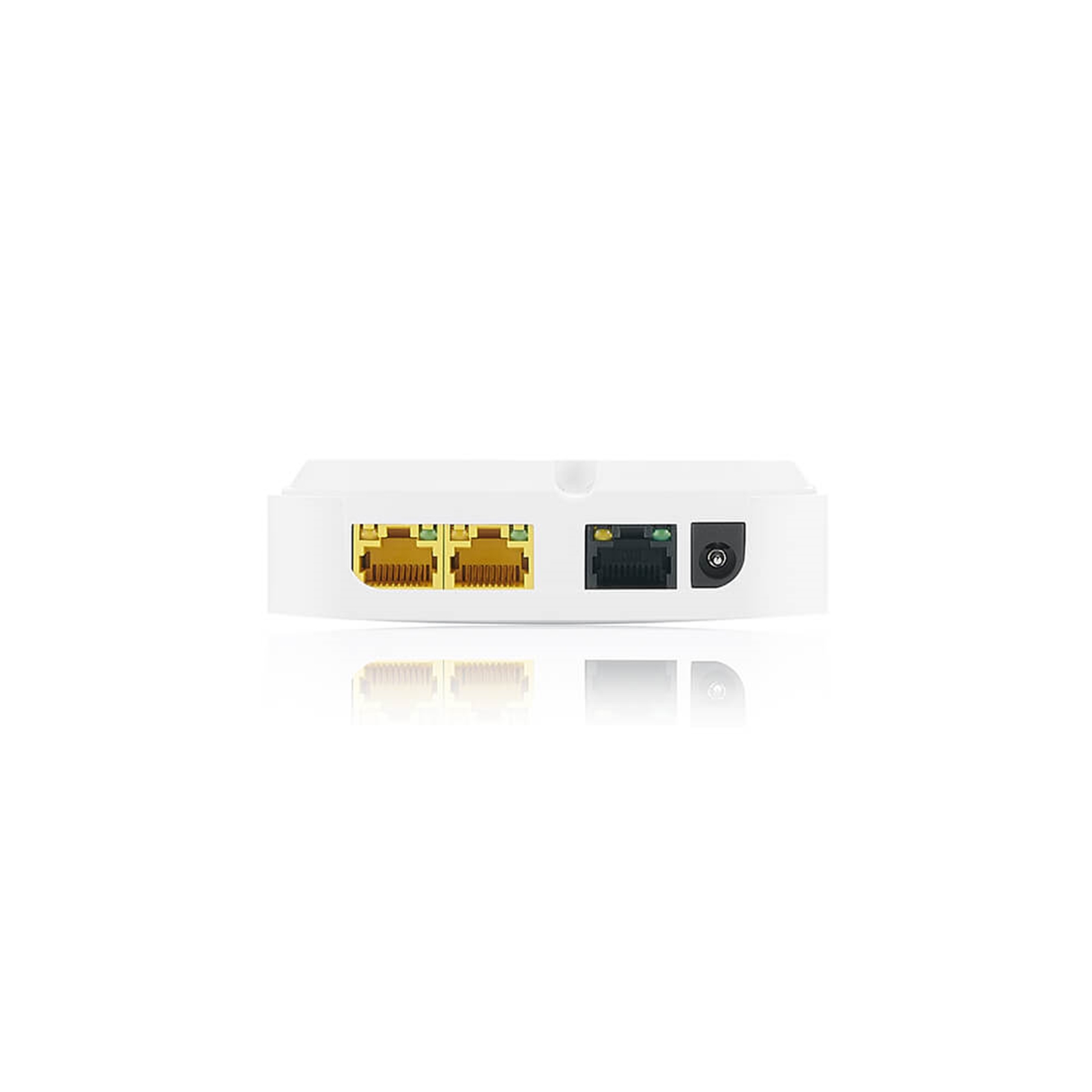

Ethernet LAN (RJ-45) ports
3
DC-in jack
Y
Ethernet LAN (RJ-45) ports quantity
3
DC-in jack
Y
DHCP client
0 - 50 °C
Security algorithms
EAP, SNMP, WEP, WPA, WPA2-Enterprise, WPA2-PSK, WPA3
Security algorithms supported
EAP,SNMP,WEP,WPA,WPA2-Enterprise,WPA2-PSK,WPA3
MAC address filtering
Y
Auto Wireless Distribution System (WDS)
Y
MAC address filtering
Y
Auto Wireless Distribution System (WDS)
Y
Fast roaming
Y
Height
29 mm
Input voltage
100 - 240 V
Receiver sensitivity
-99 dBm
Harmonized System (HS) code
85176990
Input current
0.3 A
Weight
223 g
Height
29 mm
Weight
223 g
Width
173 mm
Depth
97 mm
Package weight
444 g
Height
29 mm
Width
173 mm
Depth
97 mm
Packaging depth
120 mm
Packaging height
53 mm
Packaging width
195 mm
Antenna type
Internal
Antenna gain level (max)
4 dBi
