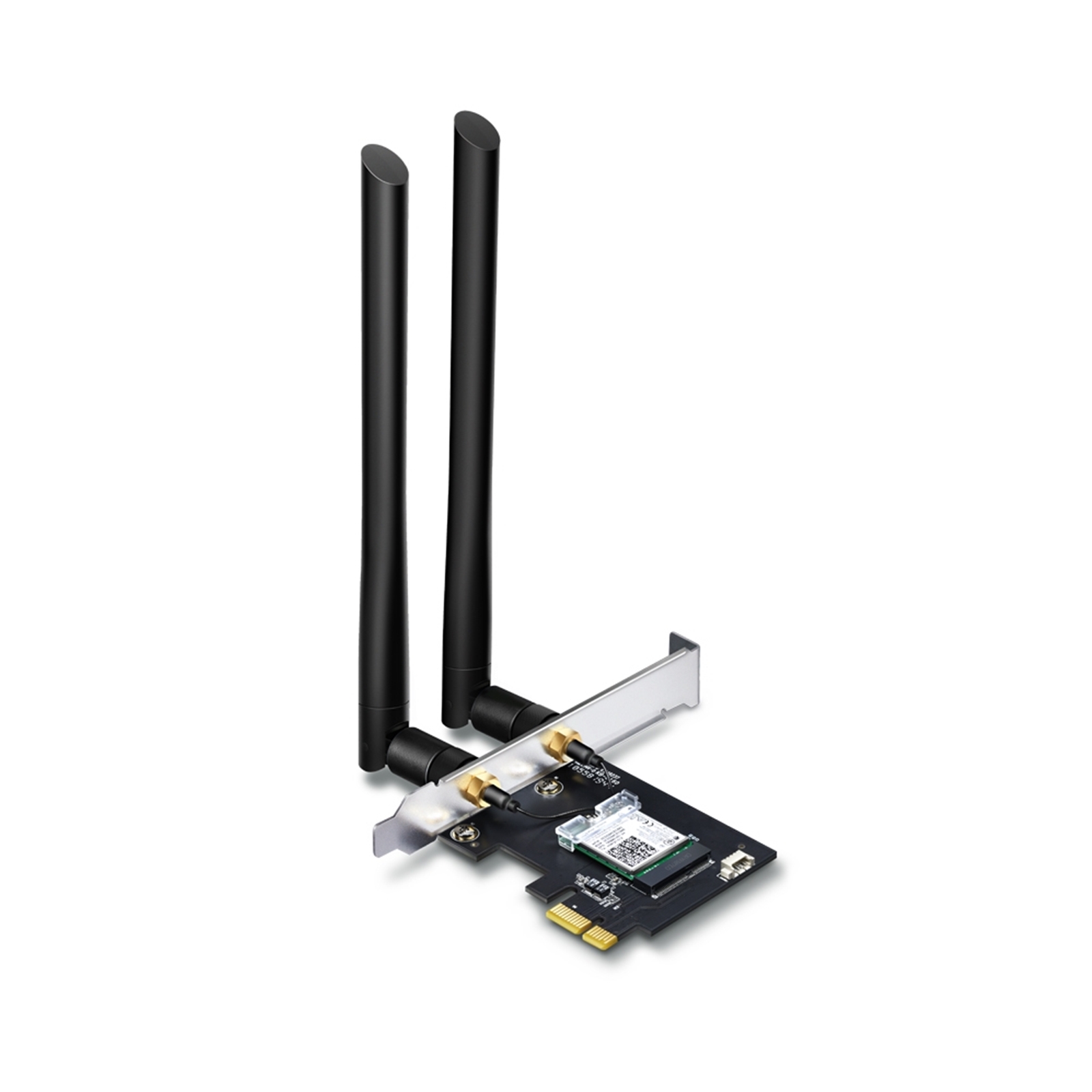

TP-LINK ARCHER T5E 802.11ac Bluetooth Adapter

TP-LINK Logo here

Manufacturer Part Code: ARCHER T5E

Order Code: NPTPL-ARCHERT5E

Category: Wireless Adapters

TP-Link Archer T5E - Network adapter - PCIe - Bluetooth 4.0 802.11ac Bluetooth 4.2

Upgrade Your Desktop with Super-Fast WiFi and Bluetooth
AC1200 Wi-Fi Bluetooth 4.2 PCIe Adapter

Archer T5E

Dual Band WiFi for Faster Connections
Archer T5E is an 802.11ac dual-band WiFi PCI Express adapter with speeds up to 1167 Mbps (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band), providing WiFi signals on two separate bands for all your online needs. Choose the 2.4 GHz band for surfing, emailing, and social media, or switch to 5 GHz band for gaming, streaming, and large file downloads.

Arm Your PC with Bluetooth 4.2
Archer T5E is compatible with advanced Bluetooth 4.2 technology, achieving 2.5× faster speed and 10× more packet capacity than Bluetooth 4.0 to turn non-Bluetooth PCs into Bluetooth-Capable. Just connect your Bluetooth devices to your computer and enjoy.3

Powerful Antennas for Broader Coverage
Two powerful signal-boosting high-gain antennas greatly extend your existing WiFi reception capabilities, allowing you to enjoy fast and uninterrupted 4K streaming and smooth gaming.

Advanced Security
WPA/WPA2 encryption standards ensure your data is safe from cyberattacks

Operating System
Supports Windows 10/8.1/8/7 (32/64 bit)

Low-Profile Bracket
In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Internal
Yes
Certification
FCC, CE
Product colour
Black
Antenna
Yes
Component for
PC
Operating modes
Infrastructure mode
Transmitting power (FCC)
21.5 dBm
Transmitting power (CE)
23 dBm
Antenna design
External
Harmonized System (HS) code
85176990
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Security algorithms
WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Maximum data transfer rate
867 Mbit/s
Bluetooth version
4.2
Modulation
16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Bluetooth
Yes
Wi-Fi
Yes
WLAN data transfer rates supported
11,54,300,867 Mbit/s
Frequency range
2.4 - 5 GHz
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90%
Harmonized System (HS) code
85176990
Quick installation guide
Yes
Mounting brackets included
Yes
Resource CD
Yes
Bluetooth header cable
Yes
Package weight
230 g
Package depth
150 mm
Package height
39 mm
Package width
200 mm
Interface
WLAN / Bluetooth
Connectivity technology
Wireless
Host interface
PCI Express
USB version
2.0
Sustainability compliance
Yes
Sustainability certificates
RoHS, Federal Communications Commission (FCC), CE
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Height
21.5 mm
Width
120.8 mm
Depth
83.2 mm
