All Projectors | VIEWSONIC PA503W  WXGA (1280x800) 3600 lumens DLP Projector | PA503W | ServersPlus

Illustration purposes only

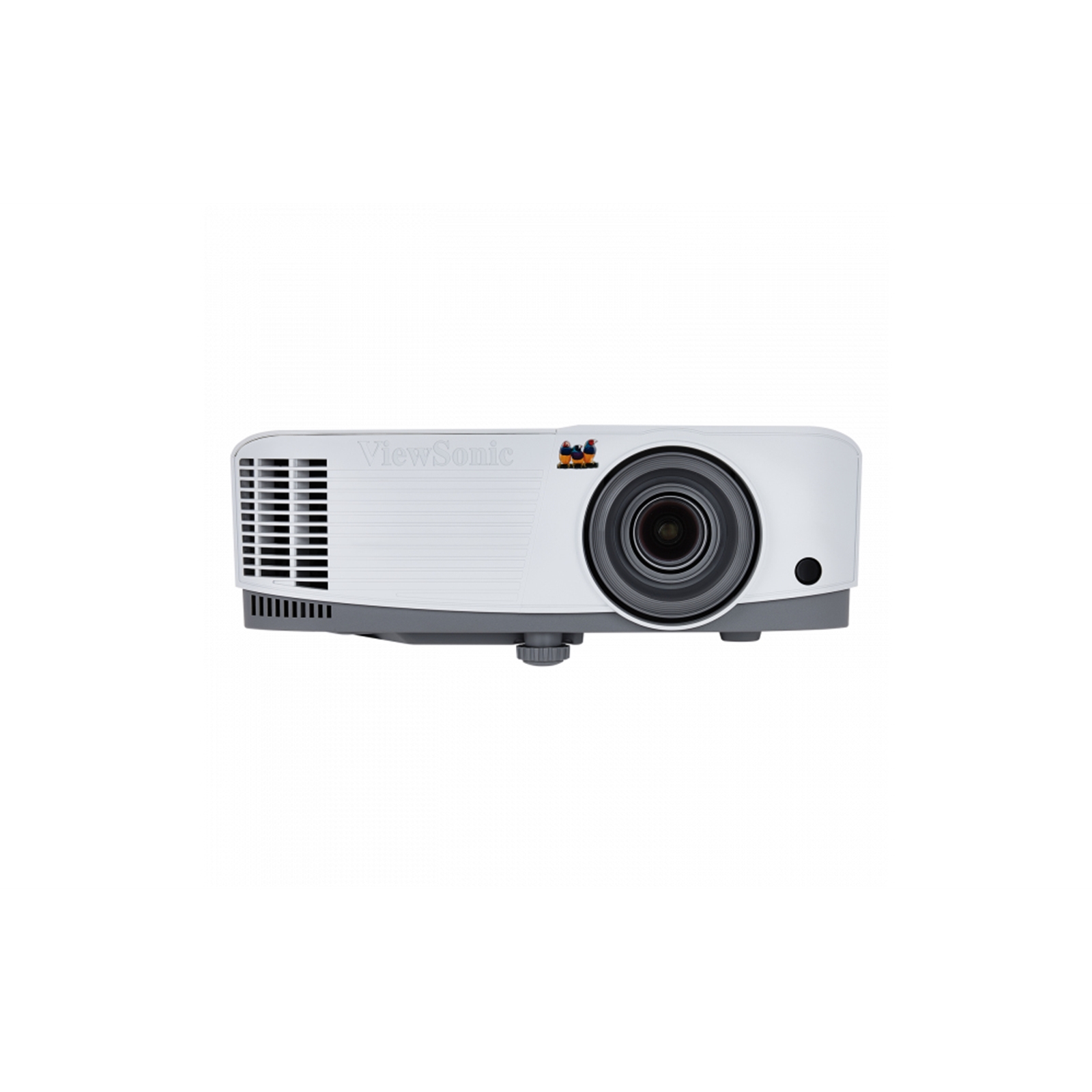

VIEWSONIC PA503W WXGA (1280x800) 3600 lumens DLP Projector

VIEWSONIC Logo here

Manufacturer Part Code: PA503W

Order Code: DPVIE-PA503W

Category: All Projectors

PA503W WXGA (1280x800) DLP Projector 3600 lumens 22000:1 contrast Super Colour Technology TR 1.55-1.70 Osram 190W Lamp 1.1 x Optical Zoom 3D Ready VGA 2 in 1 out 1x HDMI in (14a) Audio in x 1 Audio out x 1 1x USB type mini B 2W speaker White/Grey Up t

Description

The ViewSonic PA503W price-performance projector features 3,600 lumens, native WXGA 1280x800 resolution, and an intuitive, user-friendly design. Exclusive SuperColor technology offers a wider color range for lifelike image projection. The PA503w also features extensive connectivity including HDMI, 2 x VGA in, Composite Video, 1 x VGA output, and Audio in/out. An energy-saving SuperEco feature reduces power consumption by up to 70%, and extends the lamp life by up to 10,000 hours. With advanced audiovisual features, flexible connectivity options, and an affordable price, the PA503W is ideal for use in education and small business environments.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

RMS rated power
2 W
Built-in speakers
Y
Colour of product
White
Ceiling mountable
Y
Placement
Desktop, Ceiling
Market positioning
Presentation
Product type
Standard throw projector
Built-in display
N
Power consumption (typical)
260 W
Power source
AC
Power consumption (standby)
0.5 W
AC input frequency
50/60 Hz
AC input voltage
100-240 V
Noise level
31 dB
On Screen Display (OSD)
Y
On Screen Display (OSD) languages
Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
HDCP
Y
Number of OSD languages
22
Noise level (economic mode)
27 dB
Interactive
N
Lamps quantity
1 lamp(s)
Lamp power
200 W
Light source type
Lamp
Service life of light source (economic mode)
15000 h
Service life of light source
5000 h
Zoom capability
Y
Aperture range (F-F)
2.56 - 2.68
Focus
Manual
Focal length range (f-f)
22 - 24.1 mm
Offset
100%
Throw ratio
1.55-1.7
Zoom ratio
2.0:1
Lamps quantity
1 lamp(s)
Lamp power
200 W
Light source type
Lamp
Service life of light source (economic mode)
15000 h
Service life of light source
5000 h
RMS rated power
2 W
Built-in speaker(s)
Y
Ethernet LAN connection
N
Wireless LAN connection
N
Smart TV
N
Operating temperature range (T-T)
0 - 40 °C
Handheld remote control
Y
Cables included
AC, VGA
Manual
Y
Package weight
3.24 kg
Packaging depth
300 mm
Packaging height
188 mm
Packaging width
365 mm
Horizontal scan range
15 - 102 kHz
Vertical scan range
23 - 120 Hz
Noise level
31 dB
On Screen Display (OSD)
Y
On Screen Display (OSD) languages
Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
HDCP
Y
Number of OSD languages
22
Noise level (economic mode)
27 dB
Market positioning
Presentation
Serial interface type
RS-232
DVI port
N
VGA (D-Sub) ports quantity
3
Composite video in
1
PC Audio in
Y
AC (power) in
Y
HDMI ports quantity
1
HDMI version
1.4
PC Audio out
Y
Mini-USB 2.0 ports quantity
1
Mobile High-Definition Link (MHL)
N
HDMI connector type
Full-size
Contrast ratio (typical)
22000:1
Horizontal scan range
15 - 102 kHz
Vertical scan range
23 - 120 Hz
Zoom capability
Y
Projection distance
1 - 10.98 m
Projection technology
DMD
Projector brightness
3800 ANSI lumens
Zoom ratio
2.0:1
Screen size compatibility
762 - 7620 mm (30 - 300")
Keystone correction, vertical
-40 - 40°
Matrix size
1.65 cm (0.65")
Projector native resolution
WXGA (1280x800)
Number of colours
1.07 billion colours
Horizontal scan range
15 - 102 kHz
Vertical scan range
23 - 120 Hz
Noise level
31 dB
Noise level (economic mode)
27 dB
Card reader integrated
N
Colour of product
White
On Screen Display (OSD)
Y
On Screen Display (OSD) languages
Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
Ceiling mountable
Y
HDCP
Y
Analog signal format system
NTSC,PAL,SECAM
Supported graphics resolutions
640 x 480 (VGA),1920 x 1080 (HD 1080)
Supported video modes
480i,480p,576i,576p,720p,1080i,1080p
Weight
2.2 kg
Package weight
3.24 kg
Height
110 mm
Width
294 mm
Depth
218 mm
Packaging depth
300 mm
Packaging height
188 mm
Packaging width
365 mm
