Projector Brackets | VISION Telescopic Projector Bracket | TM-TELE | ServersPlus

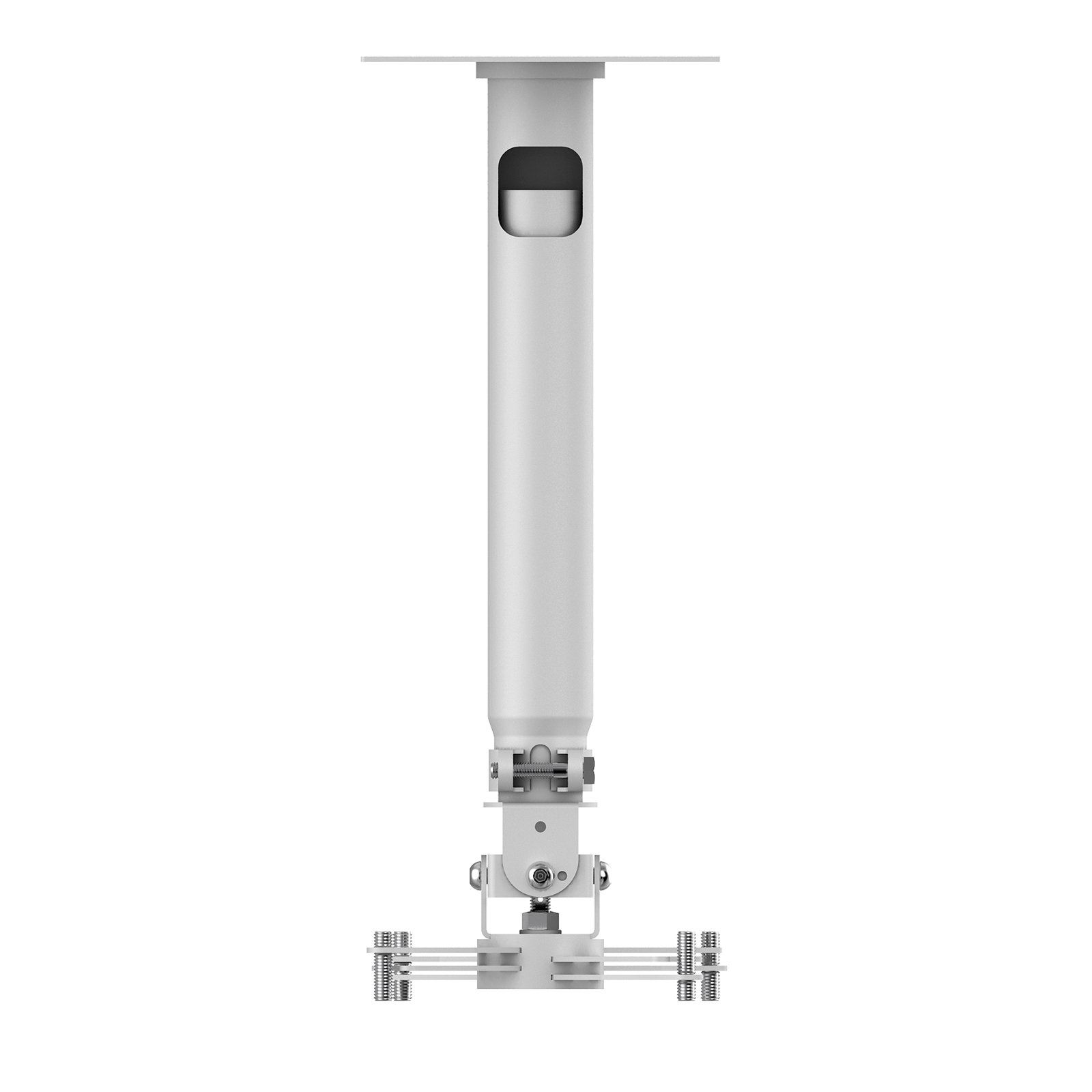

Illustration purposes only

VISION Telescopic Projector Bracket

VISION Logo here

Manufacturer Part Code: TM-TELE


Category: Projector Brackets

VISION PROJECTOR CEILING MOUNT - WHITE Fits most projectors Telescopic pole 440-740mm obstruction-free cable management. Includes: retrofitting ceiling trim disc sloping ceiling mechanism **Lifetime warranty return-to-base**

- Universal projector ceiling mount with telescopic pole
- Overall length 440-735 mm
- Full adjustment: tilt at top for sloping ceilings / pitch and roll at the bottom

The TM-TELE Techmount is a projector ceiling bracket for anchoring any data projector safely to a ceiling. The telescopic design allows fast deployment and adjustment without the need cut and drill the pole. It has a greater range than most other telescopic mounts and the pole can be removed for ?flush-mounting? the projector as close to the ceiling as possible. Note: unlike the TM-1200 the length of this bracket cannot be extended.

One-Man Installation
Thoughtful design detail include a length adjustment clamp system which requires only one hand.

Sloping Ceilings
A tilting mechanism is included which tilts to a full 90 degrees, allowing you to use the bracket as a boom if need be.

Safety Approved
A back-up fall-arrest tether is included which secures the projector to your bracket, and the pole has a mechanical stop so that the two parts of the pole cannot be separated. Vision recommends a maximum safe working load of 10kg which is well within the limits of the product and meets the BSi installation standard specification (PAS122:2009).

Easy fit
Projectors have threaded inserts in the bottom for attachment – but not all use the same diameter screws so Vision includes a selection to suit most projectors. Simply locate the ?spider? arms on our bracket over the attachment holes, and insert a screw into the projector.

Obstruction-free Cable Management
Vision's unique ?chute-through' system leaves cable access clear – even for big VGA connectors.

Tools Included
A spanner and pin-hex key are included. Vision also includes a hex-key bit for a power drill to speed up installation.

Quick-release mechanisms make life easier for thieves, so the TM-TELE is secure and features security bolts.

Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Colour of product
Tilt angle
0 - 90°
Maximum weight (capacity)
10 kg
Mounting type
Product colour
Mounting type
Colour of product
Maximum weight (capacity)
10 kg
Mounting type
Depth (max)
73.5 cm
Depth (min)
43.7 cm
