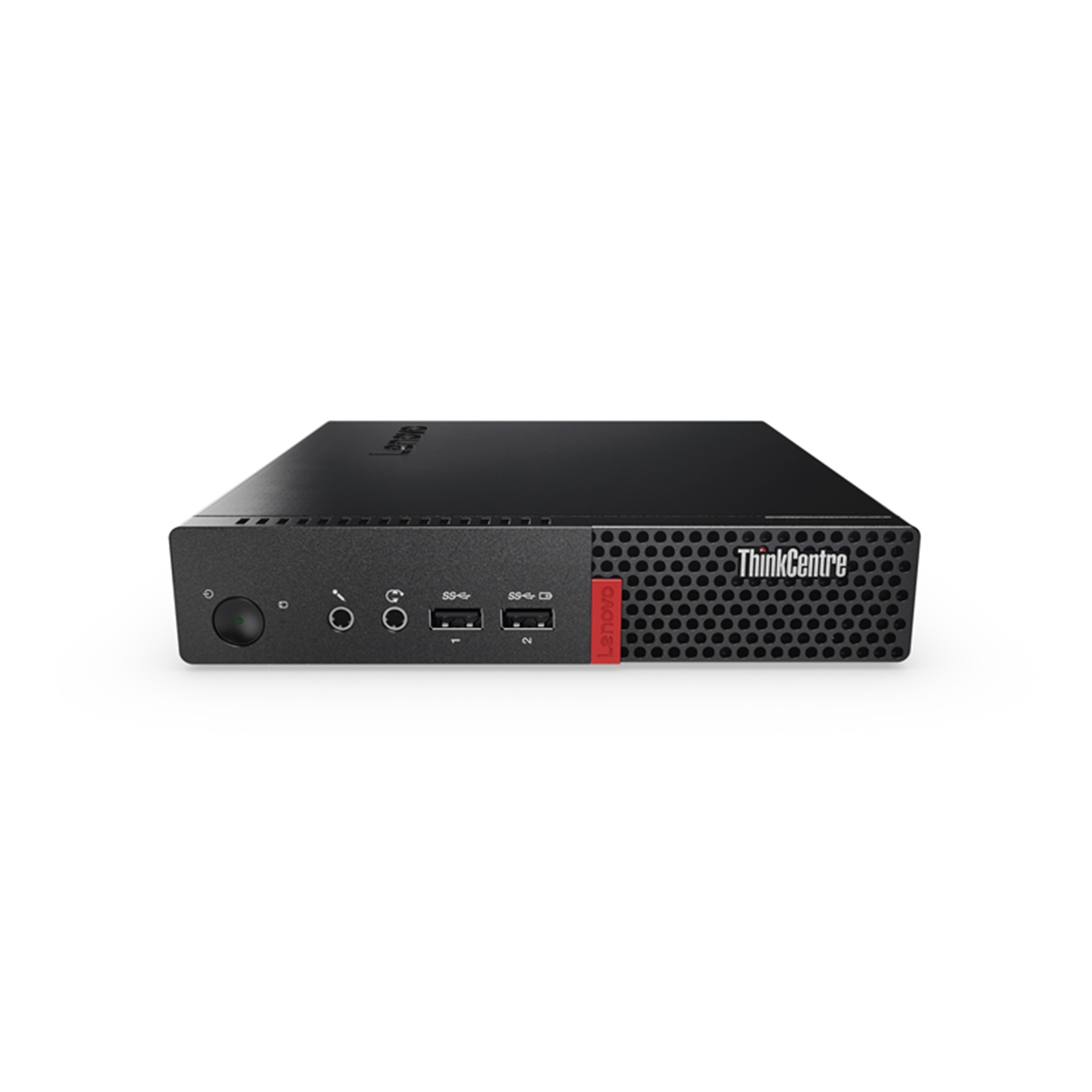

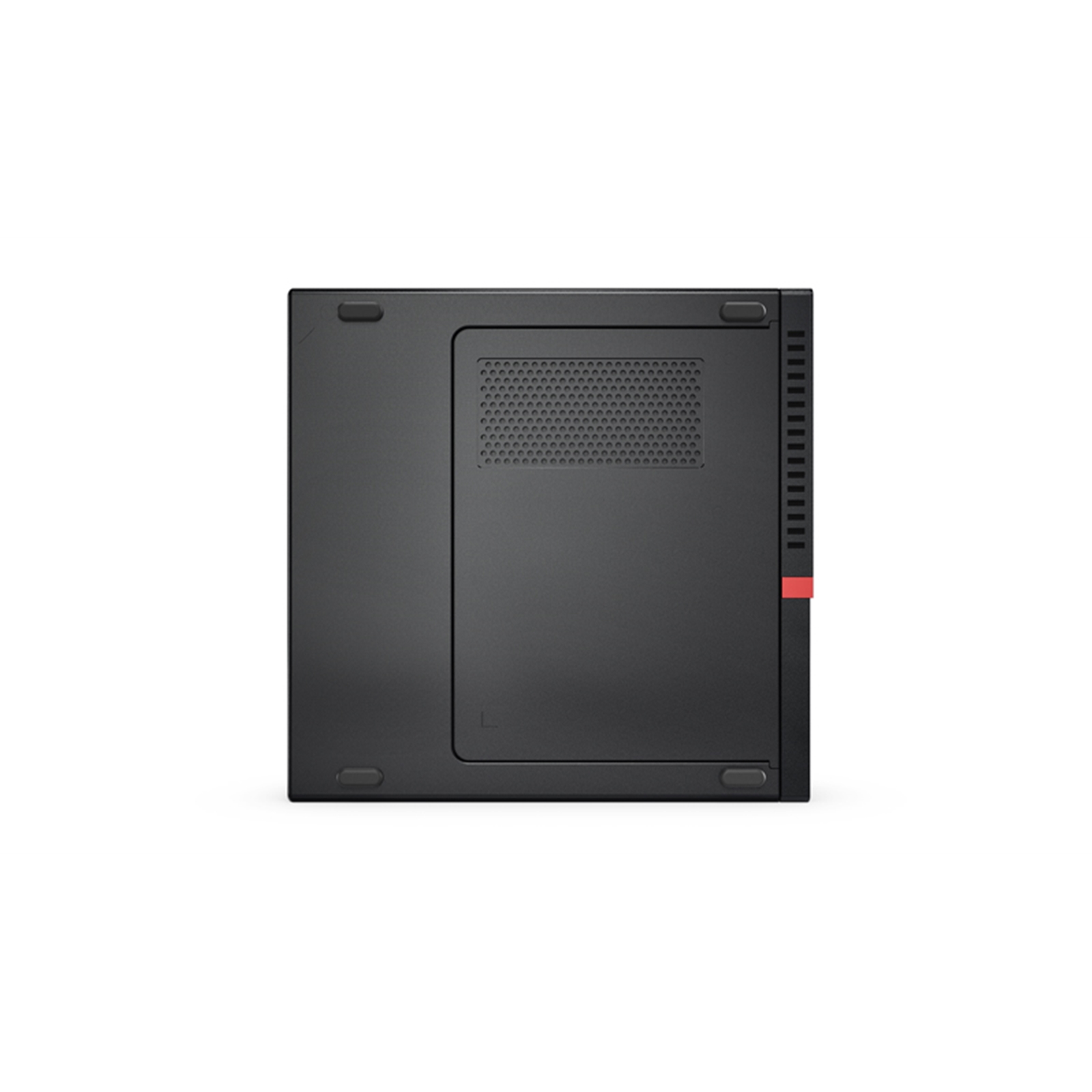

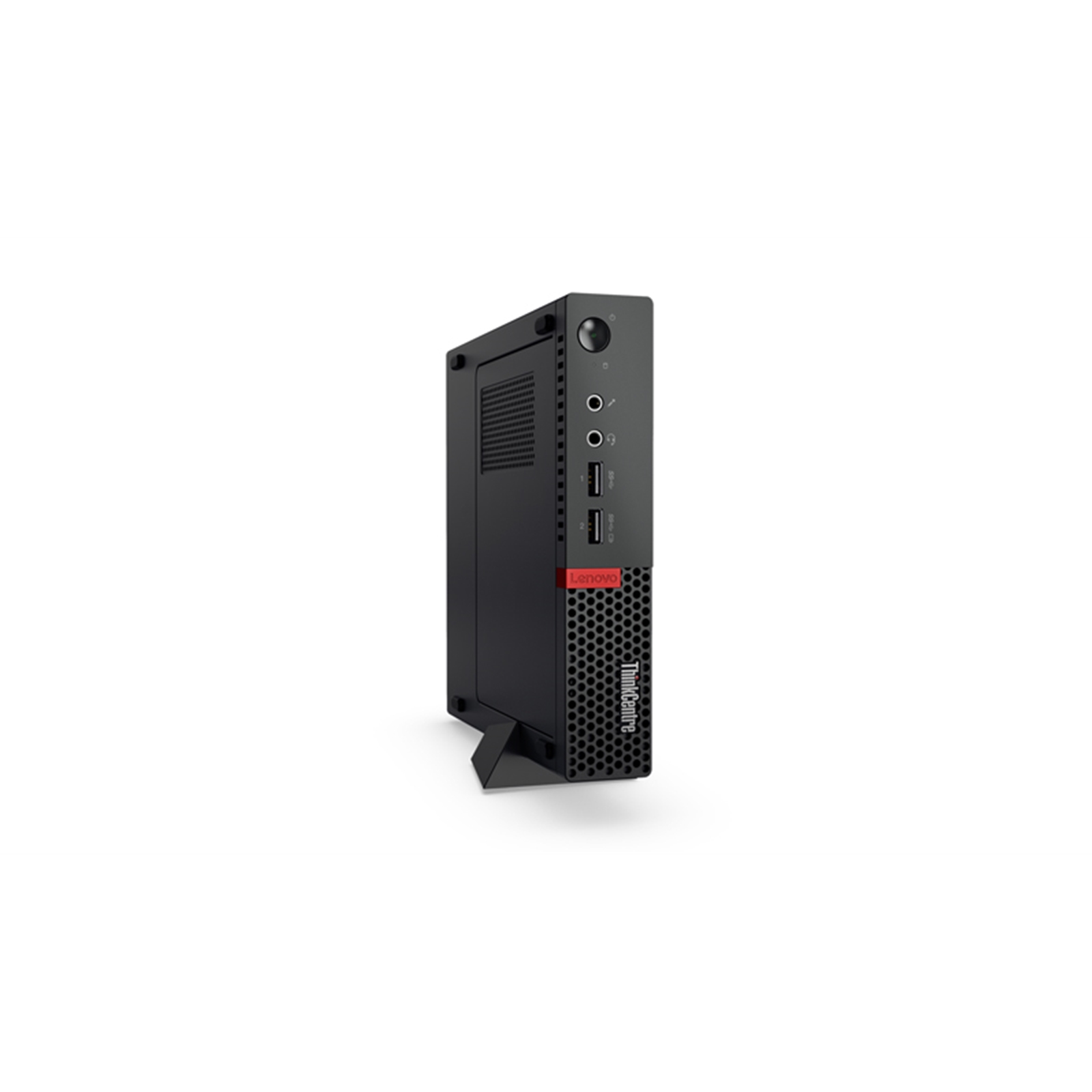

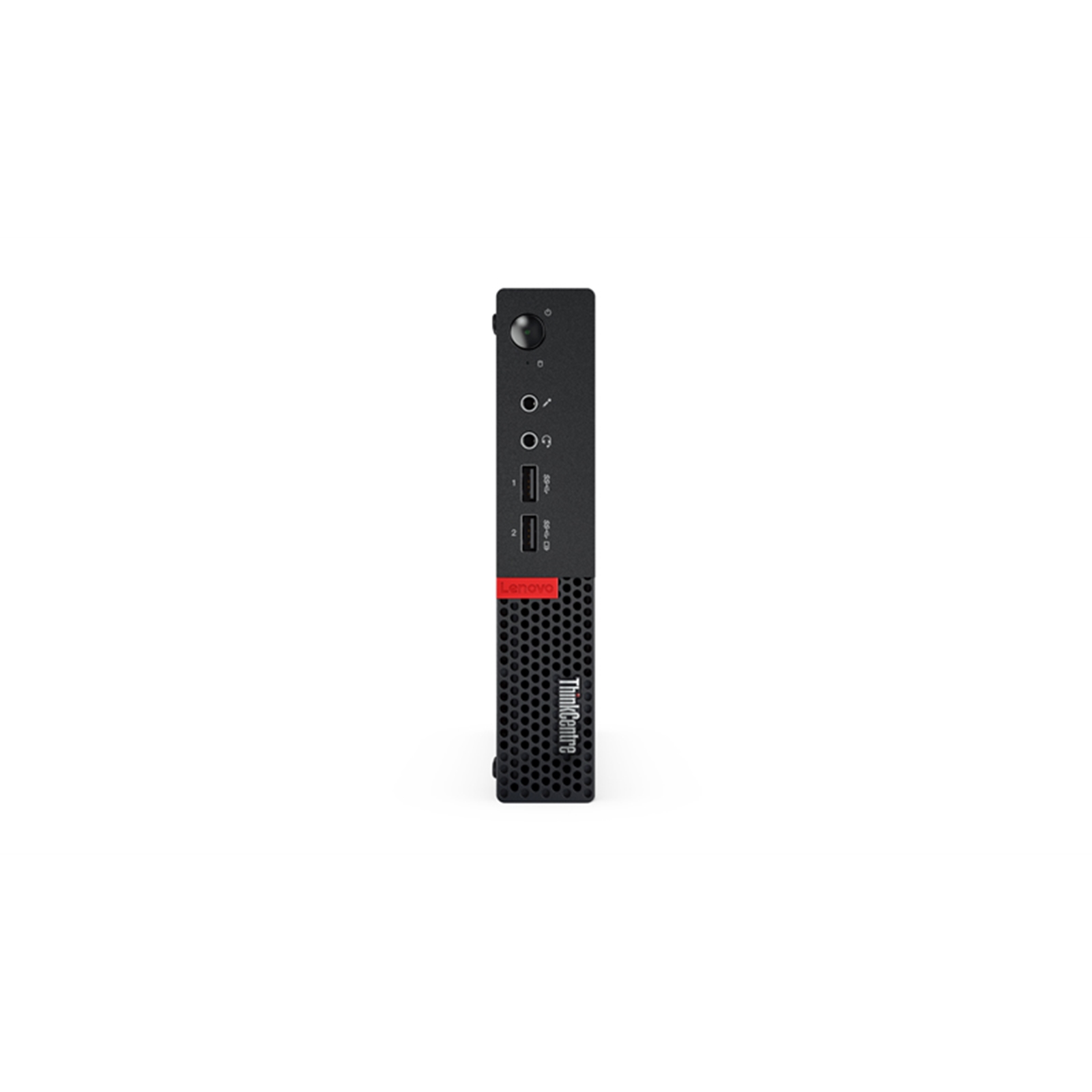

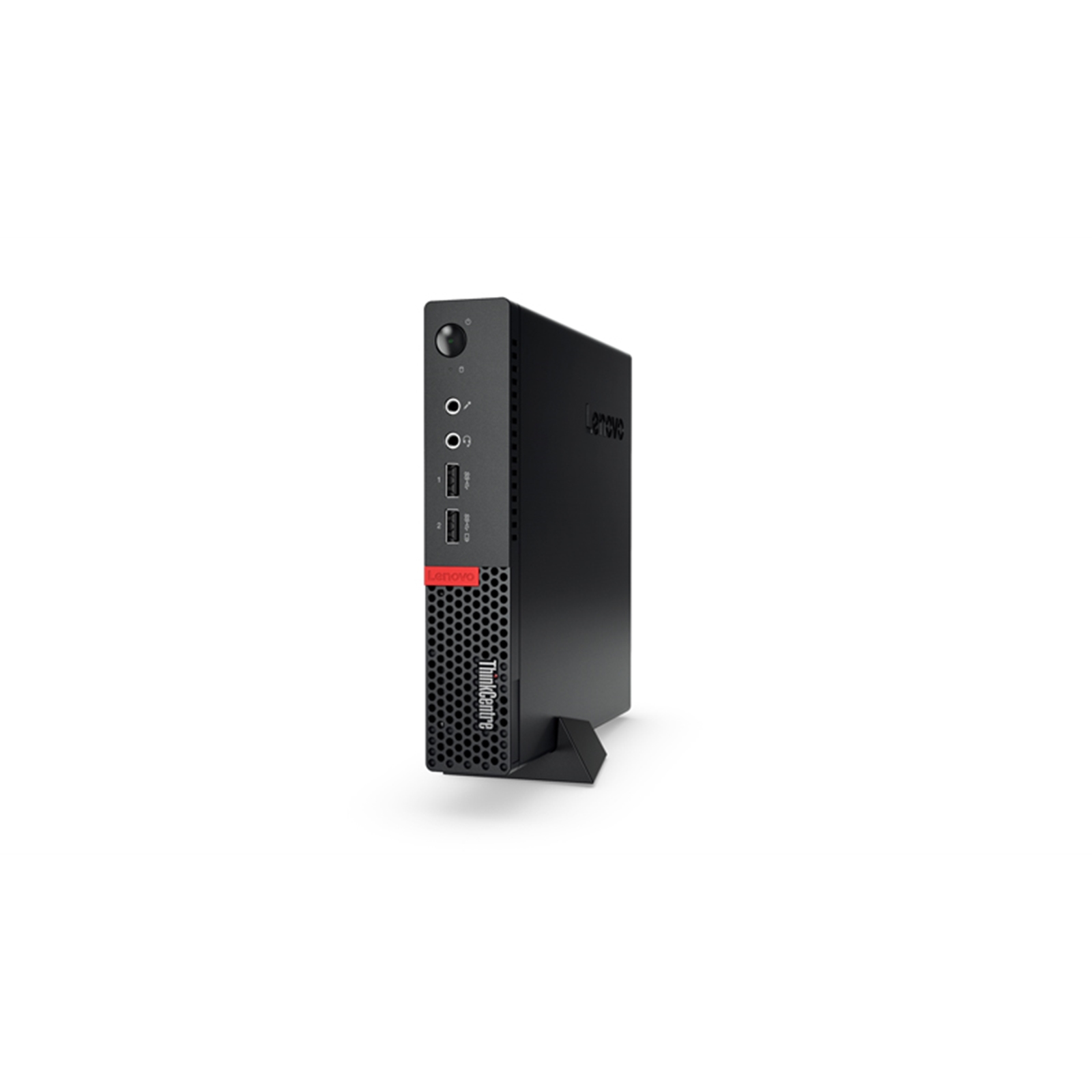

LENOVO ThinkCentre M910q 10MV - Tiny desktop - 1 x Core i5 7500T / 2.7 GHz 10MV001KUK

LENOVO Logo here

Manufacturer Part Code: 10MV001KUK

Order Code: PBLEN-10MV001KUK

Category: Lenovo Desktops

Lenovo ThinkCentre M910q 10MV - Tiny desktop - 1 x Core i5 7500T / 2.7 GHz - RAM 4 GB - SSD 128 GB - NVM Express (NVMe) - HD Graphics 630 - GigE - WLAN: 802.11a/b/g/n/ac Bluetooth 4.1 - Win 10 Pro 64-bit - monitor: none - TopSeller

Tiny Footprint, Big Statement

At 96% smaller than a traditional desktop tower, the M910 Tiny is extremely compact. This tiny desktop fits just about anywhere and can be positioned horizontally or vertically—mount it on a wall, behind a monitor, or even under a desk. You can even power digital signage with a PC that's easy to hide from view. It delivers reliable, professional-level performance, while freeing up valuable desk-space.

The Benefits of Modular Design

With the ThinkCentre M910 Tiny, you can create your own modular all-in-one PC. Simply use the Tiny inside the back of the ThinkCentre Tiny-in-One (TIO) display. Keep costs down when choosing to upgrade the display and computing power separately, and get more use from your assets over time.

See the Bigger Picture

With up to three independent displays, or four displays in Mosaic Mode, M910 Tiny expands the limits of desktop computing to enable greater productivity. Ideal for financial and creative industries – and all your multimedia, multitasking needs.

Bigger Isn't Necessarily Better

Don't be deceived by its miniature frame, as the ThinkCentre M910 Tiny punches well above its weight. Equipped with a 7th generation Intel® Core™ processor and PCIe SSD storage, you can power up in a flash and load files even faster. Intensive tasks like multimedia creation, graphic design, and number-crunching are a walk in the park.

Help Is Just a Keystroke Away

With high-performance Intel® Core™ vPro™ processors, your IT team can remotely access your fleet of desktops. They can easily roll out software upgrades or fixes to all PCs on the network, saving on both management costs and desk-side visit time.

Lifecycle Stability

With Intel® Stable Image Platform Program (SIPP), your ThinkCentre M910 Tiny is guaranteed to have platform availability for at least 12 months. So you can manage your PC lifecycle and keep costs down.

Built for Business—Tested for Your Lifestyle

The ThinkCentre M910 Tiny is built to last in any environment. It carries the Think name, which means it's tested against military-specification requirements, as well as 200 rigorous quality checks. From enduring arctic temperatures of -20 degrees C, to desert heat of 60 degrees C, this device can more than handle the bumps and bruises of life.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Energy Star certified
Y
RoHS compliance
Y
Chassis type
Mini PC
Chassis type
Mini PC
Colour of product
Black
Placement supported
Horizontal/Vertical
Volume
1 L
Water cooling system
N
Intel segment tagging
Enterprise, Professional
Display included
N
Power supply
65 W
PCI Express slots version
3.0
On-board graphics adapter model
Intel® HD Graphics 630
Discrete graphics adapter model
Not available
On-board graphics adapter
Y
On-board graphics adapter base frequency
350 MHz
On-board graphics adapter dynamic frequency (max)
1100 MHz
On-board graphics adapter ID
0x5912
Maximum on-board graphics adapter memory
64 GB
Number of displays supported by on-board graphics adapter
3
On-board graphics adapter DirectX version
12.0
On-board graphics adapter OpenGL version
4.4
Discrete graphics adapter
N
Total storage capacity
128 GB
Keyboard supplied
Y
Internal memory type
DDR4-SDRAM
Memory slots
2x SO-DIMM
Maximum internal memory
32 GB
Memory clock speed
2400 MHz
Memory channels
Dual-channel
Internal memory
4 GB
Wireless LAN type
Wi-Fi 5 (802.11ac)
Cabling technology
10/100/1000Base-T(X)
Bluetooth version
4.1
Ethernet LAN connection
Y
Bluetooth
Y
Wireless LAN connection
Y
Ethernet LAN data transfer rates
10,100,1000 Mbit/s
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Operating system provided
Windows 10 Pro
Operating system architecture
64-bit
Optical drive type
N
Processor manufacturer
Intel
Trusted Platform Module (TPM)
Y
On-board graphics adapter
Y
Speakers supplied
Y
Intel segment tagging
Enterprise, Professional
Display included
N
Mouse included
Y
Manual
Y
Keyboard supplied
Y
Speakers supplied
Y
Keyboard included
Y
Motherboard chipset
Intel® Q270
Trusted Platform Module (TPM)
Y
Password protection type
HDD, Power on
Product type
Mini PC
Password protection
Y
Serial ports quantity
1
Ethernet LAN (RJ-45) ports quantity
1
Microphone in
Y
DVI port
N
VGA (D-Sub) ports quantity
1
DisplayPorts quantity
2
Combo headphone/mic port
Y
USB 3.0 (3.1 Gen 1) Type-A ports quantity
6
Processor model
i5-7500T
Motherboard chipset
Intel® Q270
Number of processors installed
1
Processor manufacturer
Intel
Processor lithography
14 nm
Processor family
7th gen Intel® Core™ i5
Processor socket
LGA 1151 (Socket H4)
Processor number of cores
4
System bus
8 GT/s
Processor number of threads
4
PCI Express slots version
3.0
Processor operating modes
64-bit
Turbo frequency (max)
3.3 GHz
Processor cache
6 MB
Tjunction
80 °C
Bus type
DMI3
PCI Express configurations
2x8,1x8+2x4
Processor clock speed
2.7 GHz
Thermal Design Power (TDP)
35 W
Processor codename
Kaby Lake
Maximum number of PCI Express lanes
16
Processor cache type
Smart Cache
Configurable TDP-down frequency
1700 MHz
Maximum internal memory supported by processor
64 GB
Memory types supported by processor
DDR3L-SDRAM,DDR4-SDRAM
Memory clock speeds supported by processor
1333,1600,2133,2400 MHz
Memory channels supported by processor
Dual
ECC supported by processor
N
Memory voltage supported by processor
1.35 V
Conflict Free processor
Y
Supported instruction sets
AVX 2.0
Intel Identity Protection Technology
Y
Intel Hyper-Threading Technology
N
Intel Turbo Boost Technology
2.0
Intel Quick Sync Video Technology
Y
Intel InTru 3D Technology
Y
Intel Clear Video HD Technology
Y
Intel AES New Instructions
Y
Enhanced Intel SpeedStep Technology
Y
Execute Disable Bit
Y
Idle States
Y
Thermal Monitoring Technologies
Y
Intel Trusted Execution Technology
Y
Scalability
1S
CPU configuration (max)
1
Intel Enhanced Halt State
Y
Intel Clear Video Technology for MID
Y
Intel VT-x with Extended Page Tables (EPT)
Y
Embedded options available
Y
Intel TSX-NI
Y
Intel Secure Key
Y
Thermal solution specification
PCG 2015A
Intel 64
Y
Intel Stable Image Platform Program (SIPP)
Y
OS Guard
Y
Intel Virtualization Technology for Directed I/O (VT-d)
Y
Intel Clear Video Technology
Y
Intel Software Guard Extensions (Intel SGX)
Y
Intel Identity Protection Technology version
1.00
Intel Secure Key Technology version
1.00
Intel Virtualization Technology (VT-x)
Y
Intel Stable Image Platform Program (SIPP) version
1.00
Intel TSX-NI version
1.00
Processor package size
37.5 x 37.5 mm
Conflict Free processor
Y
Processor ARK ID
97121
Optical drive type
N
Total storage capacity
128 GB
Card reader integrated
N
Solid-state drive capacity
128 GB
Number of SSDs installed
1
Storage media
SSD
Number of storage drives installed
1
Motherboard chipset
Intel® Q270
Chassis type
Mini PC
Colour of product
Black
Mouse included
Y
Placement supported
Horizontal/Vertical
Trusted Platform Module (TPM)
Y
Keyboard supplied
Y
Intel Identity Protection Technology
Y
Intel Hyper-Threading Technology
N
Intel Turbo Boost Technology
2.0
Intel Quick Sync Video Technology
Y
Product type
Mini PC
Intel 64
Y
Water cooling system
N
On-board graphics adapter model
Intel® HD Graphics 630
Discrete graphics adapter model
Not available
Weight
1.32 kg
Height
34.5 mm
Width
179 mm
Depth
182.9 mm
Volume
1 L
Bluetooth
Y
