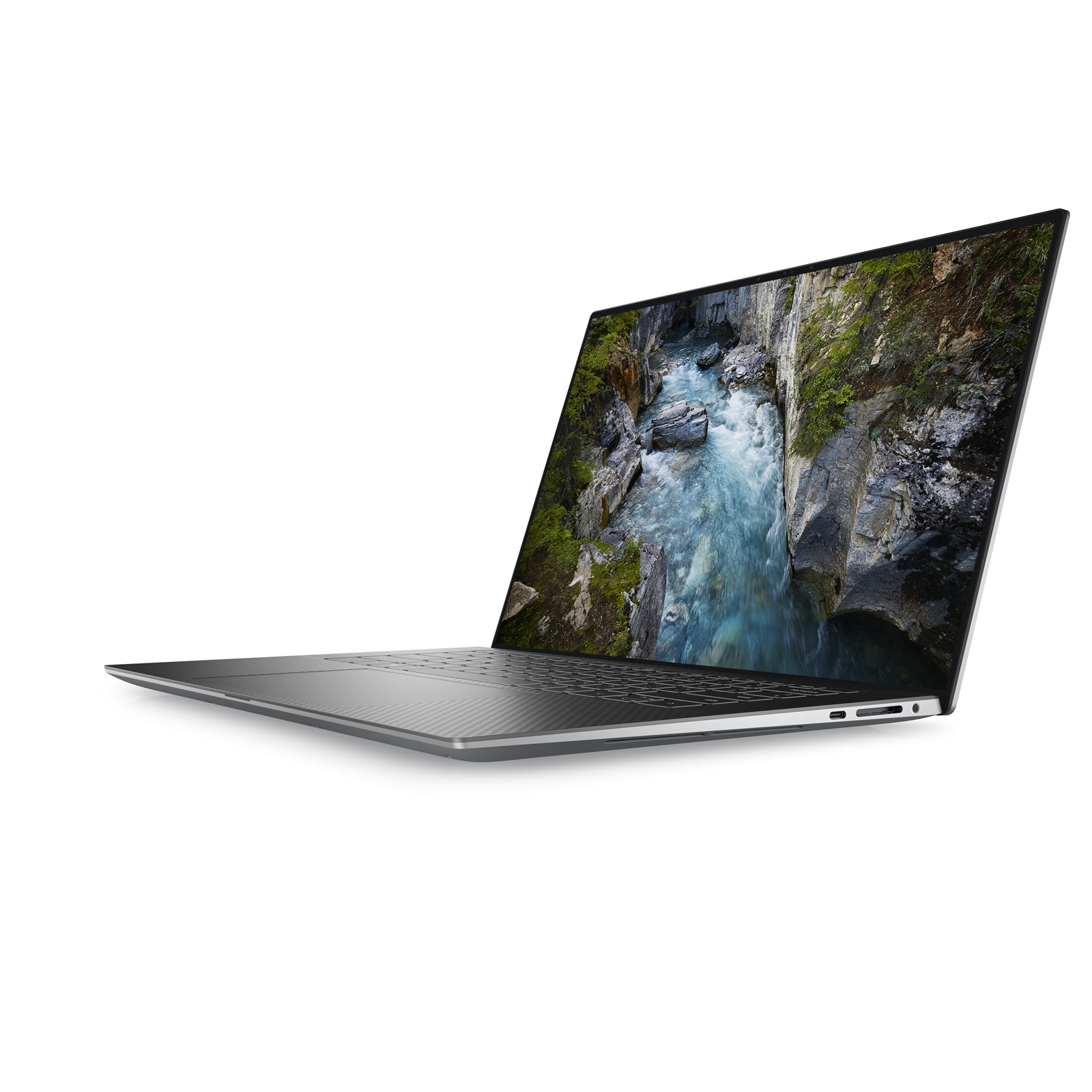

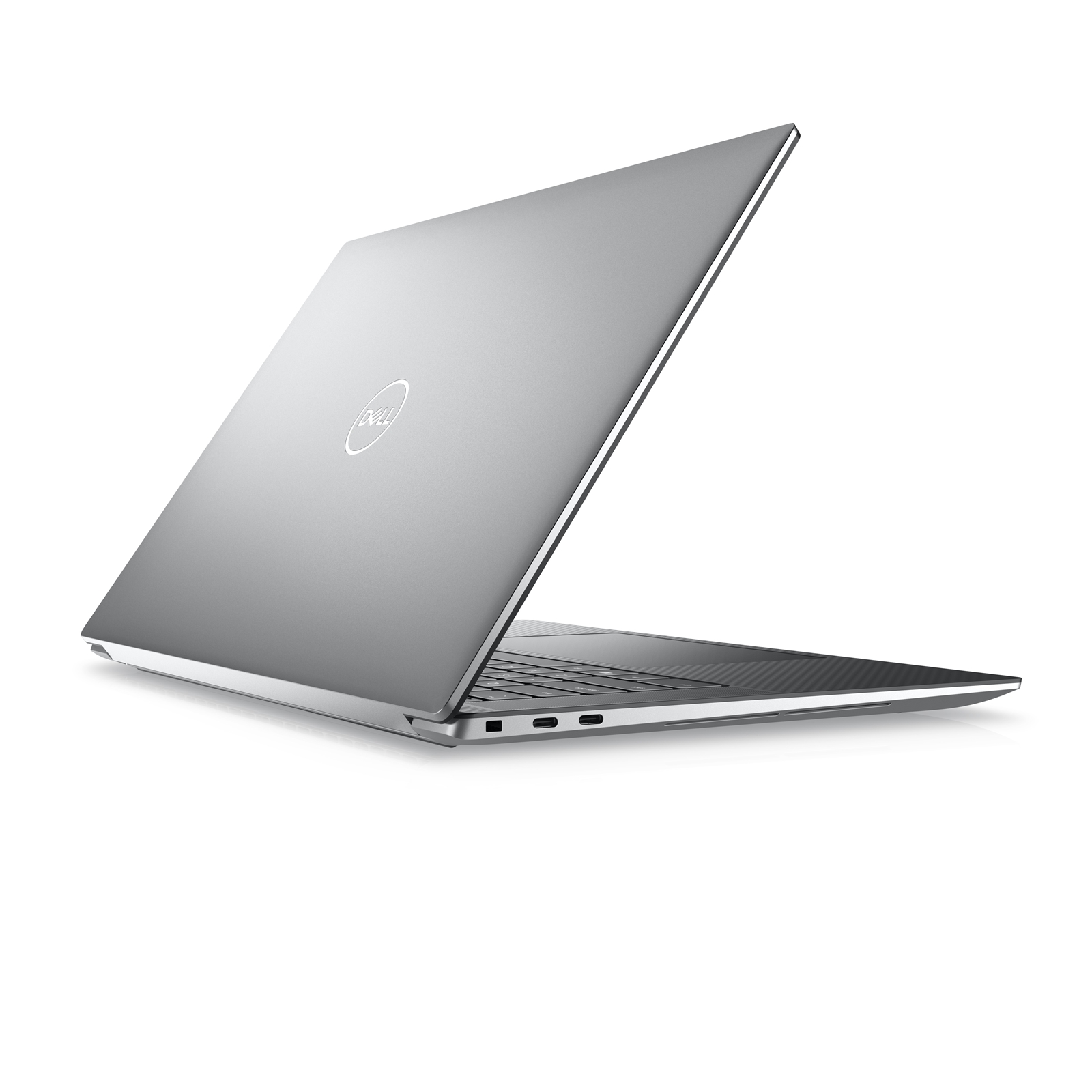

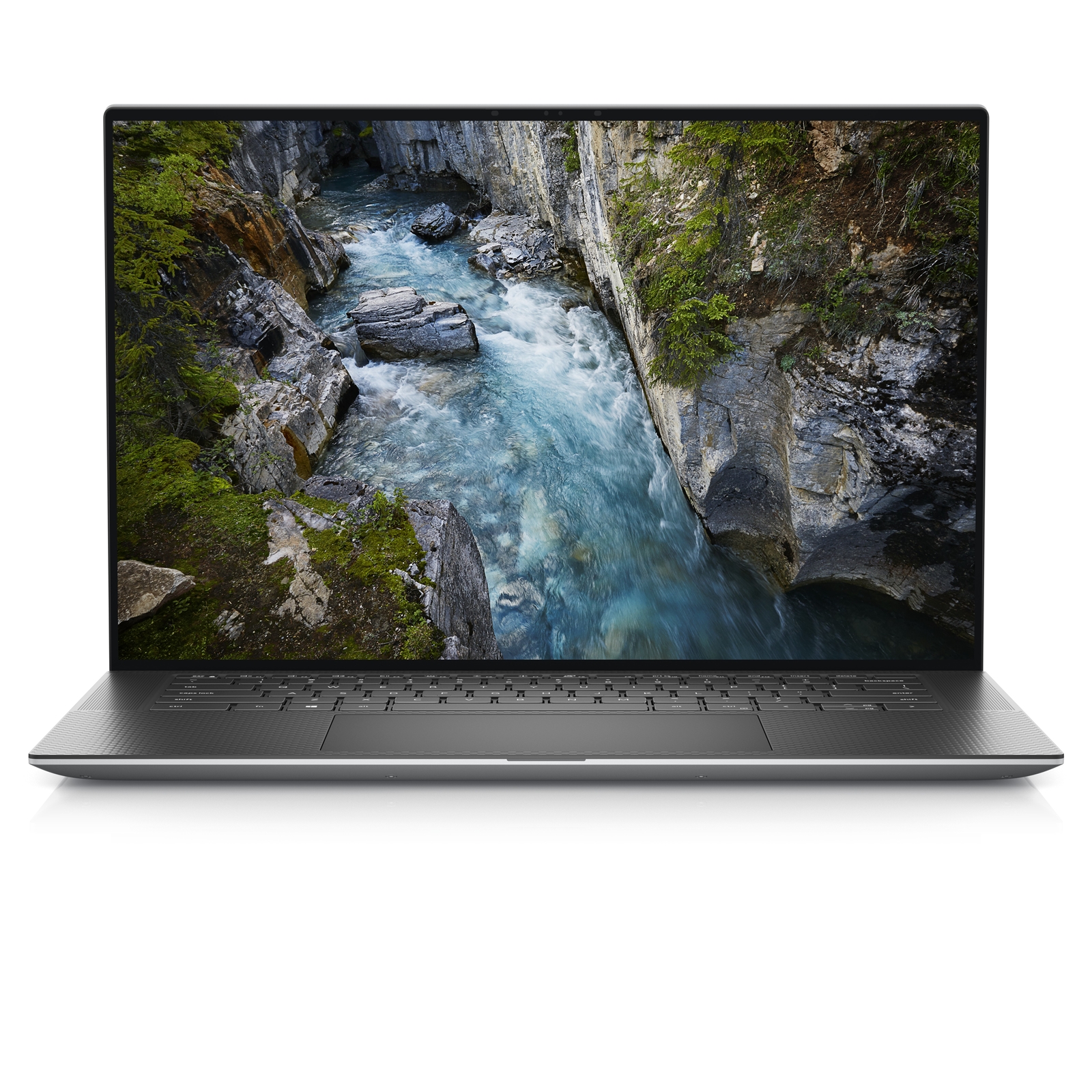

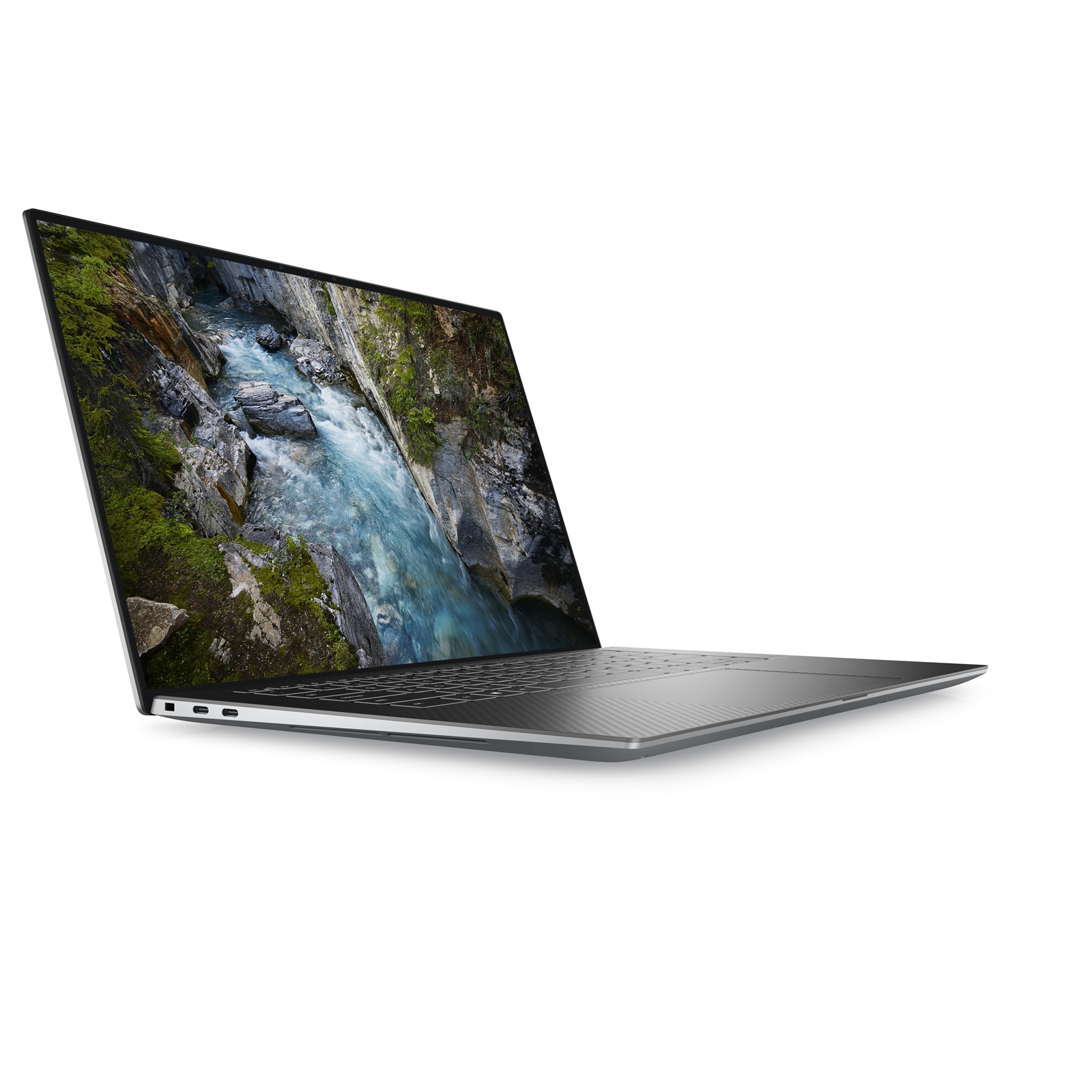

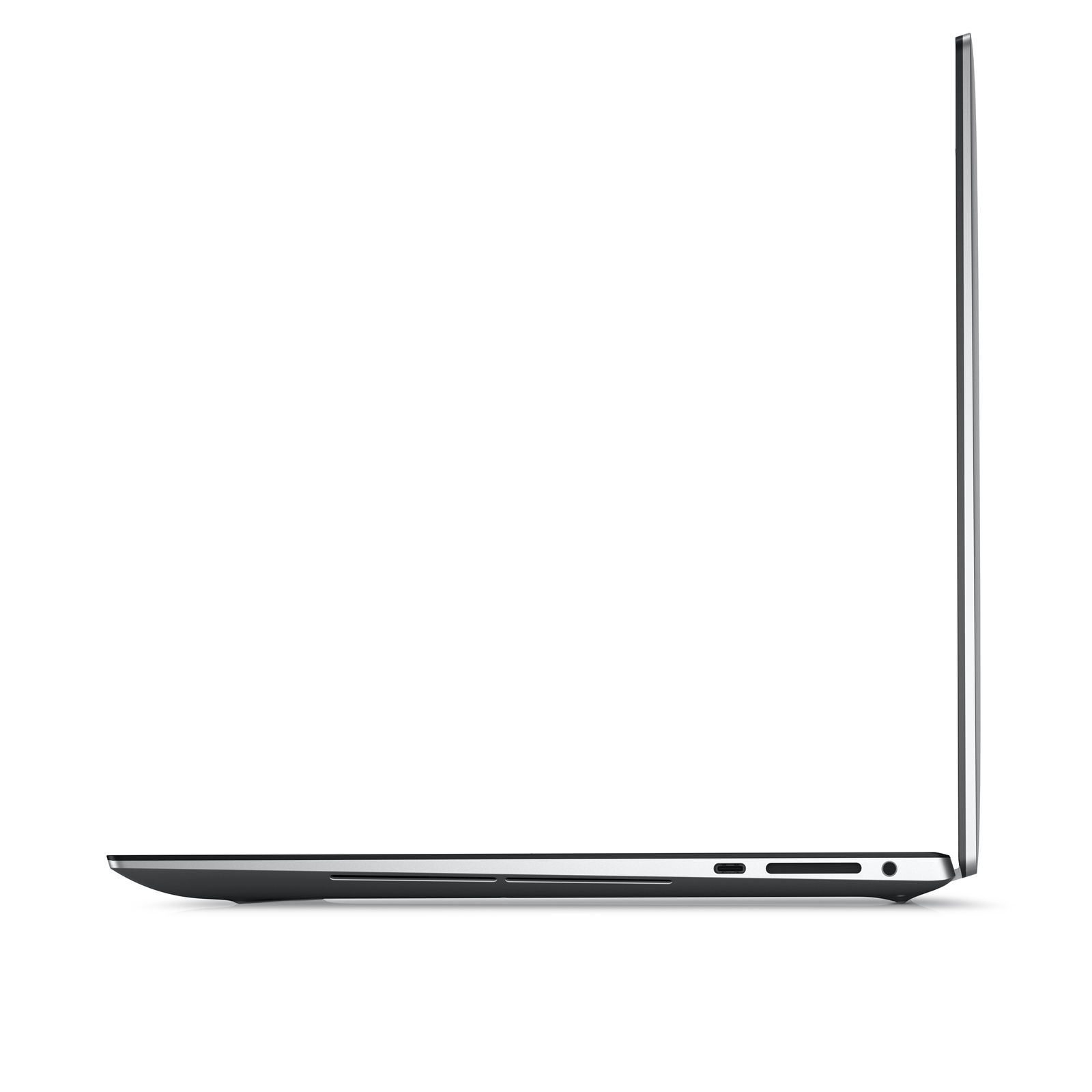

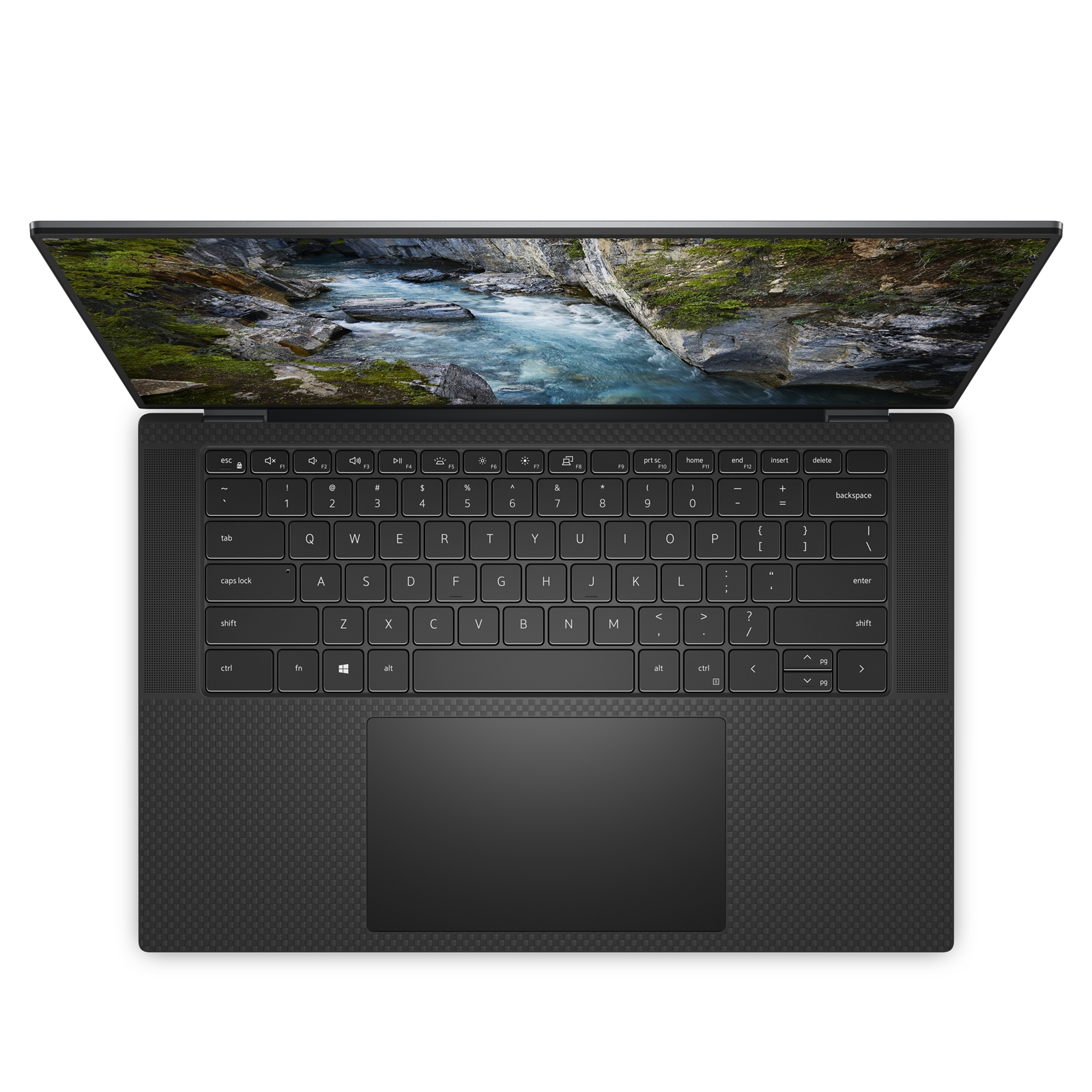

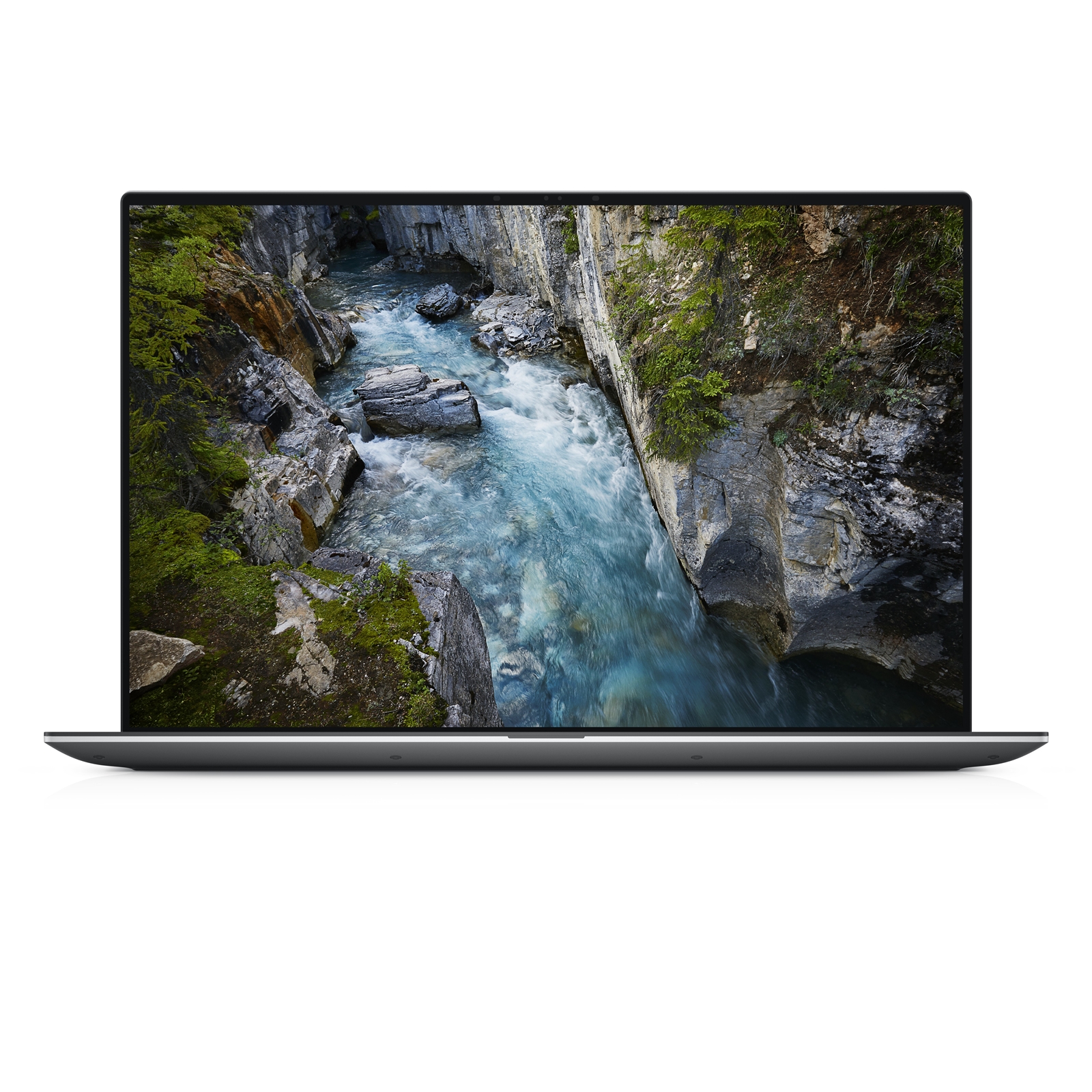

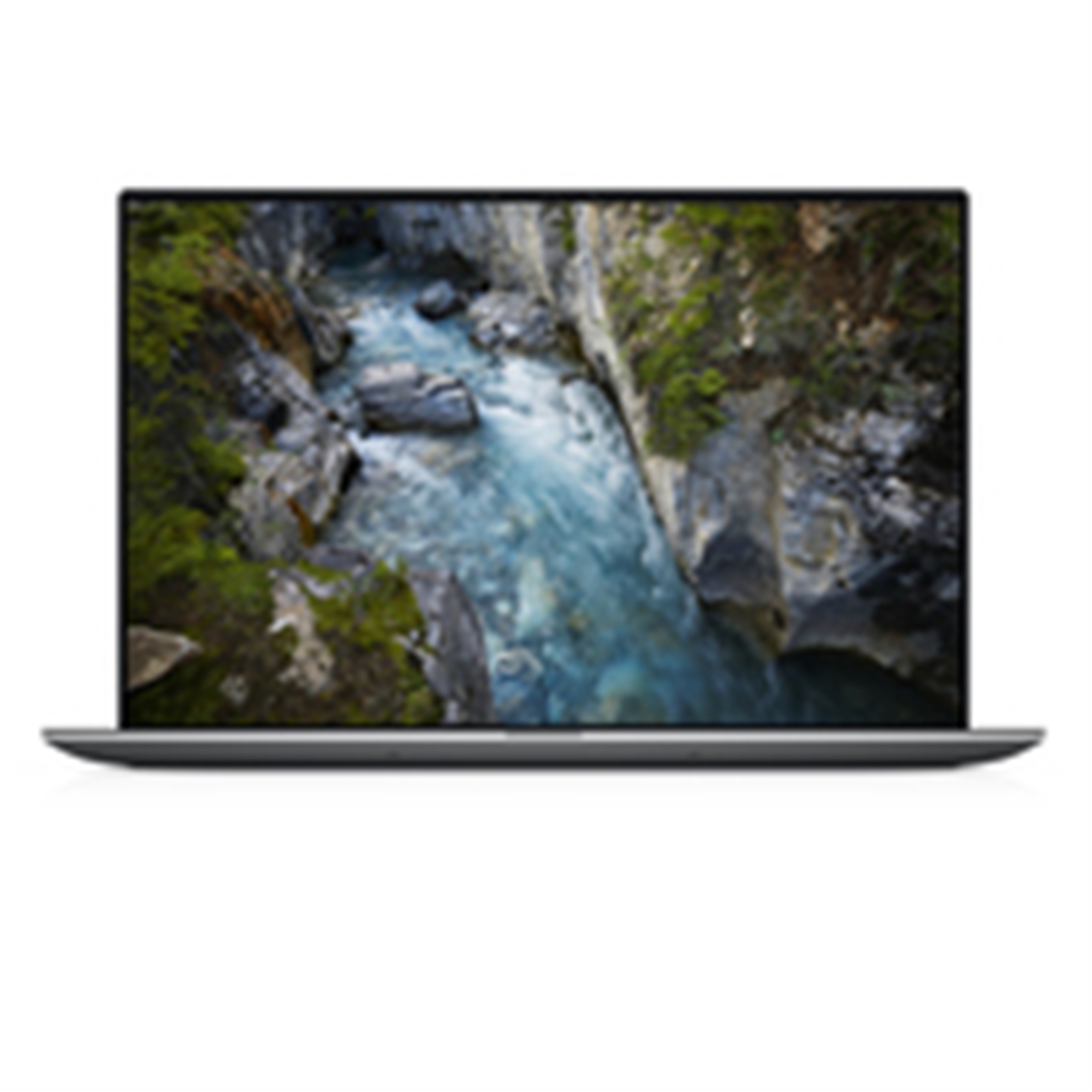

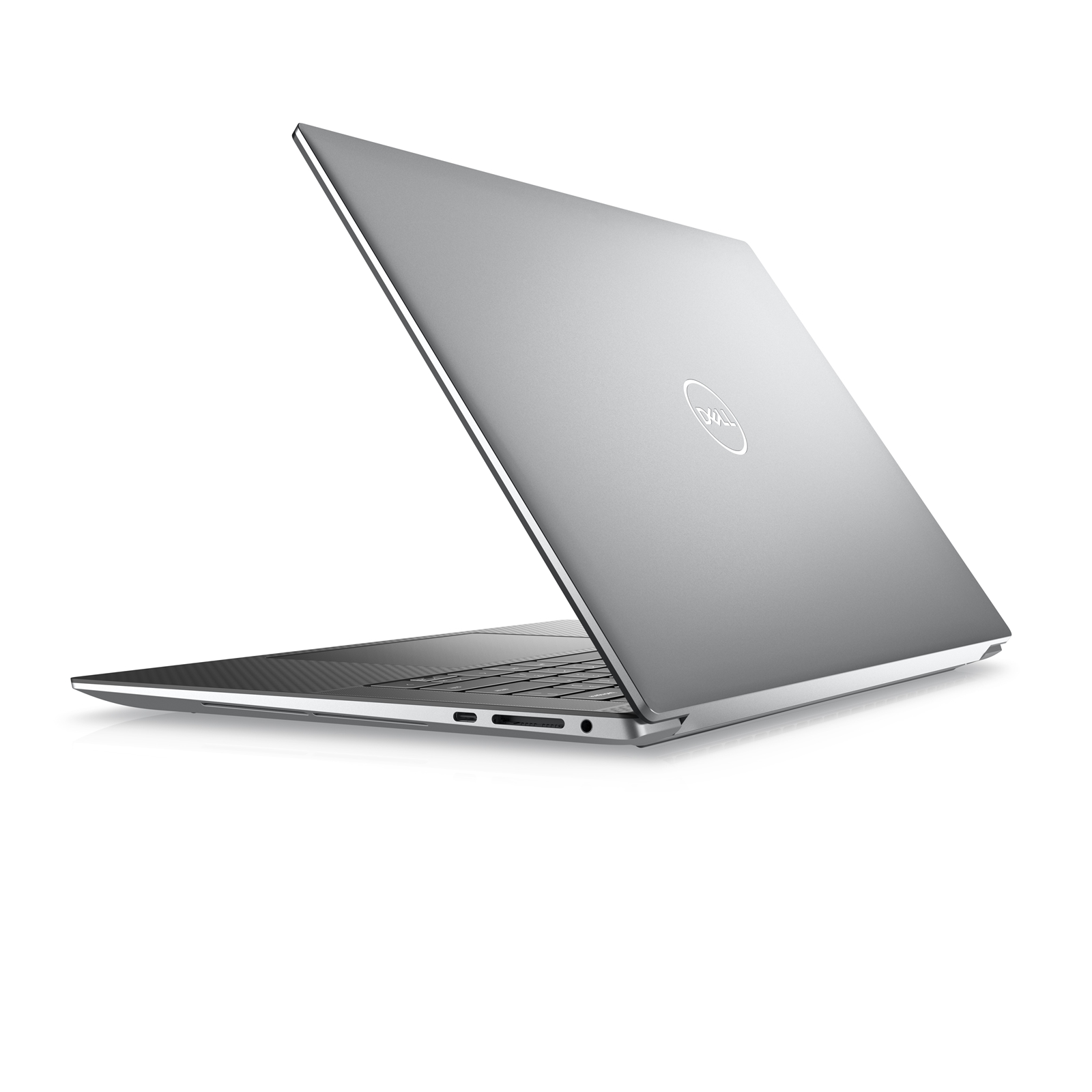

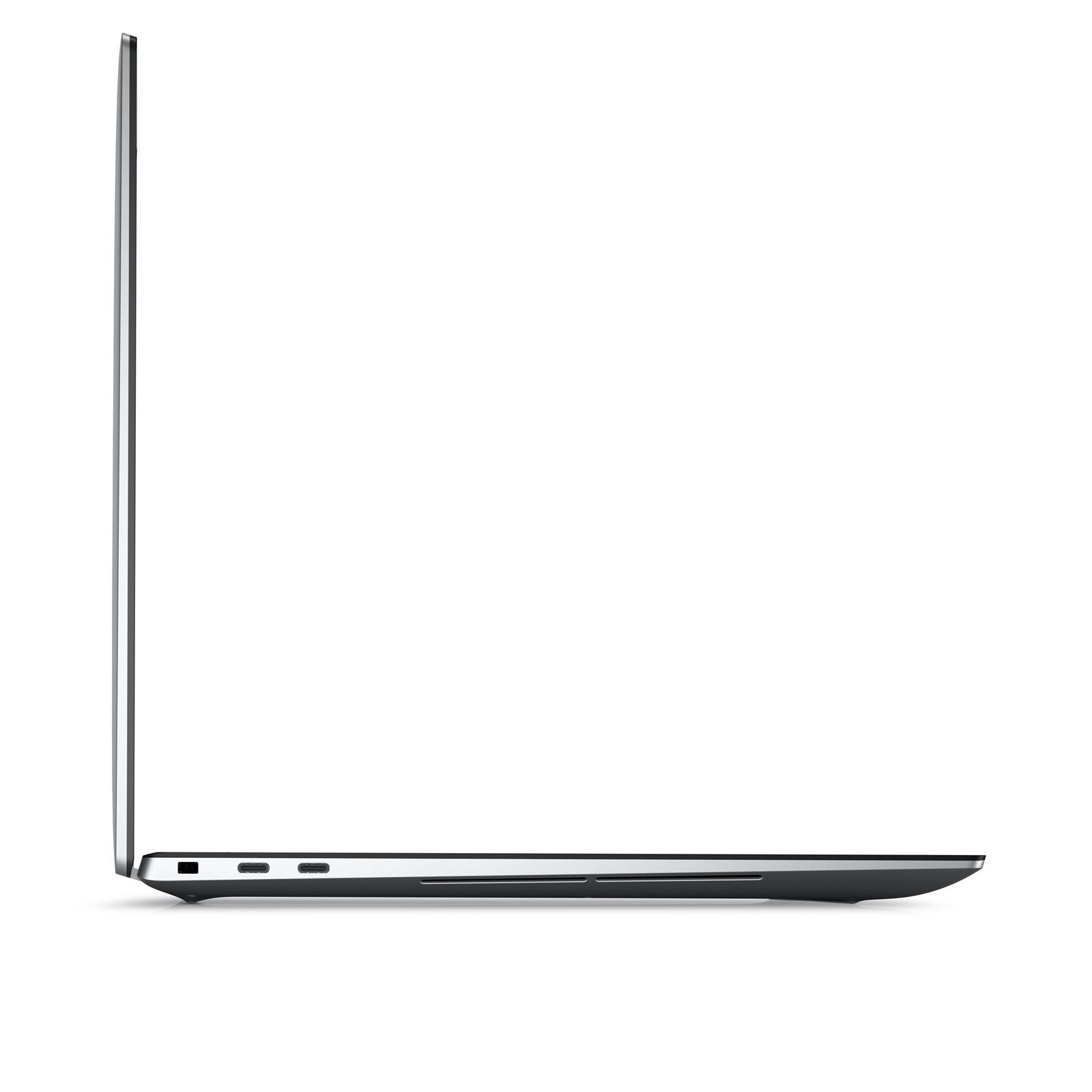

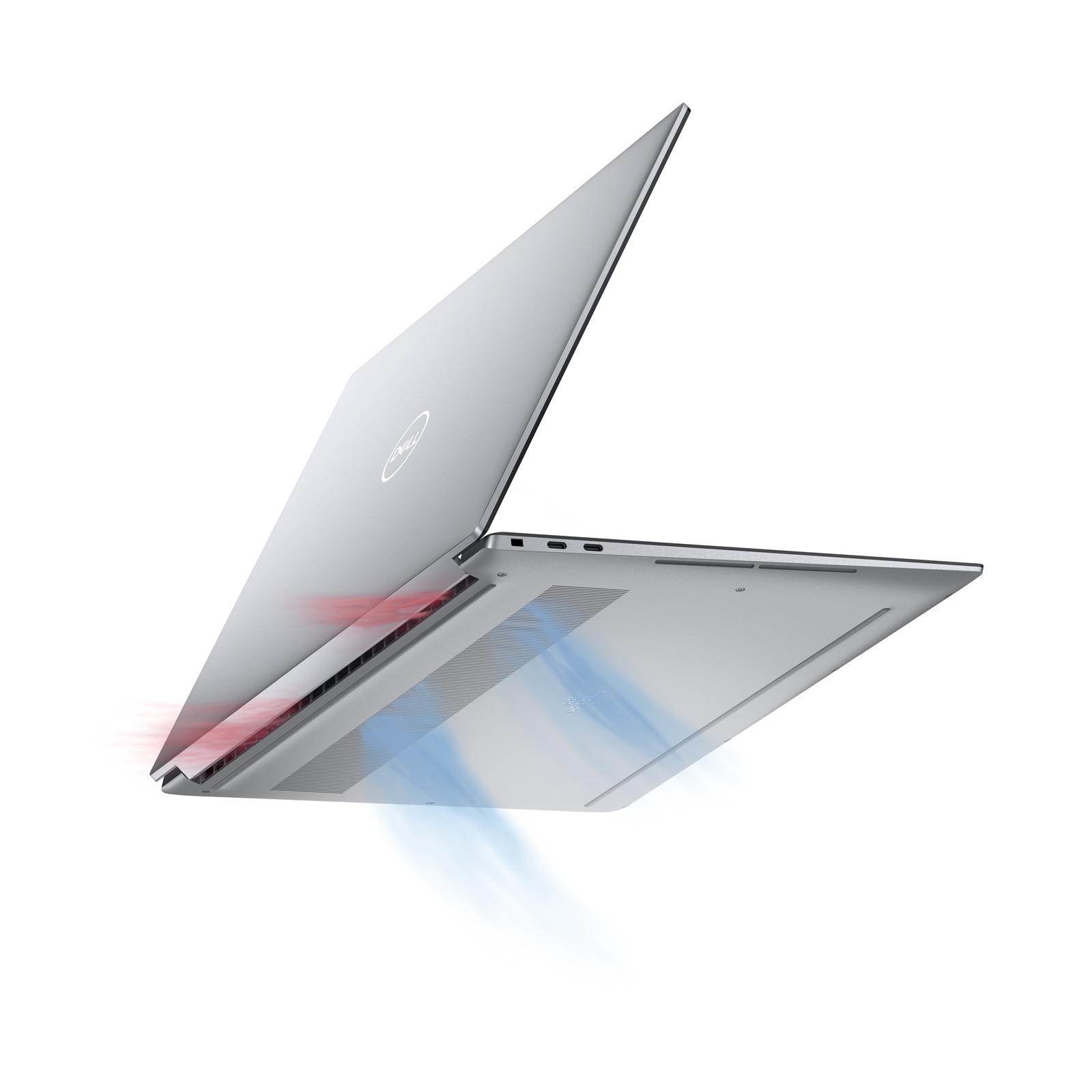

DELL Precision 5570 Mobile Workstation - 5R12X

DELL Logo here

Manufacturer Part Code: 5R12X

Order Code: LADEL-5R12X

Category: Dell Laptops

Dell Precision 5570 - Intel Core i7 12700H / 2.3 GHz - vPro Essentials - Win 10 Pro 64-bit (includes Win 11 Pro Licence) - RTX A2000 - 16 GB RAM - 512 GB SSD NVMe - 15.6 touchscreen 3840 x 2400 (WQUXGA) - Wi-Fi 6E - grey - with 3 Years ProSupport

Gateway to ultimate productivity
15" workstation with 4-sided InfinityEdge display, Dell Optimizer for Precision and up to 12th Gen Intel® Core™ i9 and NVIDIA RTX™ A2000 graphics.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Essential Extras and Accessories

Technical Information

Built-in microphone
Y
Number of built-in speakers
4
Number of built-in speakers
1.17 cm
Number of microphones
2
Audio chip
Realtek ALC3281
Battery technology
Lithium-Ion (Li-Ion)
Number of battery cells
6
Battery recharge time
3 h
Battery weight
340 g
Battery voltage
11.4 V
Fast charging
Y
Battery capacity (Watt-hours)
86 Wh
Video capturing speed
30 fps
Front camera
Y
Front camera resolution (numeric)
0.92 MP
Front camera resolution
1280 x 720 pixels
Front camera HD type
HD
Form factor
Clamshell
Product colour
Grey
Market positioning
Business
Product type
Mobile workstation
Intel® vPro? Platform Eligibility
Y
Introduction year
2022
Pixel pitch
0.09 x 0.09 mm
Contrast ratio (typical)
1600:1
Display diagonal
39.6 cm (15.6")
Display response rise/fall
60 ms
Contrast ratio (typical)
0 - 95%
Display brightness
500 cd/m²
Display resolution
3840 x 2400 pixels
Touchscreen
Y
LED backlight
Y
Maximum refresh rate
60 Hz
Native aspect ratio
16:10
HD type
UHD+
Pixel density
290 ppi
Colour gamut
100%
Panel type
WLED
High Dynamic Range (HDR) supported
Y
High Dynamic Range (HDR) technology
High Dynamic Range (HDR) 400
RGB colour space
Adobe RGB
AC adapter input voltage
100 - 240 V
AC adapter frequency
50/60 Hz
AC adapter output voltage
20 V
AC adapter output current
6.5 A
AC adapter power
130 W
On-board graphics card model
Intel Iris Xe Graphics
Discrete graphics card model
NVIDIA RTX A2000
Discrete graphics memory type
GDDR6
On-board graphics card
Y
Discrete graphics card memory
8 GB
Discrete graphics card
Y
Discrete GPU manufacturer
NVIDIA
Pointing device
Touchpad
Numeric keypad
N
Keyboard language
UK English
Keyboard backlit
Y
Harmonized System (HS) code
84713000
Internal memory type
DDR5-SDRAM
Memory slots
2x SO-DIMM
Maximum internal memory
64 GB
Memory clock speed
4800 MHz
Memory form factor
SO-DIMM
Memory layout (slots x size)
2 x 8 GB
Internal memory
16 GB
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth version
5.2
Ethernet LAN
N
Antenna type
2x2
Bluetooth
Y
Wi-Fi data rate (max)
2400 Mbit/s
Mobile network connection
N
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
WLAN controller manufacturer
Intel
Operating system installed
Windows 10 Pro
Trial software
No Microsoft Office License Included 30 day Trial Offer Only
Operating system architecture
64-bit
Operating system language
German, Dutch, English, French, Italian
Windows 11 free upgrade
Y
Operating altitude
-15.2 - 3048 m
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 65 °C
Operating temperature (T-T)
0 - 35 °C
Storage relative humidity (H-H)
0 - 95%
Non-operating altitude
-15.2 - 10668 m
Operating shock
110 G
Non-operating shock
160 G
Non-operating vibration
1.3 G
Operating vibration
0.66 G
Cables included
AC
Combo headphone/mic port
Y
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB Type-C DisplayPort Alternate Mode
Y
USB Power Delivery
Y
Charging port type
USB Type-C
Thunderbolt 4 ports quantity
2
Intel® Thunderbolt 4
Y
Processor model
i7-12700H
Processor manufacturer
Intel
Processor family
Intel® Core™ i7
Processor cores
14
Processor boost frequency
4.7 GHz
Processor cache
24 MB
Configurable TDP-down
35 W
Processor generation
12th gen Intel® Core™ i7
Intel Flex Memory Access
Y
Execute Disable Bit
Y
Intel Trusted Execution Technology
Y
CPU configuration (max)
1
Intel VT-x with Extended Page Tables (EPT)
Y
Embedded options available
N
Intel Virtualization Technology for Directed I/O (VT-d)
Y
Intel Virtualization Technology (VT-x)
Y
Cable lock slot
Y
Trusted Platform Module (TPM)
Y
Fingerprint reader
Y
Trusted Platform Module (TPM) version
2.0
Password protection
Y
Compatible memory cards
SDXC, SD, SDHC
Optical drive type
N
Total storage capacity
512 GB
Card reader integrated
Y
SSD interface
NVMe, PCI Express 4.0
SSD capacity
512 GB
Number of SSDs installed
1
Storage media
SSD
SSD form factor
M.2
NVMe
Y
Total SSDs capacity
512 GB
Weight
2.1 kg
Width
344.4 mm
Depth
230.1 mm
Height (front)
1.85 cm
Height (rear)
1.17 cm
