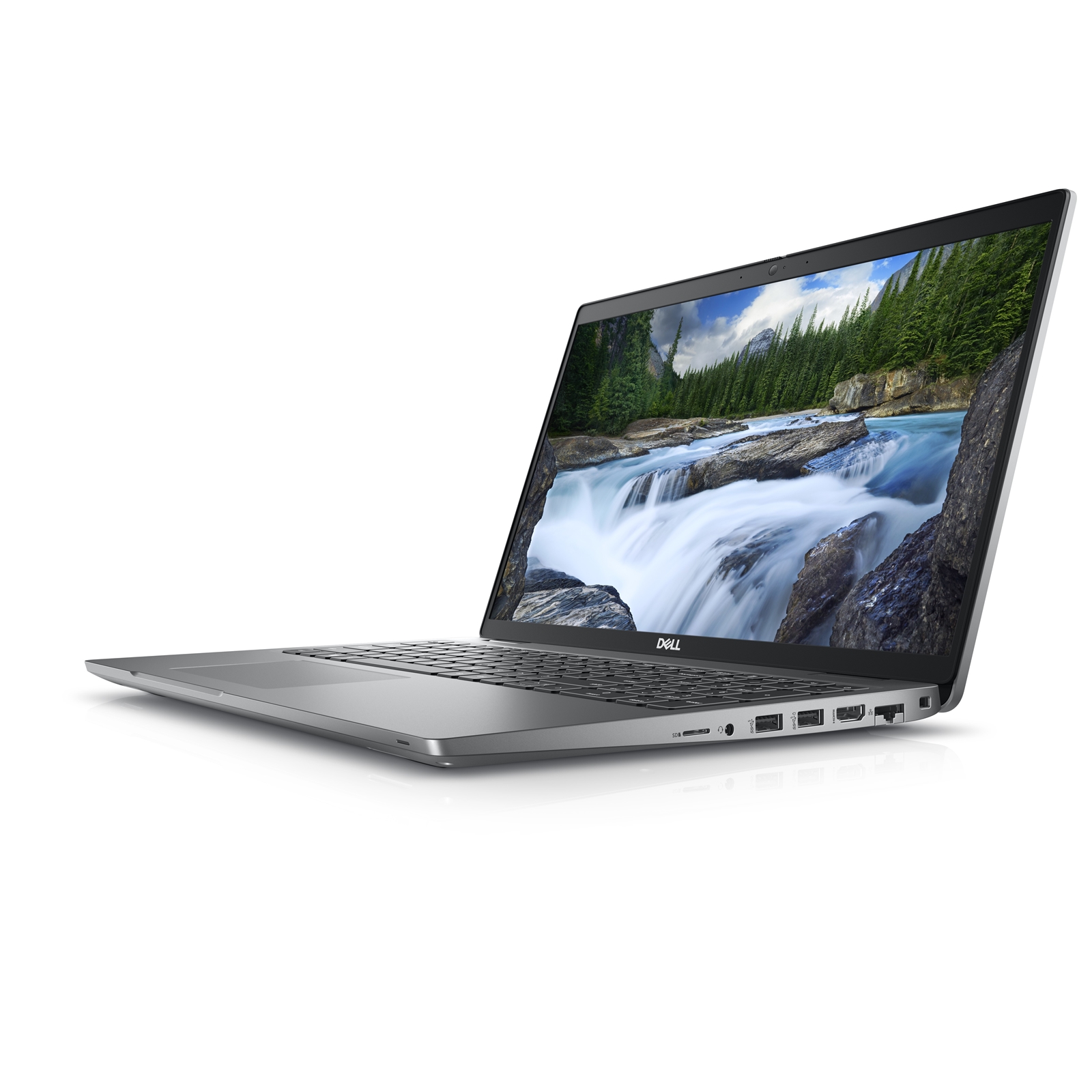

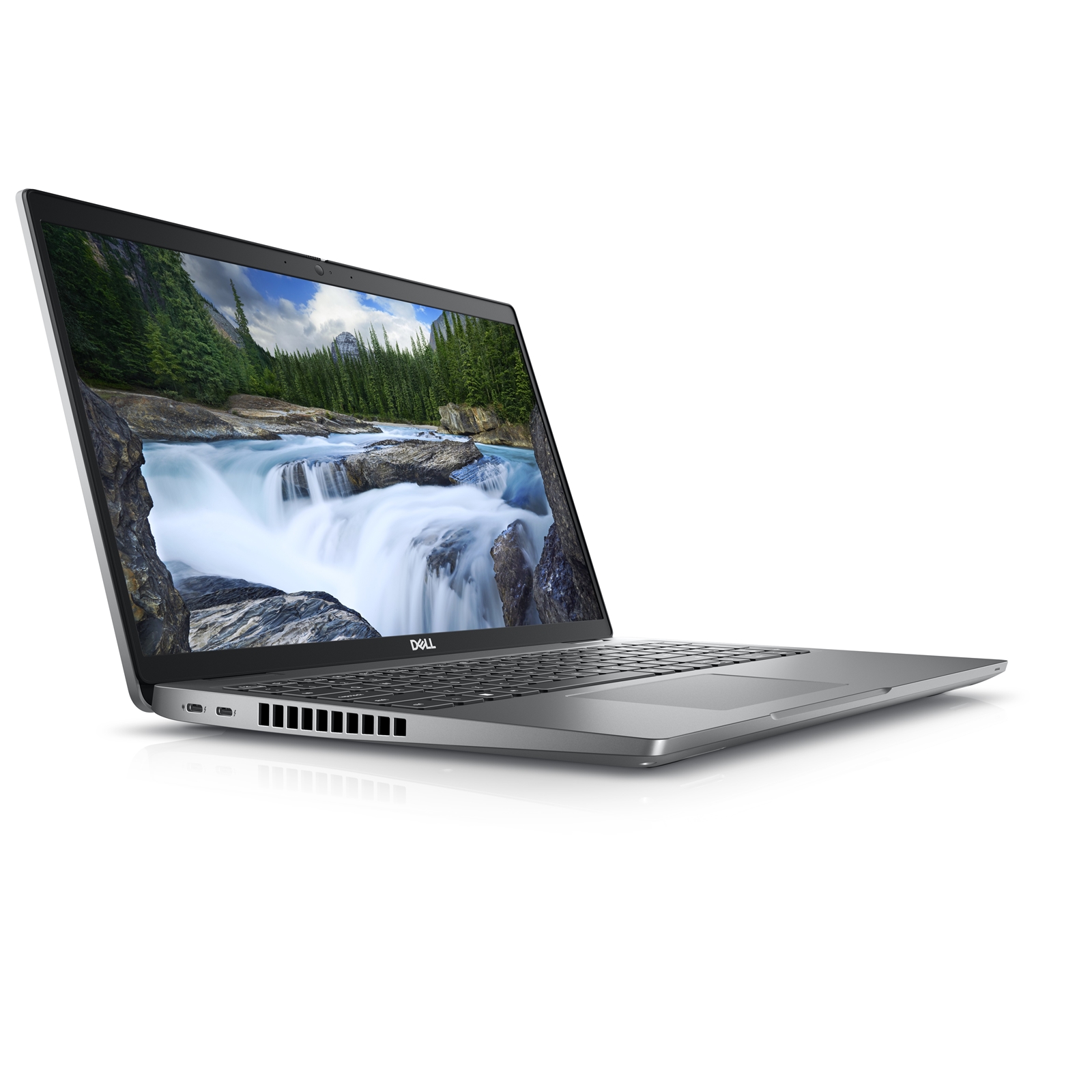

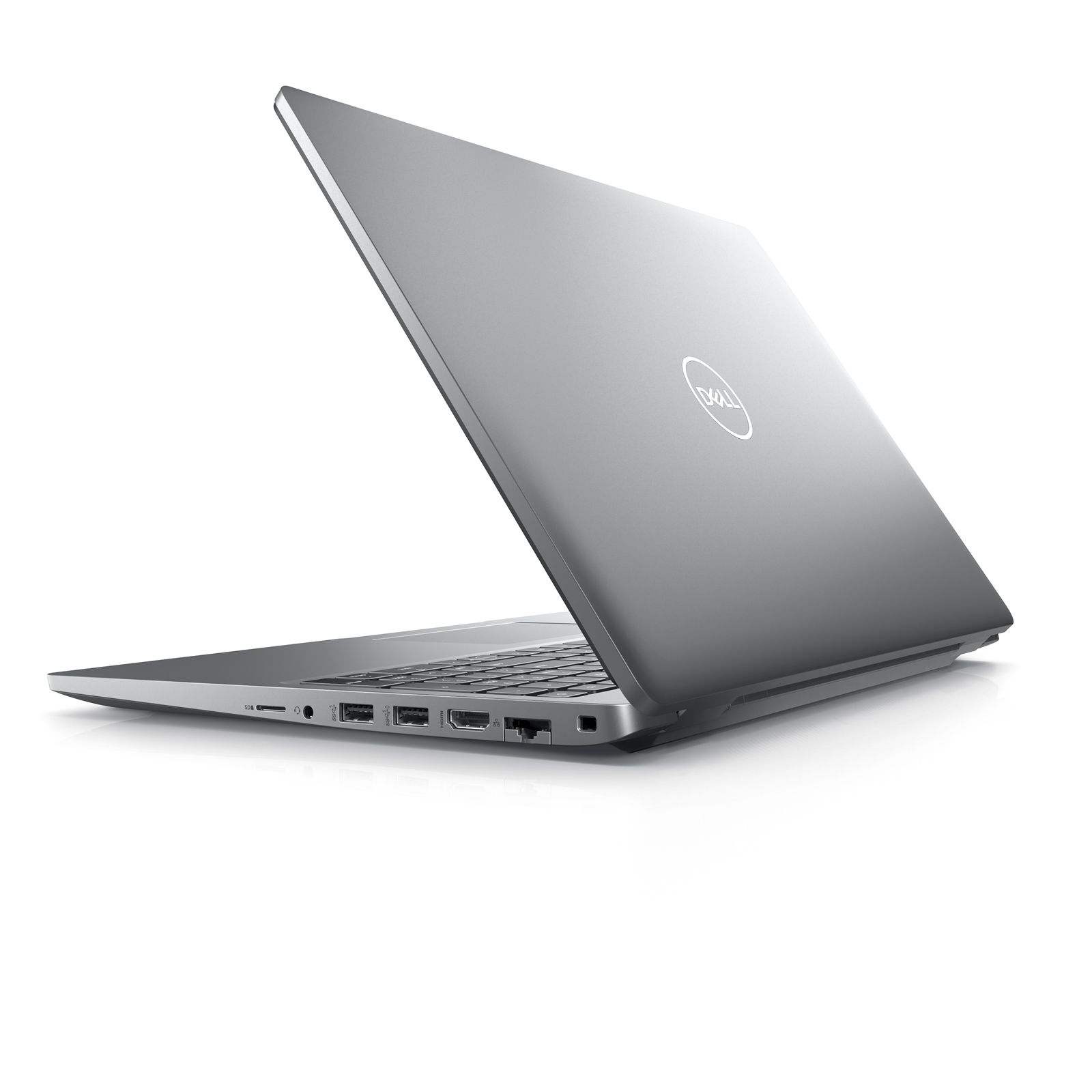

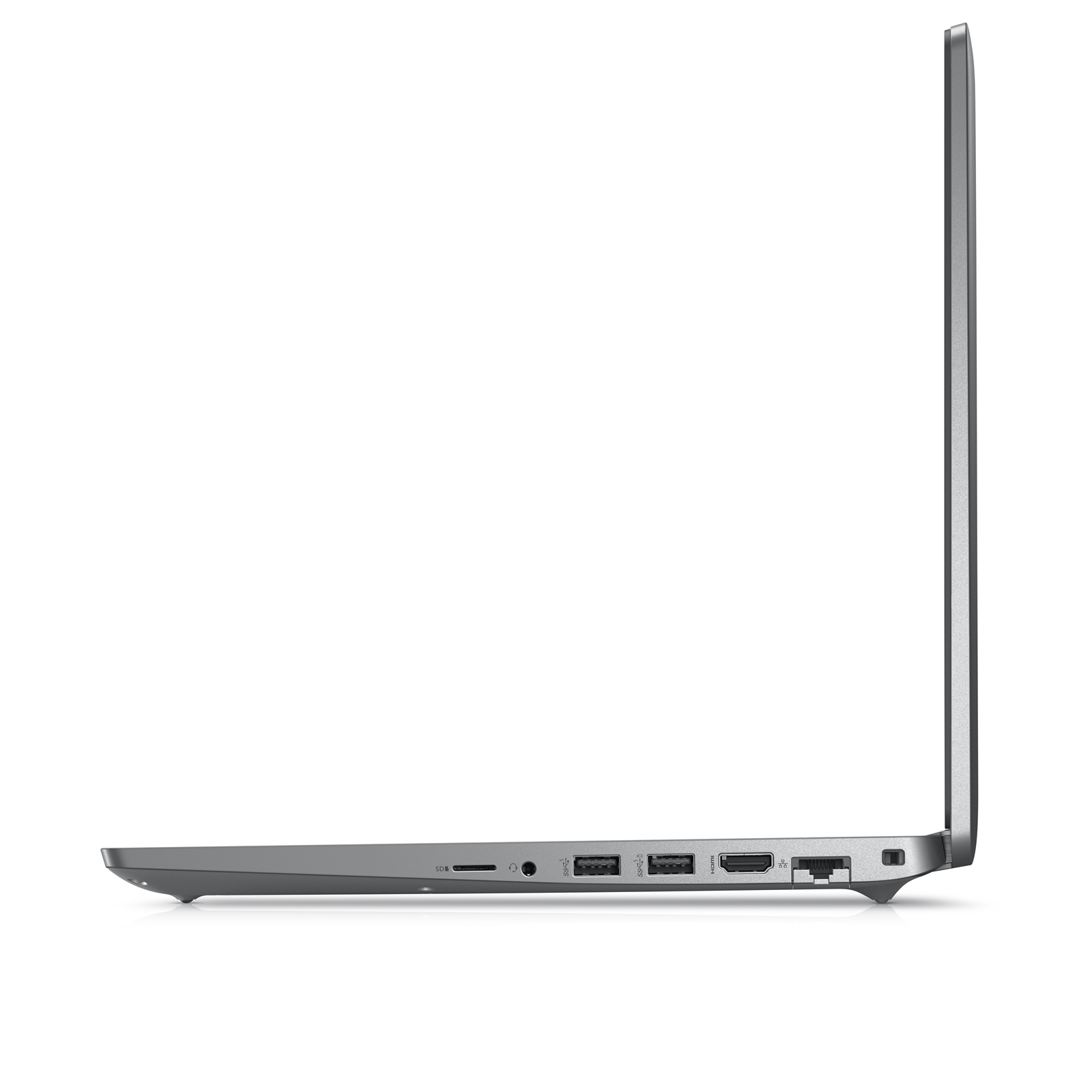

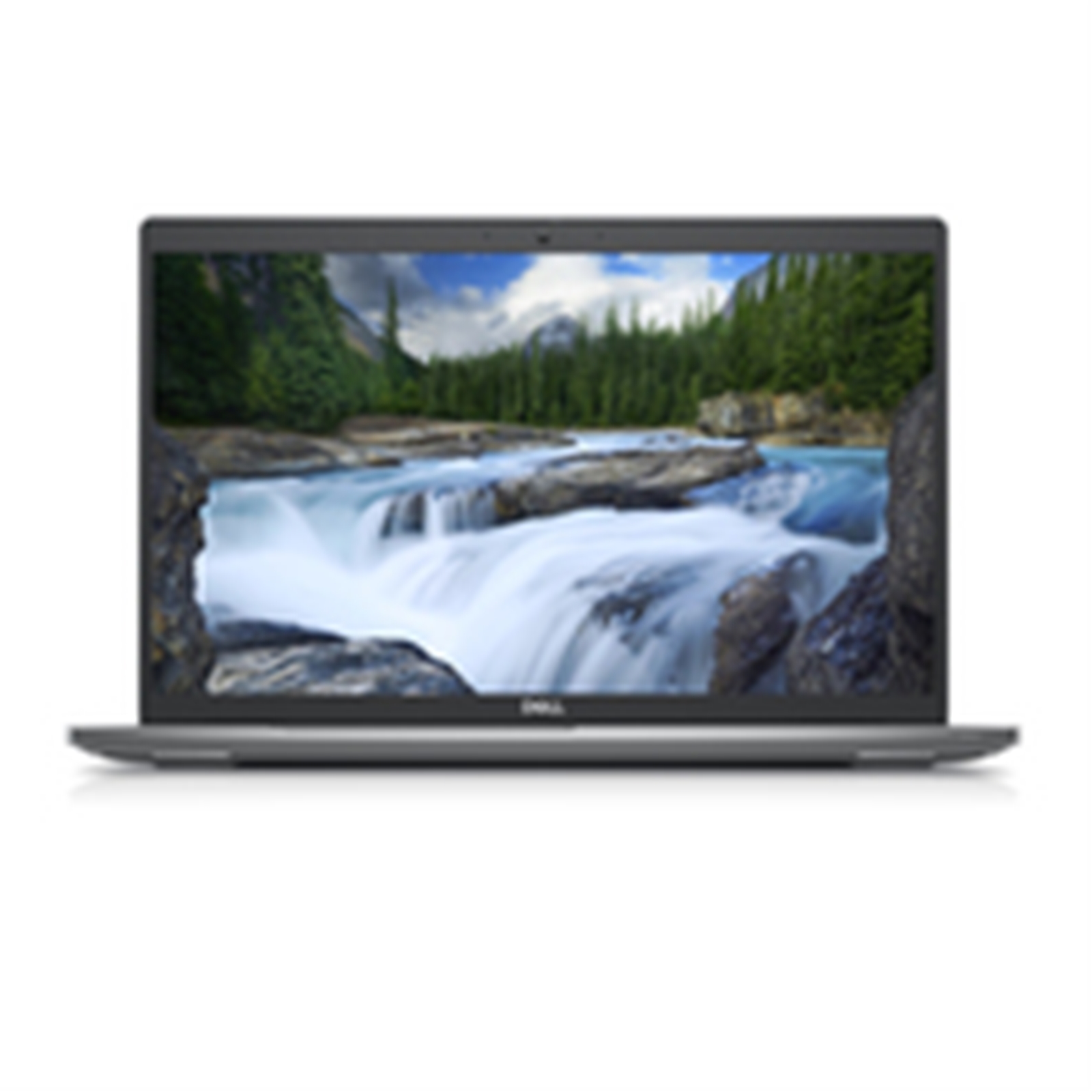

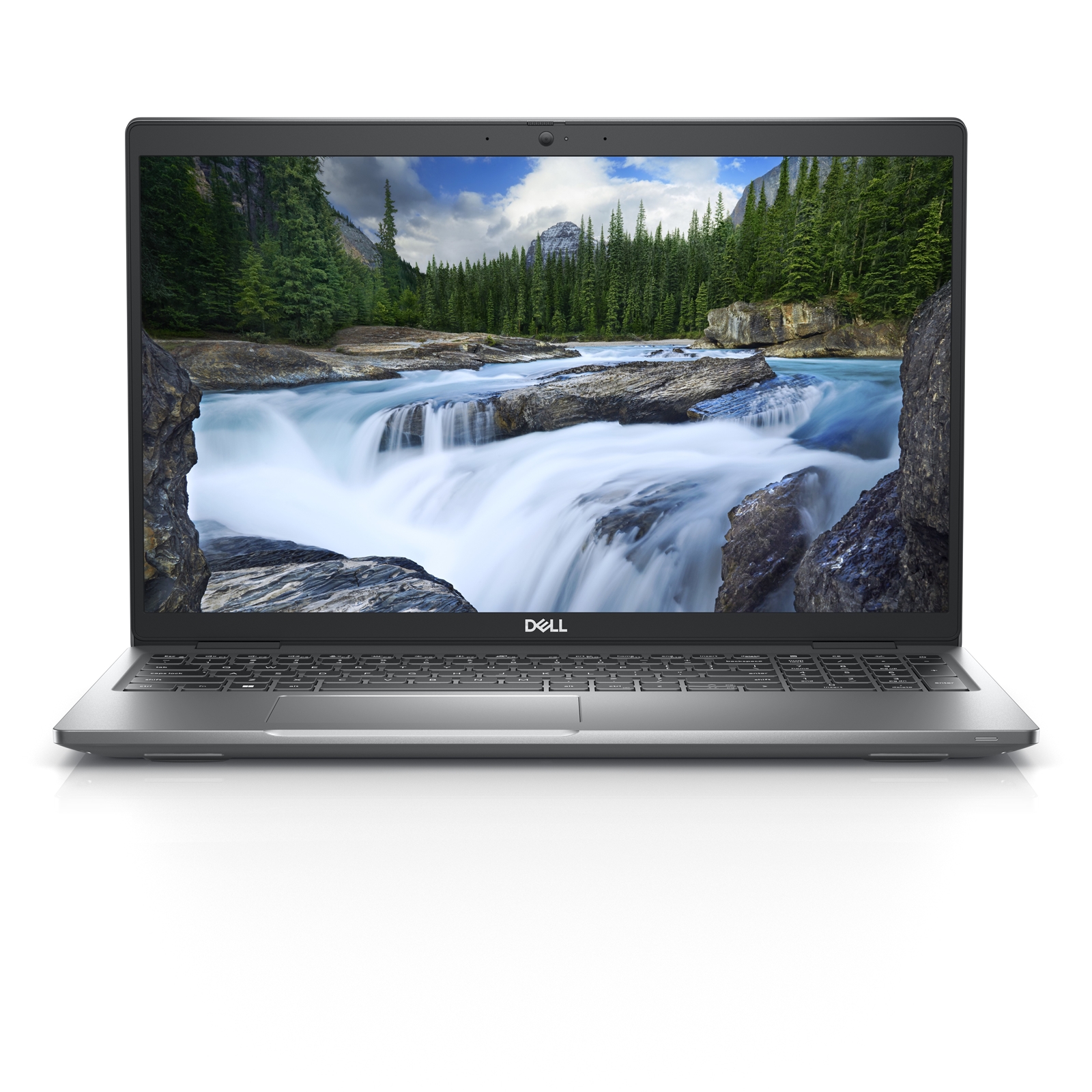

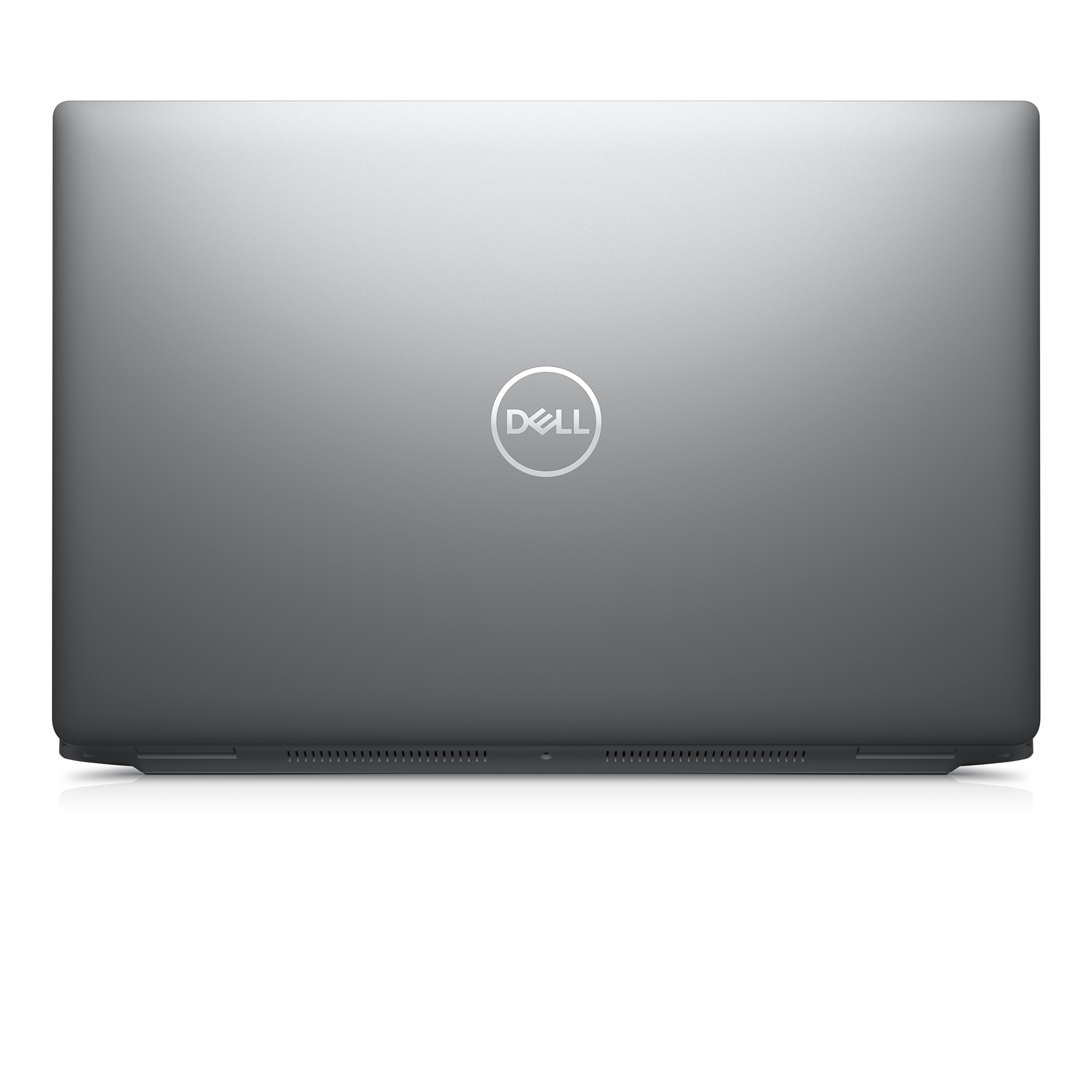

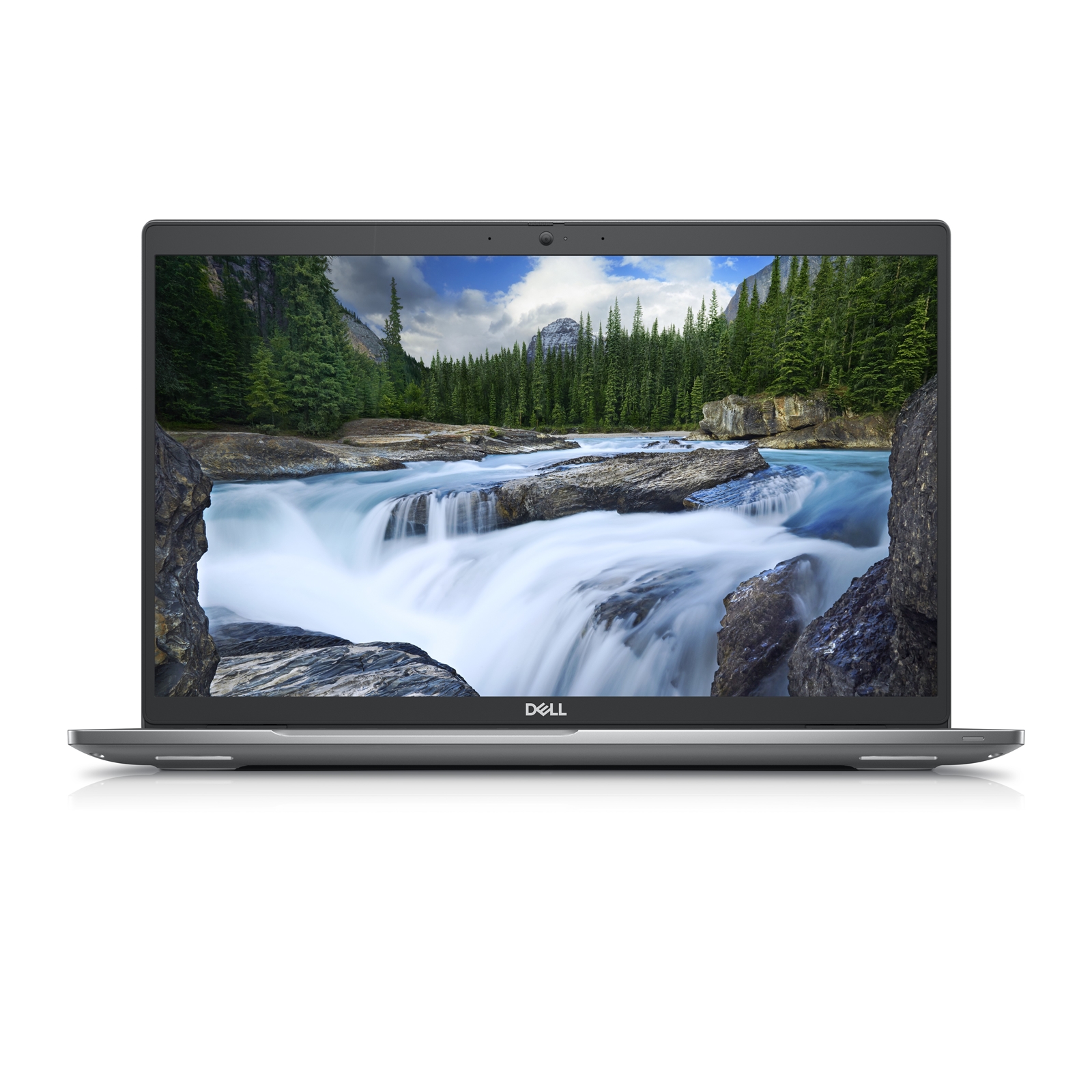

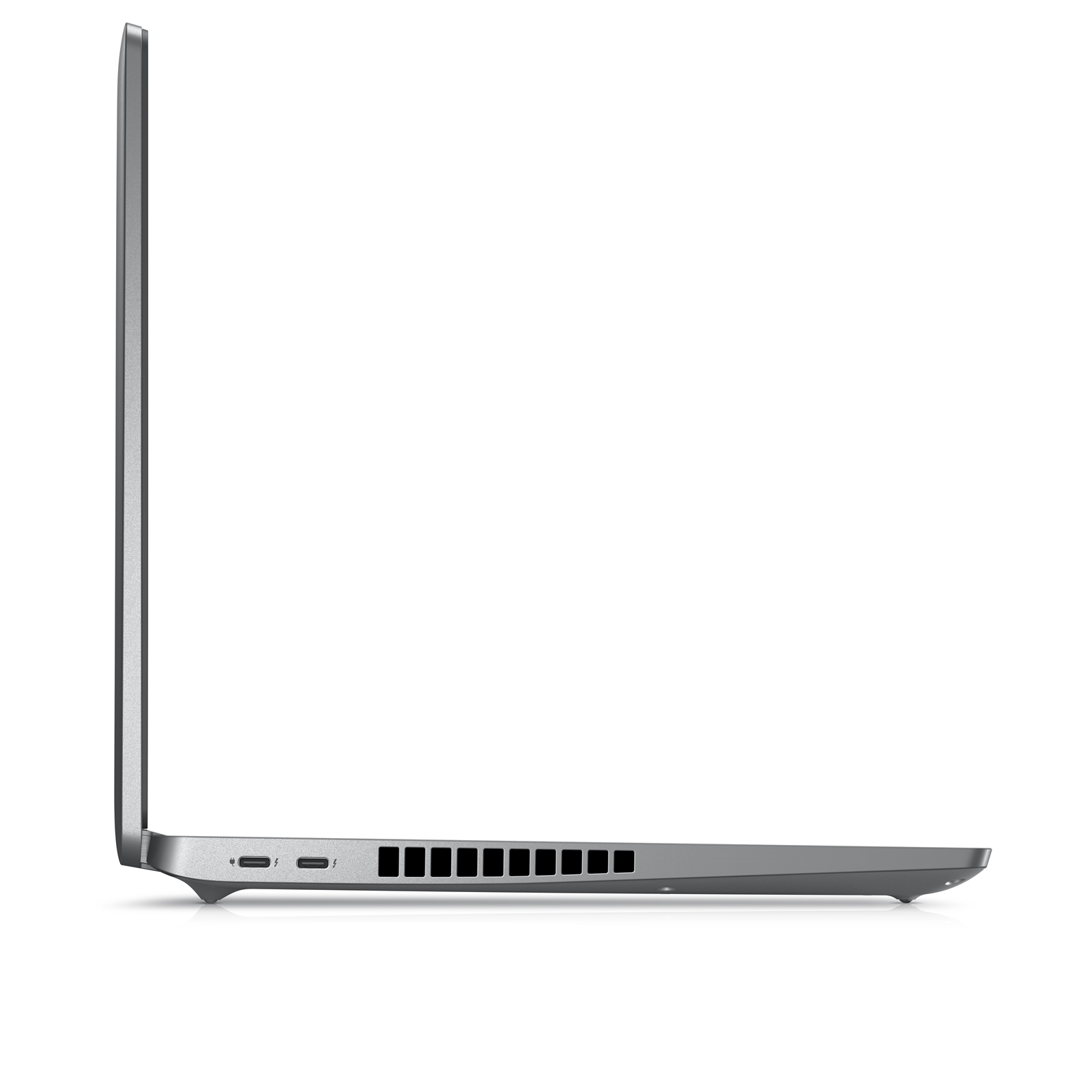

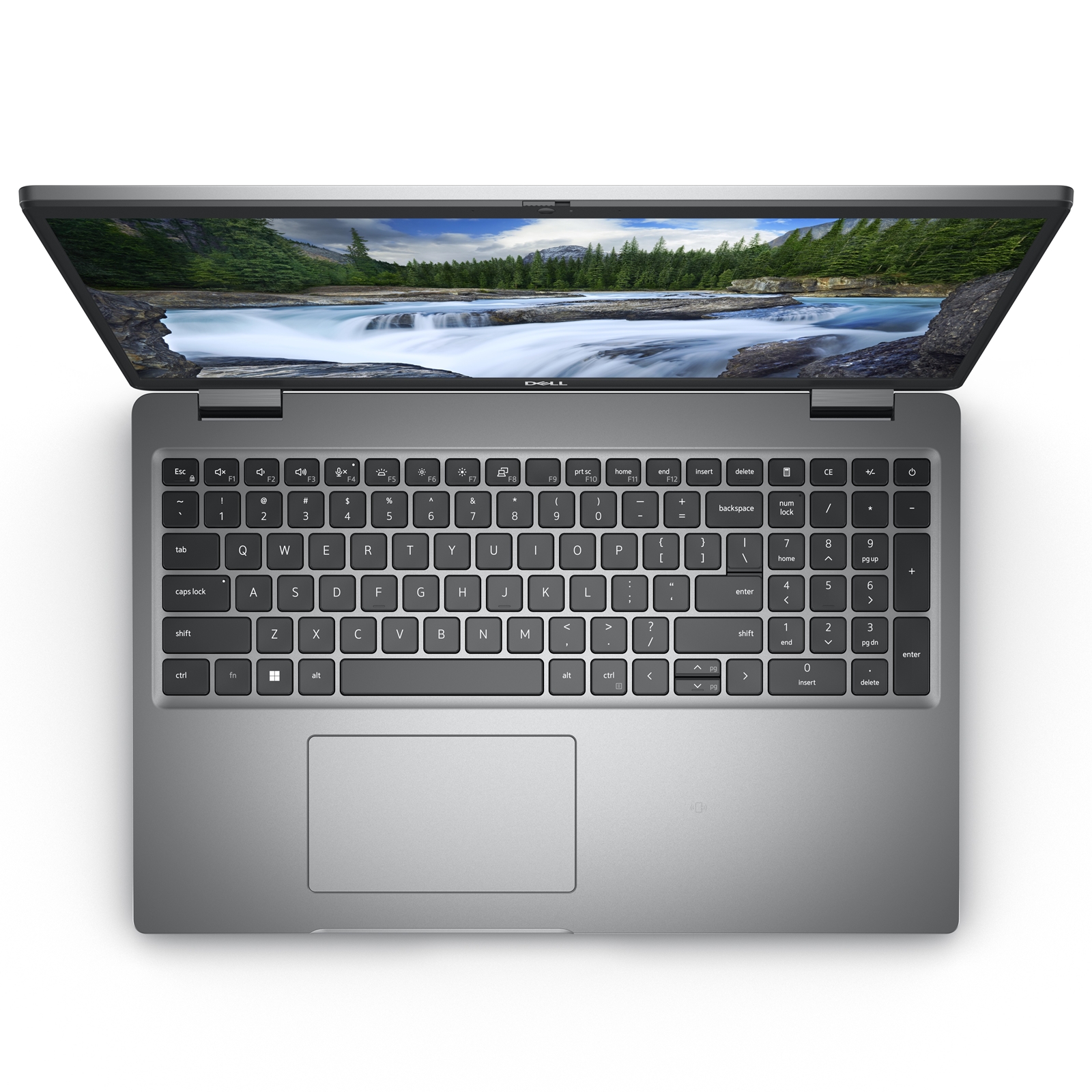

DELL Latitude 5530 - P8H90

DELL Logo here

Manufacturer Part Code: P8H90

Order Code: LADEL-P8H90

Category: Dell Laptops

Latitude 5530 i5-1245U 16GB 256GB SSD 15.6 FHD IR Cam & Mic Intel Iris Xe ThBlt & FgrPr & SmtCd 4 Cell 65W Type-C WLAN vPro Backlit

Work anywhere on our most scalable and sustainable Latitude
Work confidently on the smallest 15" mainstream business laptop that combines ultimate performance, scalability and security. The 5000 series is Latitude's most sustainable series ever.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Essential Extras and Accessories

Technical Information

Audio system
MaxxAudio Pro
Built-in microphone
Y
Speaker power
2 W
Number of built-in speakers
2
Speakers manufacturer
Waves
Number of built-in speakers
2.21 cm
Number of microphones
2
Audio chip
Realtek ALC3204
Battery technology
Lithium-Ion (Li-Ion)
Number of battery cells
4
Battery recharge time
4 h
Battery charge indicator
Y
Battery weight
230 g
Battery voltage
7.6 V
Battery capacity (Watt-hours)
58 Wh
Video capturing speed
30 fps
Front camera
Y
Front camera resolution (numeric)
0.92 MP
Front camera resolution
1920 x 1080 pixels
Front camera HD type
Full HD
Infrared (IR) camera
Y
Form factor
Clamshell
Product colour
Grey
Market positioning
Business
Product type
Notebook
Intel® vPro? Platform Eligibility
Y
Contrast ratio (typical)
700:1
Display diagonal
39.6 cm (15.6")
Contrast ratio (typical)
0 - 95%
Display brightness
250 cd/m²
Display resolution
1920 x 1080 pixels
Touchscreen
N
LED backlight
Y
Maximum refresh rate
60 Hz
Anti-glare screen
Y
Native aspect ratio
16:9
HD type
Full HD
Pixel density
141 ppi
Colour gamut
45%
Panel type
WVA
RGB colour space
NTSC
AC adapter input voltage
100 - 240 V
AC adapter frequency
50 - 60 Hz
AC adapter power
65 W
USB charging current
3.25 A
USB charging voltage
20,5,9,15 V
On-board graphics card model
Intel Iris Xe Graphics
Discrete graphics card model
Not available
On-board graphics card
Y
Discrete graphics card
N
Pointing device
SinglePoint
Keyboard number of keys
100
Numeric keypad
Y
Keyboard language
UK English
Keyboard backlit
Y
Harmonized System (HS) code
84713000
Internal memory type
DDR4-SDRAM
Memory slots
2x SO-DIMM
Maximum internal memory
64 GB
Memory clock speed
3200 MHz
Non-ECC
Y
Memory form factor
SO-DIMM
Memory channels
Dual-channel
Memory layout (slots x size)
2 x 8 GB
Internal memory
16 GB
Wi-Fi standards
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax)
Bluetooth version
5.2
Ethernet LAN
Y
Antenna type
2x2
Bluetooth
Y
Wi-Fi data rate (max)
2400 Mbit/s
Ethernet LAN data rates
10,1000,100 Mbit/s
Mobile network connection
N
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
WLAN controller manufacturer
Intel
Operating system installed
Windows 10 Pro
Trial software
No Microsoft Office License Included 30 day Trial Offer Only
Operating system architecture
64-bit
Operating system language
Multilingual
Windows 11 free upgrade
Y
Operating altitude
-15.2 - 3048 m
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 65 °C
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
0 - 95%
Non-operating altitude
-15.2 - 10668 m
Operating shock
140 G
Non-operating shock
160 G
Non-operating vibration
1.3 G
Operating vibration
0.66 G
Cables included
AC
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.0
Combo headphone/mic port
Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB Type-C DisplayPort Alternate Mode
Y
USB Power Delivery
Y
PowerShare
Y
Charging port type
USB Type-C
Thunderbolt 4 ports quantity
2
Intel® Thunderbolt 4
Y
Processor model
i5-1245U
Processor manufacturer
Intel
Processor family
Intel® Core™ i5
Processor cores
10
Processor boost frequency
4.4 GHz
Processor cache
12 MB
Configurable TDP-down
12 W
Processor generation
12th gen Intel® Core™ i5
Intel Flex Memory Access
Y
Execute Disable Bit
Y
Intel Trusted Execution Technology
Y
CPU configuration (max)
1
Intel VT-x with Extended Page Tables (EPT)
Y
Embedded options available
N
Intel Stable Image Platform Program (SIPP)
Y
Intel Virtualization Technology for Directed I/O (VT-d)
Y
Intel Virtualization Technology (VT-x)
Y
Cable lock slot
Y
Trusted Platform Module (TPM)
Y
Fingerprint reader
Y
Trusted Platform Module (TPM) version
2.0
Password protection
Y
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Optical drive type
N
Total storage capacity
256 GB
Card reader integrated
Y
SSD interface
NVMe, PCI Express
SSD capacity
256 GB
Number of SSDs installed
1
Storage media
SSD
SSD form factor
M.2
NVMe
Y
Total SSDs capacity
256 GB
SSD performance class
35
Weight
1.59 kg
Width
357.8 mm
Depth
233.3 mm
Height (front)
2.08 cm
Height (rear)
2.21 cm
