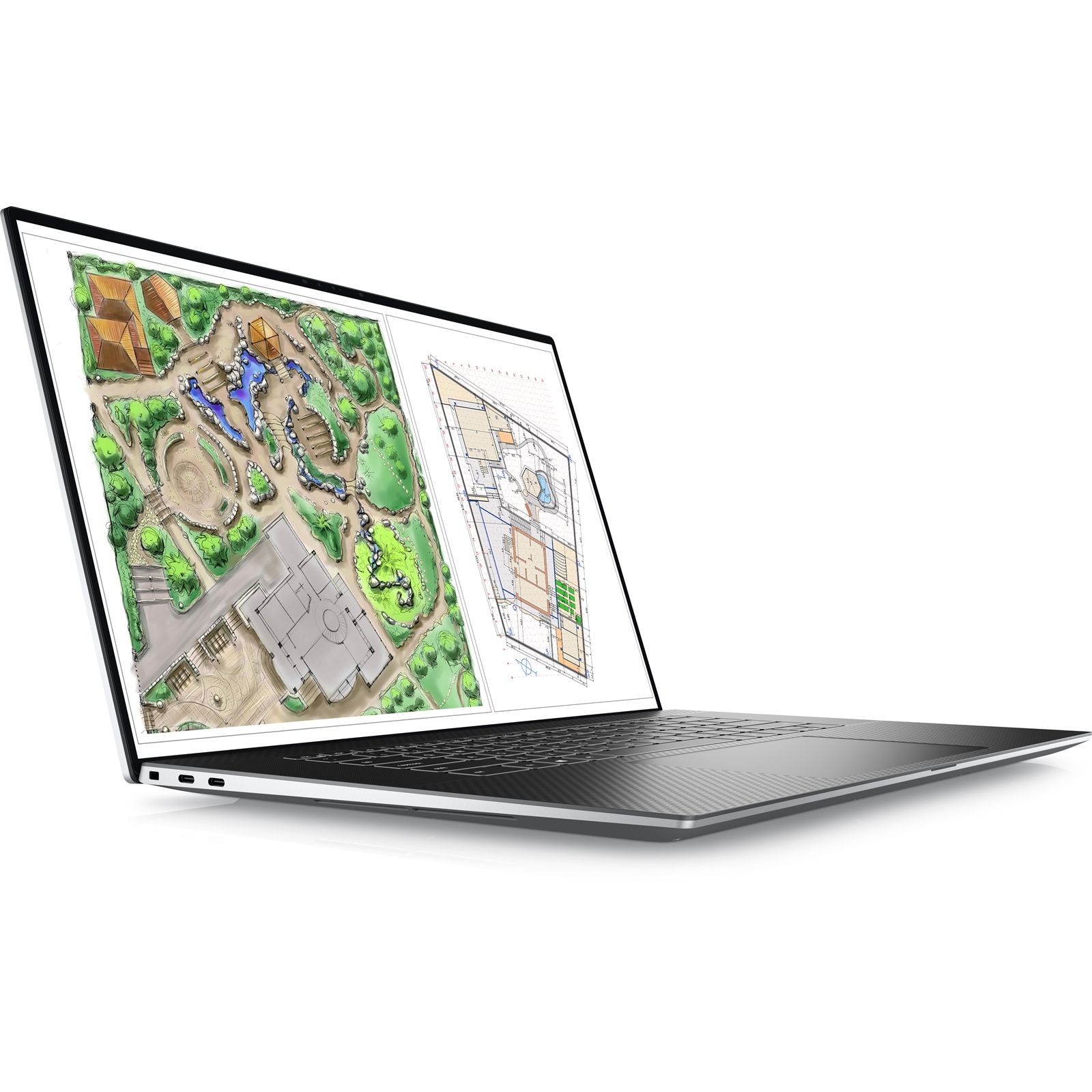

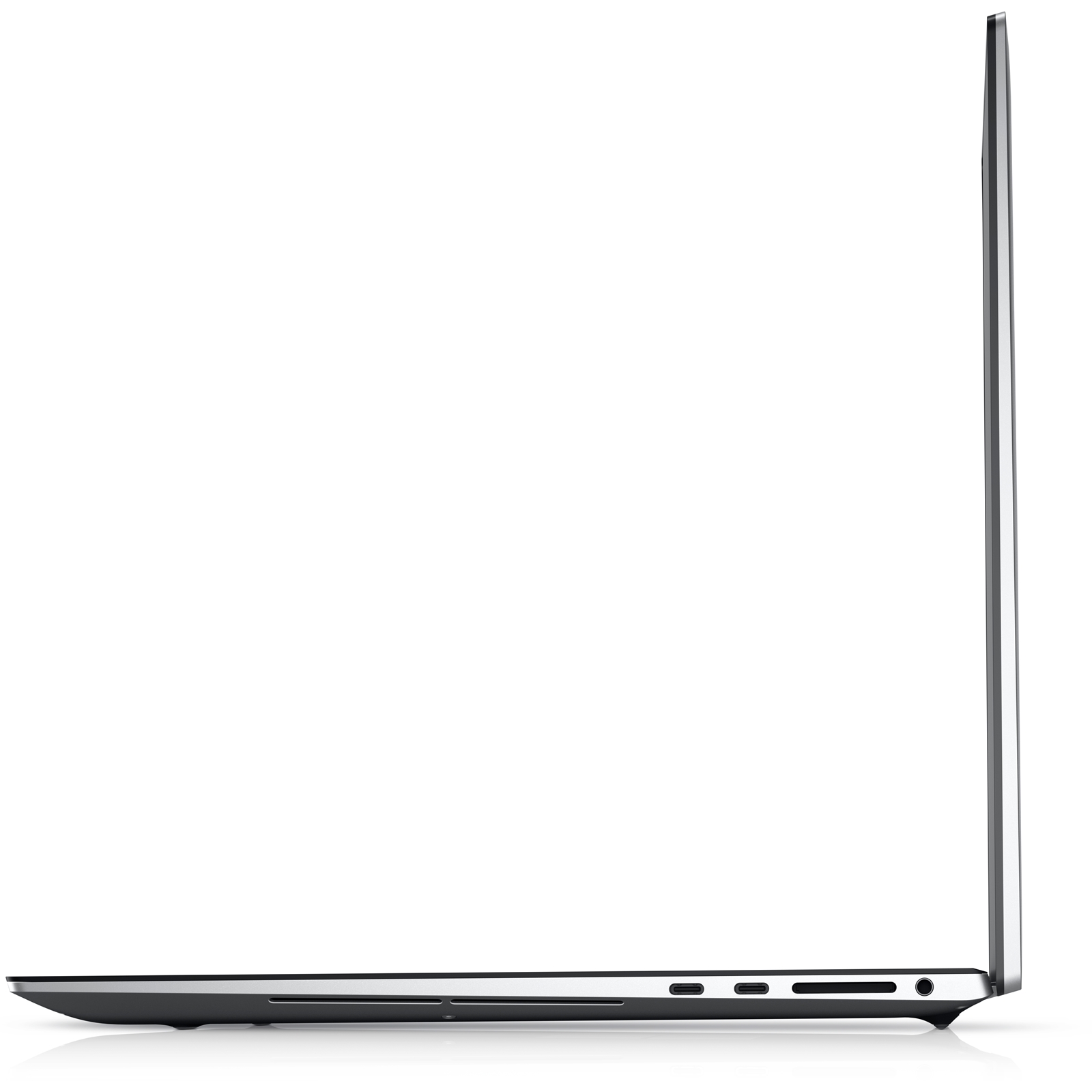

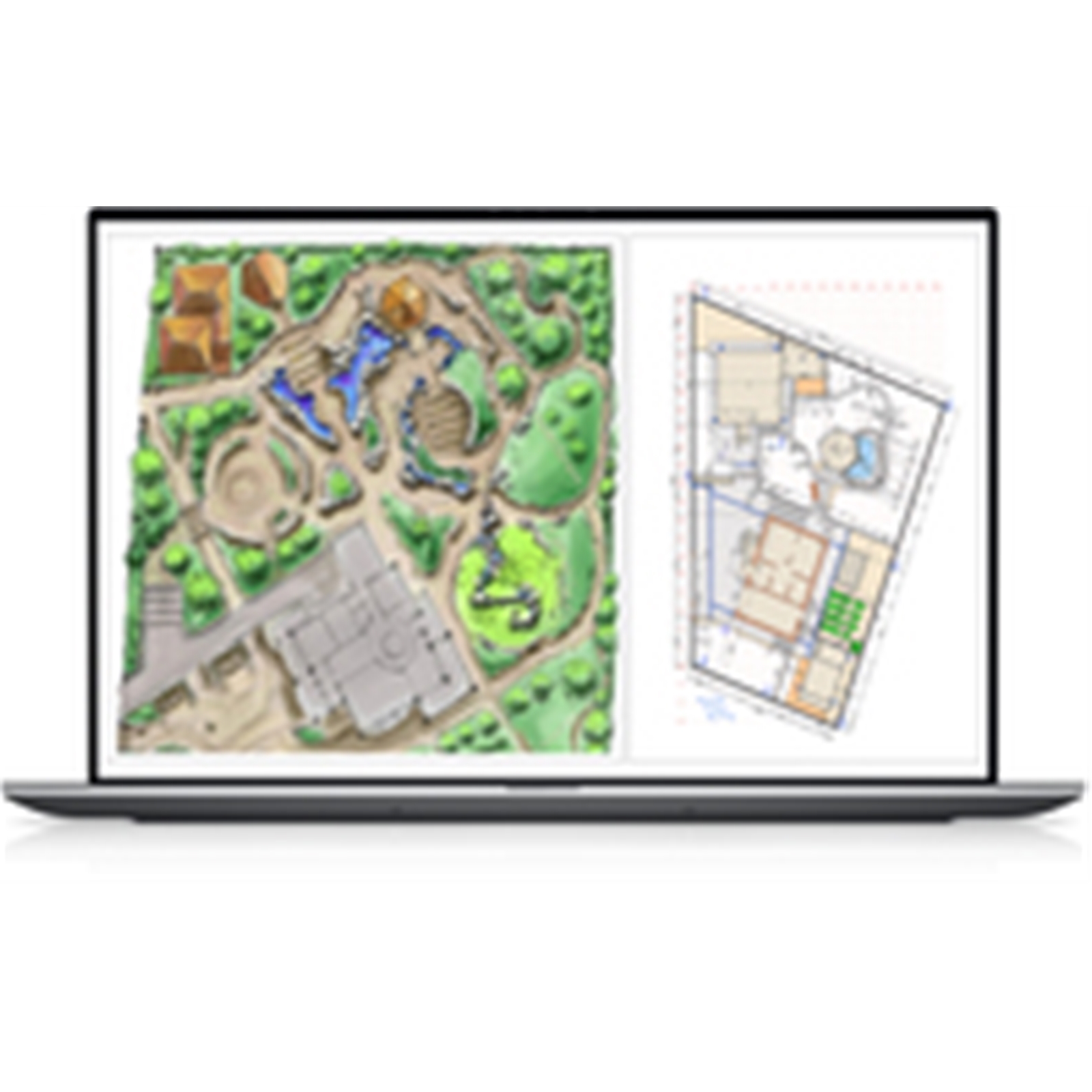

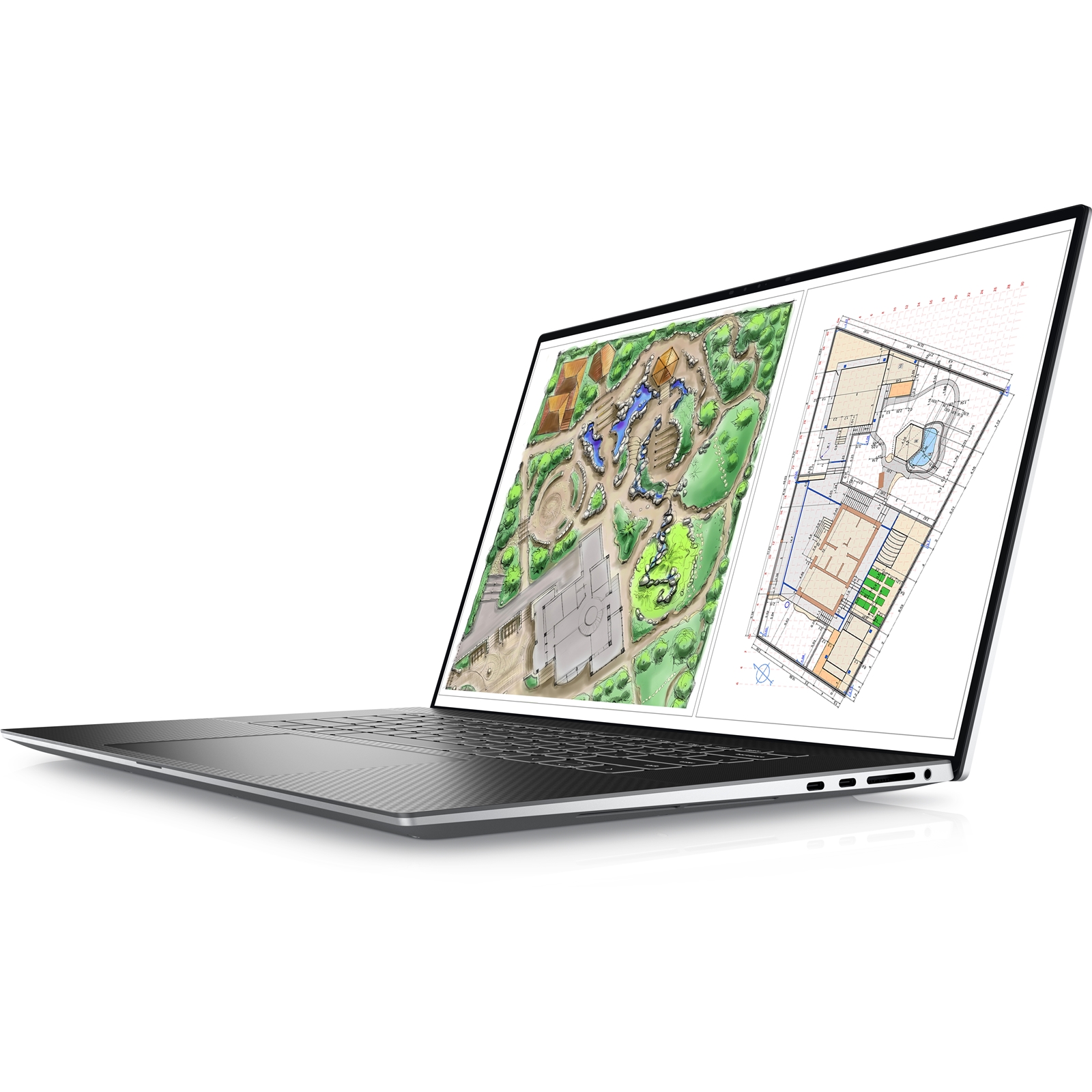

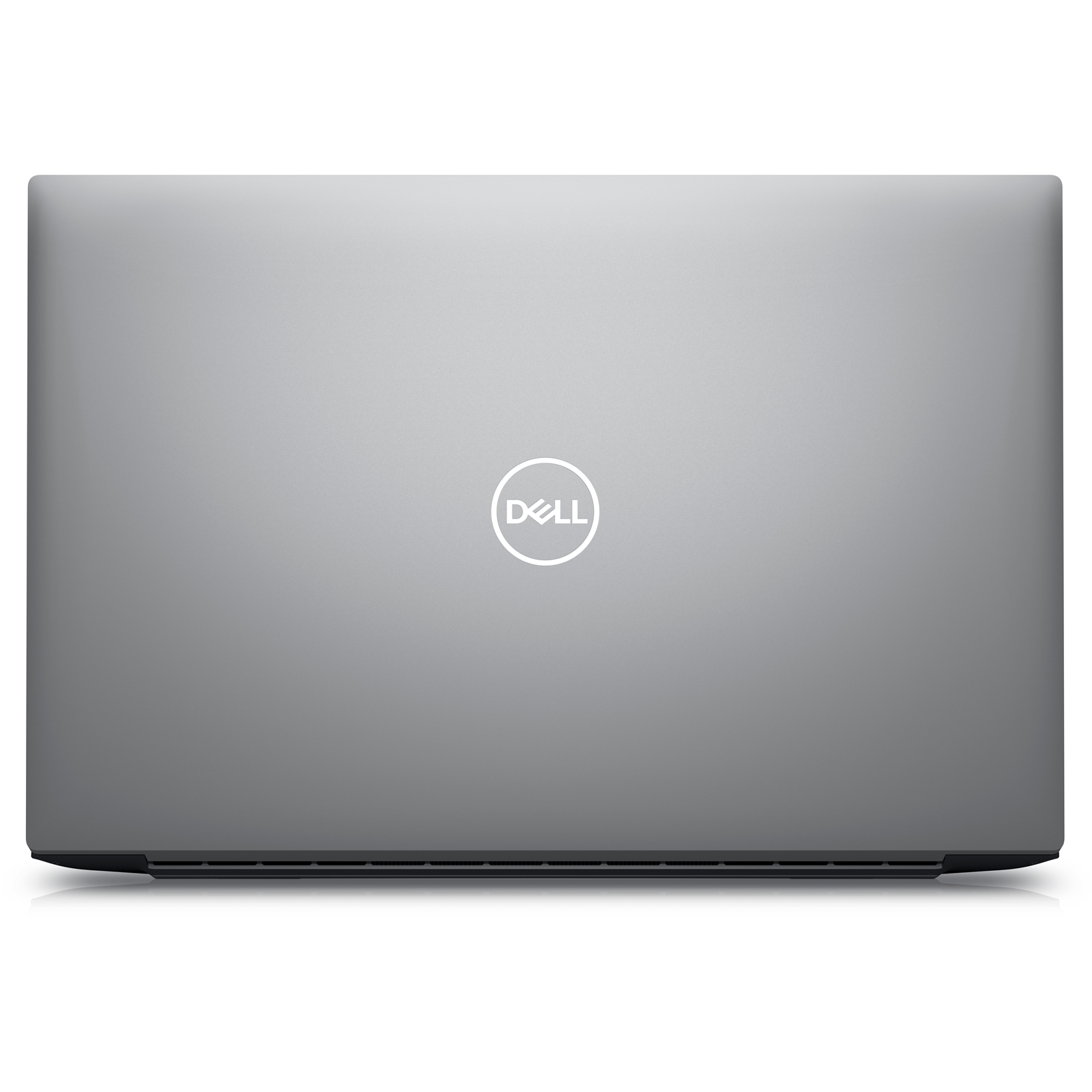

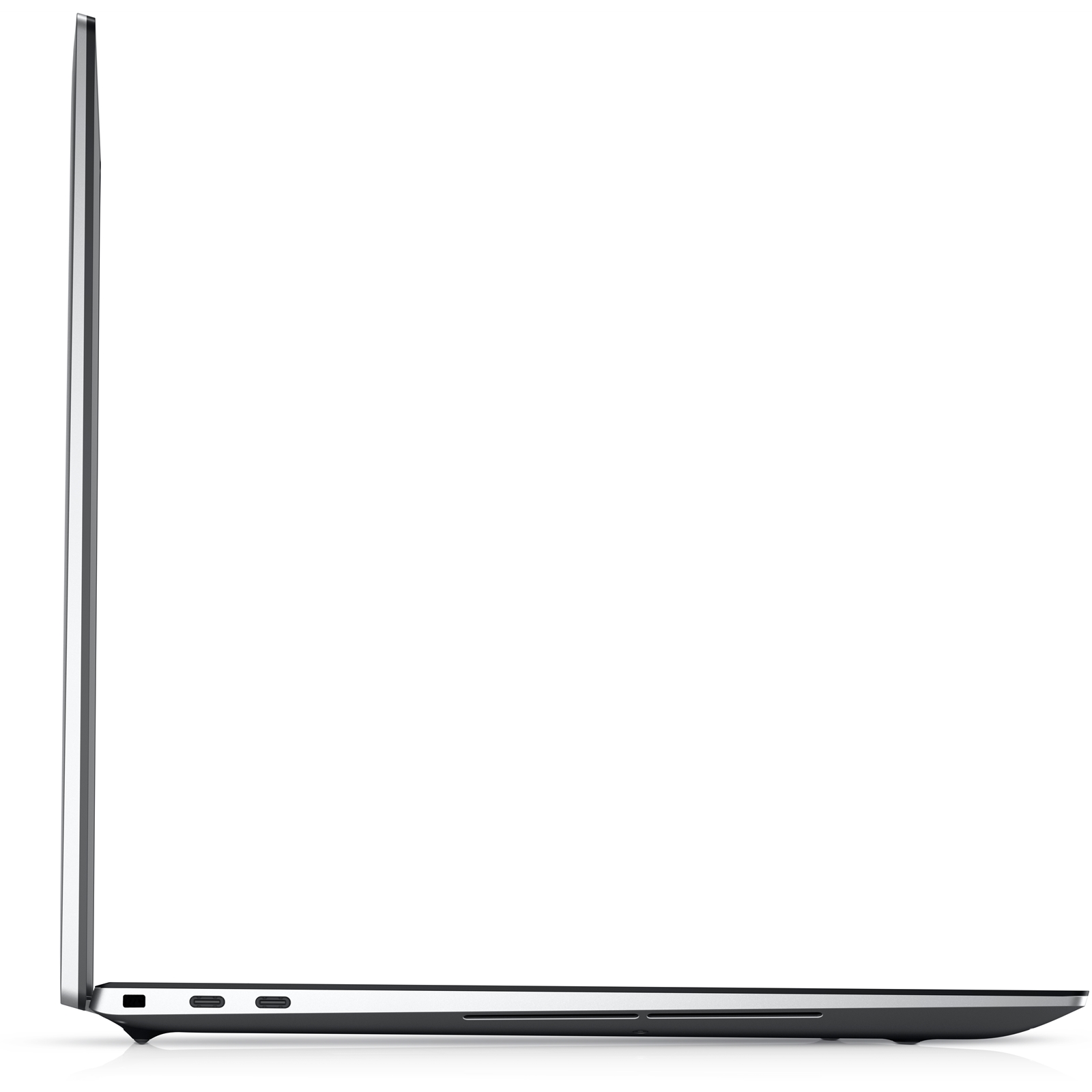

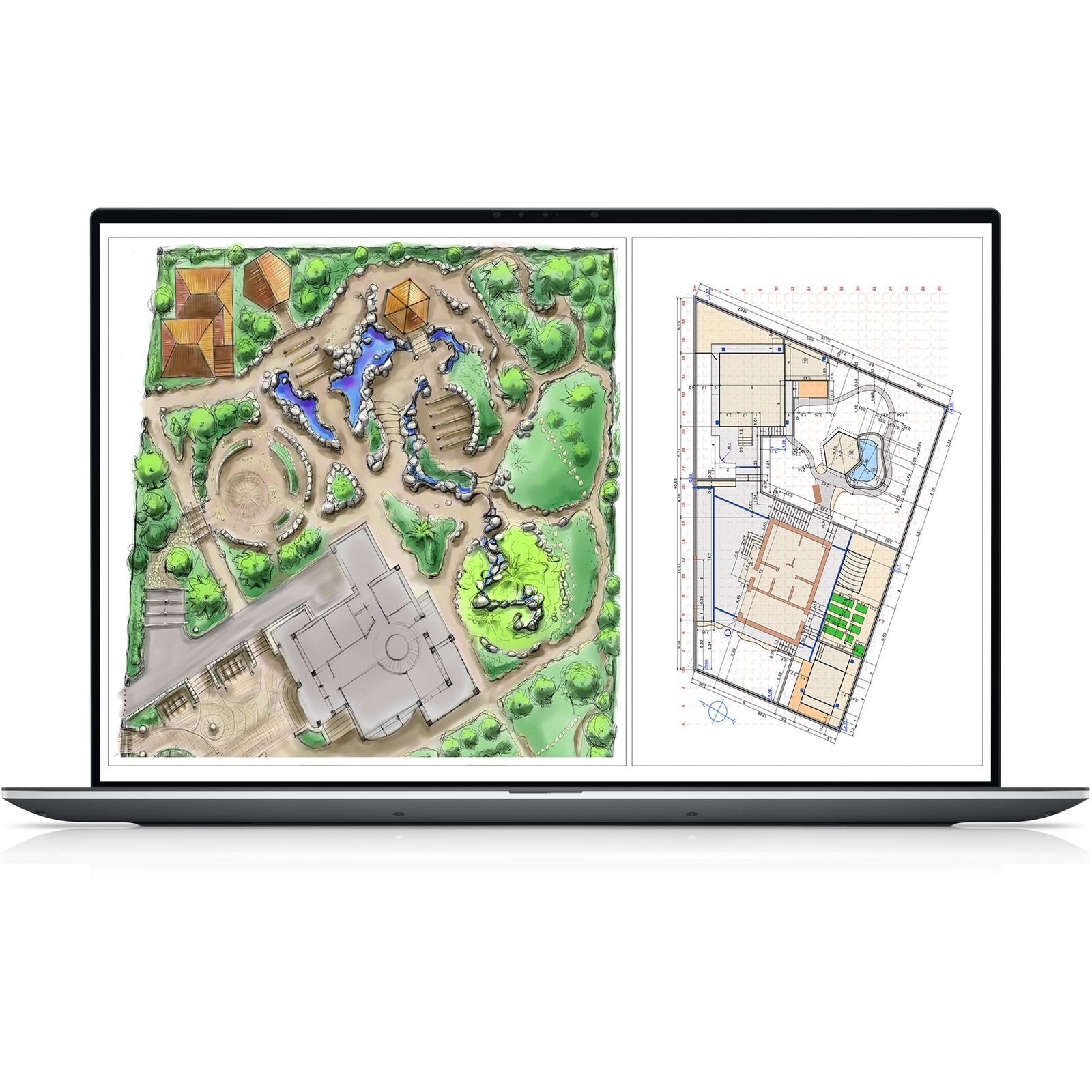

DELL Precision 5770 - T5DW8

DELL Logo here

Manufacturer Part Code: T5DW8

Order Code: LADEL-T5DW8

Category: Dell Laptops

Precision 5770 IntelCore i7-12700H vPro Essentials (24 MB cache 14 cores 20 threads 2.30 GHz to 4.70 GHz 45W) 16 GB 2 x 8 GB DDR5 4800 MHz 512 GB M.2 2280 Gen 4 PCIe x4 NVMe SSD No Additional Hard Drive 17 UHD+ touch 3840 x 2400 60Hz 500 nits WLED 100% sR

Performance and elegance collide
17" workstation with 4-sided InfinityEdge display, Dell Optimizer for Precision, up to 12th Gen Intel® Core™ i9 and NVIDIA RTX™ A3000 graphics.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Essential Extras and Accessories

Technical Information

Built-in microphone
Y
Speaker power
2 W
Number of built-in speakers
4
Number of built-in speakers
1.31 cm
Number of microphones
2
Audio chip
Realtek ALC711-CG
Number of battery cells
6
Battery recharge time
4 h
Battery weight
385 g
Battery voltage
11.4 V
Fast charging
Y
Battery capacity (Watt-hours)
97 Wh
Video capturing speed
30 fps
Front camera
Y
Front camera resolution (numeric)
0.9 MP
Front camera resolution
1280 x 720 pixels
Front camera HD type
HD
Infrared (IR) camera
Y
Form factor
Clamshell
Product colour
Grey
Market positioning
Business
Product type
Mobile workstation
Intel® vPro? Platform Eligibility
Y
Contrast ratio (typical)
1600:1
Display diagonal
43.2 cm (17")
Contrast ratio (typical)
0 - 95%
Display brightness
500 cd/m²
Display resolution
3840 x 2400 pixels
Touchscreen
Y
LED backlight
Y
Maximum refresh rate
60 Hz
Native aspect ratio
16:10
HD type
UHD+
Pixel density
266 ppi
Colour gamut
99%
Panel type
WVA
RGB colour space
DCI-P3
AC adapter input voltage
100 - 240 V
AC adapter frequency
50 - 60 Hz
AC adapter power
130 W
USB charging current
6.5 A
USB charging voltage
20,5 V
On-board graphics card model
Intel Iris Xe Graphics
Discrete graphics card model
NVIDIA RTX A2000
Discrete graphics memory type
GDDR6
On-board graphics card
Y
Discrete graphics card memory
8 GB
Discrete graphics card
Y
Pointing device
Touchpad
Keyboard number of keys
80
Numeric keypad
N
Keyboard language
UK International
Keyboard backlit
Y
Harmonized System (HS) code
84713000
Internal memory type
DDR5-SDRAM
Memory slots
2x SO-DIMM
Maximum internal memory
64 GB
Memory clock speed
4800 MHz
Memory form factor
SO-DIMM
Memory layout (slots x size)
2 x 8 GB
Internal memory
16 GB
Wi-Fi standards
802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version
5.2
Antenna type
2x2
Bluetooth
Y
Wi-Fi data rate (max)
2400 Mbit/s
Mobile network connection
N
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
WLAN controller manufacturer
Intel
Operating system installed
Windows 10 Pro
Trial software
No Microsoft Office License Included 30 day
Operating system architecture
64-bit
Operating system language
Multilingual
Windows 11 free upgrade
Y
Operating altitude
-15.2 - 3048 m
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 65 °C
Operating temperature (T-T)
0 - 35 °C
Storage relative humidity (H-H)
0 - 95%
Non-operating altitude
-15.2 - 10668 m
Operating shock
110 G
Non-operating shock
160 G
Non-operating vibration
1.3 G
Operating vibration
0.66 G
Cables included
AC
Package weight
5.24 kg
Package depth
138 mm
Package height
326.5 mm
Package width
455.7 mm
Proximity sensor
Y
Ambient light sensor
Y
Combo headphone/mic port
Y
USB Type-C DisplayPort Alternate Mode
Y
USB Power Delivery
Y
Charging port type
USB Type-C
Thunderbolt 4 ports quantity
4
Intel® Thunderbolt 4
Y
Processor model
i7-12700H
Processor manufacturer
Intel
Processor family
Intel® Core™ i7
Processor cores
14
Processor boost frequency
4.7 GHz
Processor cache
24 MB
Configurable TDP-down
35 W
Intel Flex Memory Access
Y
Execute Disable Bit
Y
Intel Trusted Execution Technology
Y
CPU configuration (max)
1
Intel VT-x with Extended Page Tables (EPT)
Y
Embedded options available
N
Intel Virtualization Technology for Directed I/O (VT-d)
Y
Intel Virtualization Technology (VT-x)
Y
Cable lock slot
Y
Trusted Platform Module (TPM)
Y
Fingerprint reader
Y
Trusted Platform Module (TPM) version
2.0
Password protection
Y
Compatible memory cards
SDXC, SD, SDHC
Optical drive type
N
Total storage capacity
512 GB
Card reader integrated
Y
SSD interface
NVMe, PCI Express
SSD capacity
512 GB
Number of SSDs installed
1
Storage media
SSD
SSD form factor
M.2
NVMe
Y
Total SSDs capacity
512 GB
Weight
2.57 kg
Width
374.5 mm
Depth
248.1 mm
Height (front)
8.67 mm
Height (rear)
1.31 cm
