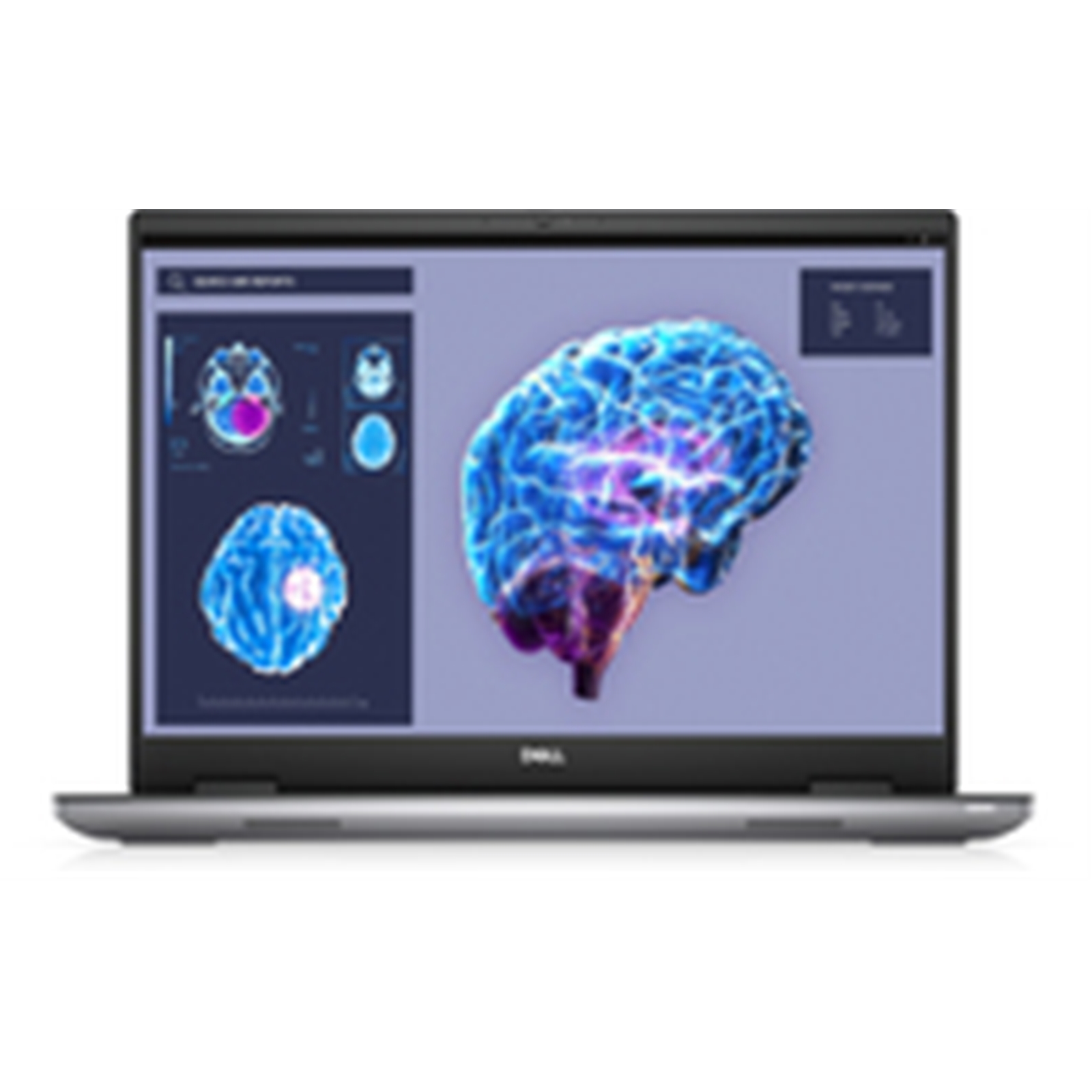

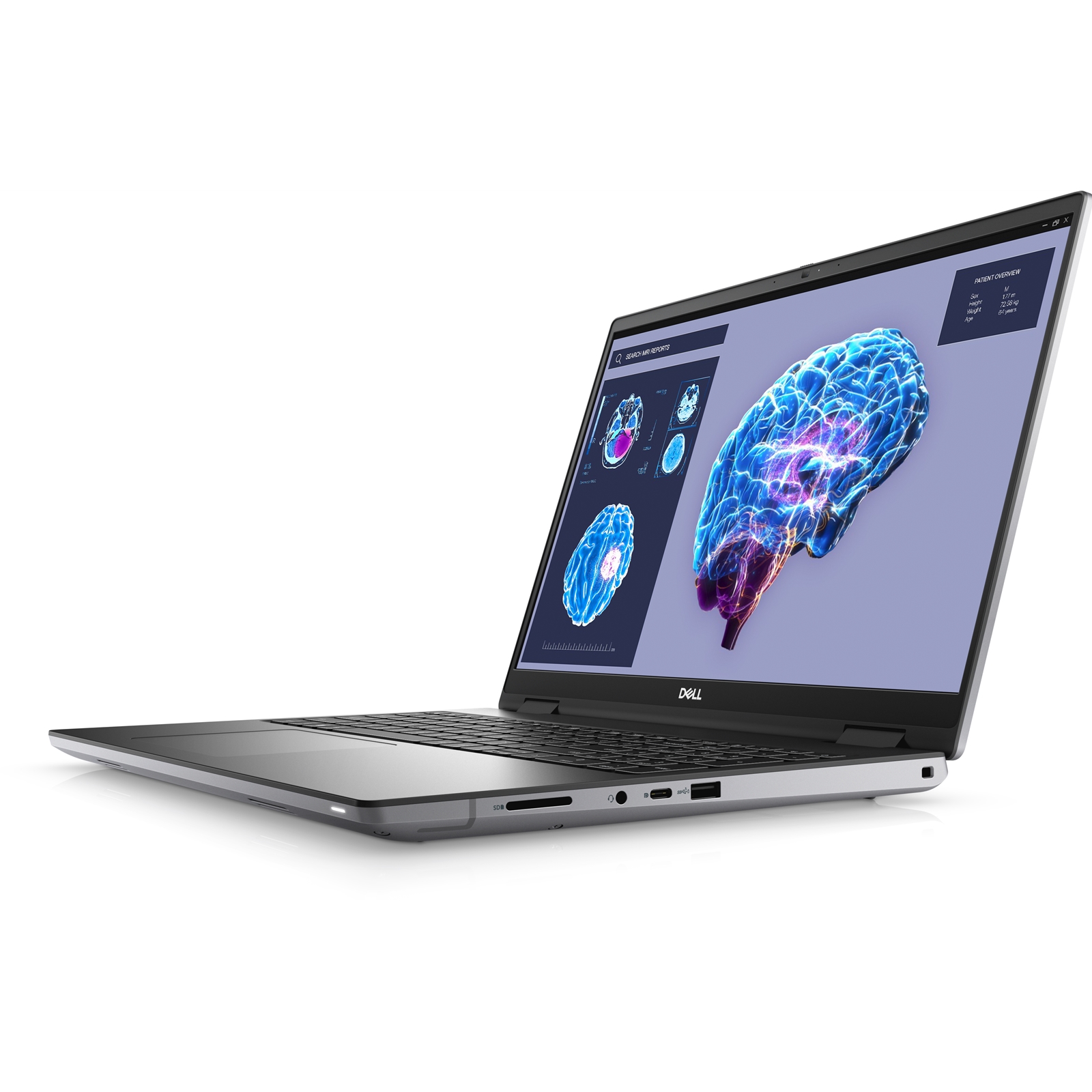

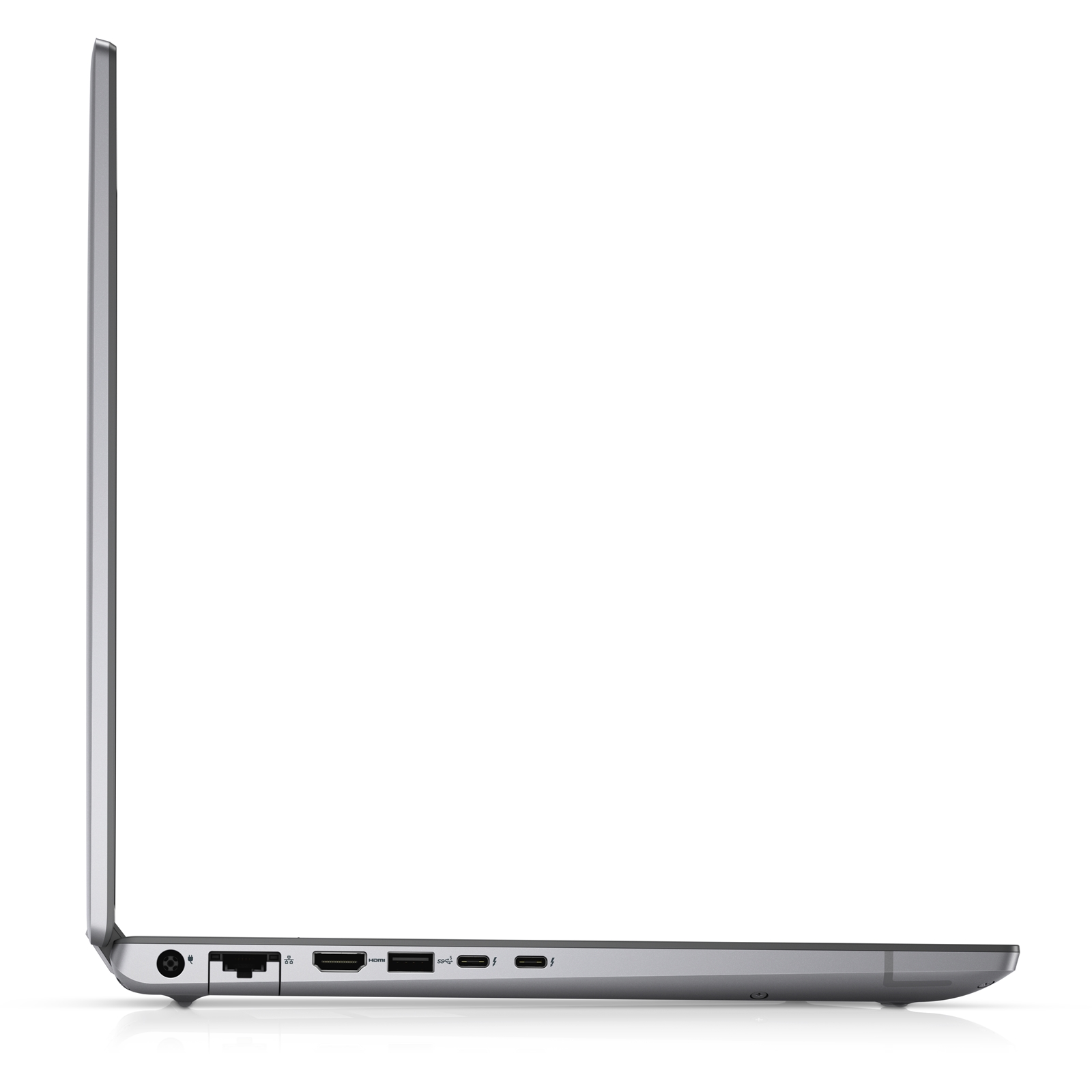

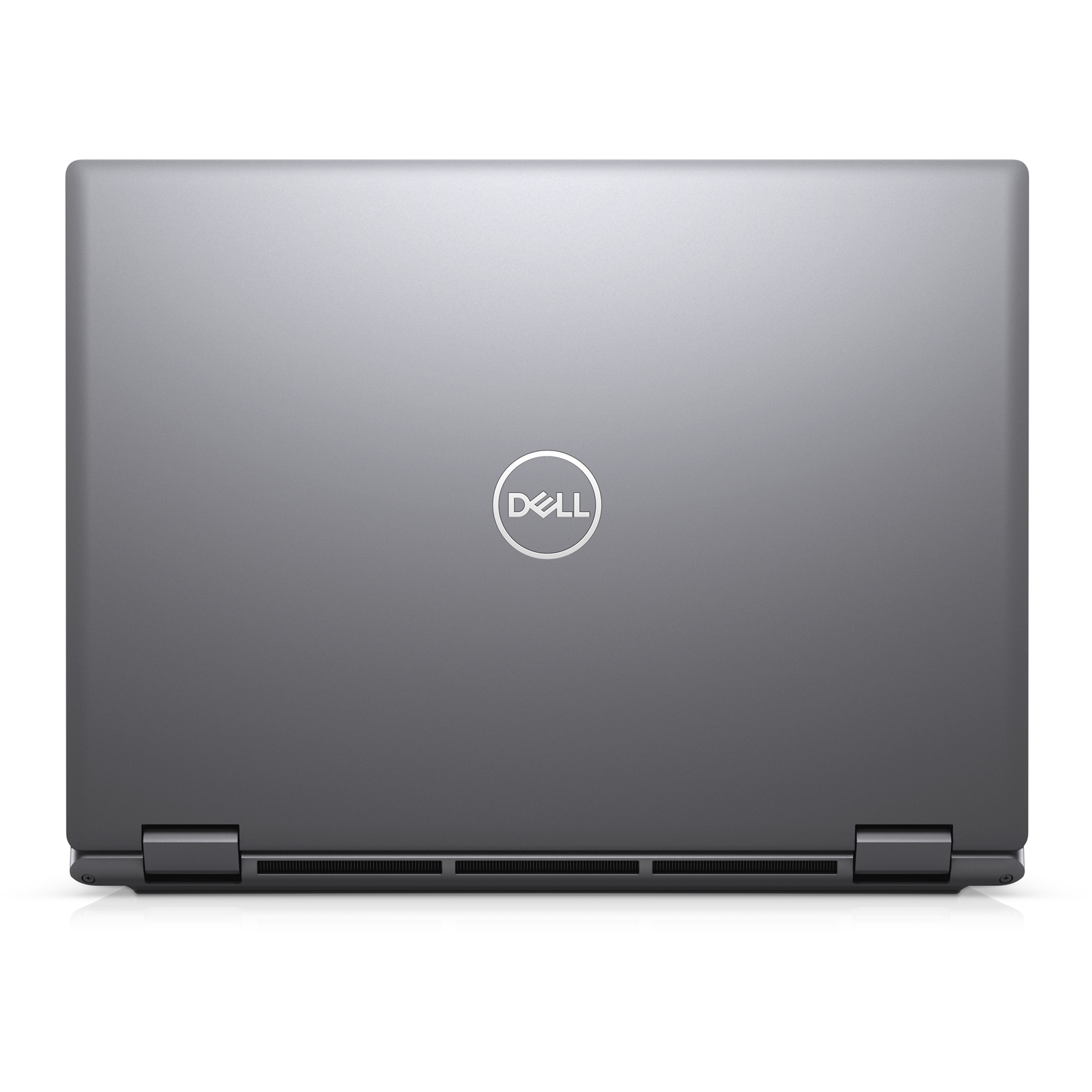

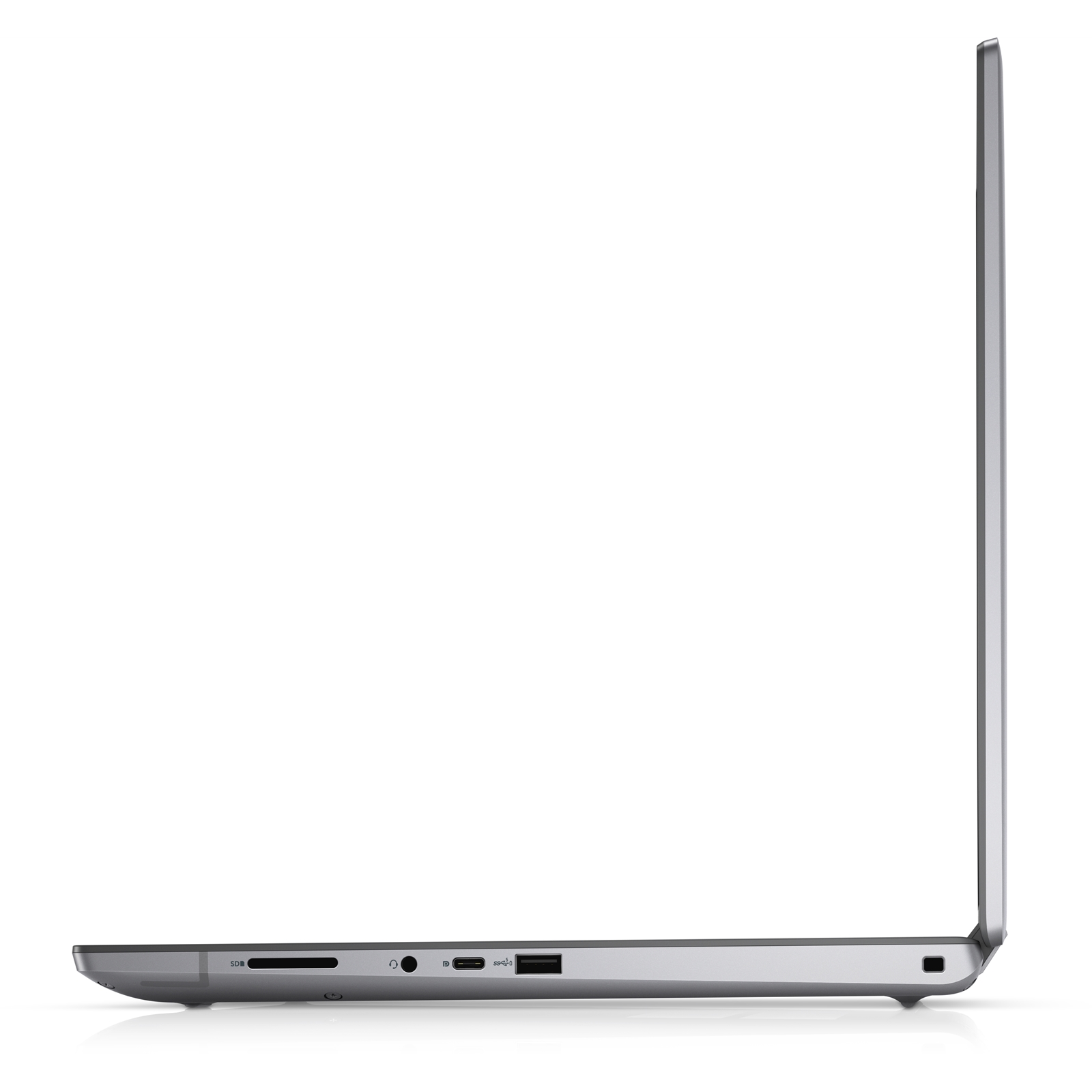

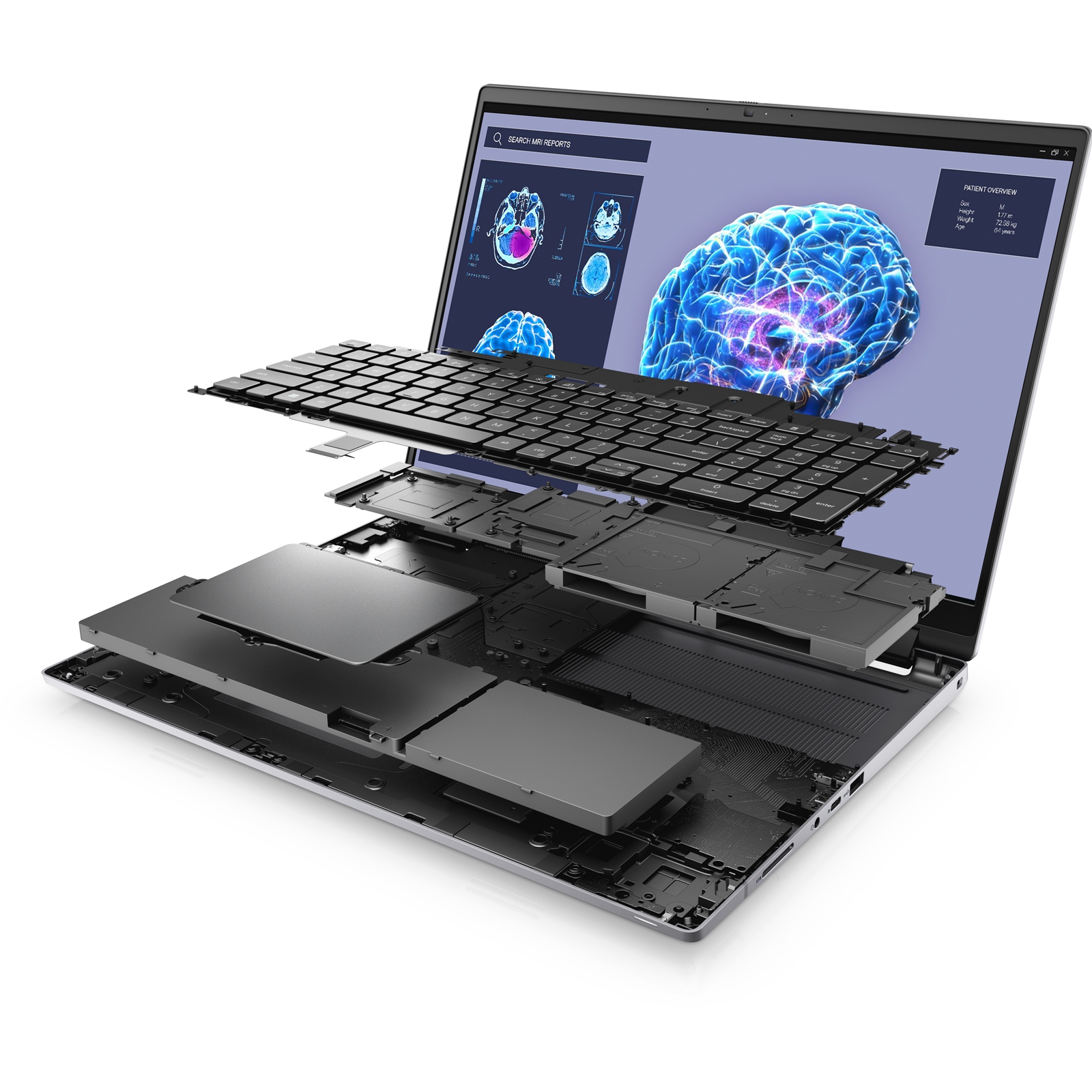

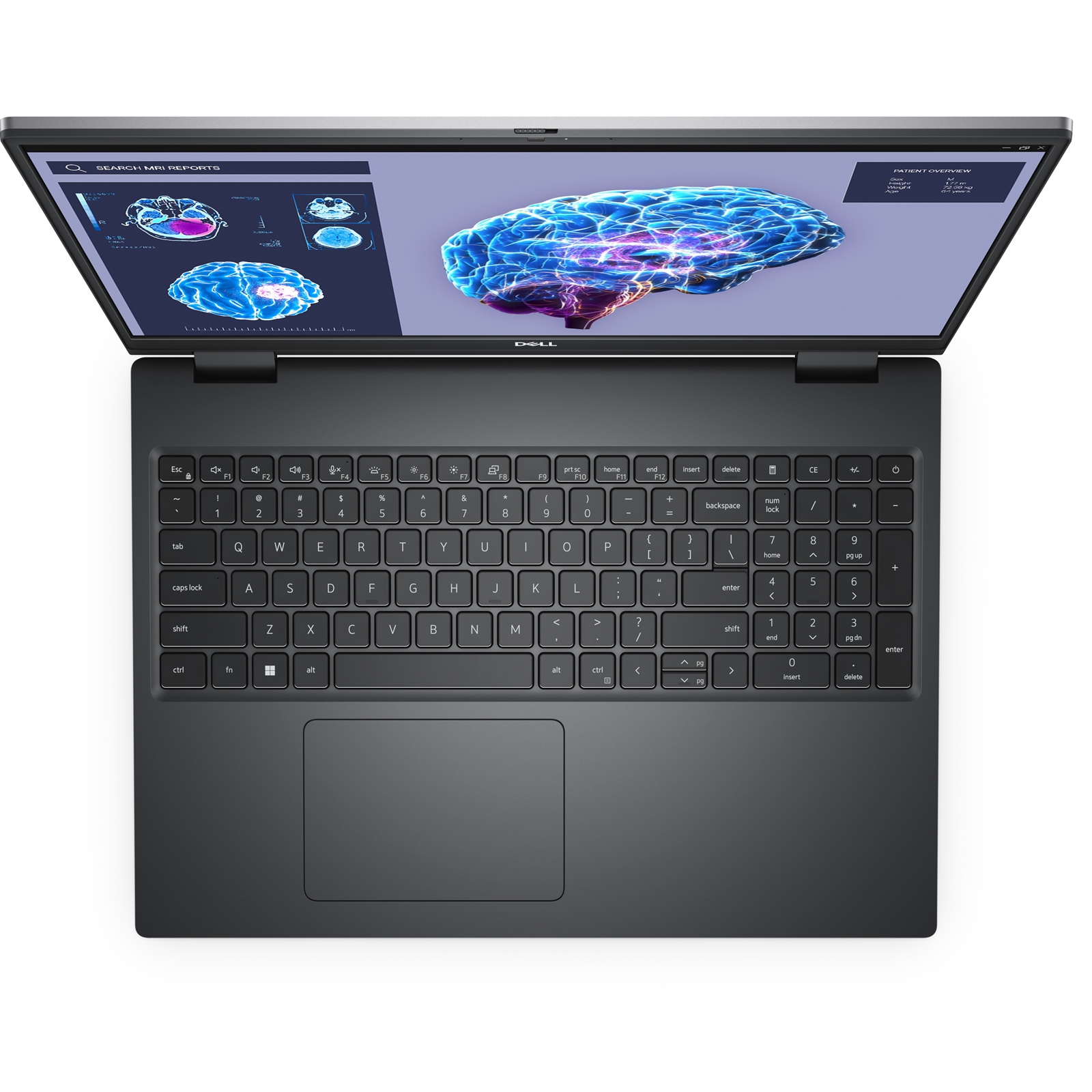

DELL Precision 7680 - WCDYP

DELL Logo here

Manufacturer Part Code: WCDYP

Order Code: LADEL-WCDYP

Category: Dell Laptops

Precision 7680 Intel Core i7-13850HX 30MB Cache 28 Threads 20 Cores (8P+12E) up to 5.3GHz 55w vPro 16GB 1x16GB 4800MHz CAMM non-ECC 512GB M.2 PCIe NVMe Gen 4 2280 SSD No Additional Hard Drive 16 FHD+ 1920x1200 WLED WVA 60Hz anti-glare non-touch 100% DCI-P

Dell's most powerful 16" workstation
Our ultra scalable 16" mobile workstation is optimized to your configurations.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Essential Extras and Accessories

Technical Information

Built-in microphone
Yes
Speaker power
2 W
Number of built-in speakers
2
Number of built-in speakers
2.32 cm
Number of microphones
2
Audio chip
Realtek ALC3281
Battery technology
Lithium-Ion (Li-Ion)
Number of battery cells
6
Battery recharge time
3 h
Battery weight
383 g
Battery voltage
11.55 V
Fast charging
Yes
Battery capacity (Watt-hours)
83 Wh
Video capturing speed
30 fps
Front camera
Yes
Front camera resolution (numeric)
0.92 MP
Front camera resolution
1920 x 1080 pixels
Front camera HD type
Full HD
Infrared (IR) camera
Yes
Total carbon footprint
471
Total carbon emissions (Standard deviation)
93
Carbon emissions (Manufacturing)
386
Carbon emissions (Logistics)
16
Carbon emissions (Use)
66
Carbon emissions (End-of-Life)
2
Total carbon emissions (w/o Use phase)
405
PAIA version
1.3.2
Form factor
Clamshell
Product colour
Grey
Market positioning
Business
Product type
Mobile workstation
Intel® vPro? Platform Eligibility
Yes
Introduction year
2023
Contrast ratio (typical)
1300:1
Display diagonal
40.6 cm (16")
Contrast ratio (typical)
0 - 95%
Display brightness
500 cd/m²
Display resolution
1920 x 1200 pixels
Touchscreen
No
LED backlight
Yes
Maximum refresh rate
60 Hz
Anti-glare screen
Yes
Native aspect ratio
16:10
HD type
Full HD+
Pixel density
142 ppi
Colour gamut
100%
Panel type
WLED
RGB colour space
DCI-P3
AC adapter input voltage
100 - 240 V
AC adapter frequency
50 - 60 Hz
AC adapter output voltage
19.5 V
AC adapter output current
9.23 A
AC adapter power
180 W
On-board graphics card model
Intel® UHD Graphics
Discrete graphics card model
NVIDIA RTX 2000 Ada
Discrete graphics memory type
GDDR6
On-board graphics card
Yes
Discrete graphics card memory
8 GB
Discrete graphics card
Yes
On-board GPU manufacturer
Intel
Pointing device
Touchpad
Numeric keypad
Yes
Keyboard language
UK English
Keyboard backlit
Yes
Internal memory type
DDR5-SDRAM
Maximum internal memory
128 GB
Memory clock speed
4800 MHz
Non-ECC
Yes
Memory form factor
CAMM module
Memory channels
Dual-channel
Internal memory
16 GB
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Ethernet LAN
Yes
Antenna type
2x2
Bluetooth
Yes
Wi-Fi data rate (max)
2400 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
WWAN
Upgradable
Mobile network connection
No
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
WLAN controller manufacturer
Intel
Operating system installed
Windows 11 Pro
Trial software
No Microsoft Office License Included 30 day Trial Offer Only
Operating system architecture
64-bit
Operating system language
Multilingual
Operating altitude
-15.2 - 3048 m
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 65 °C
Operating temperature (T-T)
0 - 35 °C
Storage relative humidity (H-H)
0 - 95%
Non-operating altitude
-15.2 - 10668 m
Operating shock
110 G
Non-operating shock
160 G
Non-operating vibration
1.3 G
Operating vibration
0.66 G
Cables included
AC
Ambient light sensor
Yes
Accelerometer
Yes
Hall sensor
Yes
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
Combo headphone/mic port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Charging port type
DC-in jack
Thunderbolt 4 ports quantity
2
Intel® Thunderbolt 4
Yes
Power adapter barrel connector
7.4 mm
Processor model
i7-13850HX
Processor manufacturer
Intel
Processor family
Intel® Core™ i7
Processor cache
30 MB
Bus type
DMI4
Configurable TDP-down
45 W
Processor cache type
Smart Cache
Processor generation
13th gen Intel® Core™ i7
Efficient-core Max Turbo Frequency
3.8 GHz
Performance-core Max Turbo Frequency
5.3 GHz
Intel Flex Memory Access
Yes
CPU configuration (max)
1
Intel VT-x with Extended Page Tables (EPT)
Yes
Embedded options available
No
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Virtualization Technology (VT-x)
Yes
Cable lock slot
Yes
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Cable lock slot type
Wedge
Password protection
Yes
Smart card reader
Yes
Compatible memory cards
SD, SDHC, SDXC
Optical drive type
No
Total storage capacity
512 GB
Card reader integrated
Yes
SSD interface
PCI Express 4.0
SSD capacity
512 GB
Number of SSDs installed
1
Storage media
SSD
SSD form factor
M.2
NVMe
Yes
Total SSDs capacity
512 GB
Weight
2.6 kg
Width
356 mm
Depth
258.3 mm
Height (front)
2.23 cm
Height (rear)
2.32 cm
