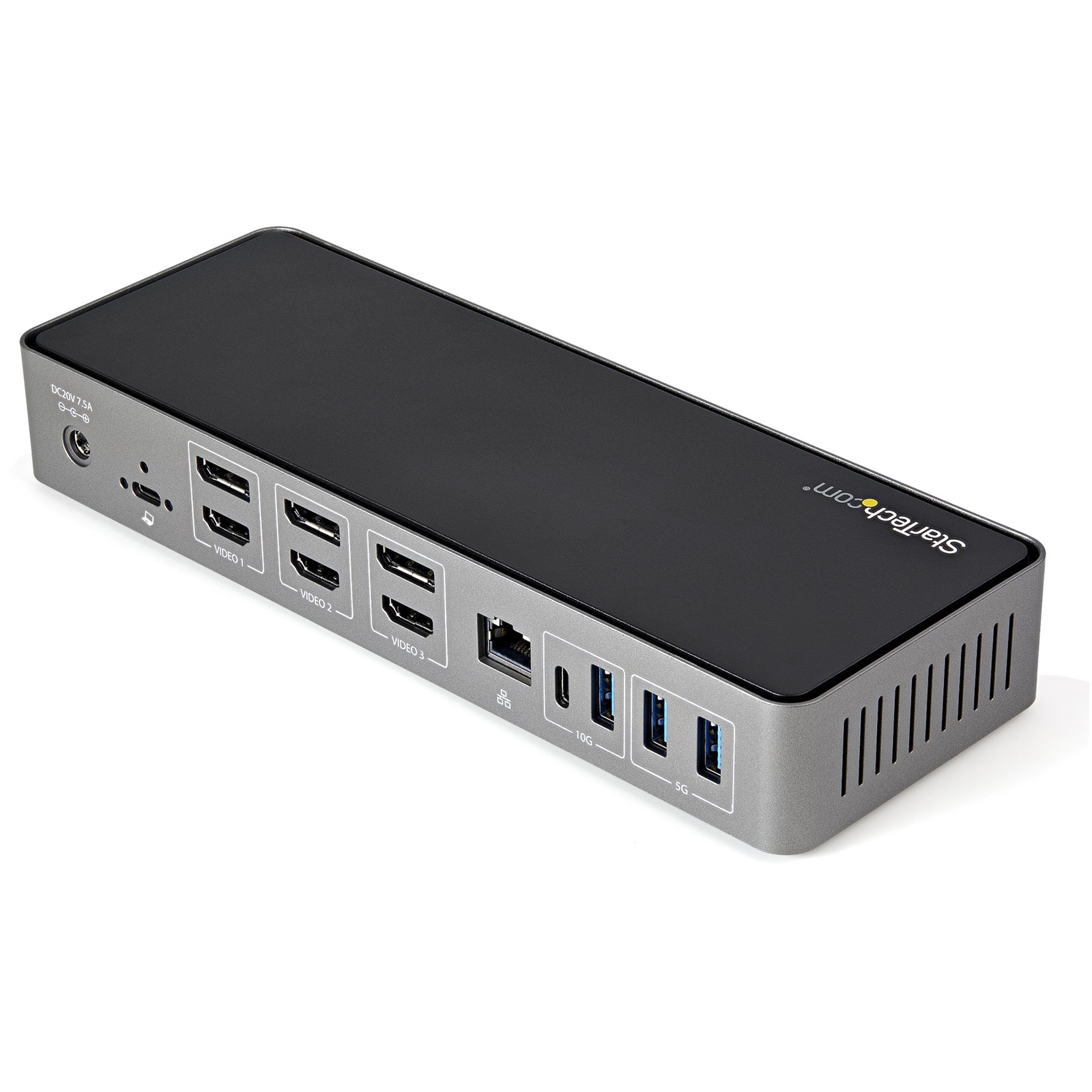

STARTECH.COM Hybrid USB-C USB-A Dock - DK31C3HDPDUE

STARTECH.COM Logo here

Manufacturer Part Code: DK31C3HDPDUE

Order Code: ACSTA-DK31C3HDPD

Category: Docking Stations

Hybrid USB-C USB-A Dock - Triple 4K 60Hz

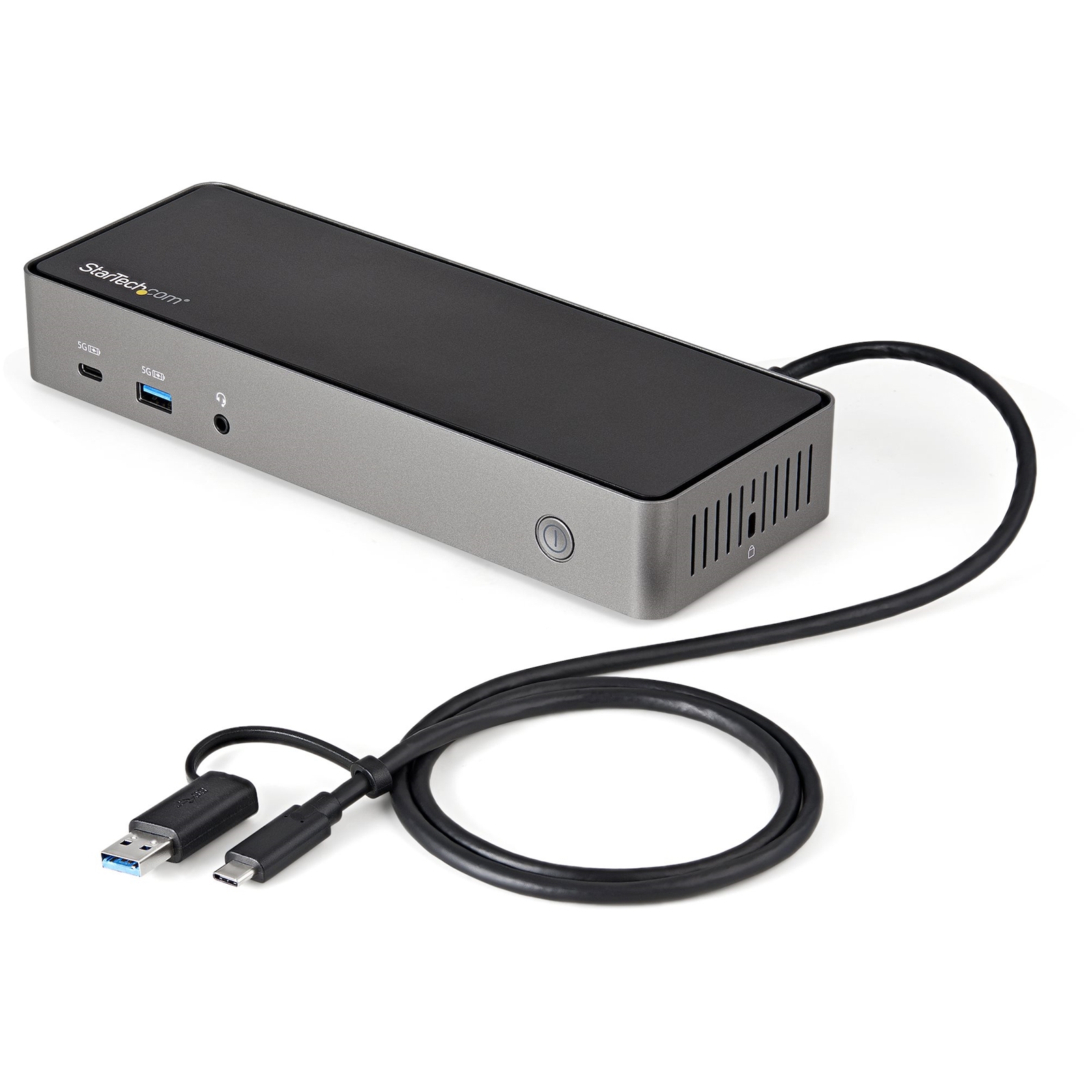

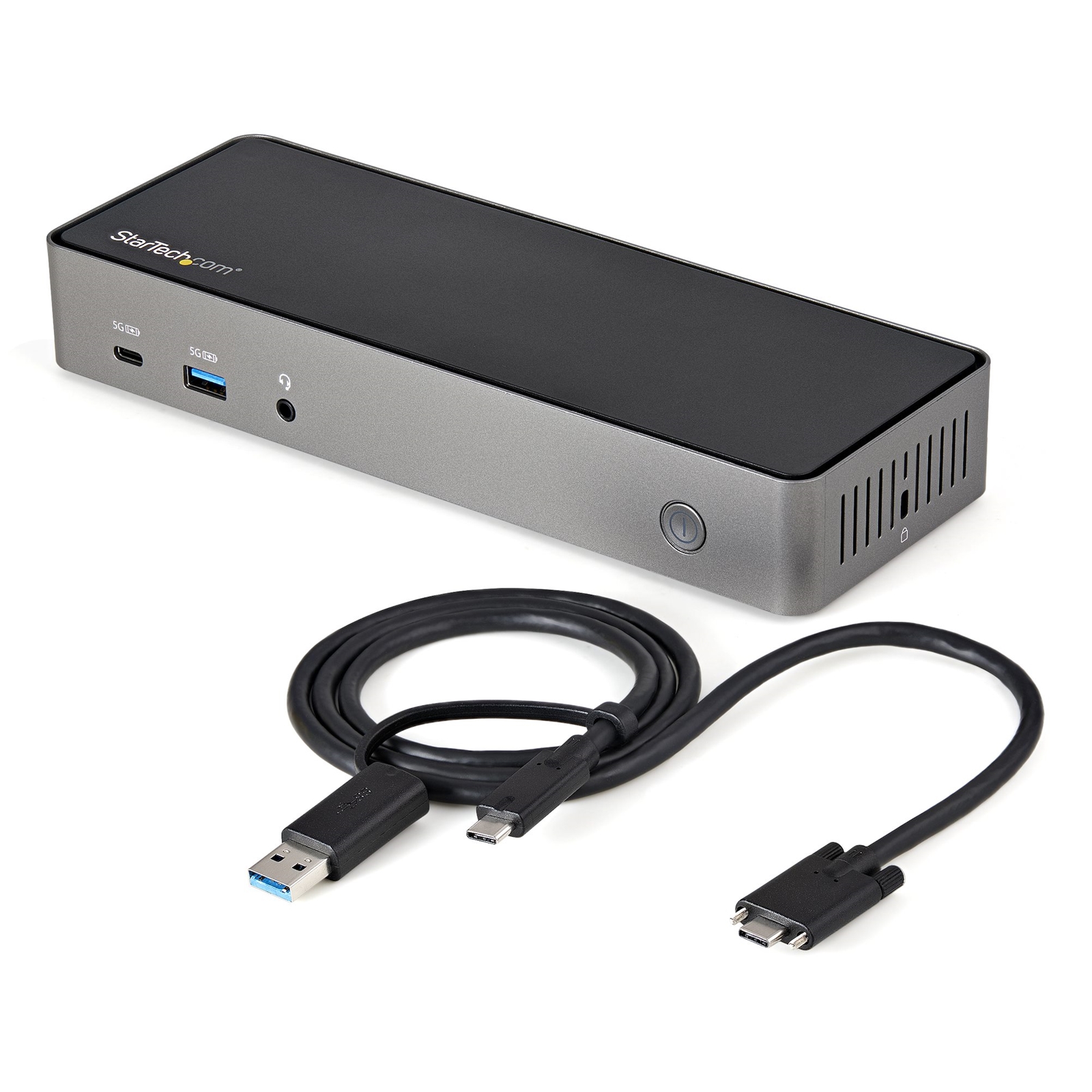

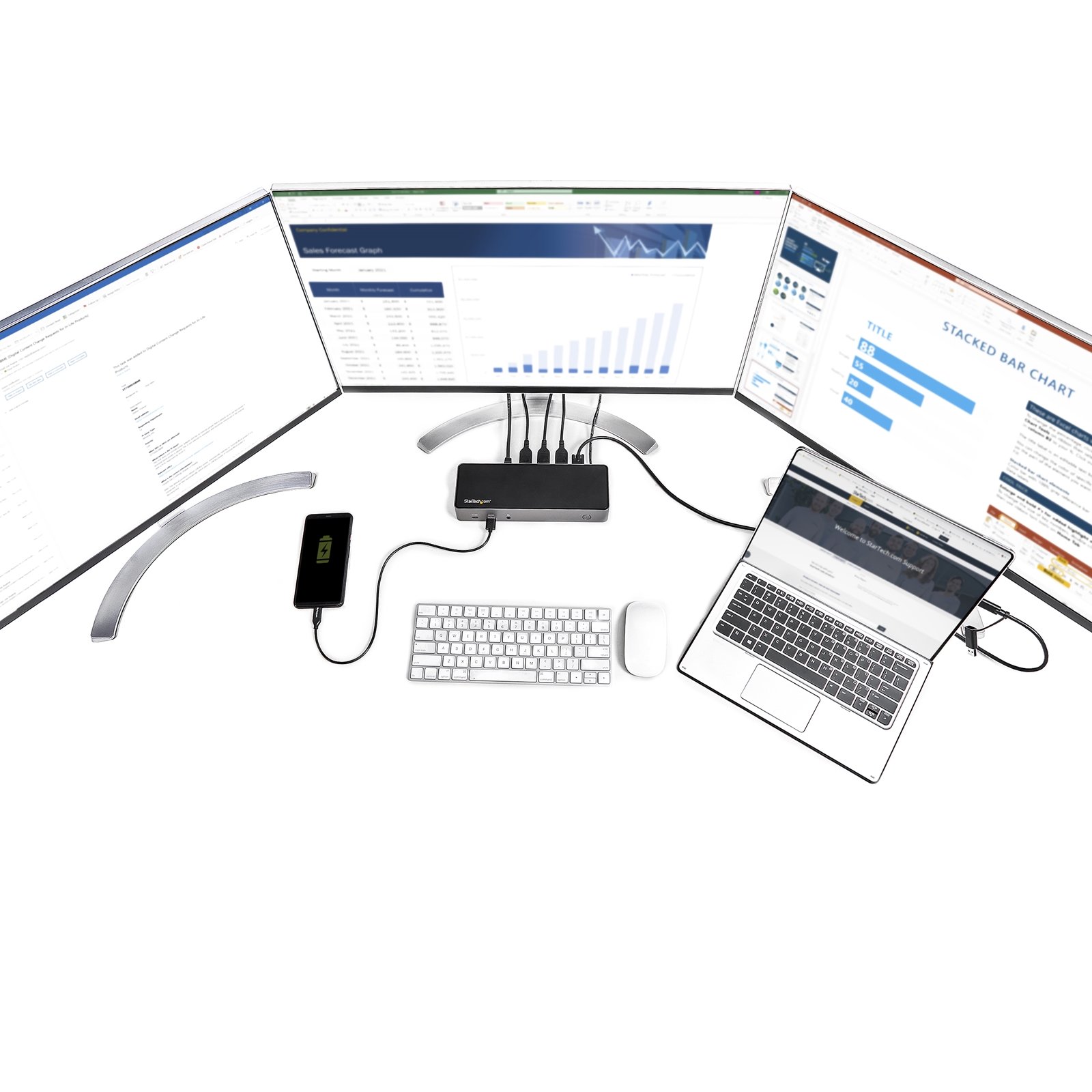

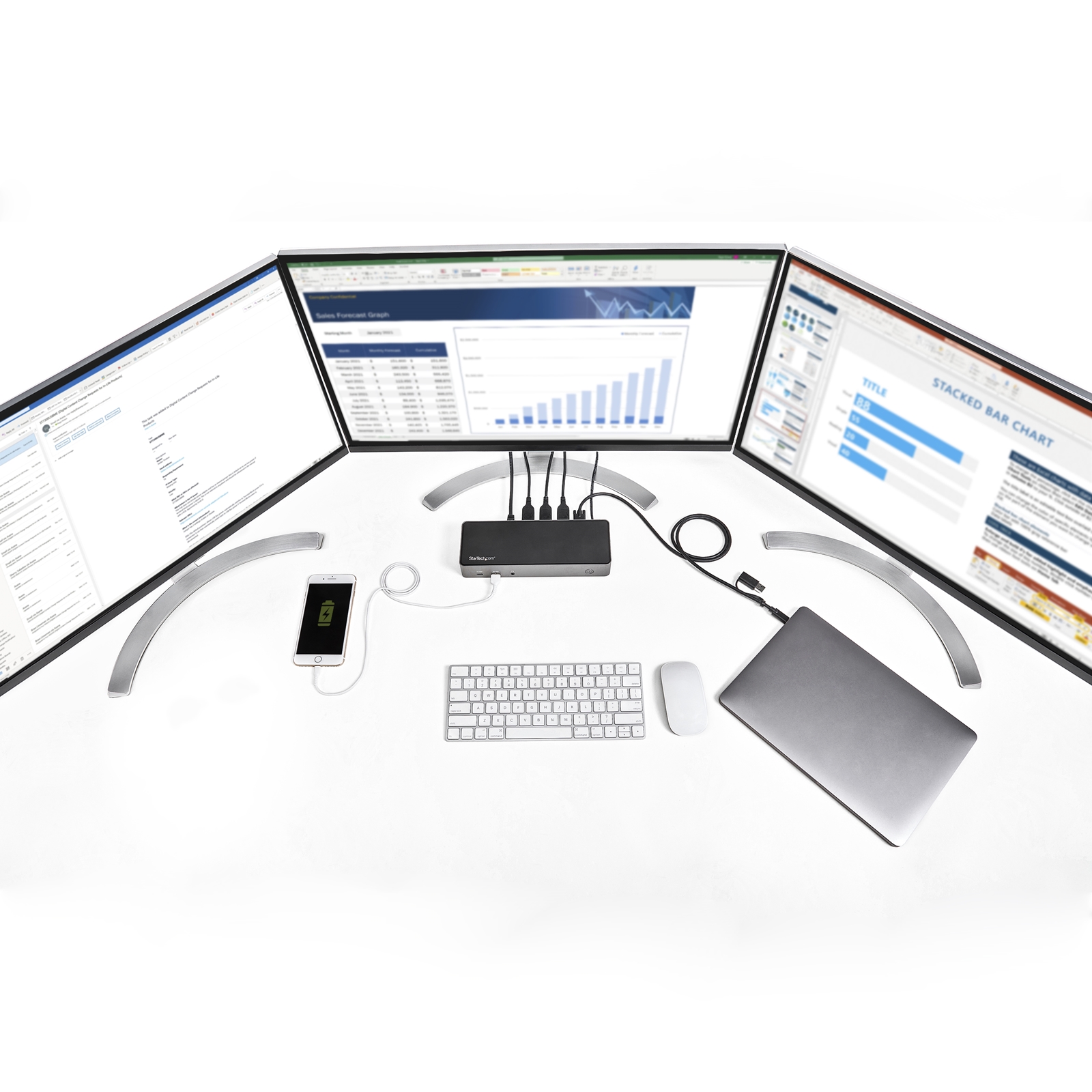

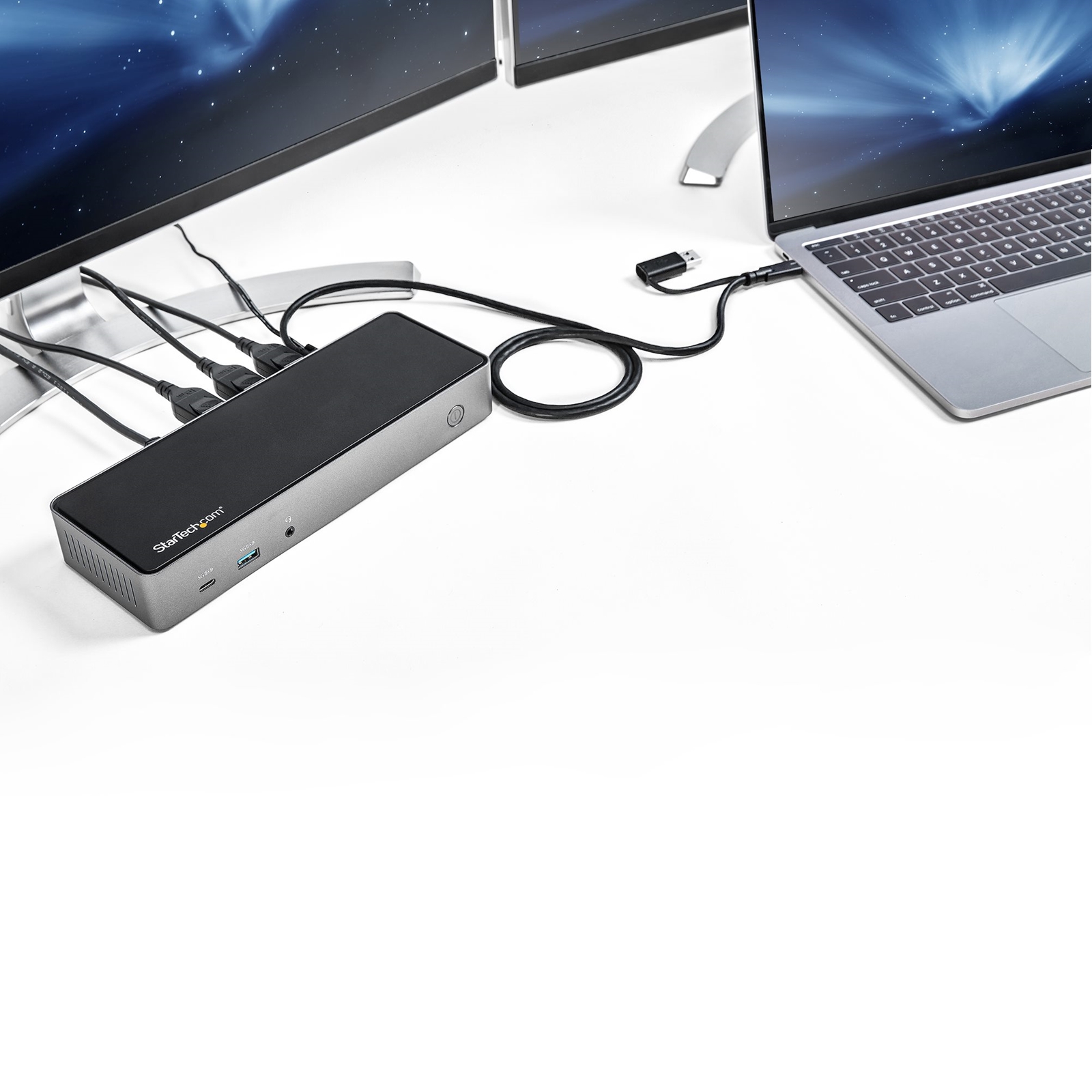

USB-C & USB-A Dock | USB 3.2 Gen 2 10Gbps | 4K 60HZ HDMI | DisplayPort | 85W Power DeliveryThis USB-C Gen 2 10Gbps docking station turns your USB-C ® or Thunderbolt™ 3 MacBook Pro, Windows laptop, and Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple HDMI or DisplayPort video outputs up to 4K 60 Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 85W Power Delivery. Older USB-A laptops are supported through universal hybrid USB-C/USB-A cable included.HDMI & DisplayPort for Triple Monitor OutputsThis USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 60Hz display output, with any combination of three DisplayPort or HDMI video interfaces, on USB-C Gen 2 (with DP 1.4 support) laptops, MacBooks and Windows-based Thunderbolt 3 laptops. Older USB-A laptops will only support dual monitor setup.HostDisplay OutputUSB-C Gen 1 or 2 (with DP 1.4)Triple Display - 3x 4K 60HzThunderbolt 3 (DP 1.4 Supported)Triple Display - 3x 4K 60HzUSB-C Gen 1 (with DP 1.2)Triple Display - 2x 4K 60Hz; 1x 4K 30HzUSB-A or USB-C (No DP Alt Mode)Dual Display - 2x 4K 60HzPower & Charge with 85W Power DeliveryPower and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 85 watt PDHigher power delivery, MORE than other USB-C 10G Triple monitor docks. Charge smartphones and other devices with two downstream front-facing charging ports with BC 1.2 for USB-A and USB-C devices. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.Plenty of Downstream USB PortsThis USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals.• 1x USB-C 3.2 Gen 2 (10 Gbps)• 1x USB-A 3.2 Gen 2 (10 Gbps)• 1x USB-C 3.2 Gen 1 (5 Gbps)• 3x USB-A 3.2 Gen 1 (5 Gbps)Also included, is a gigabit Ethernet port with PXE Boot and WoL support, as well as 4-position TRRS stereo audio headset/mic port.Additional Security FeaturesThis USB-C/USB-A docking station comes with plenty of security features such as a screw-lock host port which includes a USB-IF Certified 1m 2-in-1 USB-C/USB-A screw-lock cable, and a K-slot for a Kensington style laptop lock.For added security, or flexibility where desk space is limited, this dock can be mounted to the wall, monitor, or underneath the desk with StarTech.com mounting brackets (SSPMSUDWM & SSPMSVESA). These mounting brackets (not included) are specifically designed for our docks and hubs to give you the customized setup you need.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:•Advanced Windows Layout Utility : To setup and save custom windows layouts.•Mac Address Pass-Through Utility : To improve network security.•USB Event Monitoring Utility : To track and log connected USB devices•Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-ToolsThe StarTech.com Advantage


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Output voltage
20 V
Input current
2.5 A
Output current
7.5 A
AC input voltage
100 - 240 V
Power plug type
Type M
Compatible power plug types
EU, UK
Master (outer) case height
300 mm
Master (outer) case width
315 mm
Master (outer) case length
395 mm
Products per master (outer) case
6 pc(s)
Harmonized System (HS) code
84733020
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Operating relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Chipset
Realtek RTS5423, Realtek RTS5411, Realtek RTS5412, Realtek RTS5451, Realtek RTD2142, DisplayLink DL6950
Cable length
1 m
AC adapter included
Yes
Cables included
USB Type-A to USB Type-C
Quick start guide
Yes
Package weight
1.7 kg
Package depth
253 mm
Package height
91 mm
Package width
172 mm
Certification
CE, FCC

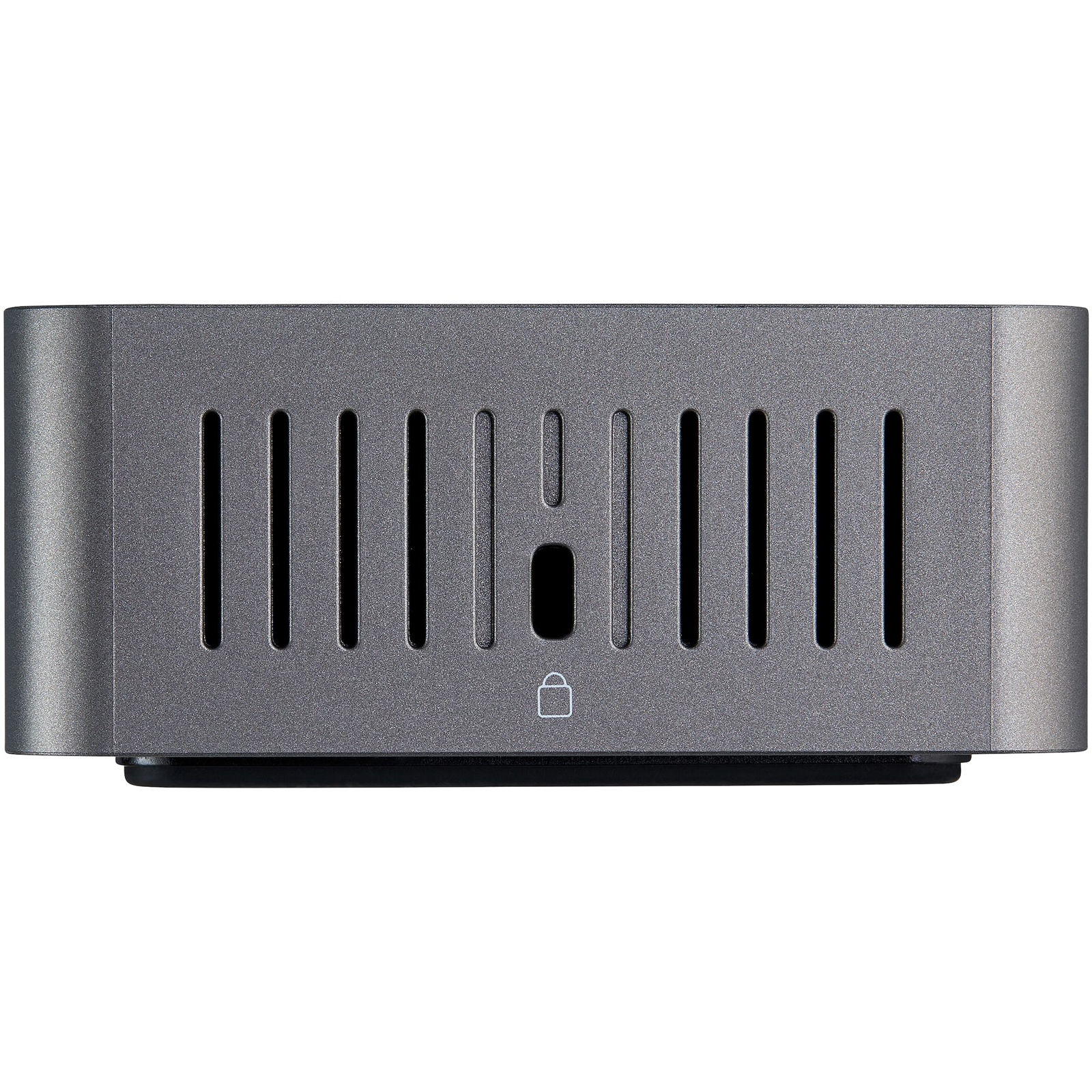

Cable lock slot
Yes
Data transfer rate
10 Gbit/s
Product colour
Black, Grey
Card reader integrated
No
Housing material
Aluminium, Plastic
Maximum digital resolution
3840 x 2160 pixels
Cable lock slot type
Kensington
Connectivity technology
Wired
Headphone outputs
1
DC-in jack
Yes
Host interface
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
HDMI ports quantity
3
HDMI version
2.0
DisplayPorts quantity
3
Combo headphone/mic port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB Power Delivery
Yes
USB Power Delivery up to
85 W
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura
Sustainability certificates
RoHS
Harmonized System (HS) code
84733020
Compliance certificates
RoHS
Weight
365 g
Height
37 mm
Width
84 mm
Depth
233 mm
