Docking Stations | STARTECH.COM Thunderbolt 3 Dual 4K Dock - TB3DK2DHVUE | TB3DK2DHVUE | ServersPlus
L R
STARTECH.COM TB3DK2DHVUE | serversplus.comSTARTECH.COM TB3DK2DHVUE | serversplus.comSTARTECH.COM TB3DK2DHVUE | serversplus.comSTARTECH.COM TB3DK2DHVUE | serversplus.comSTARTECH.COM TB3DK2DHVUE | serversplus.comSTARTECH.COM TB3DK2DHVUE | serversplus.comSTARTECH.COM TB3DK2DHVUE | serversplus.com

Illustration purposes only

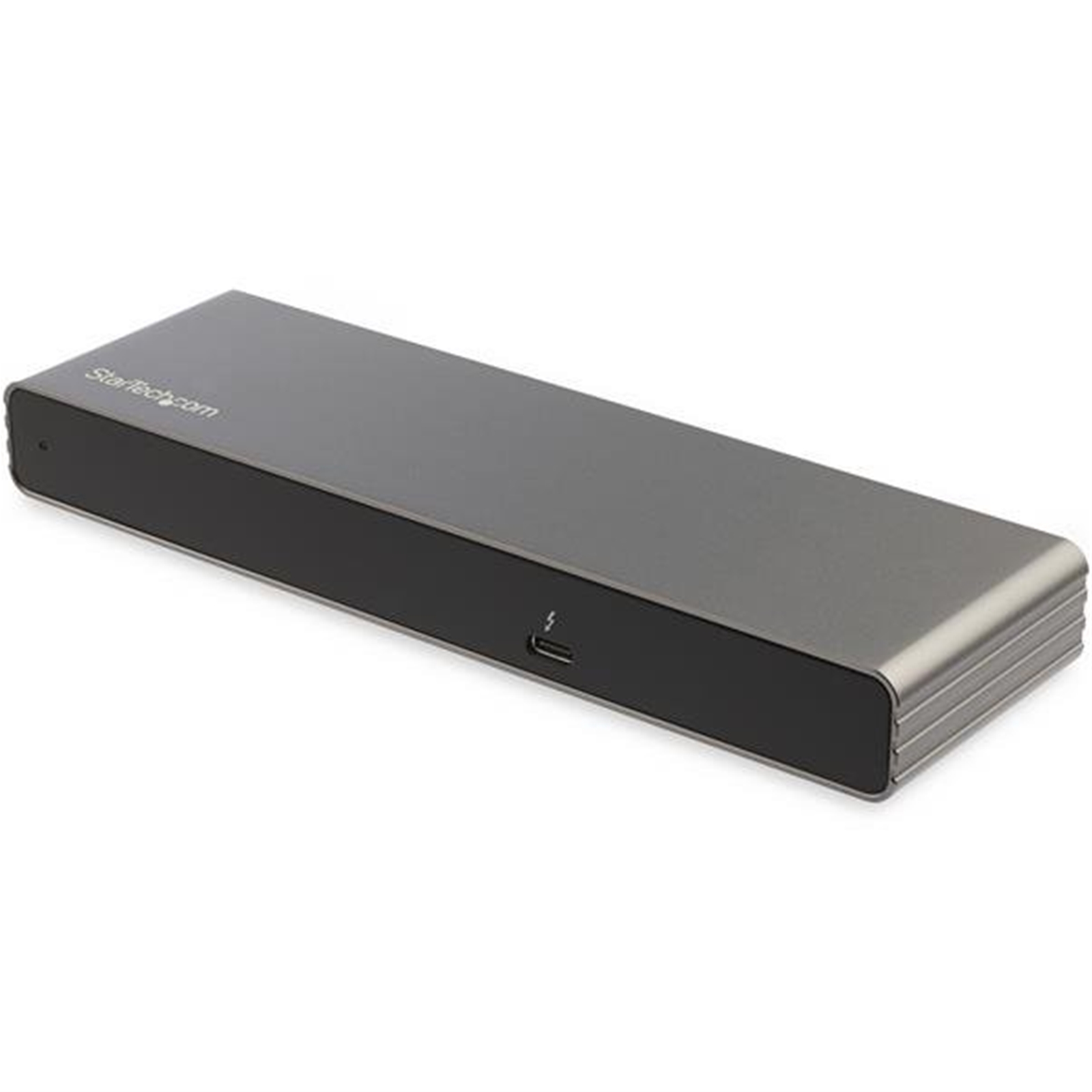

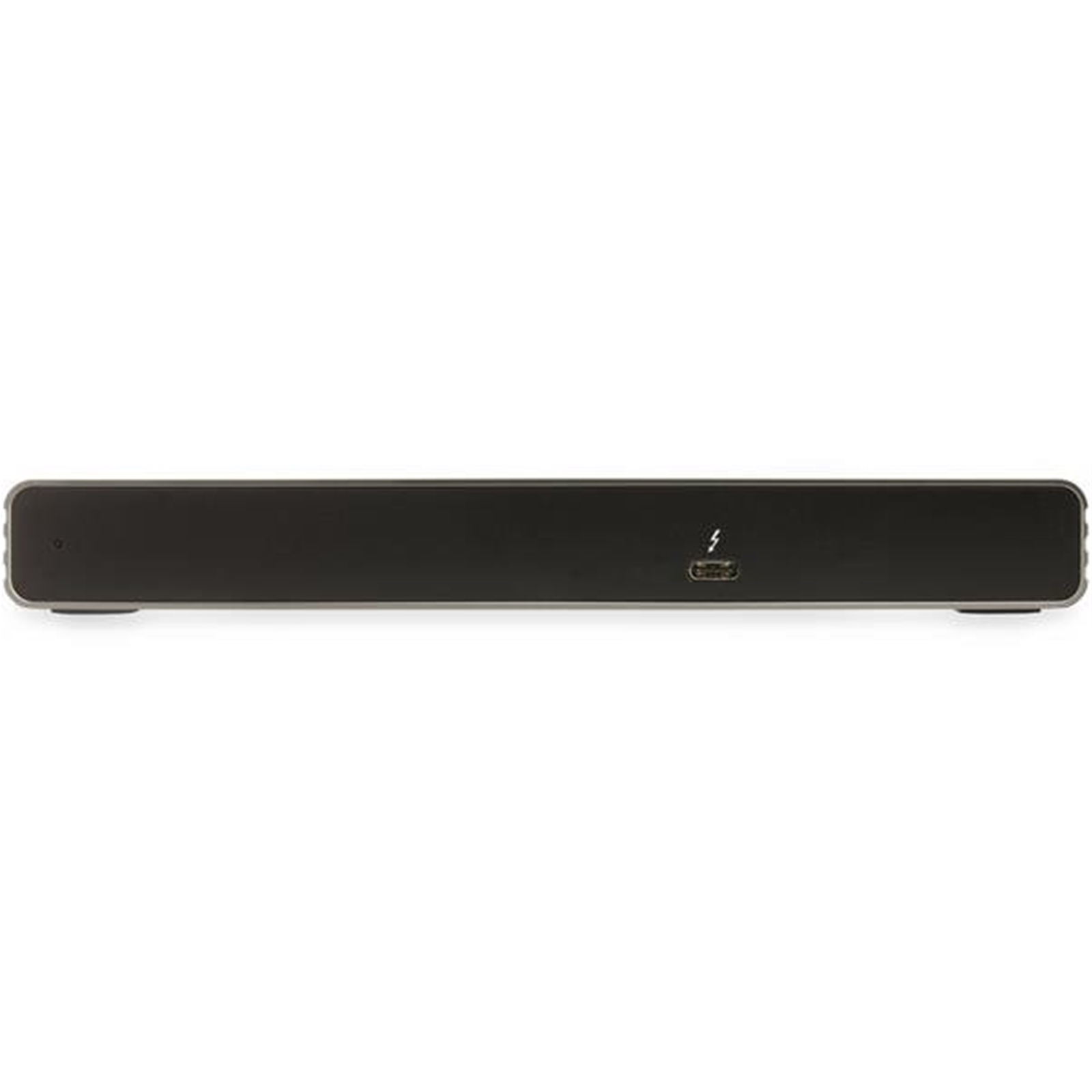

STARTECH.COM Thunderbolt 3 Dual 4K Dock - TB3DK2DHVUE

STARTECH.COM Logo here

Manufacturer Part Code: TB3DK2DHVUE

Order Code: ACSTA-TB3DK2DHVD

Category: Docking Stations

INCHDock - Thunderbolt 3 Dual 4K 60Hz INCH

Laptop Dock | Mac & Windows | HDMI | DisplayPort | VGA | 85W PD

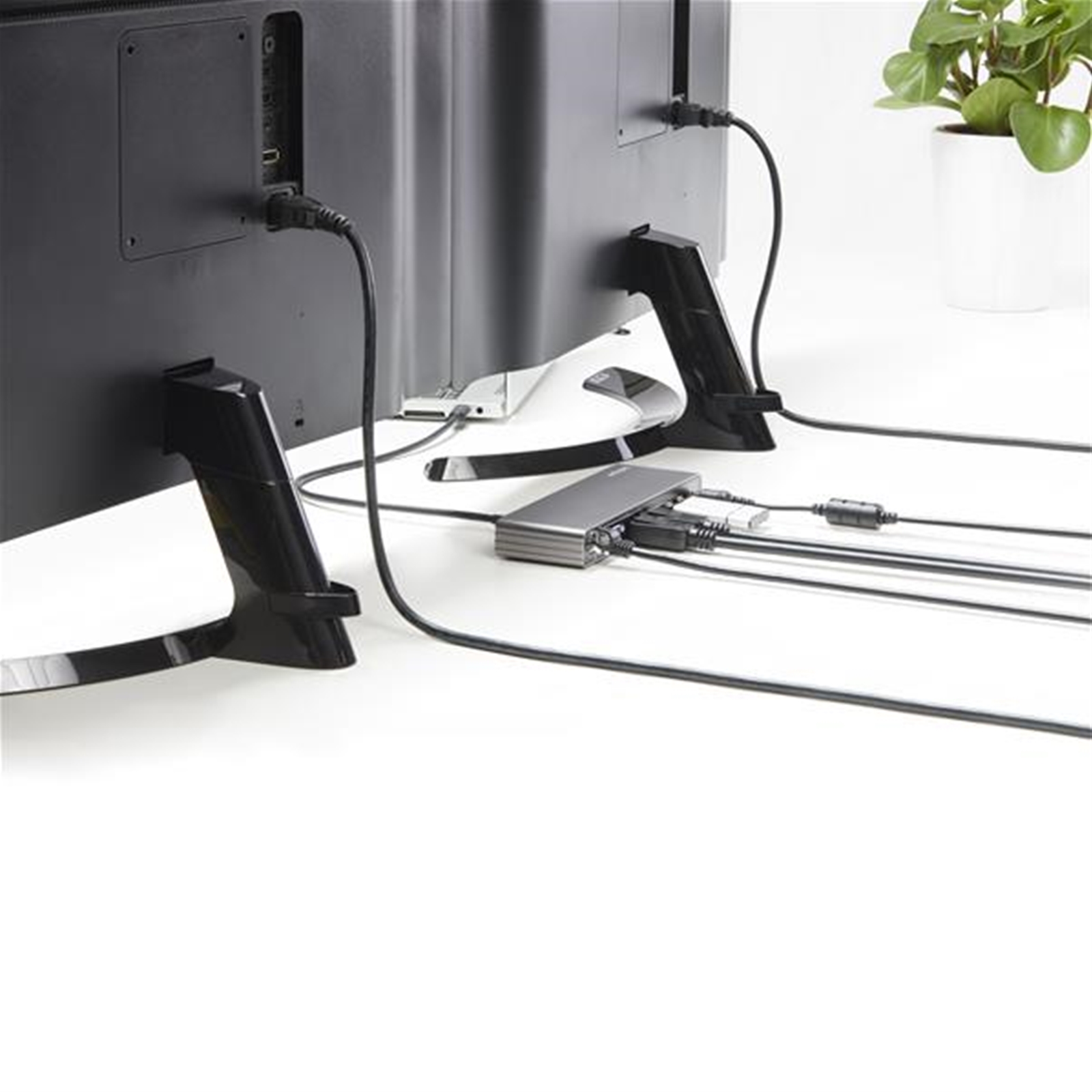

Create a powerful and flexible workstation with this Thunderbolt 3 dock. With dedicated dual video output, you can connect your Thunderbolt 3 equipped MacBook Pro or Windows laptop to two 4K monitors, through a single Thunderbolt 3 cable.

Easy Installation & Deployment?

Simply connect the?TB3 dock?to your laptop with included TB3 cable and start working immediately. No?time-consuming driver installations are required.??

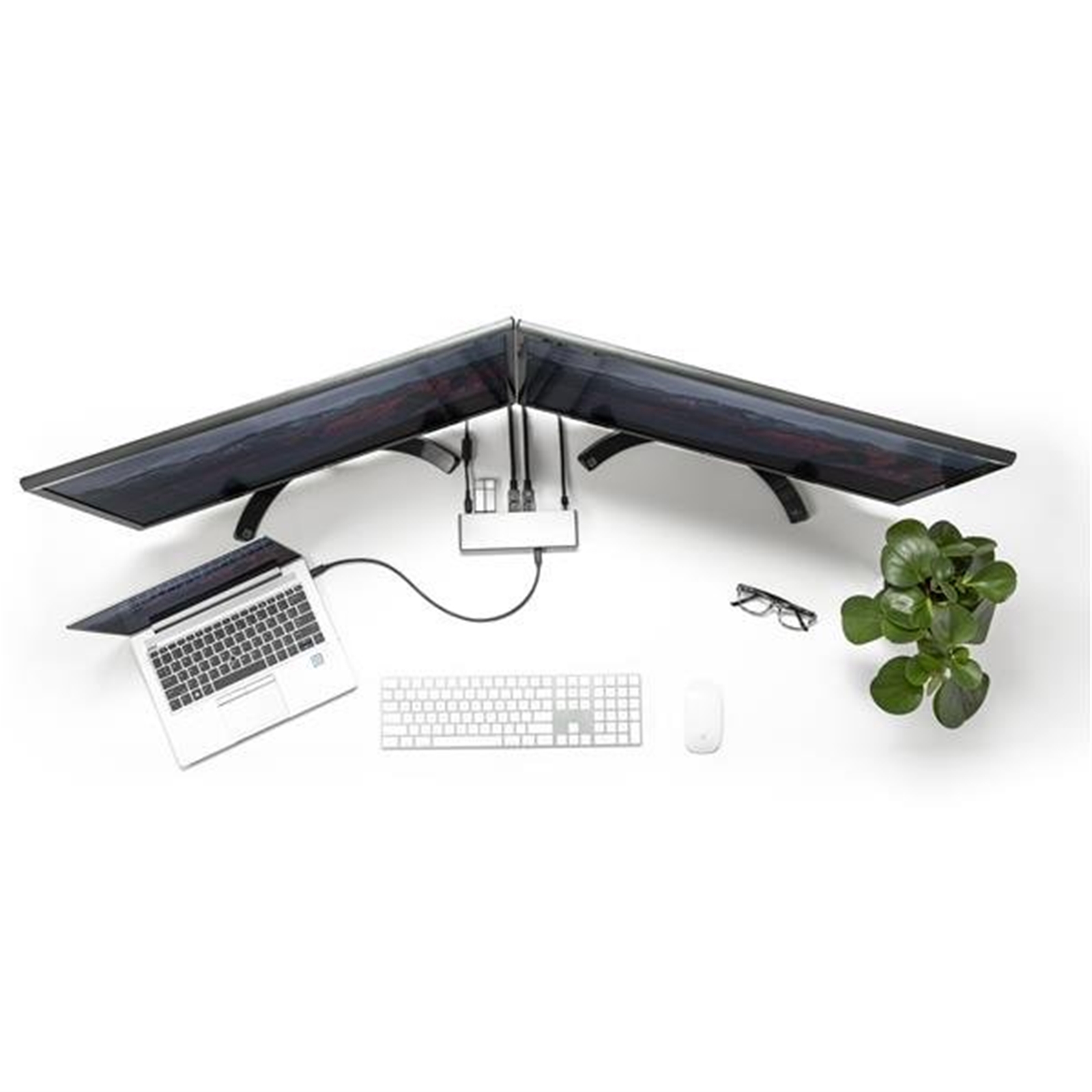

Speed & Flexibility with 3 Monitor Options

Great for editing 4K video or other Ultra HD tasks, this Thunderbolt 3 docking station supports 40Gbps speeds and 4K resolution at 60Hz on two monitors. Enjoy ultimate flexibility in setting up your workstation, with monitor options including DisplayPort (DP), HDMI and VGA.

The dock offers many dedicated dual-video options:

2x DisplayPort (4096 x 2160p @ 60Hz)

1x DisplayPort + 1 HDMI (4096 x 2160p @ 60Hz)

1x VGA (1920 x 1200p @ 60Hz) + 1x DisplayPort (4096 x 2160p @ 60Hz)

1x VGA (1920 x 1200p @ 60Hz) + 1x HDMI (4096 x 2160p @ 60Hz)

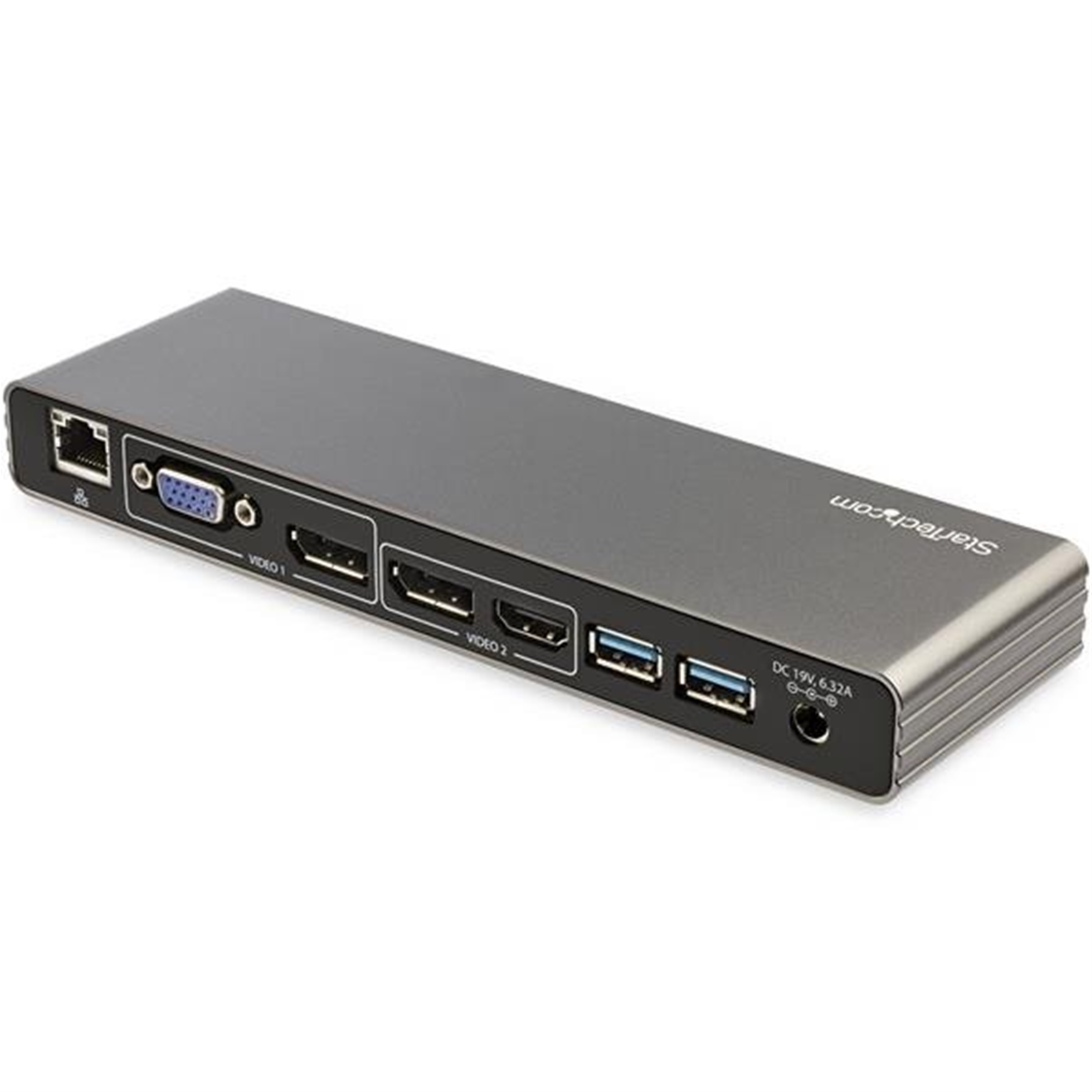

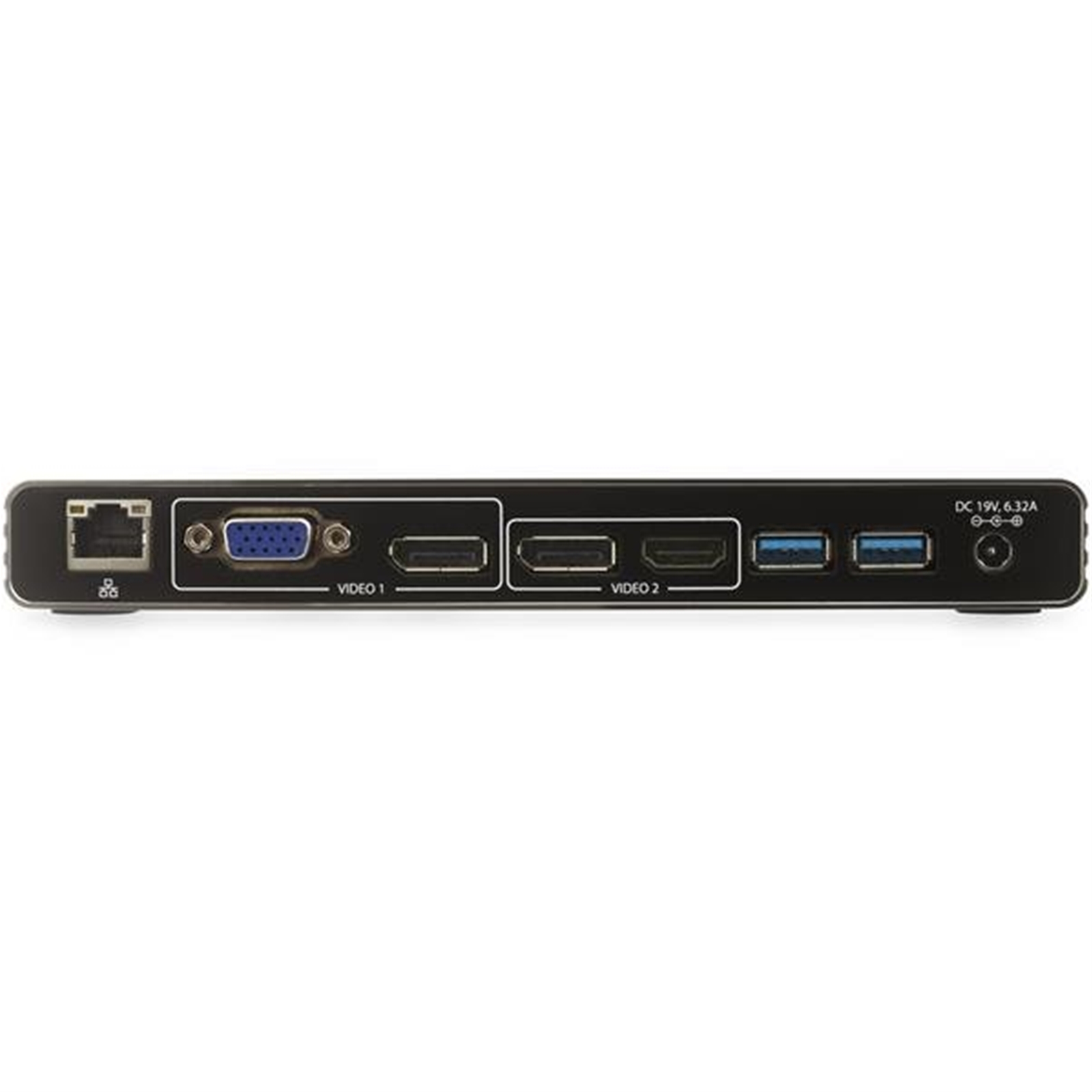

The Ports You Need Most

Harness the reliability and speed of a wired network connection with the Gigabit Ethernet port (supporting PXE Boot and Wake-on-LAN). Connect your USB devices with two USB 3.0 Type-A ports.

Power & Charge with 85W Power Delivery

Through a single 120W power adapter, the Thunderbolt 3 docking station simultaneously powers and charges your laptop and your attached peripherals while it's docked. It provides up to 85W of charging power through Power Delivery.

The TB3DK2DHVUE is fully Thunderbolt 3 Certified and backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

- HIGH PERFORMANCE FEATURES: This Thunderbolt 3 certified dock supports dual 4K60Hz on DisplayPort and HDMI, 1080p VGA, 85W Power Delivery for laptop charging, 2-port USB-A hub & gigabit Ethernet ports
- FLEXIBLE MONITOR COMBINATIONS: Offers support for new and legacy monitors in mulitple video output combinations. Dual DP, DP + HDMI, DP + VGA, or HDMI + VGA for creative and productivity usage.
- EASY TO DEPLOY & SETUP: Thunderbolt 3 Dock requires no driver setup or additional display adapters and with the included Thunderbolt 3 cable and front facing host port, this dock is easy to install


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Power consumption (typical)
120 W
Output voltage
19 V
Input current
1.8 A
Output current
6.32 A
Power source type
AC
AC input voltage
100 - 240 V
Power plug type
Type N
Compatible power plug types
EU, UK
Master (outer) case height
280 mm
Master (outer) case width
390 mm
Master (outer) case length
676 mm
Products per master (outer) case
20 pc(s)
Harmonized System (HS) code
84733020
Full duplex
Yes
Ethernet LAN
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Yes
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Chipset
Intel - Alpine Ridge JHL6540, Intel - WGI210AT, ASMedia - ASM1042A, Parade - PS176, Chrontel - CH7517
Cable length
0.5 m
AC adapter included
Yes

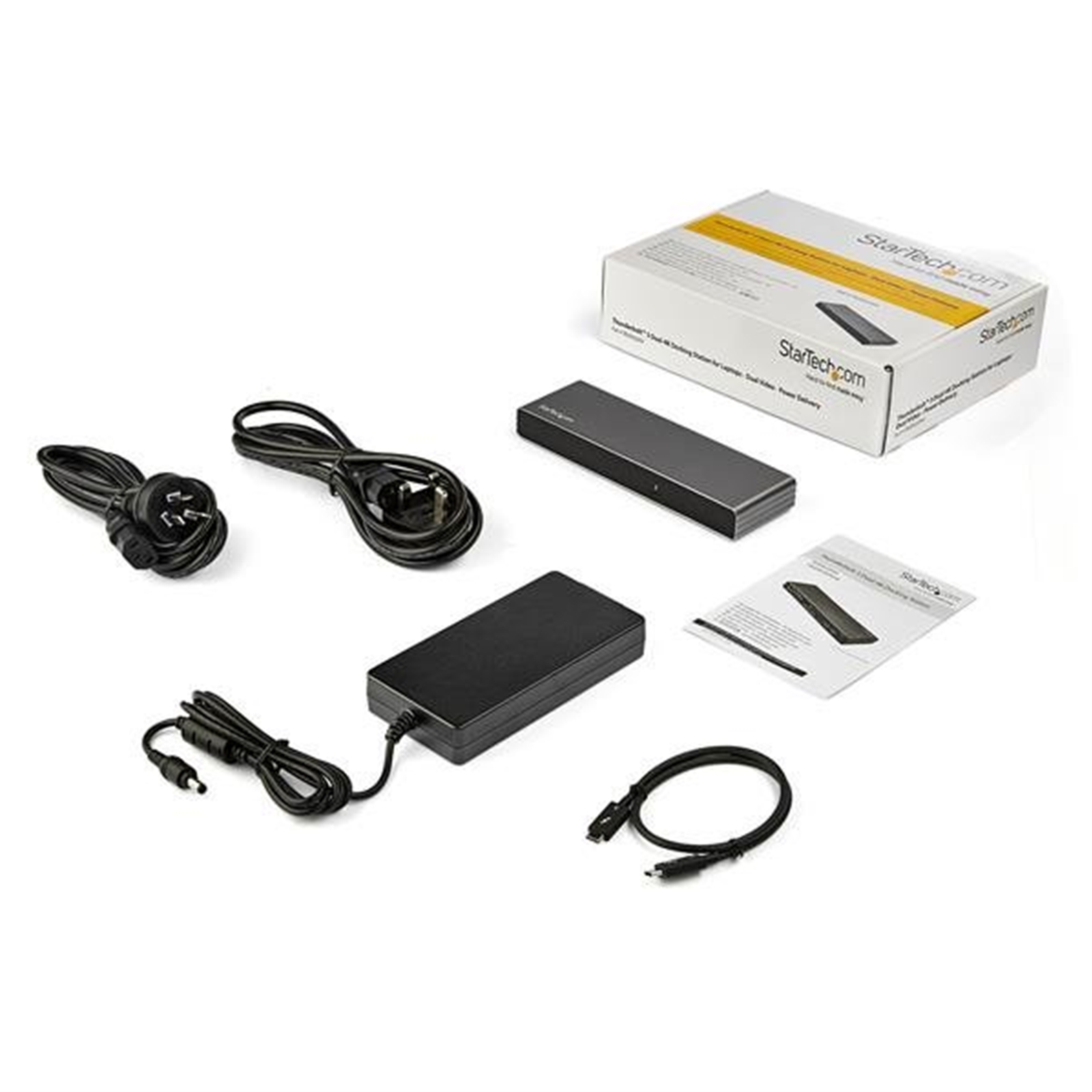

Cables included
AC, Thunderbolt
Manual
Yes
Package weight
1.3 kg
Package depth
254 mm
Package height
65 mm
Package width
187 mm
Certification
CE, FCC, REACH
Product colour
Grey
Card reader integrated
No
Housing material
Aluminium
Maximum digital resolution
4096 x 2160 pixels
HD type
4K Ultra HD
UASP support
Yes
Connectivity technology
Wired
Microphone in
No
DC-in jack
Yes
VGA (D-Sub) ports quantity
1
Host interface
Thunderbolt 3
HDMI ports quantity
1
DisplayPorts quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB Power Delivery
Yes
USB Power Delivery up to
85 W
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Sustainability certificates
RoHS
Harmonized System (HS) code
84733020
Weight
340 g
Height
24 mm
Width
58.6 mm
Depth
196 mm
