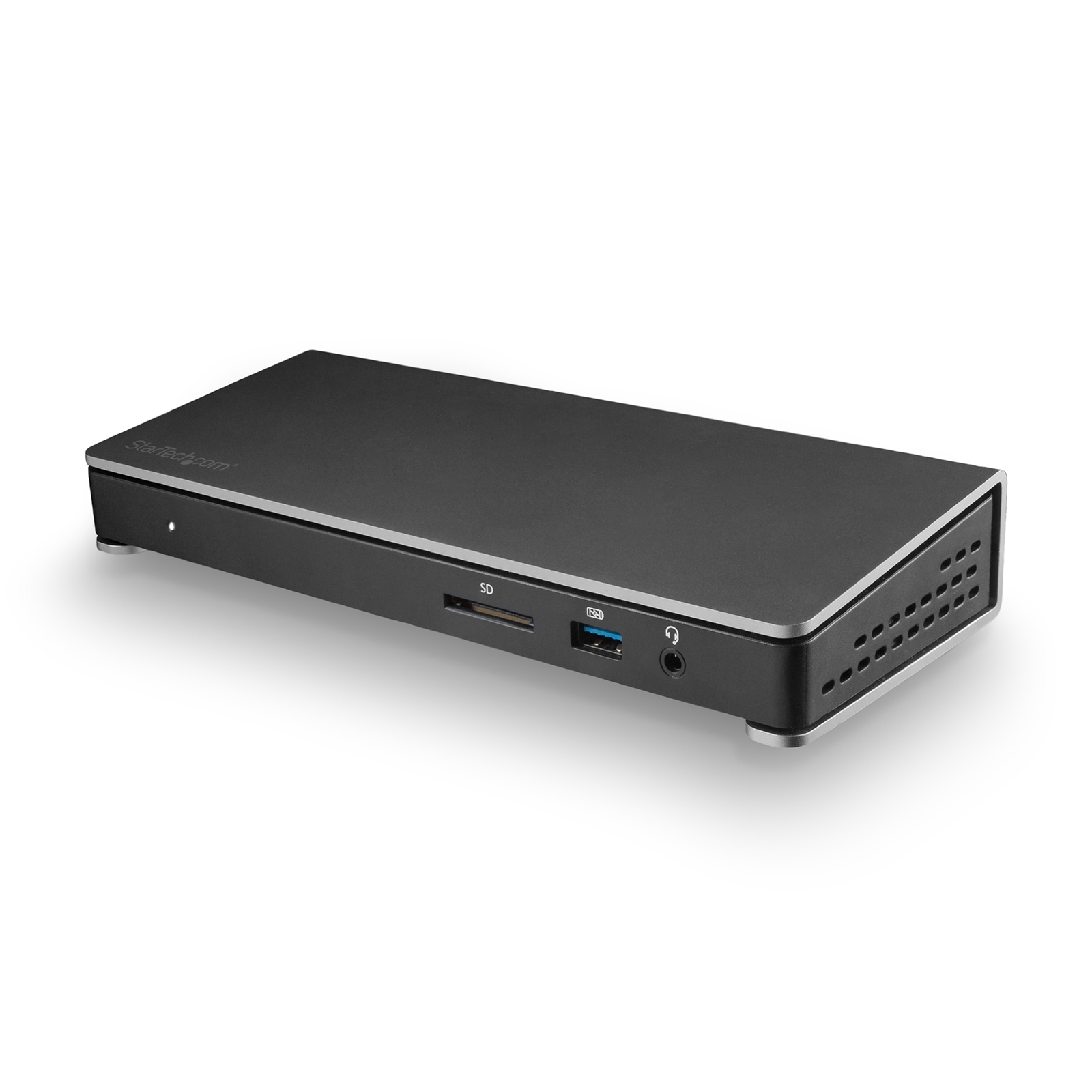

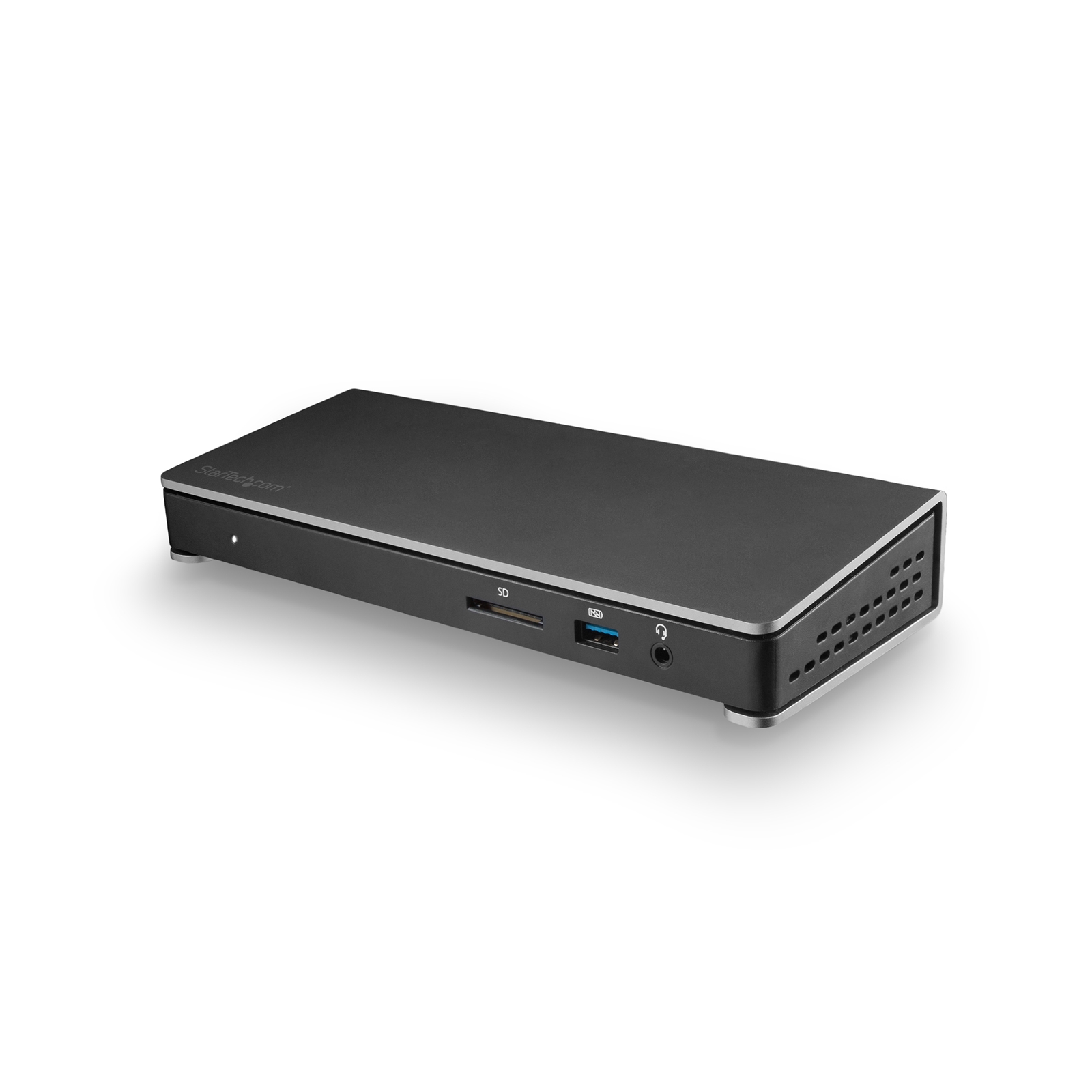

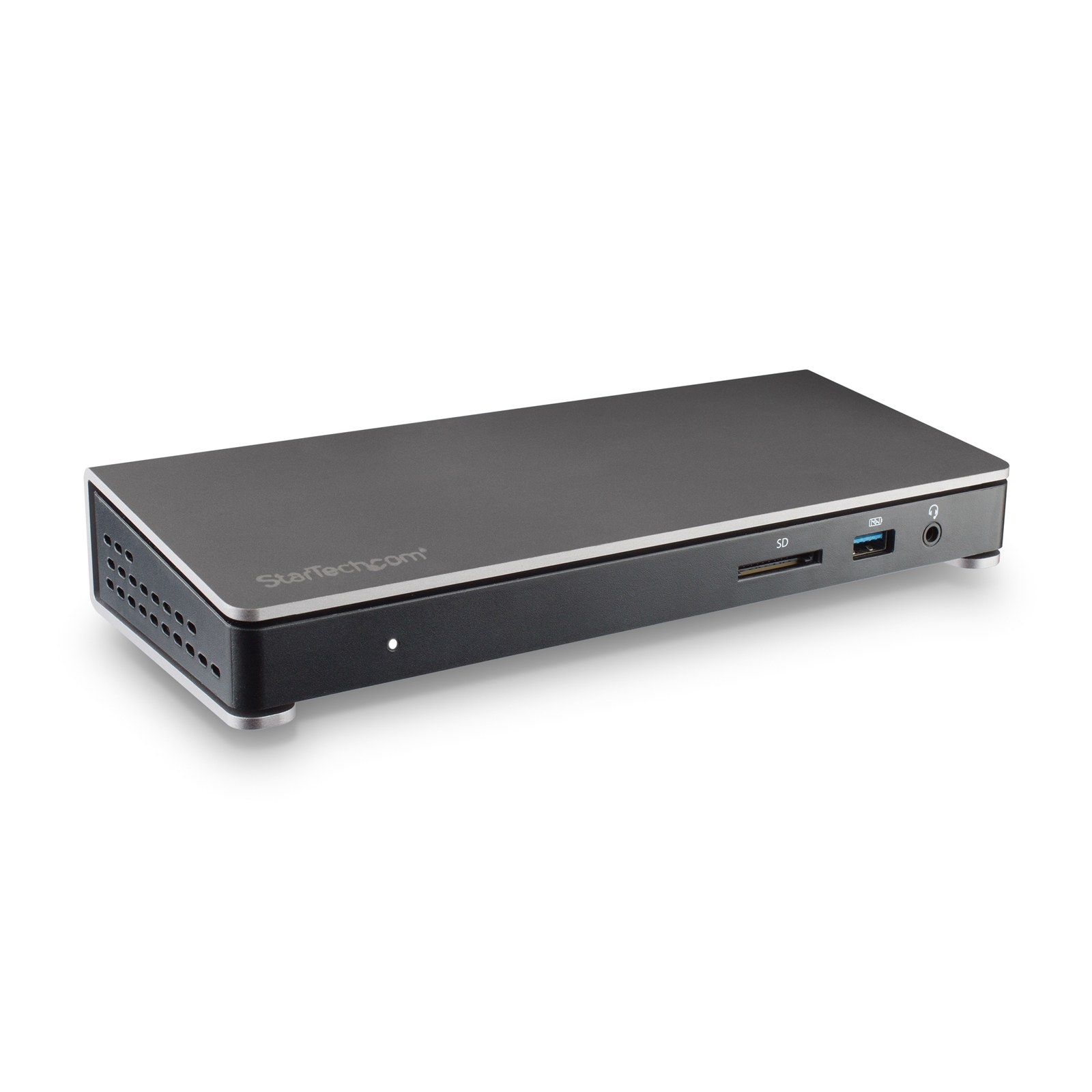

STARTECH.COM Dual 4K Thunderbolt 3 Dock

STARTECH.COM Logo here

Manufacturer Part Code: TB3DOCK2DPPU

Order Code: ACSTA-TB3DOCK2DP

Category: Docking Stations

StarTech.com Dual 4K Thunderbolt 3 Dock

"Laptop Docking Station | Mac & Windows | SD Card Reader | USB-C to DP Cable | 85W PD

Easily transform your Thunderbolt 3 equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality TB3 dock features six USB 3.0 ports, 85W Power Delivery to charge your laptop, and an SD card reader.

Create a Dual-4K 60Hz Workstation

This dual-monitor docking station supports 40Gbps speeds and 4K (4096 x 2160) resolution at 60Hz on two monitors, enabling resource-demanding applications on independent displays without draining system resources. The TB3 dock can support 5K (5120 x 2880) resolutions @ 60Hz on a single display.

Connect your laptop to:

1 x 4K monitor via the DP Port

1 x 4K monitor via the TB3 USB-C Port (1.8 m cable included)

OR

1 x 5K monitor via the DP and TB3 USB-C ports

Easy Installation & Deployment

Simply connect the TB3 dock to your laptop with the included TB3 cable and start working immediately. No time-consuming driver installations are required. Set up a second monitor using the included USB-C to DisplayPort cable adapter, eliminating the need for extra adapters.

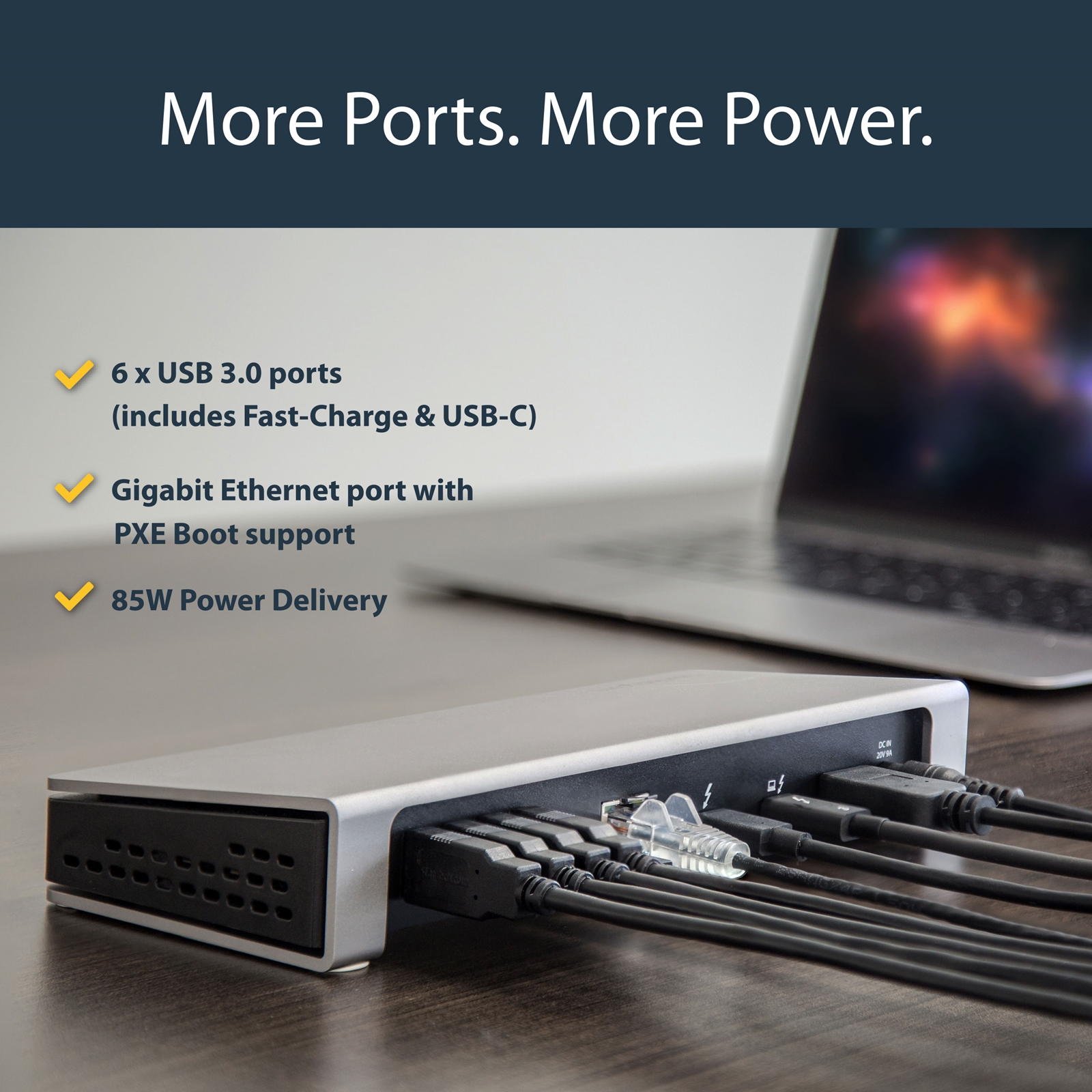

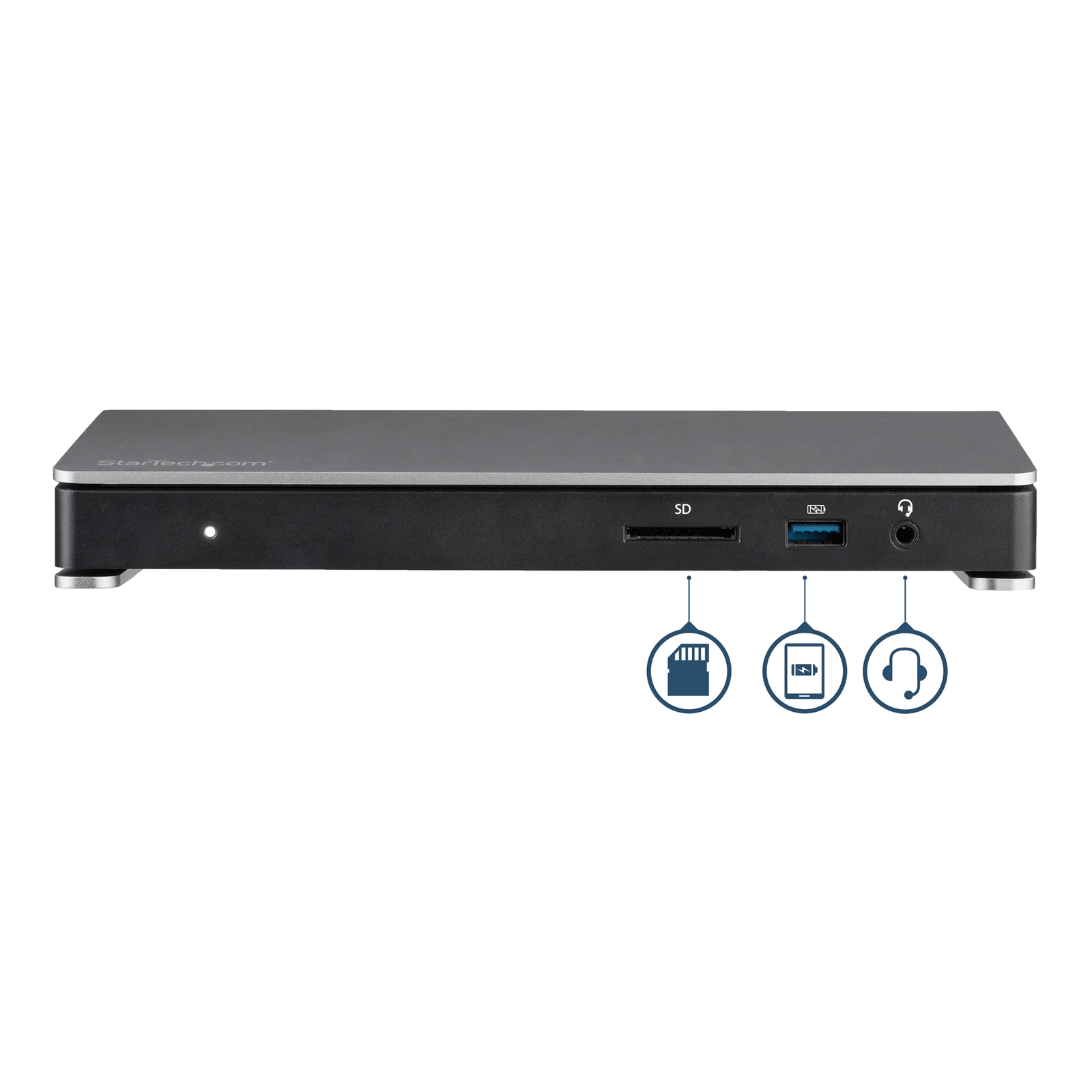

Plenty of Ports Including SD Card Reader

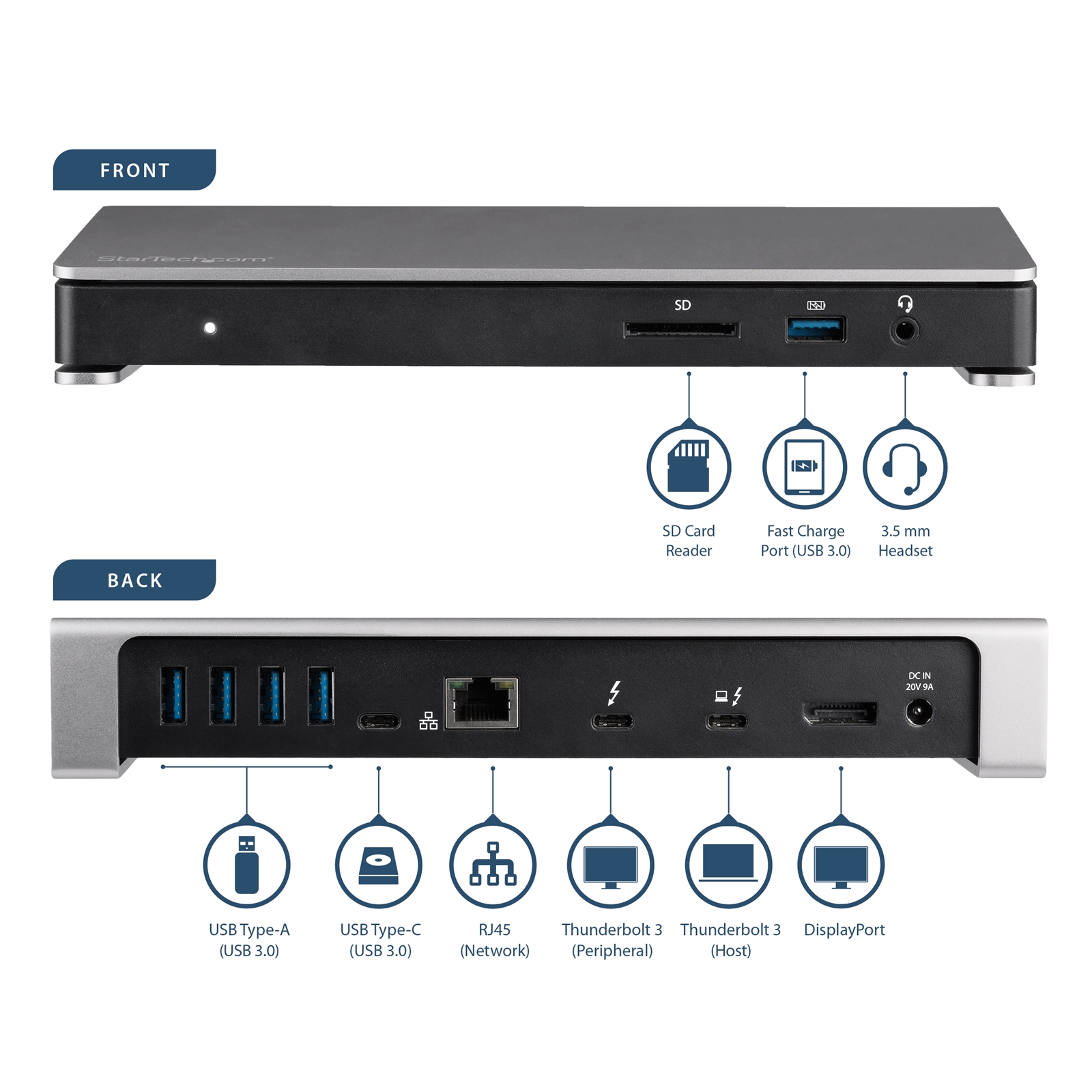

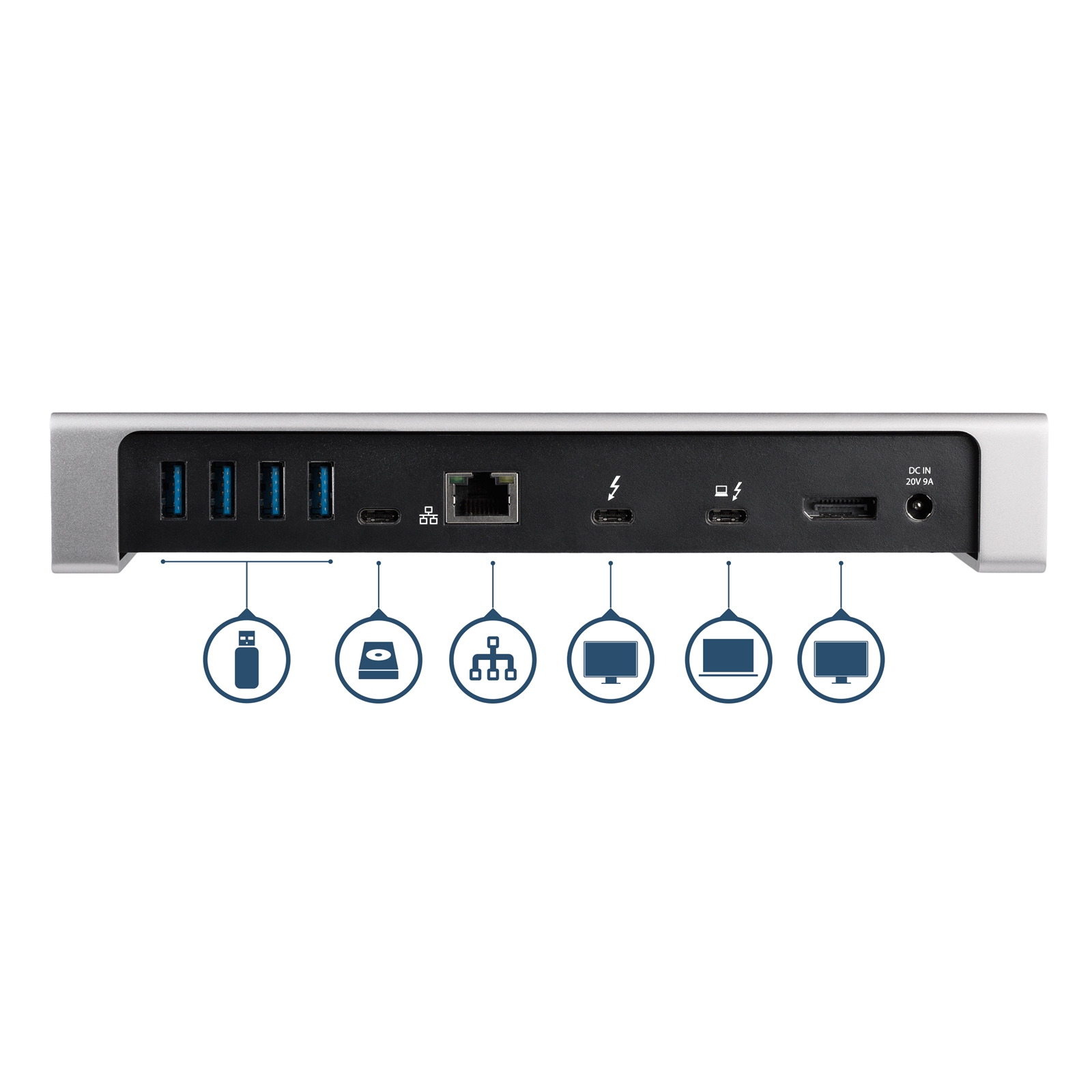

The TB3 docking station offers six USB 3.0 ports, including a Fast-Charge port and USB-C port, an GbE port and audio/microphone port. The built-in SD card reader adds storage not usually available on most docking stations.

85W Power Delivery

Using a single cable, the universal laptop docking station provides up to 85W of Power Delivery to power and charge your laptop, and power your peripherals with its 180W power adapter.

TB3DOCK2DPPU is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

- THUNDERBOLT 3 CERTIFIED DOCK: Aluminum, 40Gbps dual 4K 60Hz DP & TB3 (USB-C) video output or single monitor 5K 30Hz, 85W PD, USB 3.0 Hub, SD 4.0 card reader, Gigabit Ethernet & Headset port
- 85W POWER DELIVERY: Thunderbolt 3 Dock can power and charge Ultrabooks & workstation laptops such as MacBook Pro (15 & 16), MacBook Air, HP, Lenovo ThinkPad & Dell XPS using macOS, Windows & Linux
- MORE USB DEVICE PORTS: TB3 docking station has a 6-port USB 3.1 Gen 1 5Gbps Hub (5x USB-A, 1x USB-C ports) w/ 1x BC 1.2 (1.5A) fast charging always-on port that works with or without laptop connected"


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Certification
CE, FCC, REACH
Certification
CE, FCC, REACH
Colour of product
Black
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina
Output voltage
20 V
Power consumption (standby)
180 W
Input current
2.5 A
Output current
9 A
AC input voltage
100 - 240 V
Plug type
Type N
Compatible power plug types
EU,UK
Master (outer) case height
31.4 cm
Master (outer) case width
31 cm
Master (outer) case length
48 cm
Quantity per master (outer) case
10 pc(s)
Full duplex
Y
Ethernet LAN connection
Y
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data transfer rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Y
Operating relative humidity range
0 - 95%
Storage temperature (T-T)
-20 - 70 °C
Operating temperature range (T-T)
0 - 40 °C
Chipset
Intel - Alpine Ridge JHL6540, Texas Instruments - TPS65983, Fresco - FL1100EX, Intel - WGI210AT, C-Media - CM6533, Genesys Logic - GL3226
AC adapter included
Y

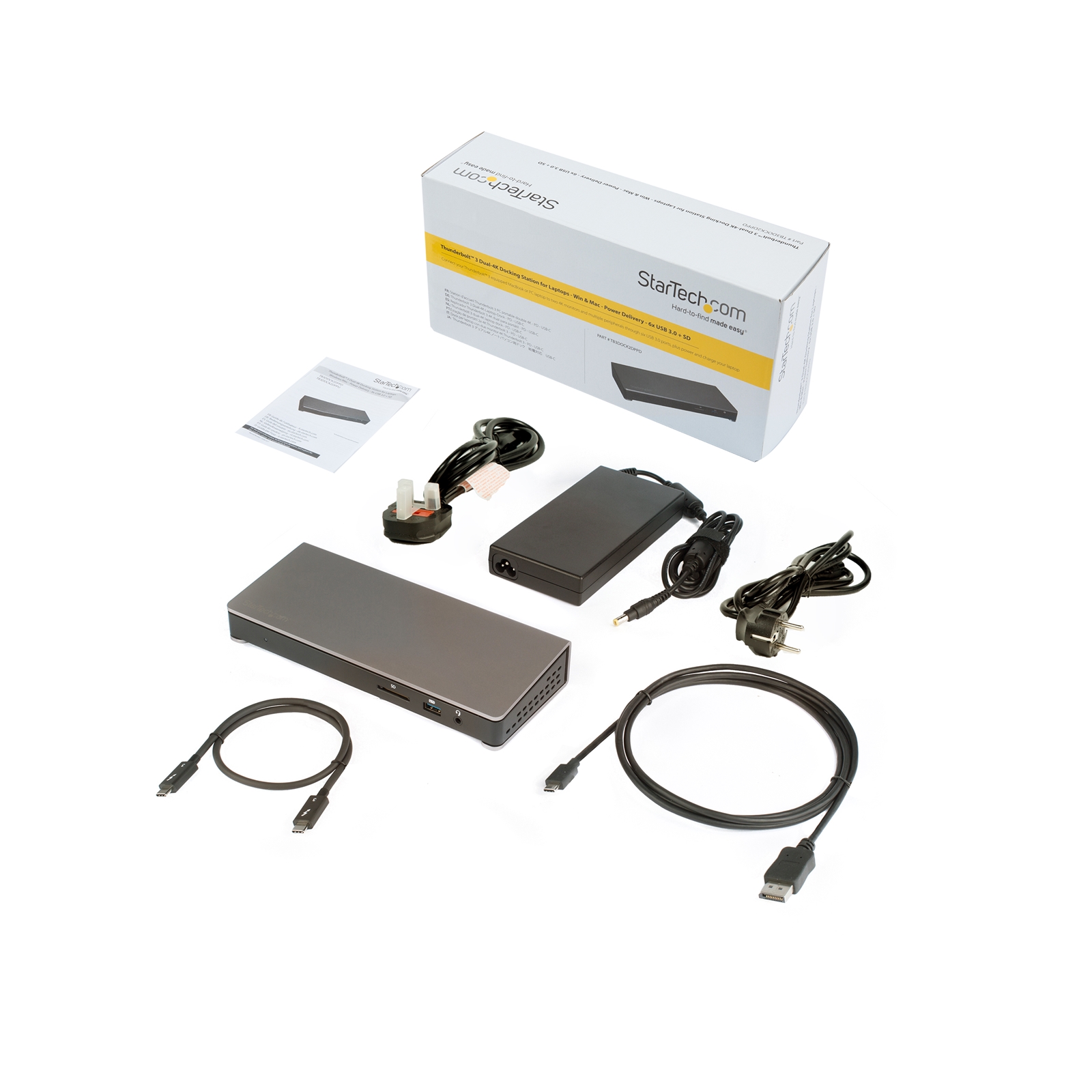

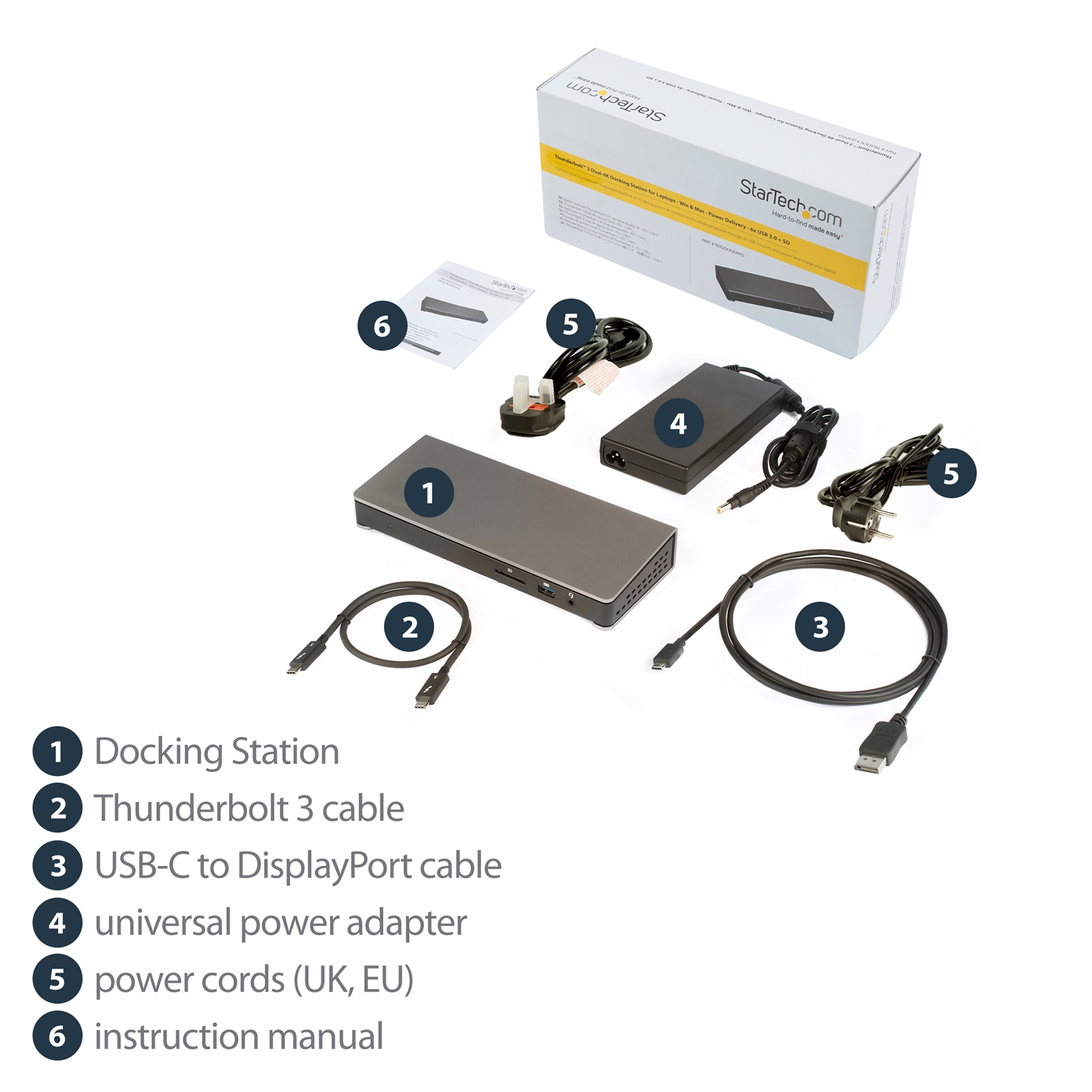

Cables included
AC,Thunderbolt,USB Type-C
Manual
Y
Package weight
1.5 kg
Package depth
295 mm
Package height
90 mm
Package width
145 mm
Certification
CE, FCC, REACH
Full duplex
Y
Compatible memory cards
MMC,MicroSDHC,MicroSDXC,SD,SDHC,SDXC
Data transfer rate
40 Gbit/s
Product colour
Black
Card reader integrated
Y
Housing material
Aluminum
Maximum digital resolution
5120 x 2880 pixels
Auto MDI/MDI-X
Y
UASP support
Y
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports quantity
1
Headphone out
1
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Headphone connectivity
3.5 mm
DisplayPorts quantity
1
Combo headphone/mic port
Y
USB 3.0 (3.1 Gen 1) Type-A ports quantity
5
Thunderbolt 3 ports quantity
2
USB Power Delivery
Y
USB Power Delivery up to
85 W
Mac compatibility
Y
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina
Compatible memory cards
MMC,MicroSDHC,MicroSDXC,SD,SDHC,SDXC
Card reader integrated
Y
Data transfer rate
40 Gbit/s
Colour of product
Black
Weight
489 g
Package weight
1.5 kg

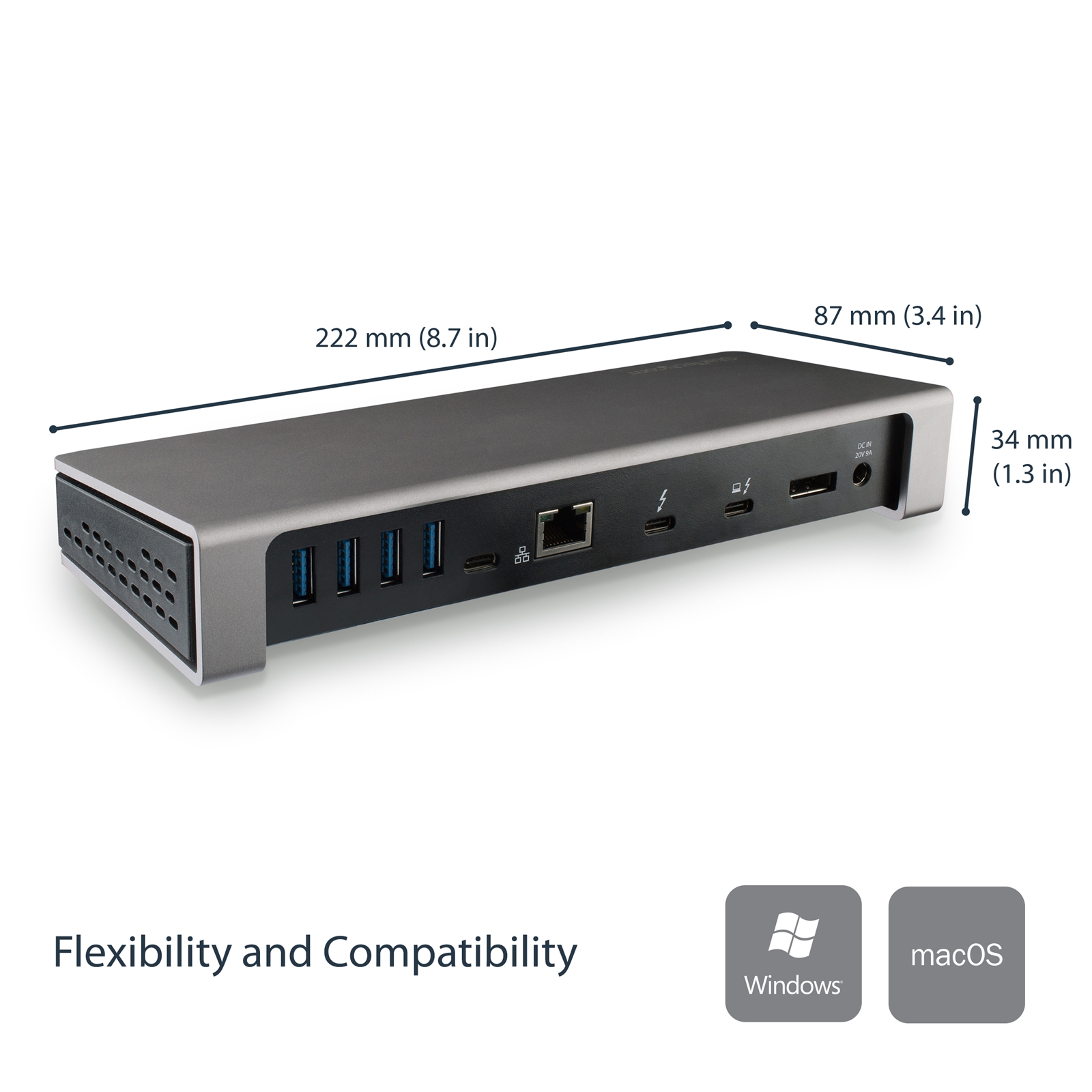

Height
34 mm
Width
87 mm
Depth
222 mm
Package depth
295 mm
Packaging height
90 mm
Packaging width
145 mm
