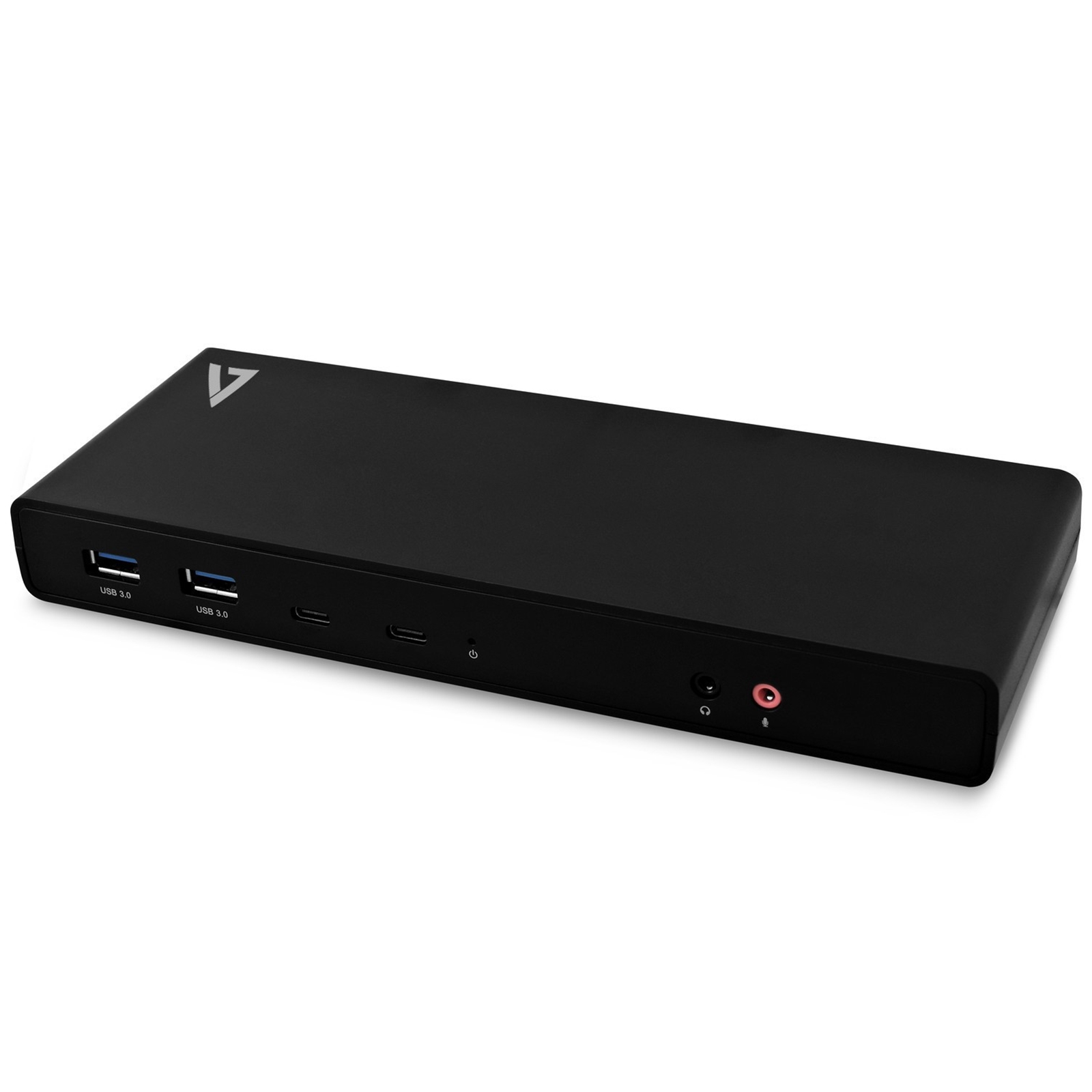

V7 Dual Universal Docking Station with USB-C Power Delivery

V7 Logo here

Manufacturer Part Code: UCDDS-1E

Order Code: ACKEN-UCDDS1E

Category: Docking Stations

Dual Universal Docking Station with USB-C Power Delivery

The UCDDS Universal USB-C Docking Station from V7 adds HDMI, Audio, Ethernet, and USB-C plus USB 3.0 to almost any computer, all from a single device. The universal docking station features HDMI and Displayport monitor outputs that can be used to expand or mirror your desktop for the ultimate in productivity. Both HDMI and Displayport outputs support video resolution up to 4K for a stunning display no matter what's on screen. This all-in-one solution combines USB-C and USB 3.0 ports, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port into a single docking station, making it the perfect accessory for adding robust functionality for users who need to connect and manage multiple devices at home or at the office.

- Connect your Notebook or PC to additional monitors and your favorite accessories via a single cable, Thunderbolt compatible USB-C or USB-A (cable included)
- Graphic interface: 2x HDMI and 2x DisplayPort. The docking station supports the up to 2 monitors. 2 monitors connected: Supports up to 4096 x 2160. 1 monitor connected: Supports up to 51202880, PC and Monitor must be able to support 5K resolution
- 4x USB-A 3.0 ports for connecting all accessories and hardware. USB-A ports are USB 3.0 and backwards compatible with 2.0 devices and providing high-speed data transmission, up to 5 Gbps, USB ports also support quick charging for smartphones and tablets
- 2x USB-C 3.1 port for the connection of your devices with a uses USB-C, supporting high-speed transfer up to 5 Gbps
- Thunderbolt compatible Power Delivery Option for USB-C, up to 60W output to charge your laptop


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Built-in speaker(s)
N
Built-in speaker(s)
No
Built-in speaker(s)
N
Certification
CE, FCC
RoHS compliance
Y
Certification
CE, FCC
Colour of product
Black
Country of origin
China
RoHS compliance
Y
Windows operating systems supported
Windows 10,Windows 7,Windows 8,Windows 8.1
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Output voltage
19 V
Output current
3.42 A
Power source type
AC
Power consumption (max)
65 W
Power source type
AC
Harmonized System (HS) code
84733020
Built-in speaker(s)
N
Optical drive included
N
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet LAN connection
Y
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data transfer rates
10,100,1000 Mbit/s
Optical drive included
N
Charging connector
Y
AC adapter included
Y
AC adapter included
Yes
Cables included
AC, USB, USB Type-C
Quick start guide
Y
Quick start guide
Yes
AC adapter included
Y
Cables included
AC, USB, USB Type-C
Quick start guide
Y
Quantity per pack
1 pc(s)
Package weight
1.57 kg
Package depth
68 mm
Package height
180 mm
Package width
270 mm
Quantity per pack
1 pc(s)
Quantity per pack
1 pc(s)
Certification
CE, FCC
Data transfer rate
5 Gbit/s
Product colour
Black
Certification
CE, FCC
Built-in speaker(s)
N
Built-in speaker(s)
No
Country of origin
China
Card reader integrated
No
Data transfer rate
5 Gbit/s
Product colour
Black
Maximum digital resolution
5120 x 2880 pixels
On/off switch
Yes
Brand compatibility
Any brand
Optical drive included
N
Optical drive included
No
Charging function
Y
Charging function
Yes
Number of displays supported
2
Built-in speaker(s)
N
Country of origin
China
Card reader integrated
N
Maximum digital resolution
5120 x 2880 pixels
On/off switch
Y
RoHS compliance
Y
Brand compatibility
Universal
Optical drive included
N
Charging function
Y
Number of displays supported
2
Connectivity technology
Wired
USB connector type
USB Type-A, USB Type-C
Headphone outputs
1
Microphone in
Yes
DC-in jack
Yes
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
HDMI ports quantity
2
Headphone connectivity
3.5 mm
Connectivity technology
Wired
USB connector type
USB Type-A, USB Type-C
DisplayPorts quantity
2
Ethernet LAN (RJ-45) ports quantity
1
Headphone out
1
Microphone in
Y
DC-in jack
Y
Host interface
USB 3.0 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
HDMI ports quantity
2
DisplayPorts quantity
2
USB 3.0 (3.1 Gen 1) Type-A ports quantity
4
USB 3.0 (3.1 Gen 1) Type-C ports quantity
3
USB 3.1 (3.1 Gen 2) Type-A ports quantity
4
Mac compatibility
Yes
Mac compatibility
Y
Windows operating systems supported
Windows 10, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported
Windows 10,Windows 7,Windows 8,Windows 8.1
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Card reader integrated
N
Sustainability certificates
RoHS
Data transfer rate
5 Gbit/s
Colour of product
Black
Harmonized System (HS) code
84733020
Brand compatibility
Universal
Weight
362 g
Height
85 mm
Weight
362 g
Width
225 mm
Depth
25 mm
