Be Quiet! 450W be quiet! SFX Power 3, 80 PLUS Bronze Wired PSU, Single Rail, 37.5A +12V, B

Logo here

Manufacturer Part Code: BN321

Order Code: PSBEQ-BN321

Category: PC Power Supplies

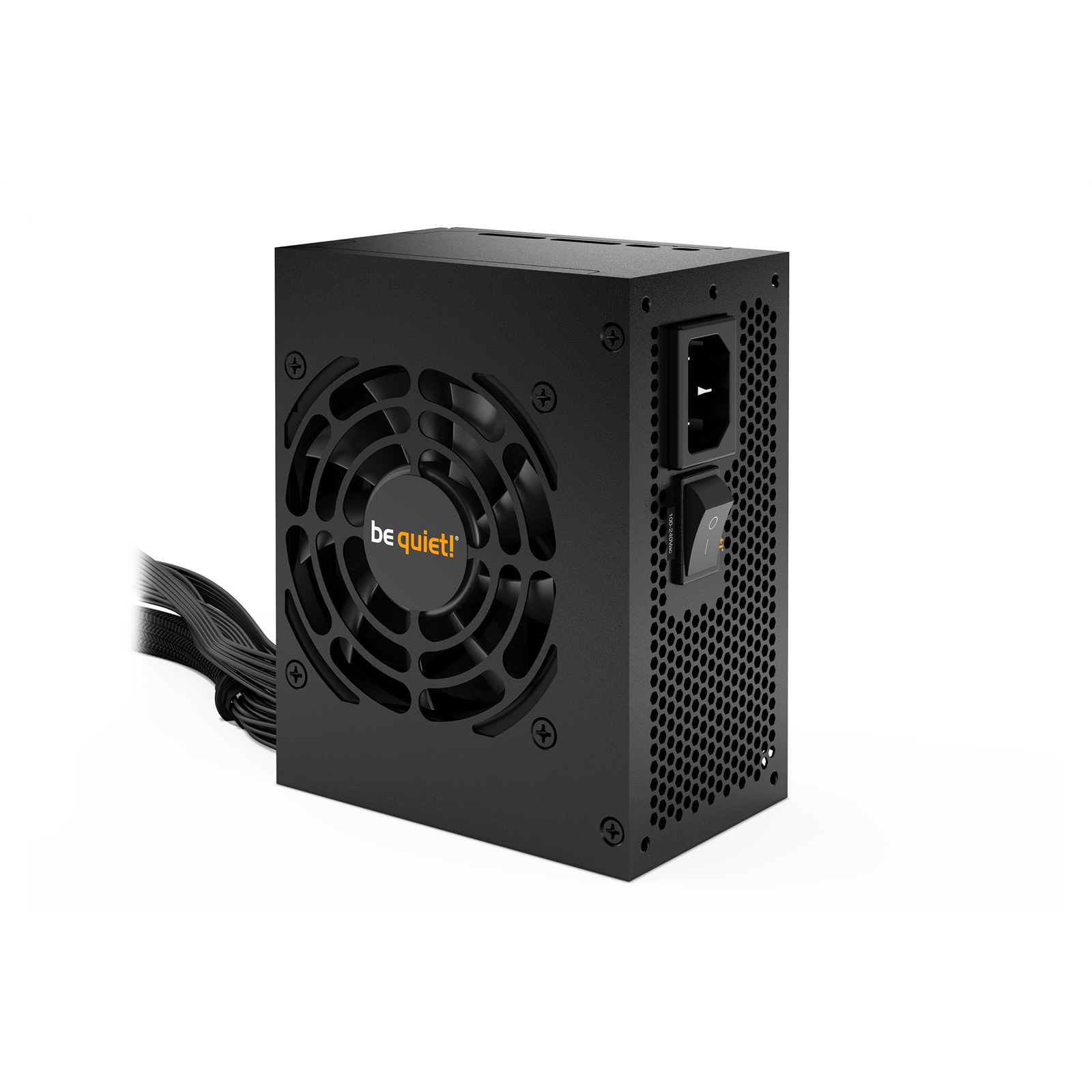

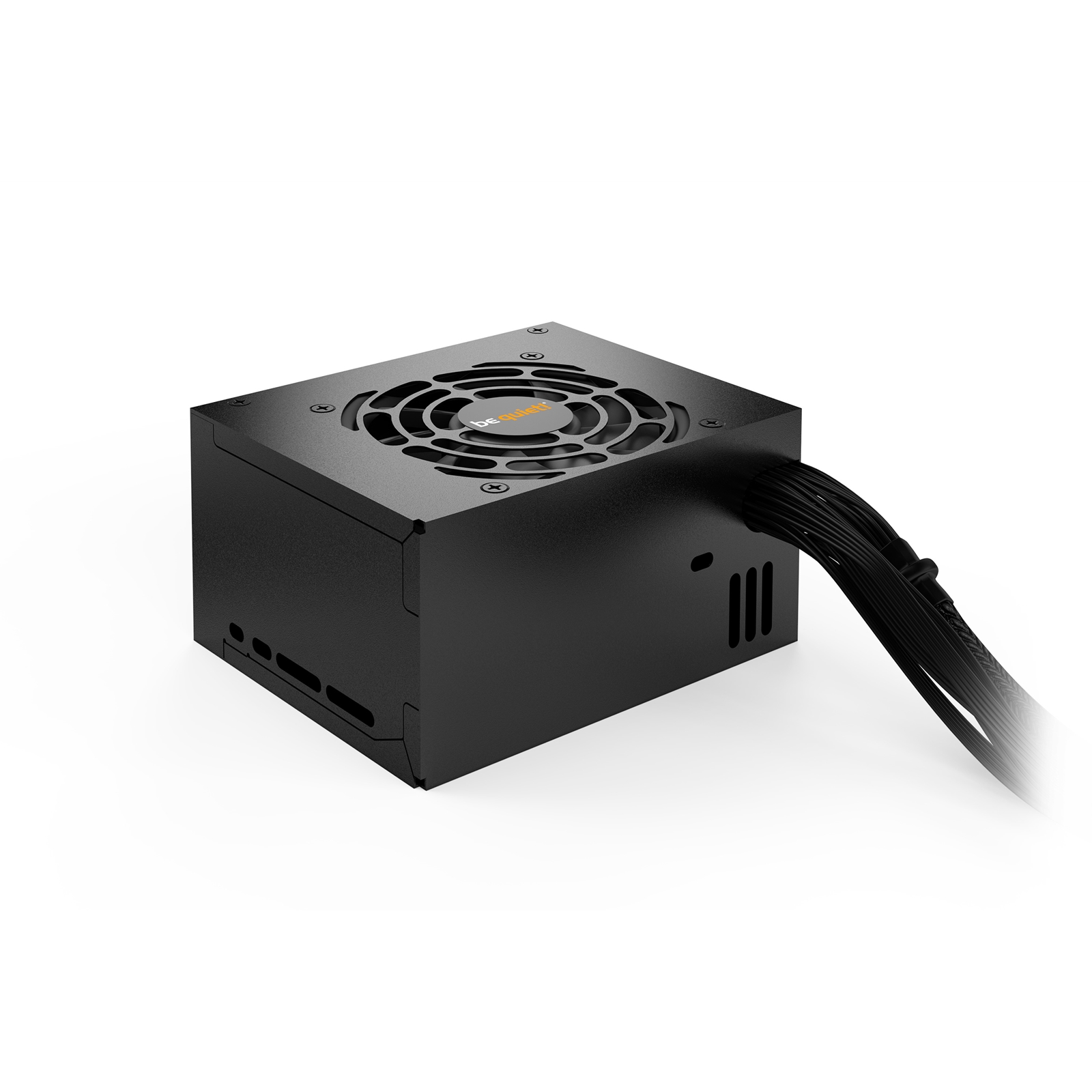

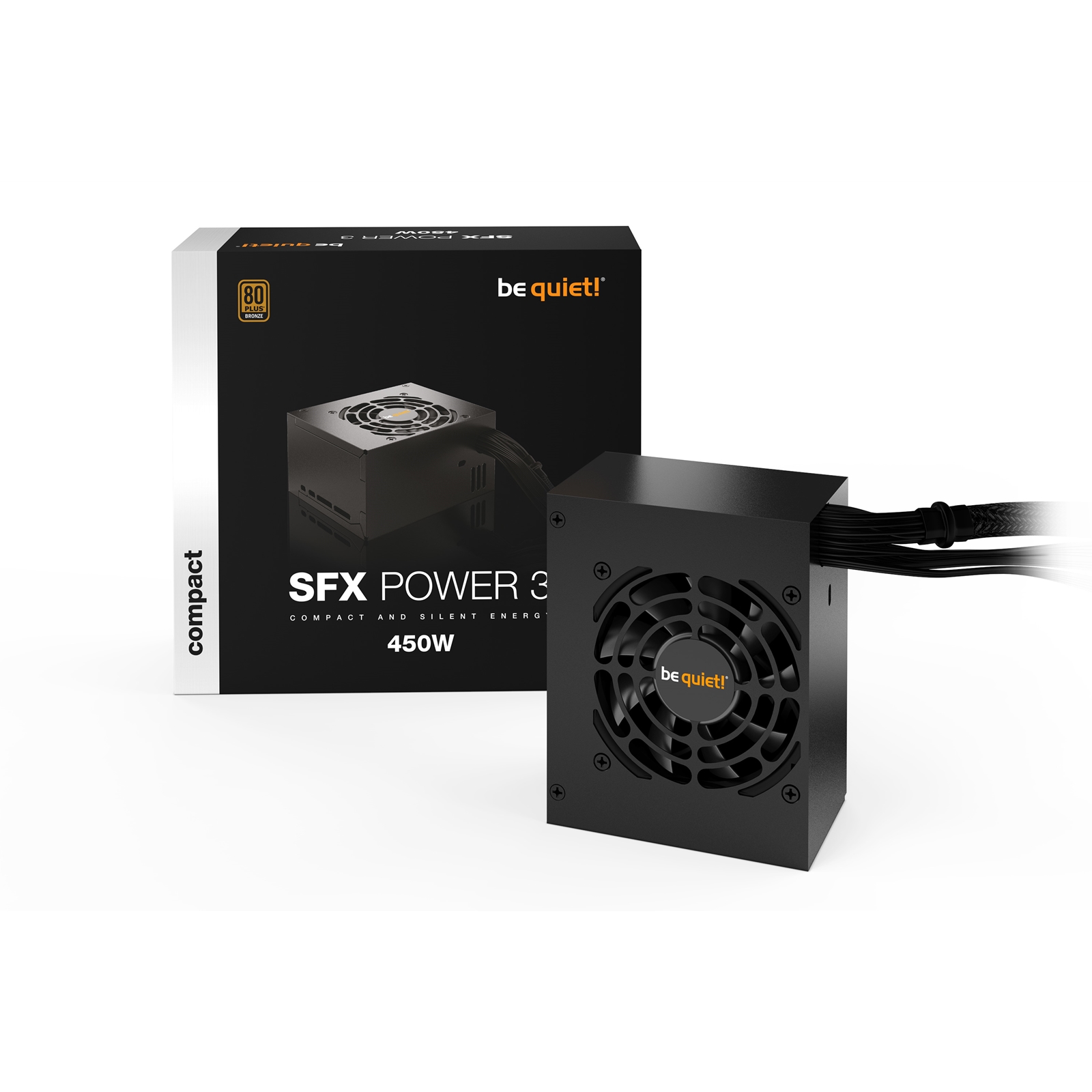

Be Quiet! 450W be quiet! SFX Power 3, 80 PLUS Bronze Wired PSU, Single Rail, 37.5A +12V, Black, SFX PSU

SFX Power 3 450W, the compact PSU from be quiet! that gives you more for your mini or media PC. It provides enough power to support powerful PCIe graphics cards while offering the ideal combination of power, quietness and reliability. That makes it the perfect choice for compact PC systems that perform beyond the ordinary.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Product colour
Black
Number of fans
1 fan(s)
On/off switch
Yes
Cooling type
Active
Fan diameter
8 cm
Peak power
500 W
Input current
6/2.5 A
Efficiency
85.9%
Hold time
21 ms
Power protection features
Over current, Over power, Over voltage, Short circuit, Under voltage
Power factor
0.98
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
85 W
Combined power (+12V)
450 W
Combined power (+5V)
85 W
Max output current (+3.3V)
16 A
Max output current (+5V)
16 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Max output current (+12V1)
37.5 A
Total power
450 W
Maximum input current (@110V)
6 A
Maximum input current (@220V)
2.5 A
Shipping (inner) case width
26.5 cm
Shipping (inner) case length
45.7 cm
Shipping (inner) case height
23.3 cm
Shipping (inner) case gross weight
8.19 kg
Products per shipping (inner) case
6 pc(s)
Harmonized System (HS) code
84733020
Harmonized System (HS) code
84733020
Package weight
1.24 kg
Package depth
75 mm
Package height
207 mm
Package width
197 mm
Package type
Box
Mean time between failures (MTBF)
100000 h
Safety
CE, CB, TÜV, CU

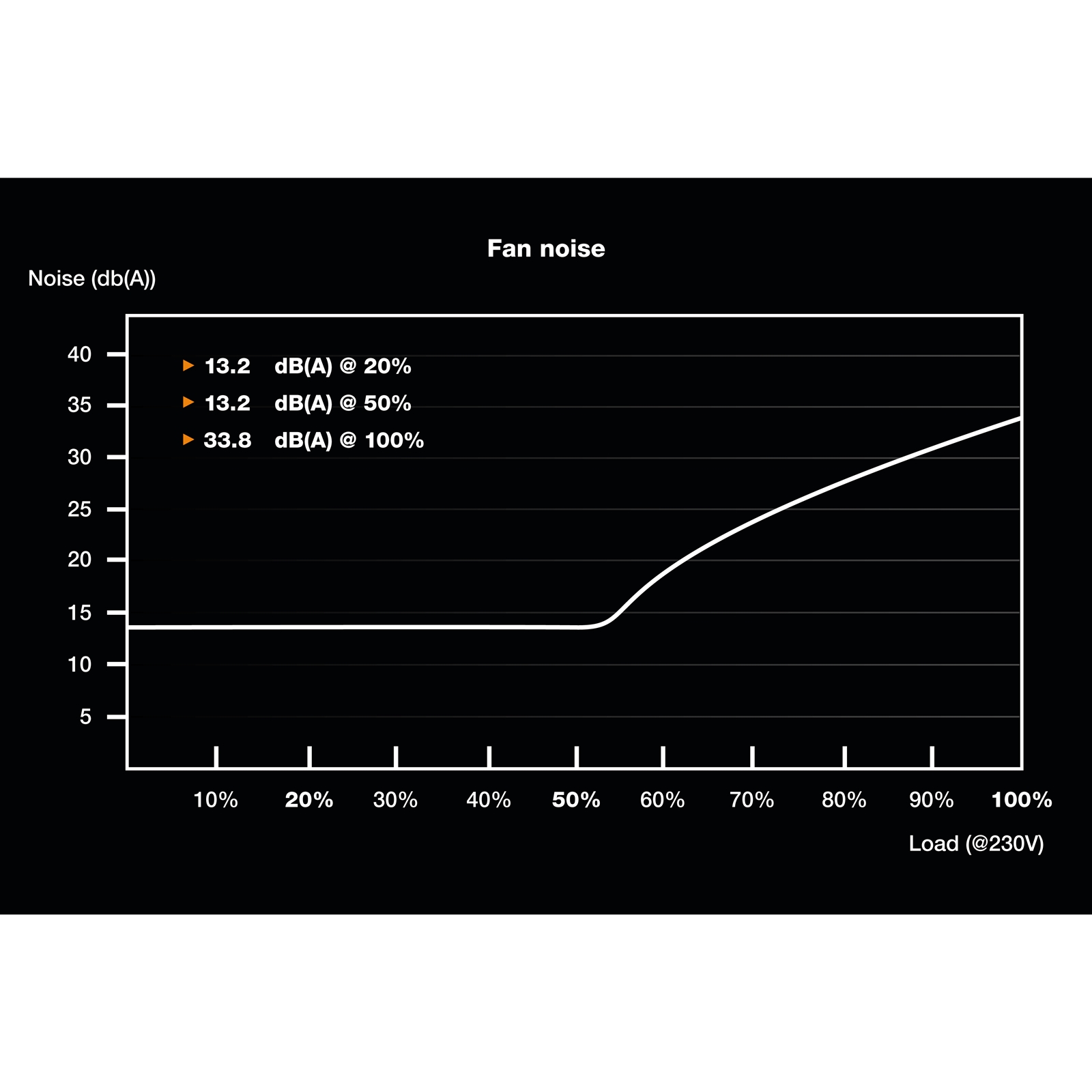

Noise level
33.8 dB
Purpose
PC
Bearing technology
Rifle
ATX version
3.42
EPS version
2.92
80 PLUS certification
80 PLUS Bronze
Power supply unit (PSU) form factor
SFX
Motherboard power connector
20+4 pin ATX
Floppy drive power connector
1
Number of SATA power connectors
3
Peripheral (Molex) power connectors (4-pin)
2
PCI Express power connectors (6+2 pin)
2
Cabling type
Non-Modular
Motherboard power cable length
35 cm
SATA power cable length
300,450,600 mm
Peripheral (Molex) power cable length
300,450 mm
PCI Express power cable length
55 cm
Floppy disk drive cable length
60 cm
EPS power connector (4+4 pin)
Yes
Safety
CE, CB, TÜV, CU
Sustainability compliance
Yes
Sustainability certificates
ENERGY STAR, ErP, RoHS, WEEE
Weight
890 g
Height
64 mm
Width
125 mm
Depth
100 mm
