IIYAMA PROLITE T1731SR-B1S 17 inch Touchscreen Monitor, 5-wire Resisitive Touch Technology, IP54, 12

IIYAMA Logo here

Manufacturer Part Code: T1731SR-B1S

Order Code: MOIIY-T1731SRB1S

Category: 23 Inch and above PC Monitors

iiyama PROLITE T1731SR-B1S 17 inch Touchscreen Monitor, 5-wire Resisitive Touch Technology, IP54, 1280x1024, 5ms, VGA, HDMI, DisplayPort, Speakers, Black, Internal PSU, VESA

ProLite T1731SR-B1S
17" Touchscreen with 5-wire Resistive Touch Technology
The T1731SR-B1S is based on 5 wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display inputs include both analogue and digital (HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The T1731SR-B1S can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes.

IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.

Speakers
This LED monitor is equipped with two high quality stereo speakers.

VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.

Touch technology - Resistive
5-wire resistive touchscreens are very durable and can be used in a variety of environments. They are especially recommended for shops, restaurants and industrial purposes.

Specifications

Display

Diagonal
17", 43cm

Panel
TN

Native resolution
1280 x 1024 (1.3 megapixel)

Aspect ratio
5:4

Panel brightness
250 cd/m²

Light transmittance
80%

Static contrast
1000:1 with touch

Response time (MPRT)
5ms

Viewing zone
horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°

Colour support
16.7mln

Horizontal Sync
31.5 - 80kHz

Viewable area W x H
338 x 270mm, 13.3 x 10.6"

Pixel pitch
0.264mm

Colour
matte, black

TOUCH
Touch technology
serial resistive

Touch points
1

Touch method
stylus, finger, glove

Touch interface
USB

Supported operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

INTERFACES, CONNECTORS, CONTROLS

Analog signal input
VGA x1

Digital signal input
HDMI x1
DisplayPort x1

Audio output
Speakers 2 x 1W

HDCP
yes

FEATURES

Water and dust protection
IP54 (front)

OSD key lock
yes

General
OSD languages
EN, DE, FR, ES, IT, CN, JP

Control buttons
Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power

User controls
contrast, brightness, lock mode (power, OSD), auto adjust, OSD, H. position, V. position, H-size, fine, OSD H. position, OSD V. position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute

Speakers
2 x 2W

Convenience
Kensington-lock™ prepared

MECHANICAL

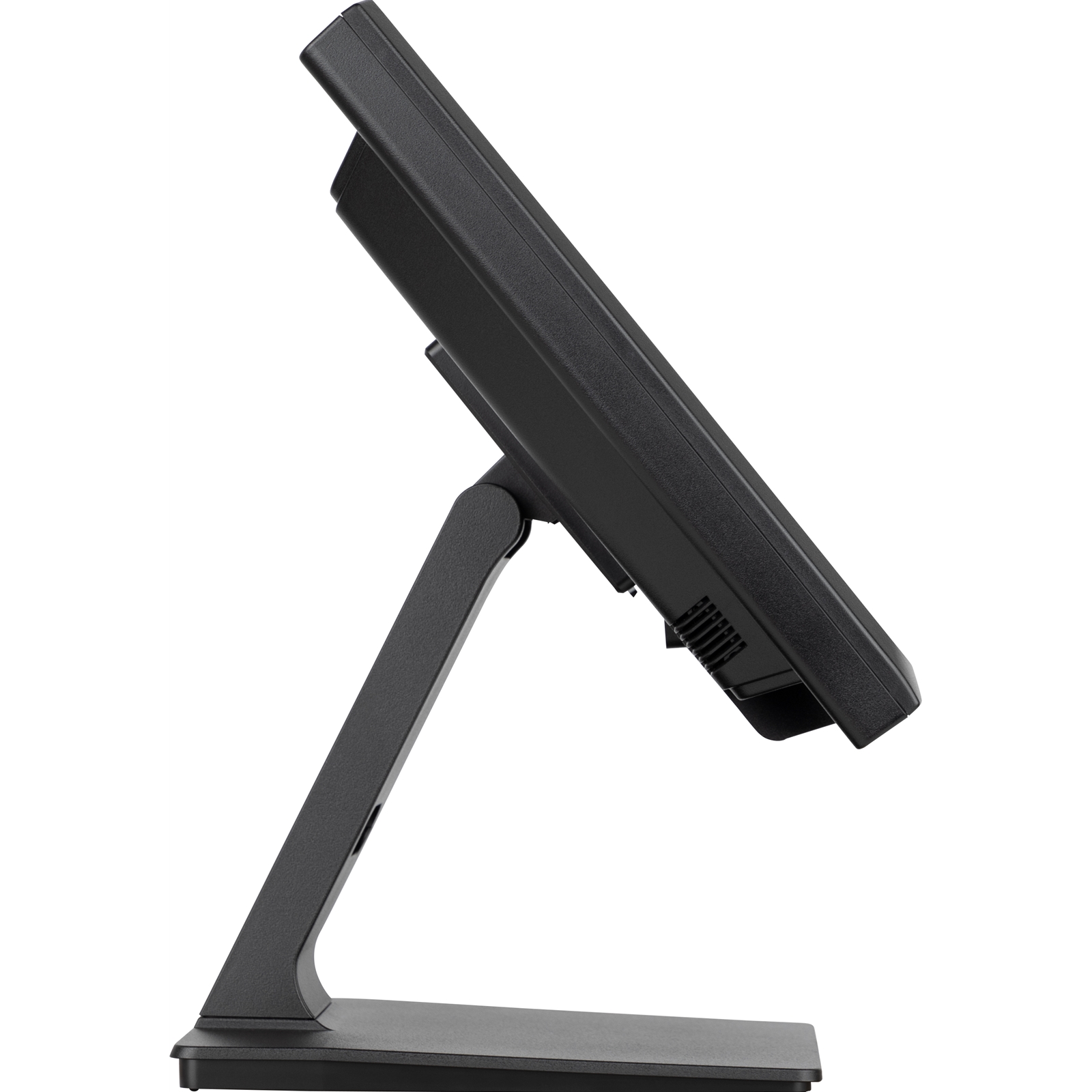

Display position adjustments
tilt

Tilt angle
90° up; 5° down

VESA mounting
100 x 100mm

Cable management system
yes

ACCESSORIES INCLUDED

Cables
power, USB, HDMI, Audio, DP

Other
quick start guide, safety guide

POWER MANAGEMENT

Power supply unit internal

Power supply
AC 100 - 240V, 50/60Hz

Power usage20W typical, 1.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations
CE, TUV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA

Energy efficiency class (Regulation (EU) 2017/1369)
E

REACH SVHC
above 0.1%: Lead

WEIGHT & DIMENSIONS
Product dimensions W x H x D 387 x 378 x 239.5mm
Weight (without box) 5.4kg


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Product colour
Black
International Protection (IP) code
IP54
Detachable stand
No
Pixel pitch
0.264 x 0.264 mm
Contrast ratio (typical)
1000:1
Horizontal scan range
31.5 - 80 kHz
Viewing angle, horizontal
170°
Viewing angle, vertical
160°
Viewable size, horizontal
33.8 cm
Viewable size, vertical
27 cm
Display diagonal
43.2 cm (17")
Response time
5 ms
Display resolution
1280 x 1024 pixels
Display diagonal (metric)
43 cm
Touchscreen
Yes
Touch technology
Single-touch
Touchscreen technology
Resistive
Display technology
LCD
Native aspect ratio
5:4
HD type
SXGA
Panel type
TN
Screen shape
Flat
Display number of colours
16.7 million colours
Display brightness (typical)
250 cd/m²
Power consumption (typical)
20 W
Power consumption (off)
0.3 W
Power consumption (standby)
1.5 W
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Energy efficiency scale
A to G
Energy efficiency class (SDR)
E
Energy consumption (SDR) per 1000 hours
13 kWh
European Product Registry for Energy Labelling (EPREL) code
1552074
Cable lock slot
Yes
Tilt angle range
-5 - 90°
On Screen Display (OSD)
Yes
Panel mounting interface
100 x 100 mm
On Screen Display (OSD) languages
Simplified Chinese, German, English, Spanish, French, Italian, Japanese
Tilt adjustment
Yes
Cable lock slot type
Kensington
VESA mounting
Yes
RMS rated power
2 W
Built-in speaker(s)
Yes
Built-in camera
No
Number of speakers
2
Touchscreen
Yes
International Protection (IP) code
IP54
Stand included
Yes
Stand included
Yes
VGA (D-Sub) ports quantity
1
HDMI ports quantity
1
HDMI
Yes
HDCP
Yes
DisplayPorts quantity
1
European Product Registry for Energy Labelling (EPREL) code
1552074
Width (with stand)
387 mm
Height (with stand)
378 mm
Depth (with stand)
239.5 mm
Weight (with stand)
5.4 kg
