Intel PC Processors | INTEL  Core i5 12500 6 Core Processor Processor 12 Threads, 3.0GHz up to 4.6Ghz Turbo Alder Lake Sock | BX8071512500 | ServersPlus

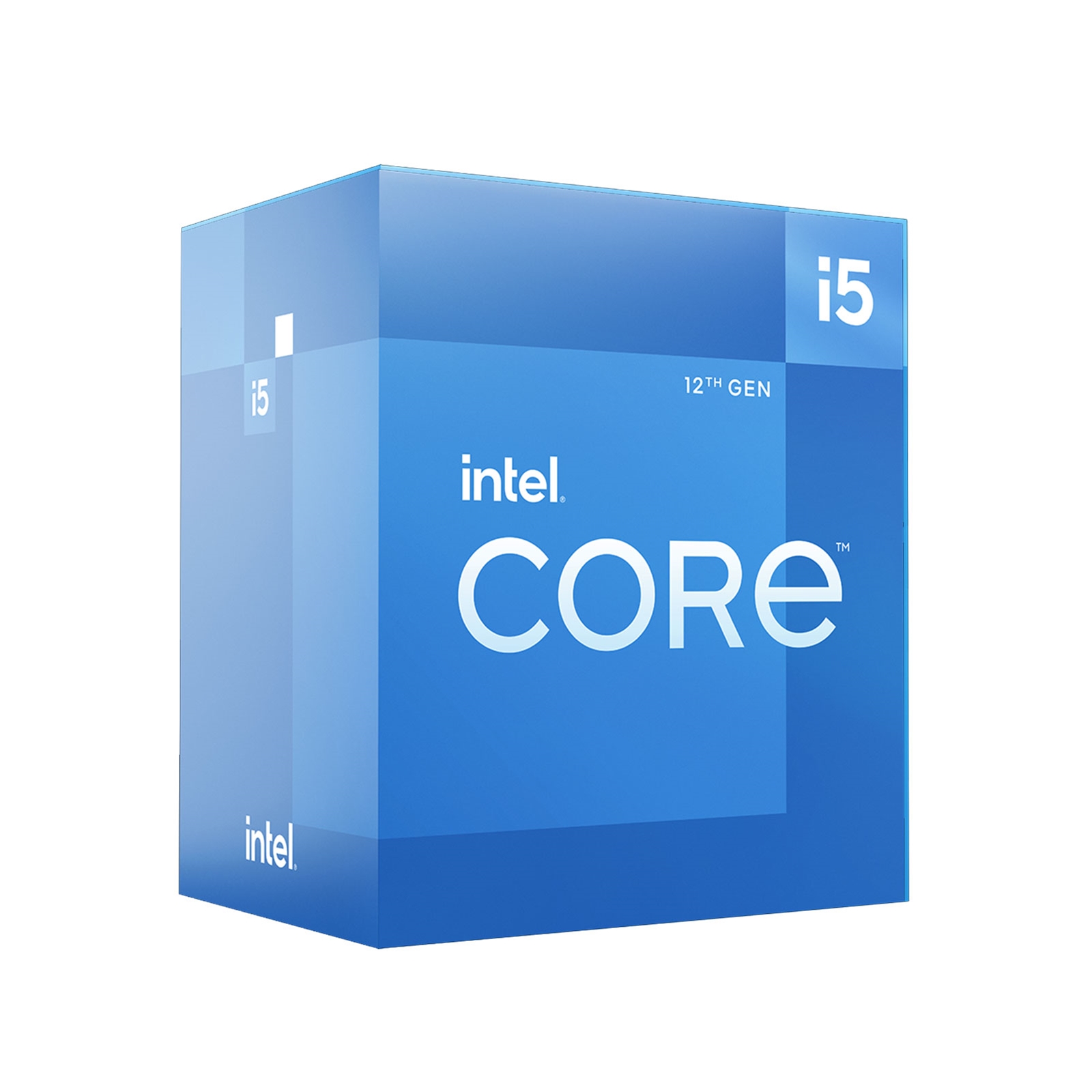

Illustration purposes only

INTEL Core i5 12500 6 Core Processor Processor 12 Threads, 3.0GHz up to 4.6Ghz Turbo Alder Lake Sock

INTEL Logo here

Manufacturer Part Code: BX8071512500

Order Code: PRINT-I512500

Category: Intel PC Processors

Intel Core i5 12500 6 Core Processor Processor 12 Threads, 3.0GHz up to 4.6Ghz Turbo Alder Lake Socket LGA 1700 18MB Cache, 65W, Maximum Turbo Power 117W Cooler

Chip Name
BX8071512500 Alder Lake

Socket
LGA1700

Total Cores
6

Number of Peformance Cores
6

Number of Efficient Cores
0

Total Threads
12

Max Turbo Frequency
4.60Ghz

Intel Turbo Boost Max Technology 3.0 Frequency
N/A

Performance-core Max Turbo Frequency
4.60Ghz

Efficient-core Max Turbo Frequency
N/A

Performance-core Base Frequency
3.00Ghz

Efficient-core Base Frequency
N/A

Cache
18MB

Total L2 Cache
7.5MB

Processor Base Power
65W

Maximum Turbo Power
117W

Max Memory Size (dependent on memory type)
128GB

Processor Graphics
Intel UHD Graphics 770

Graphics Base Frequency
300 MHz

Graphics Max Dynamic Frequency
1.45 GHz

Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units
32

Max Resolution (HDMI)
4096 x 2160 @ 60Hz

Max Resolution (DP)
7680 x 4320 @ 60Hz

DirectX Support
12

OpenGL Support
4.5

Intel Quick Sync Video
Yes

Intel Clear Video HD Technology
Yes

Number of Displays Supported
4

OpenCL Support
2.1

Direct Media Interface (DMI) Revision
4.0

PCI Express Revision
5.0 and 4.0

Max Number of PCI Express Lanes
20

Heatsink
Y

Packaging
Retail


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Supported instruction sets
SSE4.1, SSE4.2, AVX 2.0
PCI Express slots version
5.0, 4.0
Execute Disable Bit
Y
Idle States
Y
Thermal Monitoring Technologies
Y
Scalability
1S
CPU configuration (max)
1
Embedded options available
N
PCI Express configurations
1x16+1x4, 2x8+1x4
Maximum number of PCI Express lanes
20
Market segment
Desktop
Harmonized System (HS) code
85423119
Export Control Classification Number (ECCN)
5A992CN3
Commodity Classification Automated Tracking System (CCATS)
G167599
Use conditions
PC/Client/Tablet, Workstation
Direct Media Interface (DMI) Revision
4.0
On-board graphics card model
Intel UHD Graphics 770
Discrete graphics card model
Not available
On-board graphics card
Y
On-board graphics card base frequency
300 MHz
On-board graphics card dynamic frequency (max)
1450 MHz
On-board graphics card outputs supported
Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1
On-board graphics card maximum resolution (DisplayPort)
7680 x 4320 pixels
Number of execution units
32
On-board graphics card ID
0x4690
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)
5120 x 3200 pixels
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)
120 Hz
On-board graphics card refresh rate at maximum resolution (DisplayPort)
60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI)
60 Hz
Number of displays supported (on-board graphics)
4
On-board graphics card maximum resolution (HDMI)
4096 x 2160 pixels
On-board graphics card DirectX version
12.0
On-board graphics card OpenGL version
4.5
Discrete graphics card
N
Multi-Format Codec Engines
2
Country of origin
Malaysia
Harmonized System (HS) code
85423119
ECC
Y
Memory bandwidth (max)
76.8 GB/s
Memory channels
Dual-channel
Maximum internal memory supported by processor
128 GB
Memory types supported by processor
DDR4-SDRAM, DDR5-SDRAM
Tjunction
100 °C
Maximum internal memory
128 GB
Graphics output
eDP 1.4b, DP 1.4a, HDMI 2.1
Package weight
458 g
Package type
Retail box
Processor model
i5-12500
Processor manufacturer
Intel
Processor family
Intel® Core™ i5
Box
Y
Processor socket
LGA 1700
Processor cores
6
Processor threads
12
Processor operating modes
64-bit
Processor boost frequency
4.6 GHz
Processor cache
18 MB
Bus type
DMI4
Processor codename
Alder Lake
Processor cache type
Smart Cache
Memory bandwidth supported by processor (max)
76.8 GB/s
Processor ARK ID
96144
Cooler included
N
Performance cores
6
Maximum number of DMI lanes
8
Processor base power
65 W
Maximum turbo power
117 W
Performance-core base frequency
3 GHz
Performance-core boost frequency
4.6 GHz
Processor generation
12th gen Intel® Core™ i5
IntelŽ Hyper Threading Technology (IntelŽ HT Technology)
Y
IntelŽ Turbo Boost Technology
2.0
IntelŽ Quick Sync Video Technology
Y
IntelŽ Clear Video HD Technology (IntelŽ CVT HD)
Y
IntelŽ AES New Instructions (IntelŽ AES-NI)
Y
Enhanced Intel SpeedStep Technology
Y
Intel Trusted Execution Technology
Y
IntelŽ Active Management Technology (IntelŽ AMT)
Y
Intel VT-x with Extended Page Tables (EPT)
Y
IntelŽ Secure Key
Y
Intel 64
Y
Intel Stable Image Platform Program (SIPP)
Y
IntelŽ OS Guard
Y
Intel Virtualization Technology for Directed I/O (VT-d)
Y
Intel Virtualization Technology (VT-x)
Y
Intel Turbo Boost Max Technology 3.0
N
IntelŽ Optane? Memory Ready
Y
IntelŽ Speed Shift Technology
Y
IntelŽ Boot Guard
Y
IntelŽ vPro? Platform Eligibility
Y
Mode-based Execute Control (MBE)
Y
IntelŽ Deep Learning Boost (IntelŽ DL Boost)
Y
IntelŽ Volume Management Device (VMD)
Y
IntelŽ Control-flow Enforcement Technology (CET)
Y
IntelŽ Total Memory Encryption
Y
IntelŽ Thread Director
N
IntelŽ Gaussian & Neural Accelerator (IntelŽ GNA) 3.0
Y
Intel vProŽ Enterprise Platform Eligibility
Y
IntelŽ Threat Detection Technology (TDT)
Y
IntelŽ Standard Manageability (ISM)
Y
IntelŽ One-Click Recovery
Y
IntelŽ Hardware Shield Eligibility
Y
IntelŽ Total Memory Encryption - Multi Key
Y
IntelŽ Virtualization Technology with Redirect Protection (VT-rp)
Y
Intel vProŽ Essentials Platform Eligibility
Y
OpenCL version
2.1
Status
Launched
Launch date
Q1''22
Target market
Gaming
Weight
350 g
Height
105 mm
Width
79 mm
Depth
121 mm
Processor package size
45 x 37.5 mm
