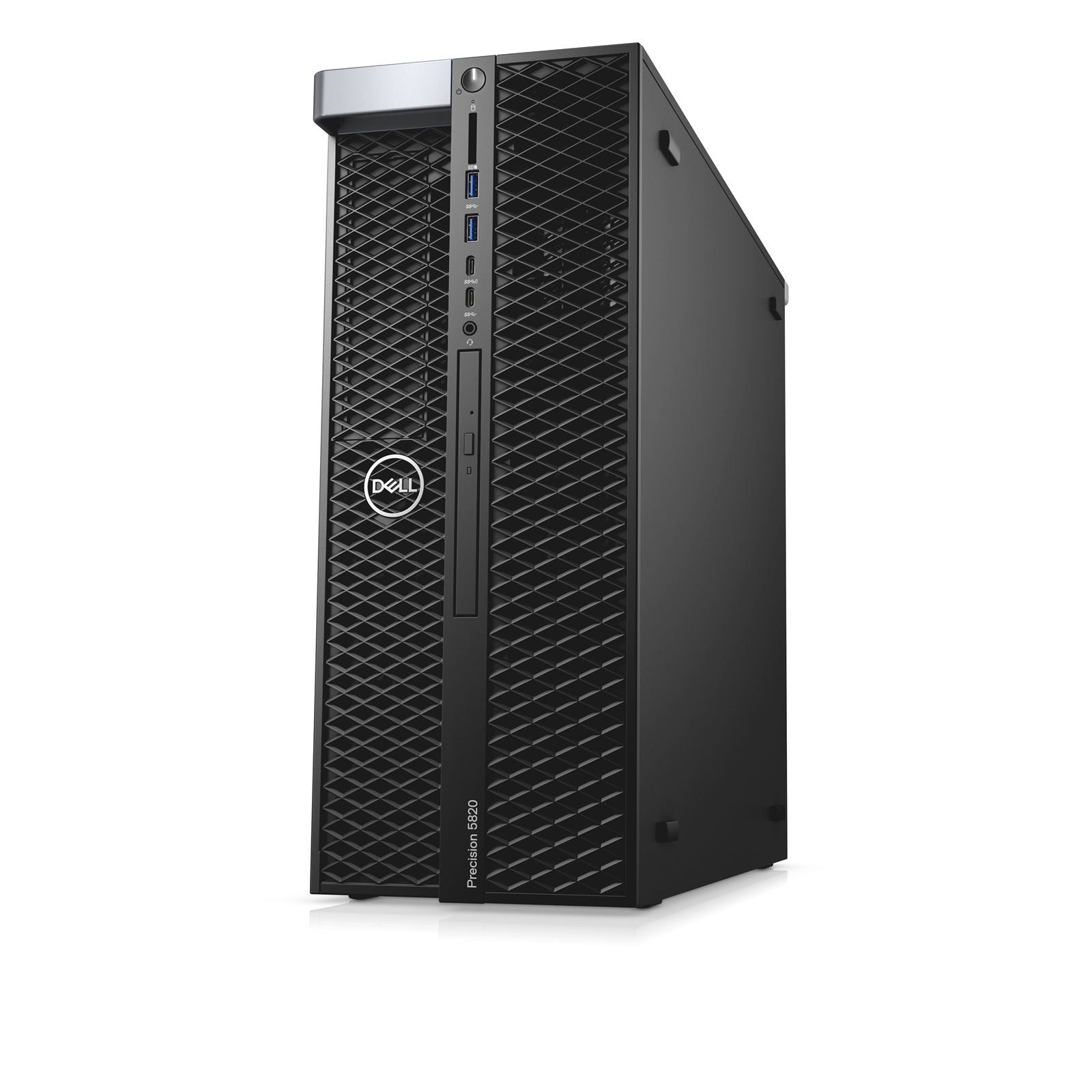

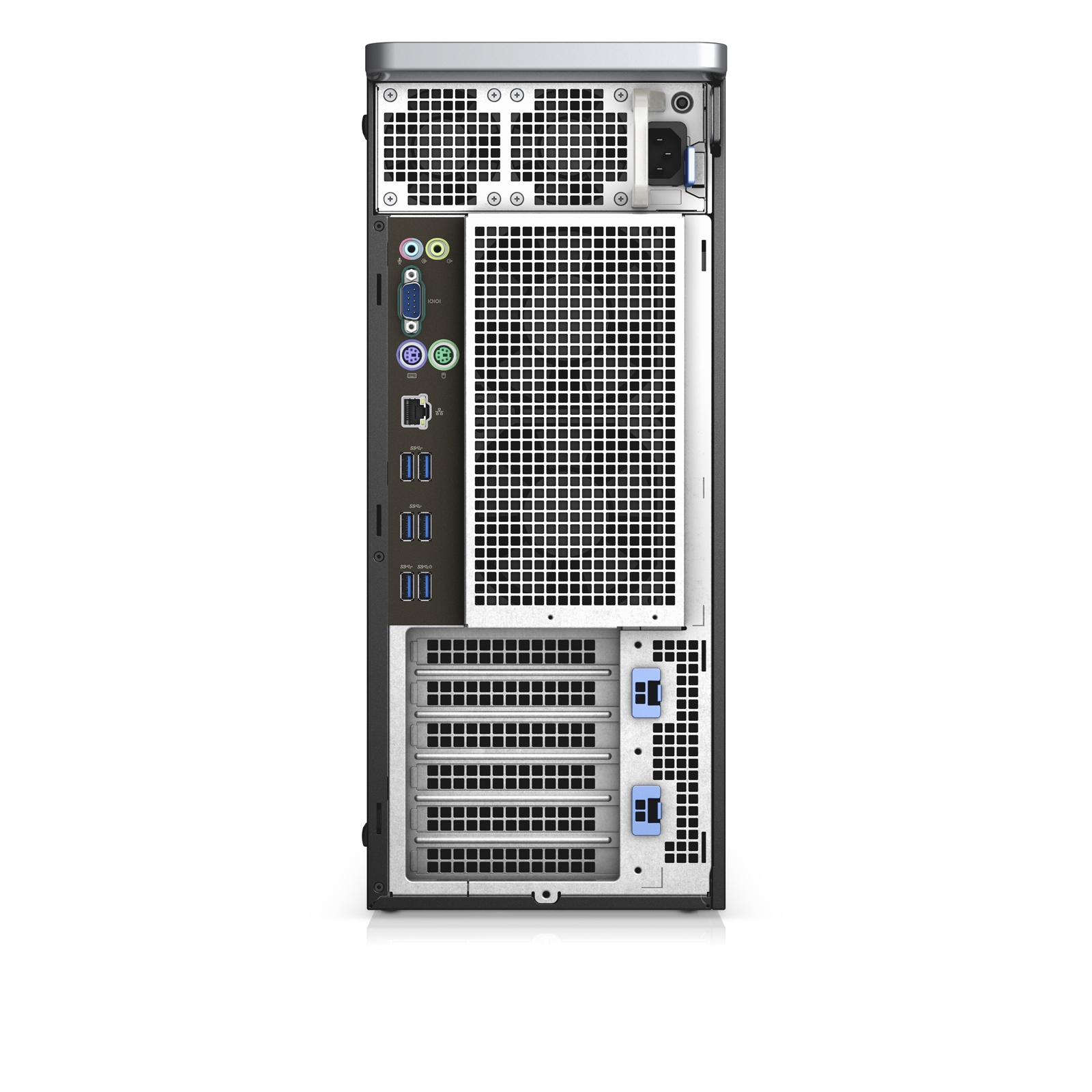

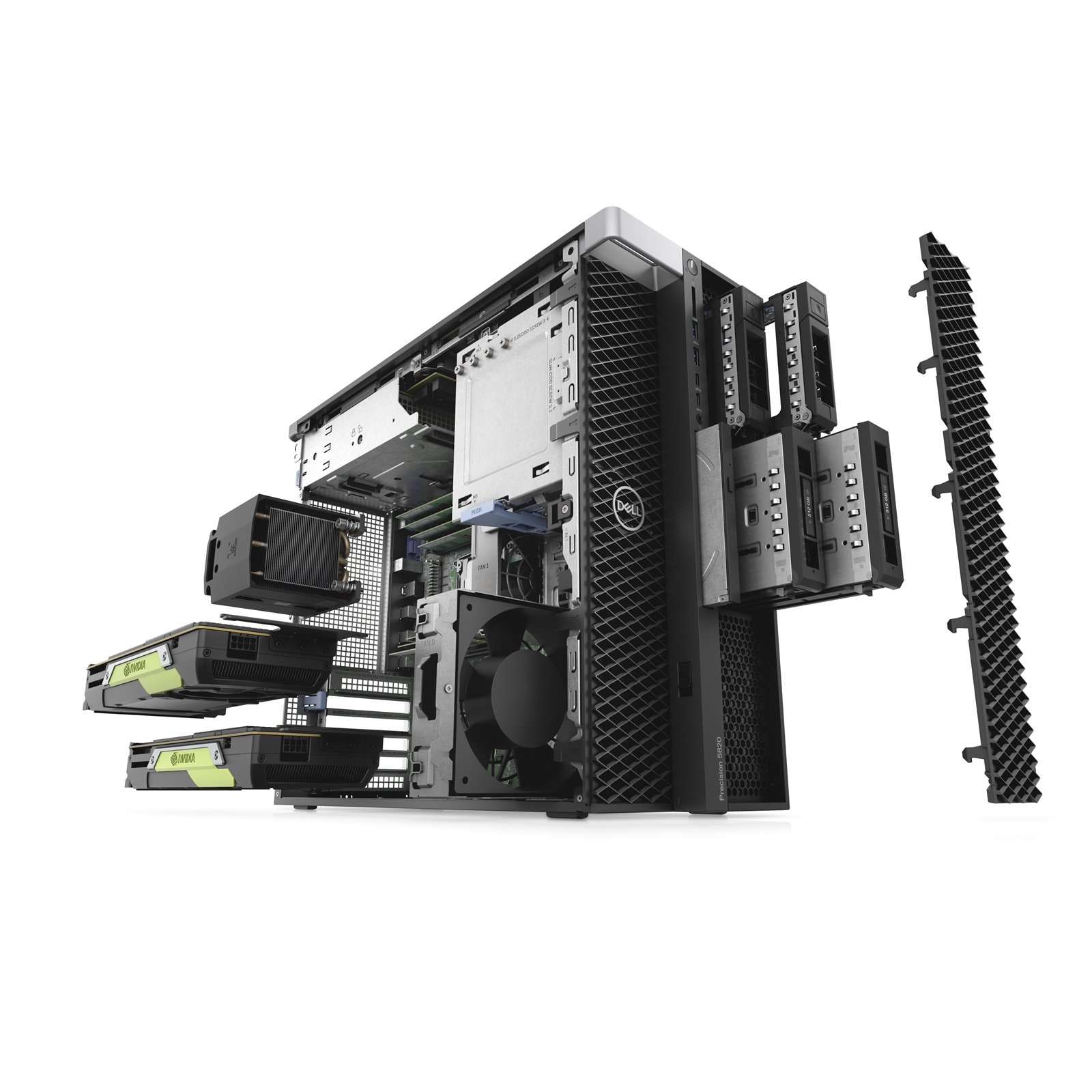

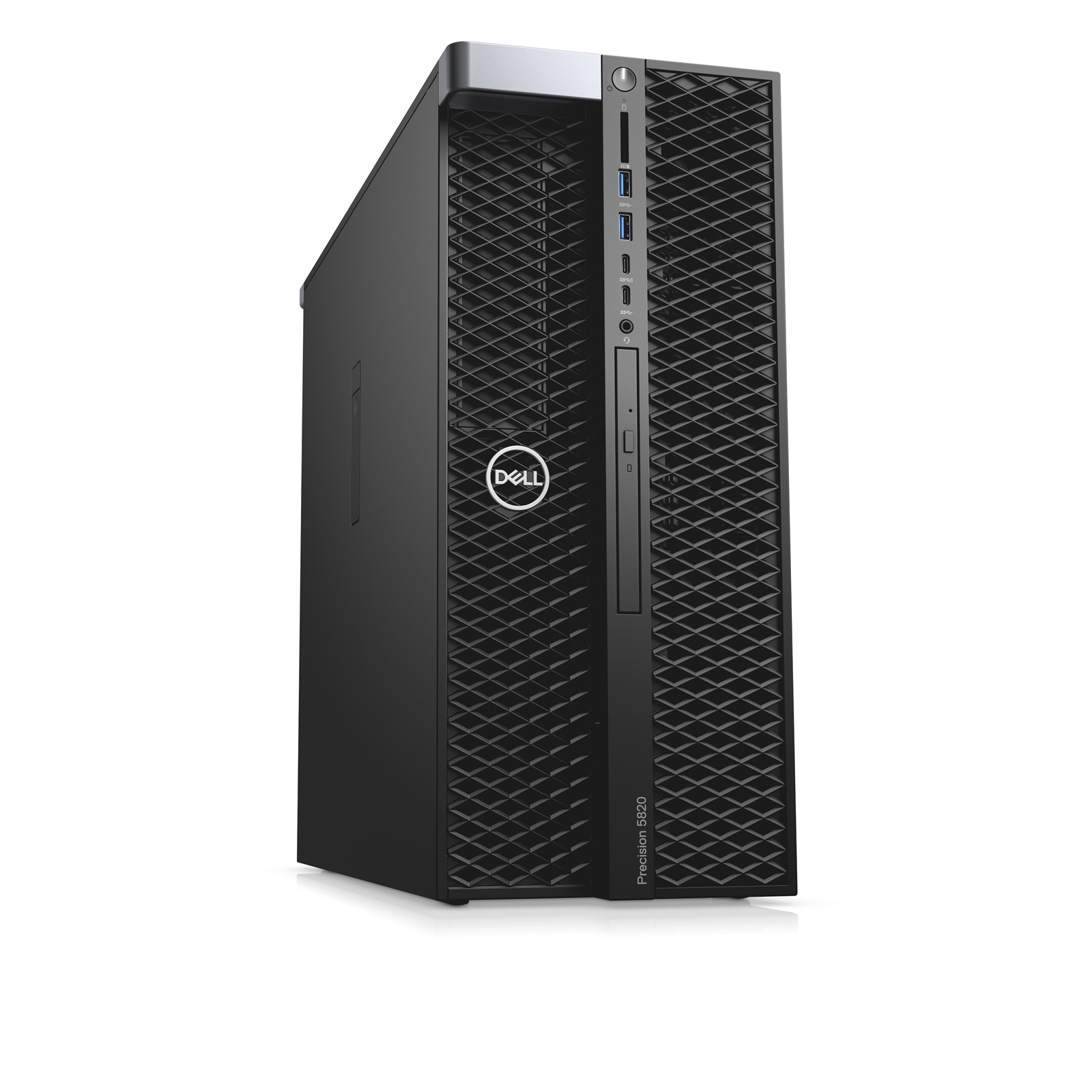

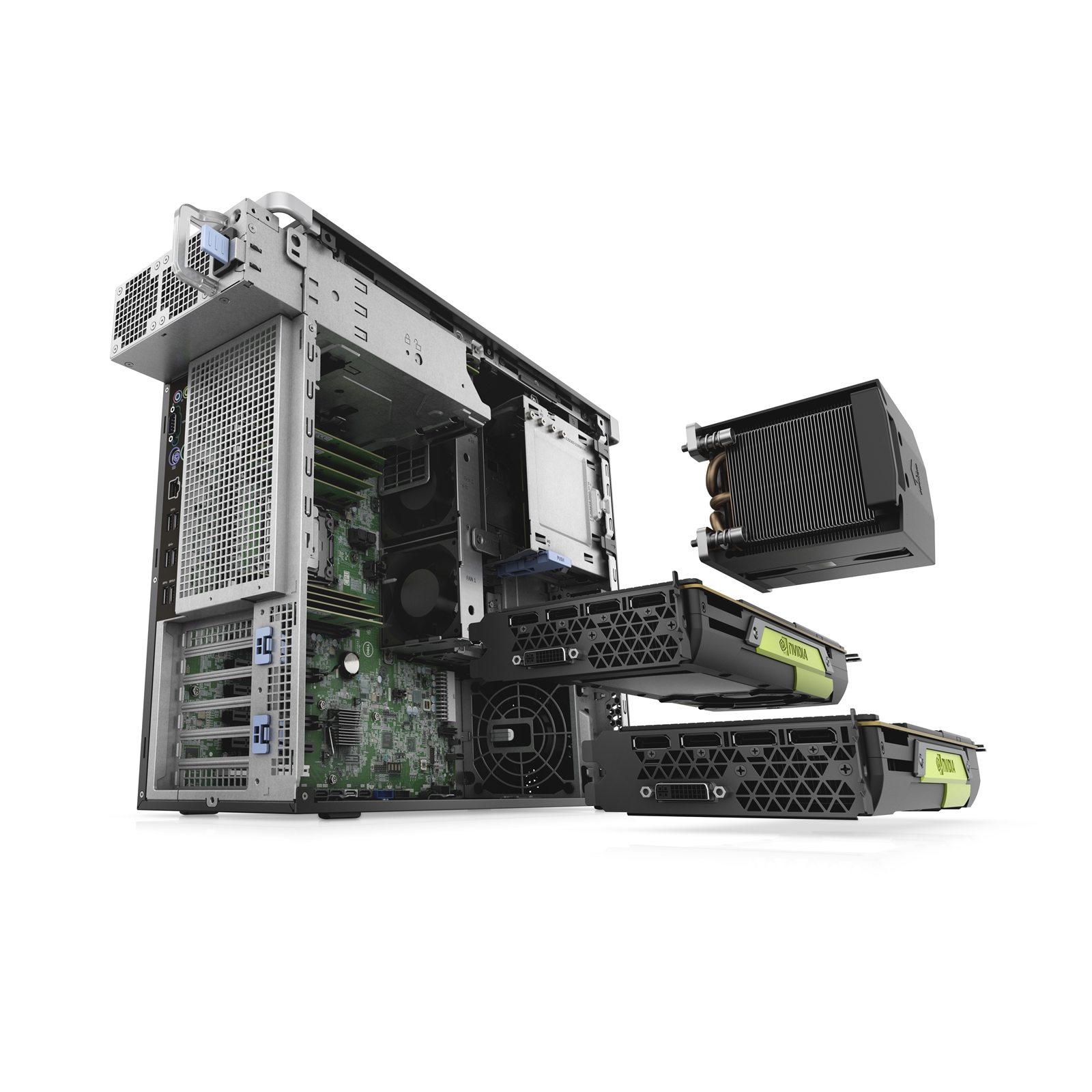

DELL Precision T5820 Tower Workstation - 58H31

DELL Logo here

Manufacturer Part Code: 58H31

Order Code: PBDEL-58H31

Category: Dell Workstations

Dell Precision 5820 Tower - MDT - 1 x Xeon W-2225 / 4.1 GHz - vPro - RAM 32 GB - SSD 512 GB - DVD-Writer - no graphics - GigE - Win 10 Pro for Workstations (includes Win 11 Pro for Workstations Licence) - monitor: none - black - BTP - with 3 Years ProSupp

Perfected to your vision.
Expand your ideas with the Precision 5820 Tower. Featuring high performance in a new innovative, versatile compact design that is great for VR and AI.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Essential Extras and Accessories

Technical Information

Chassis type
Tower
Product colour
Black
Placement supported
Vertical
Water cooling system
No
Intel® vPro? Platform Eligibility
Yes
Power supply
950 W
Power supply input voltage
100 - 240 V
Power supply input frequency
50 - 60 Hz
PCI slots
1
PCI Express x16 slots
5
On-board graphics card model
Not available
Discrete graphics card model
Not available
On-board graphics card
No
Discrete graphics card
No
Harmonized System (HS) code
84715000
Internal memory type
DDR4-SDRAM
Memory slots
8x DIMM
Maximum internal memory
512 GB
ECC
Yes
Memory clock speed
2933 MHz
Memory layout (slots x size)
2 x 16 GB
Internal memory
32 GB
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN
Yes
Bluetooth
No
Wi-Fi
No
Ethernet LAN data rates
10,100,1000 Mbit/s
Operating system installed
Windows 10 Pro for Workstations
Trial software
No Microsoft Office License Included 30 day Trial Offer Only
Operating system architecture
64-bit
Operating system language
Multilingual
Windows 11 free upgrade
Yes
Operating relative humidity (H-H)
8 - 85%
Storage temperature (T-T)
-40 - 65 °C
Operating temperature (T-T)
5 - 35 °C
Storage relative humidity (H-H)
5 - 95%
Harmonized System (HS) code
84715000
Contrast ratio (typical)
5 - 95%
Cables included
AC
Display included
No
Keyboard included on selected markets only
Yes
Mouse included on selected markets only
Yes
Input device model
KB216, MS116
Mouse connectivity
Wired
Keyboard connectivity
Wired
Motherboard chipset
Intel® C422
Audio system
High Definition Audio
Built-in speaker(s)
No
Trusted Platform Module (TPM)
Yes
Market positioning
Business
Product type
Workstation
Password protection
Yes
Audio chip
Realtek ALC3234
Serial ports quantity
1
PS/2 ports quantity
2
Line-in
Yes
Line-out
Yes
Ethernet LAN (RJ-45) ports
1
Headphone outputs
1
Microphone in
Yes
Combo headphone/mic port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
8
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
Number of rear USB ports
6
Number of front USB ports
4
Number of rear audio ports
1
Number of front audio ports
2
Processor model
W-2225
Number of processors installed
1
Processor manufacturer
Intel
Processor family
Intel Xeon W
Processor cores
4
Number of processors supported
1
Processor boost frequency
4.6 GHz
Processor cache
8.25 MB
Processor frequency
4.1 GHz
Intel Flex Memory Access
No
Enhanced Intel SpeedStep Technology
Yes
Execute Disable Bit
Yes
Idle States
Yes
Intel Trusted Execution Technology
Yes
CPU configuration (max)
1
Intel VT-x with Extended Page Tables (EPT)
Yes
Embedded options available
No
Intel Demand Based Switching
Yes
Intel TSX-NI
Yes
Intel 64
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Software Guard Extensions (Intel SGX)
No
Intel Virtualization Technology (VT-x)
Yes
Compatible memory cards
Not supported
Optical drive type
DVD±RW
RAID levels
0, 1, 5, 6, 10, 60
Total storage capacity
512 GB
SSD interface
NVMe, PCI Express
SSD capacity
512 GB
RAID support
Yes
Number of SSDs installed
1
Storage media
SSD
Number of storage drives installed
1
SSD form factor
M.2
NVMe
Yes
Total SSDs capacity
512 GB
SSD performance class
50
Weight
15.4 kg
Height
417.9 mm
Width
176.5 mm
Depth
518.3 mm
