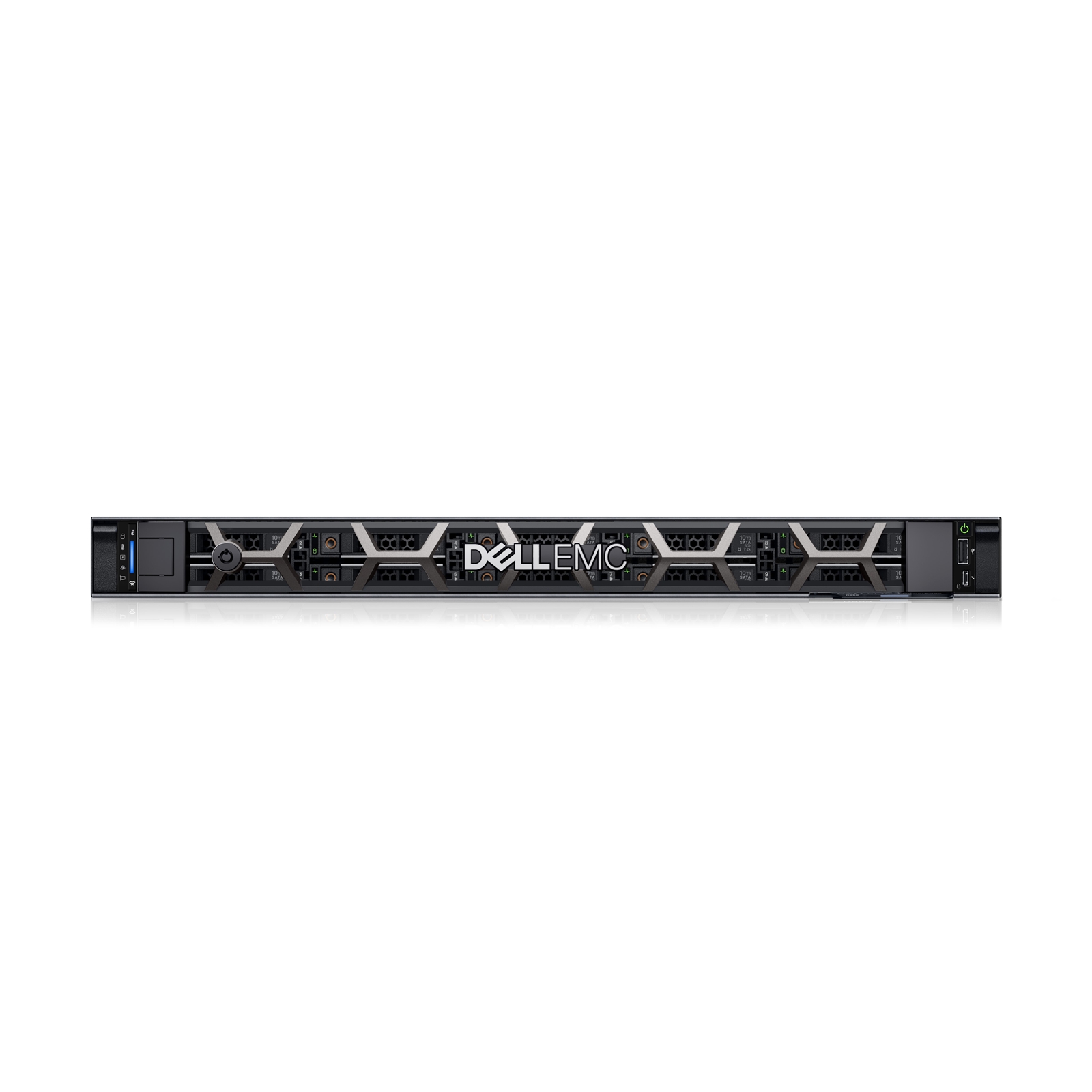

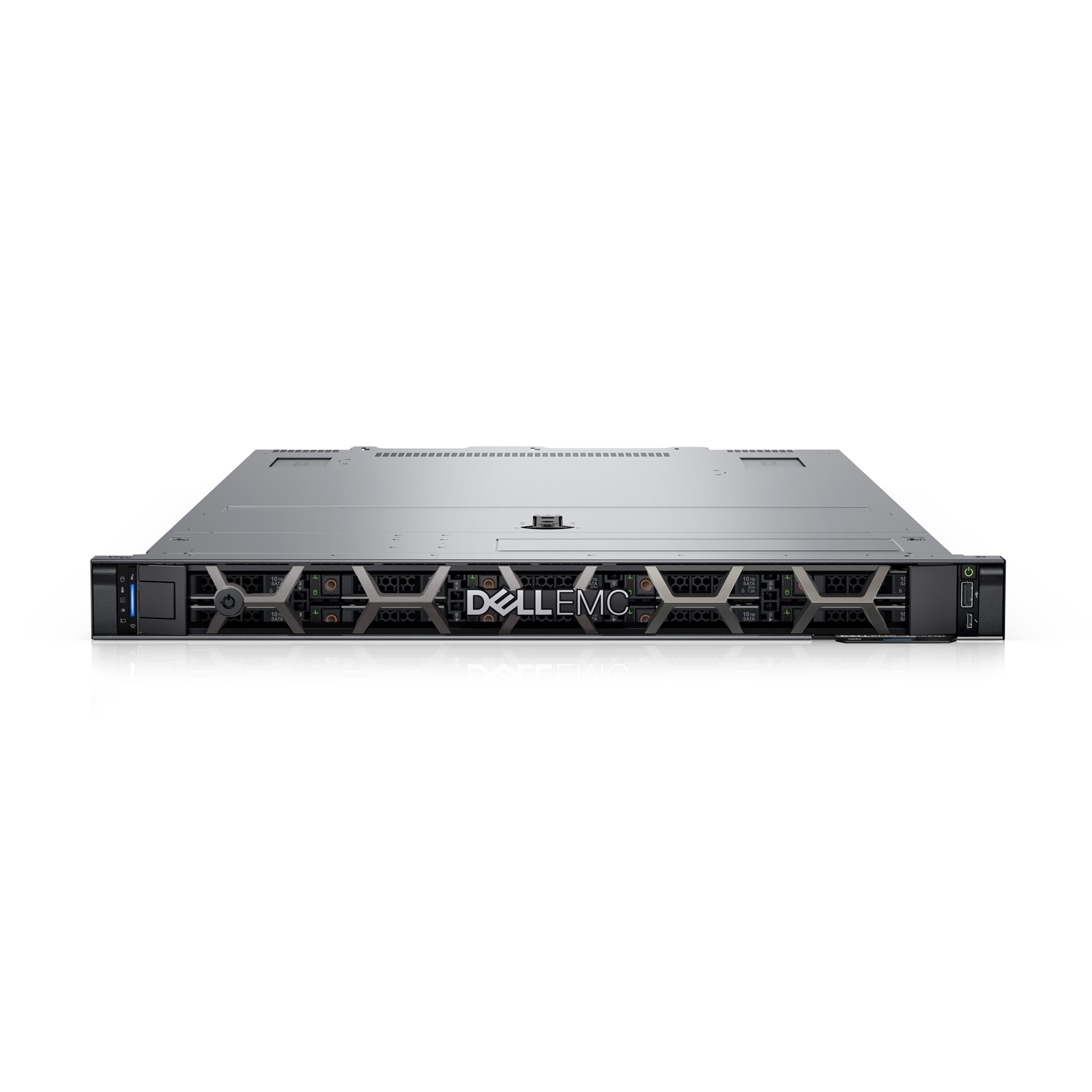

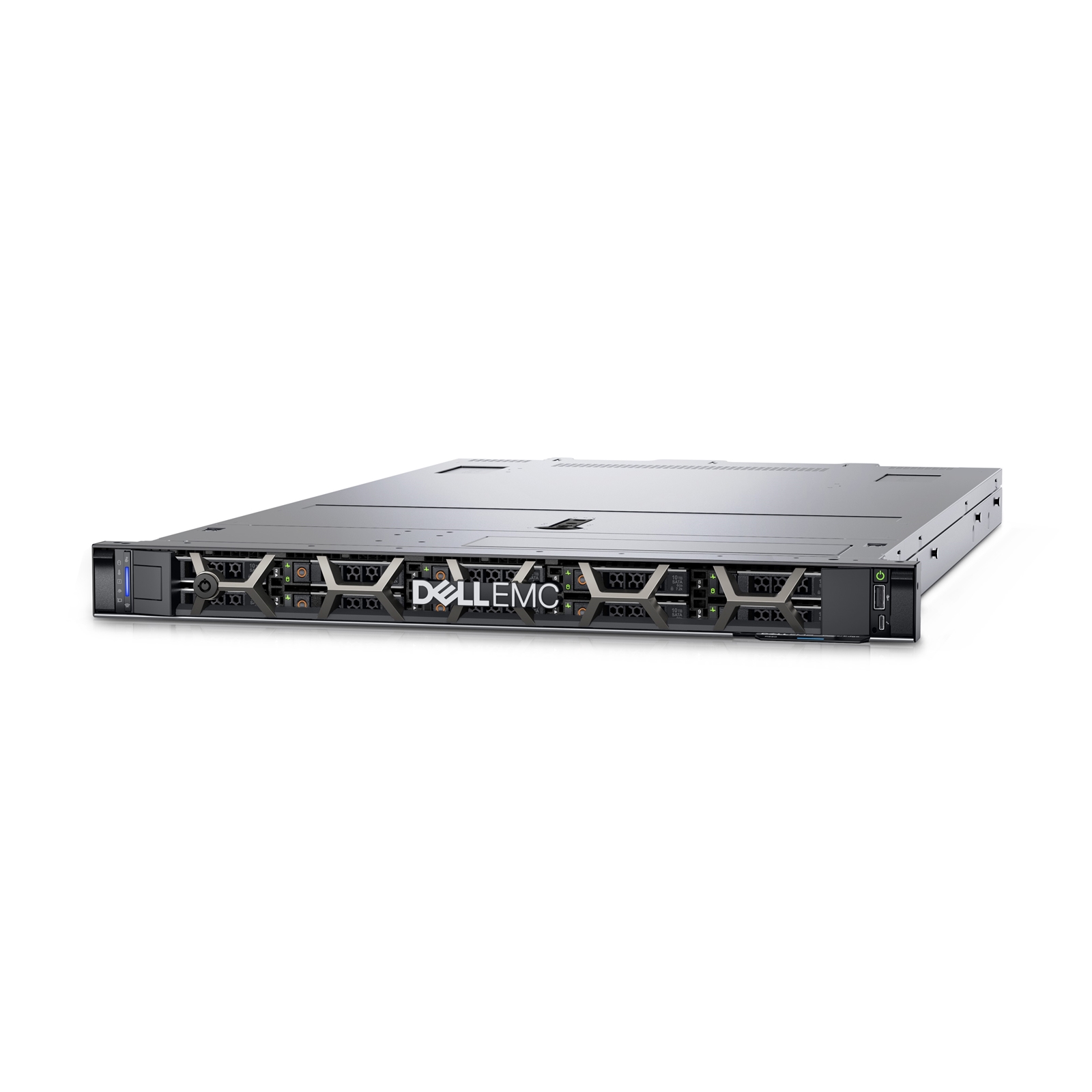

DELL PowerEdge R550 Rack Server - FJVWR

DELL Logo here

Manufacturer Part Code: FJVWR

Order Code: SVDEL-FJVWR

Category: Dell Rack Servers

PowerEdge R550 Intel Xeon Silver 4310 2.1G 12C/24T 10.4GT/s 18M Cache Turbo HT (120W) DDR4-2666 1x 16GB RDIMM 3200MT/s Dual Rank 1x 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive3.5in HYB CARR 1 DWPD no Graphics ReadyRails Sliding Rails

2U value-optimized server for added versatility
The Dell EMC PowerEdge R550, with 3rd generation Intel® Xeon® Scalable processors, offers added flexibility for organizations seeking exceptional value.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.
Need this delivered pre-built? We have configuration and installation options available!

Essential Extras and Accessories

Technical Information

Chassis type
Rack (2U)
Product colour
Black
Rack rails
Y
Bezel
Y
Power supply
800 W
Redundant power supply (RPS) support
Y
Power cable length
2 m
Number of redundant power supplies supported
2
Number of redundant power supplies installed
2
Power cable current
12 A
Power cable connector 1
C13 coupler
Power cable connector 2
C14 coupler
PCI Express x16 slots
1
PCI Express x8 slots
1
Internal memory type
DDR4-SDRAM
Memory slots
16x DIMM
Maximum internal memory
2000 GB
Memory clock speed
2666 MHz
Memory ranking
2
Memory layout (slots x size)
1 x 16 GB
Internal memory
16 GB
Memory data transfer rate
3200 MT/s
Buffered memory type
Registered (buffered)
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN
Y
LAN controller
Broadcom 57412
Ethernet interface type
10 Gigabit Ethernet
Compatible operating systems
Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
Operating system installed
N
Operating altitude
0 - 3048 m
Storage temperature (T-T)
-40 - 65 °C
Storage relative humidity (H-H)
5 - 95%
Non-operating altitude
0 - 12000 m
Drive bays
8
Bytes per sector
512
Remote administration
iDRAC9, Enterprise 15G
USB 2.0 ports quantity
2
Ethernet LAN (RJ-45) ports
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Processor model
4310
Number of processors installed
1
Processor manufacturer
Intel
Processor family
Intel Xeon Silver
Processor boost frequency
3.3 GHz
Processor cache
18 MB
Processor frequency
2.1 GHz
Thermal Design Power (TDP)
120 W
Maximum internal memory supported by processor
512 GB
Processor generation
3rd Generation Intel® Xeon® Scalable
Optical drive type
N
Hot-Plug support
Y
Total storage capacity
480 GB
SSD interface
SATA III
SSD capacity
480 GB
RAID support
Y
Number of SSDs installed
1
Number of SSDs supported
8
Supported RAID controllers
PERC H755
SSD size
2.5"
Supported SSD sizes
3.5"
Height
86.8 mm
