Dell Rack Servers | DELL PowerEdge R650xs Rack Server - M4JNT | M4JNT | ServersPlus
L R
DELL M4JNT | serversplus.comDELL M4JNT | serversplus.comDELL M4JNT | serversplus.comDELL M4JNT | serversplus.comDELL M4JNT | serversplus.comDELL M4JNT | serversplus.comDELL M4JNT | serversplus.comDELL M4JNT | serversplus.com

Illustration purposes only

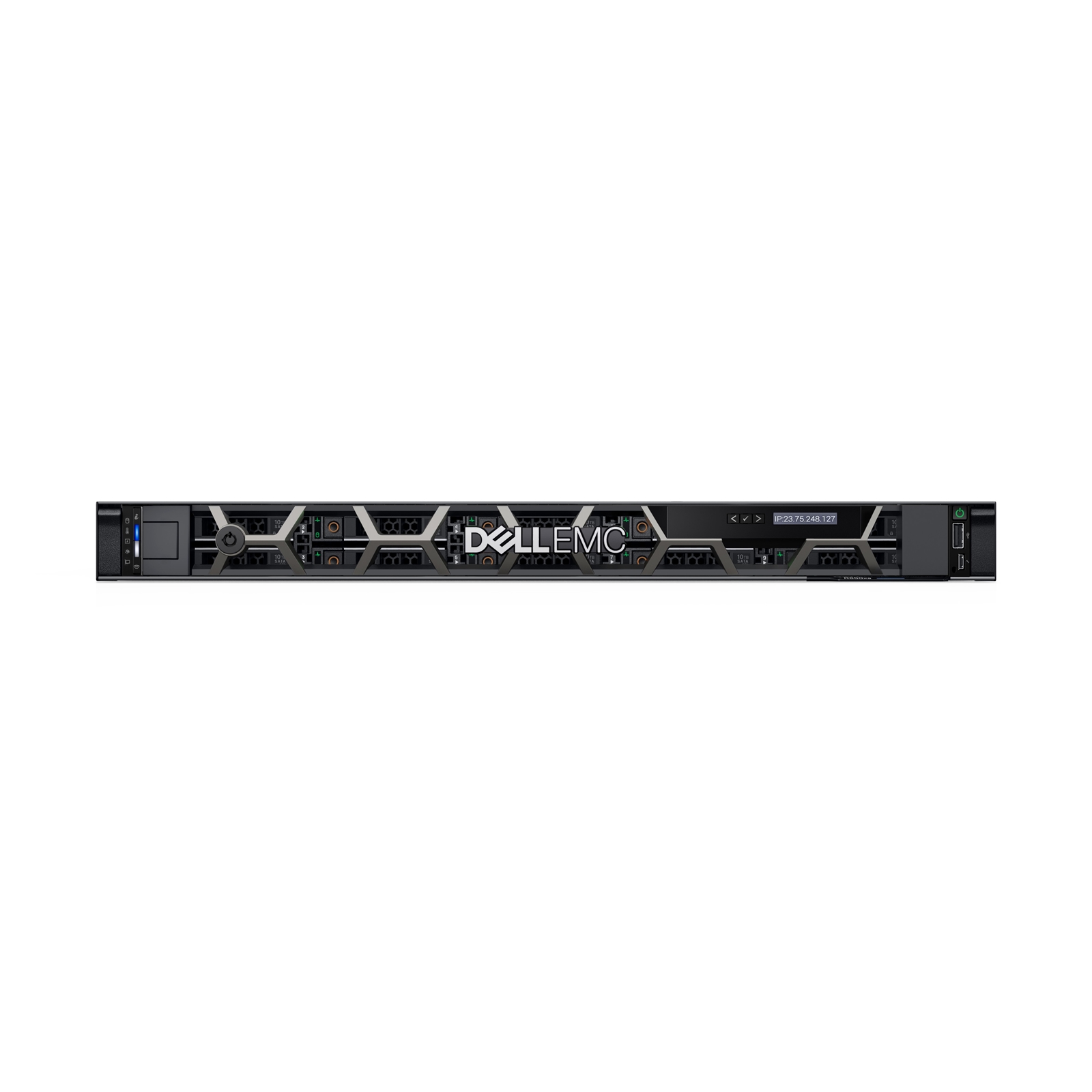

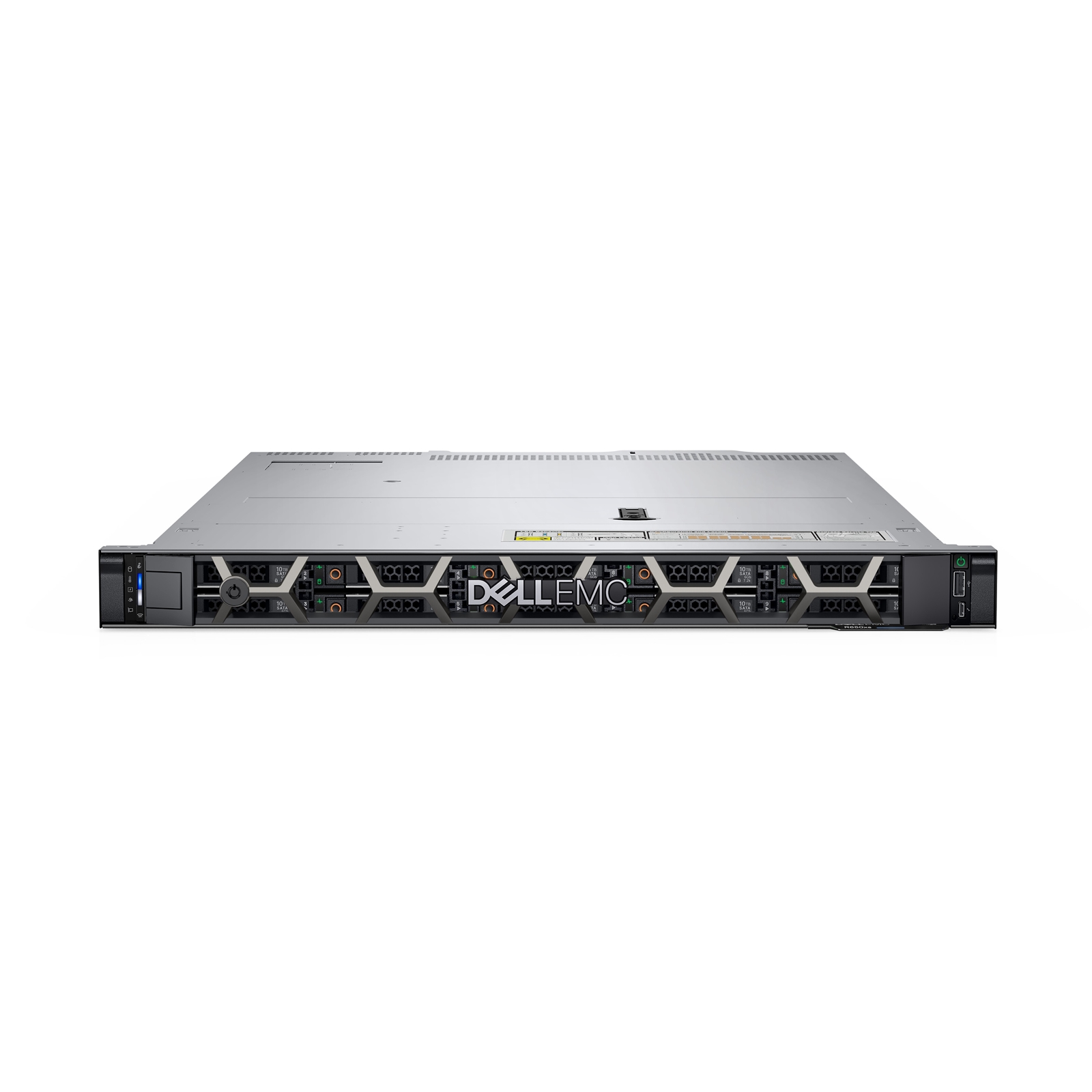

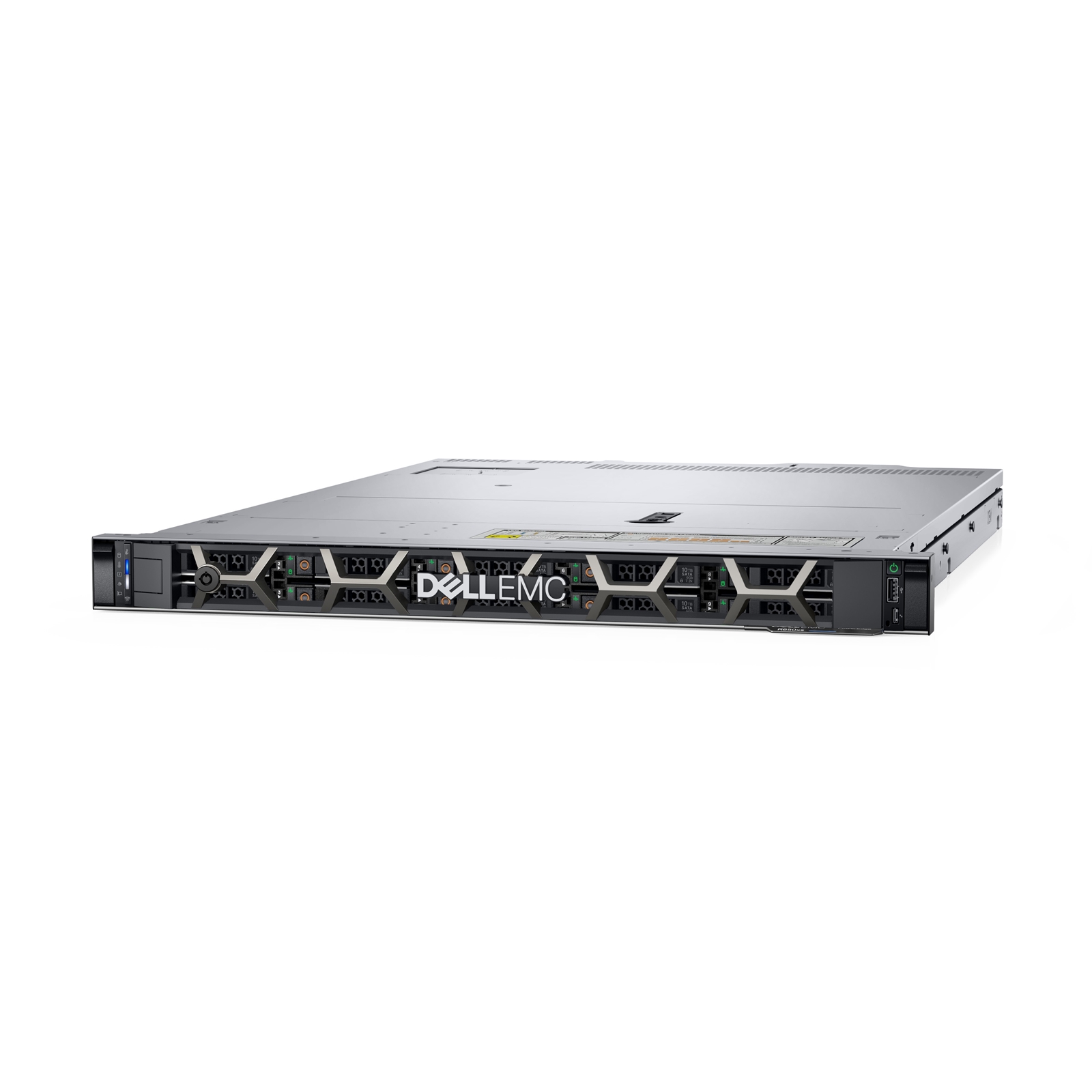

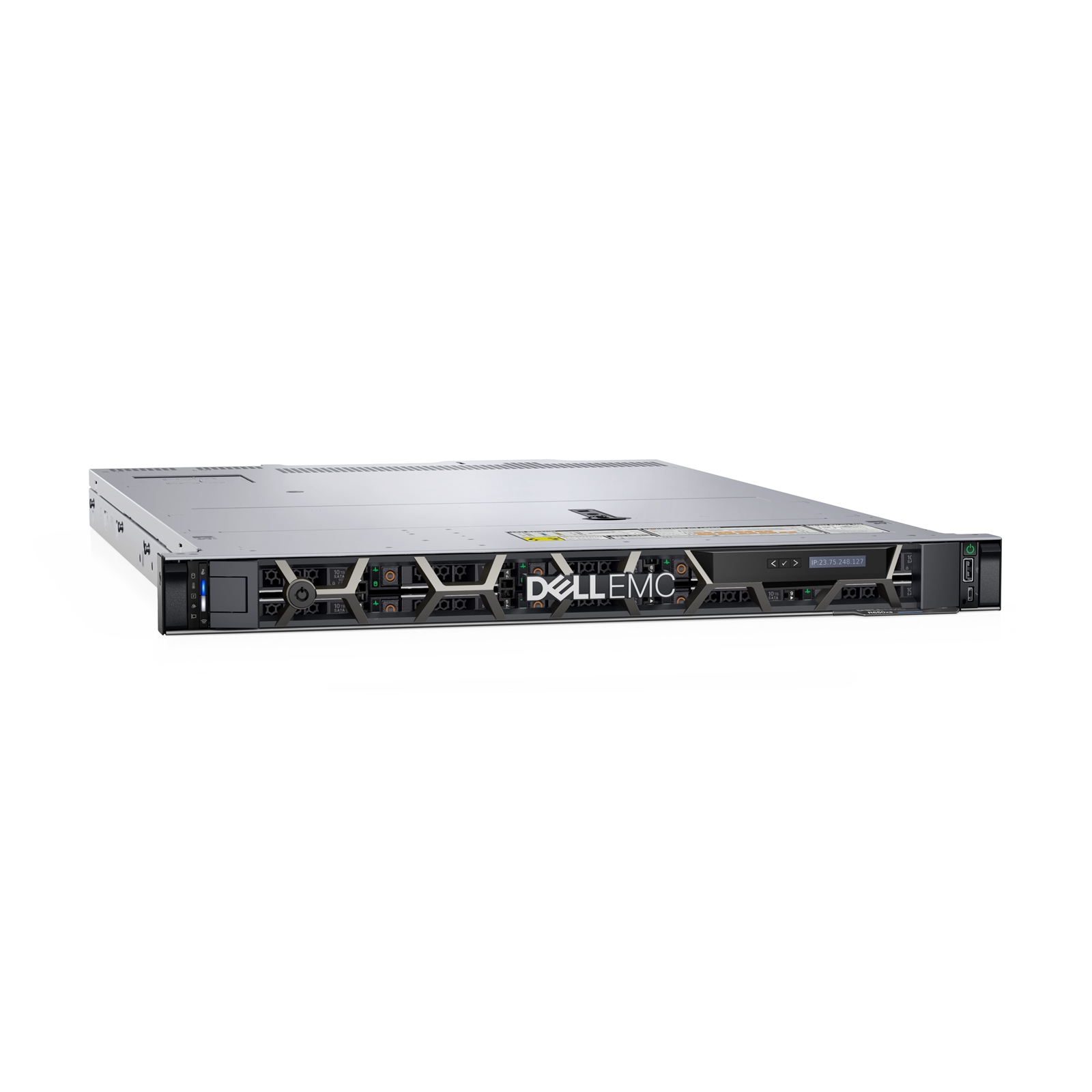

DELL PowerEdge R650xs Rack Server - M4JNT

DELL Logo here

Manufacturer Part Code: M4JNT

Order Code: SVDEL-M4JNT

Category: Dell Rack Servers

PowerEdge R650xs Intel Xeon Silver 4314 2.4G 16C/32T 10.4GT/s 24M Cache Turbo HT (135W) DDR4-2666 1x 32GB RDIMM 3200MT/s Dual Rank 16Gb BASE x8 1x 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive 1 DWPD no Graphics A11 drop-in/stab-in Comb

1U server that's purpose-built for scale-out solutions
The Dell EMC PowerEdge R650xs is designed to meet a specific set of requirements for medium-duty workloads with enterprise-class performance and capabilities.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.
Need this delivered pre-built? We have configuration and installation options available!

Essential Extras and Accessories

Technical Information

Chassis type
Rack (1U)
Product colour
Black
Rack rails
Y
Bezel
Y
Power supply
1400 W
Redundant power supply (RPS) support
Y
Power cable length
2 m
Number of redundant power supplies supported
2
Number of redundant power supplies installed
2
Power cable current
12 A
Power cable connector 1
C13 coupler
Power cable connector 2
C14 coupler
PCI Express x16 slots
2
Internal memory type
DDR4-SDRAM
Memory slots
16x DIMM
Maximum internal memory
1 TB
Memory clock speed
2666 MHz
Memory ranking
2
Memory layout (slots x size)
1 x 32 GB
Internal memory
32 GB
Memory data transfer rate
3200 MT/s
Buffered memory type
Registered (buffered)
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN
Y
LAN controller
Broadcom 5720
Ethernet interface type
Gigabit Ethernet
Compatible operating systems
Canonical® Ubuntu® Server LTS Citrix® Hypervisor® Microsoft® Windows Server® with Hyper-V RedHat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi®
Operating system installed
N
Operating altitude
0 - 3048 m
Operating relative humidity (H-H)
8 - 80%
Storage temperature (T-T)
-40 - 65 °C
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
5 - 95%
Non-operating altitude
0 - 12000 m
Drive bays
8
Bytes per sector
512
Remote administration
iDRAC9, Enterprise 15G
USB 2.0 ports quantity
2
Ethernet LAN (RJ-45) ports
4
VGA (D-Sub) ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
Processor model
4314
Number of processors installed
1
Processor manufacturer
Intel
Processor family
Intel Xeon Silver
Processor boost frequency
3.4 GHz
Processor cache
24 MB
Processor frequency
2.4 GHz
Thermal Design Power (TDP)
135 W
Maximum internal memory supported by processor
512 GB
Processor generation
3rd Generation Intel® Xeon® Scalable
Optical drive type
N
Hot-Plug support
Y
Total storage capacity
480 GB
SSD interface
SATA III
SSD capacity
480 GB
RAID support
Y
Number of SSDs installed
1
Number of SSDs supported
8
Supported RAID controllers
PERC H755
SSD size
2.5"
Drive writes per day (DWPD)
1
Supported SSD sizes
2.5"
Height
42.8 mm
Width
482 mm
