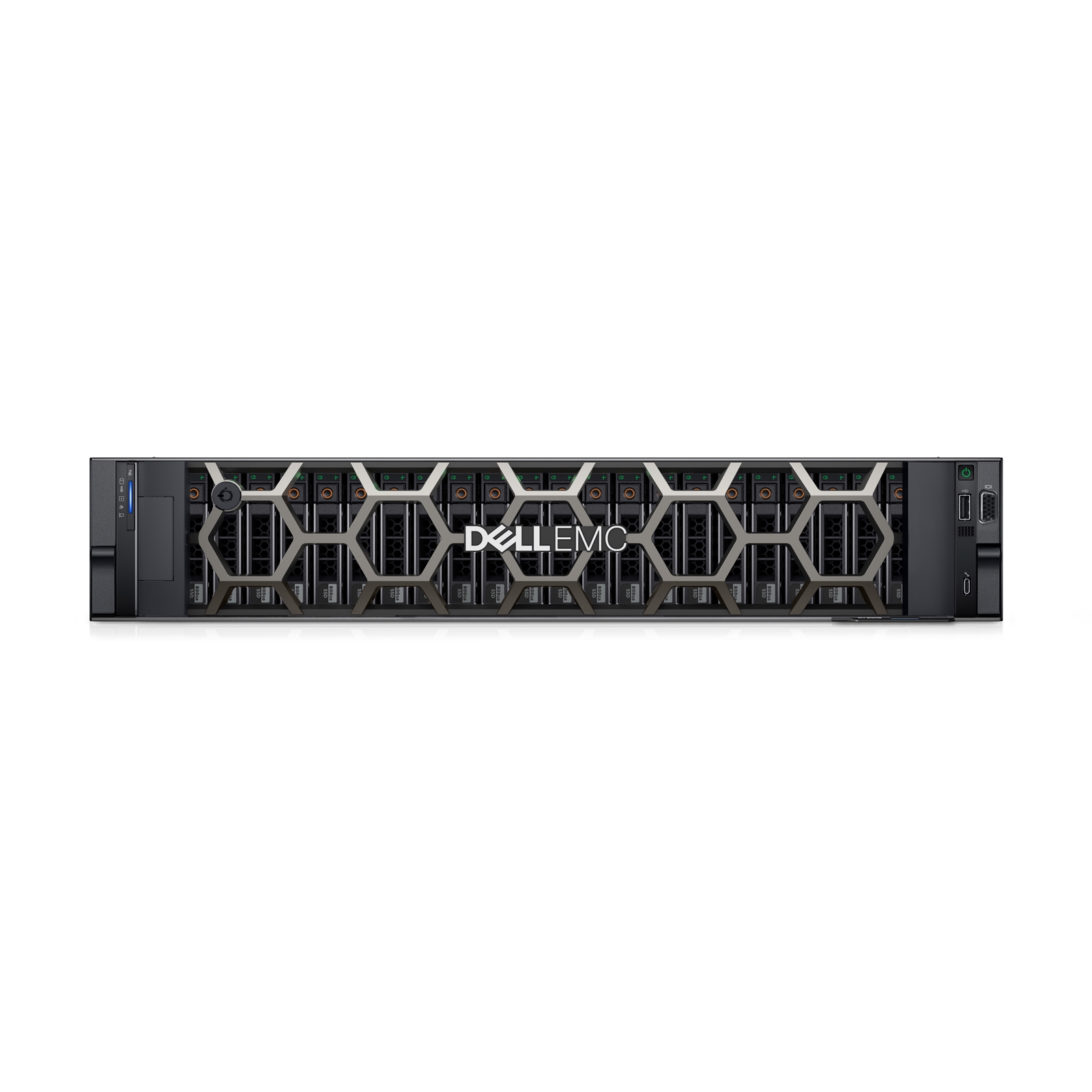

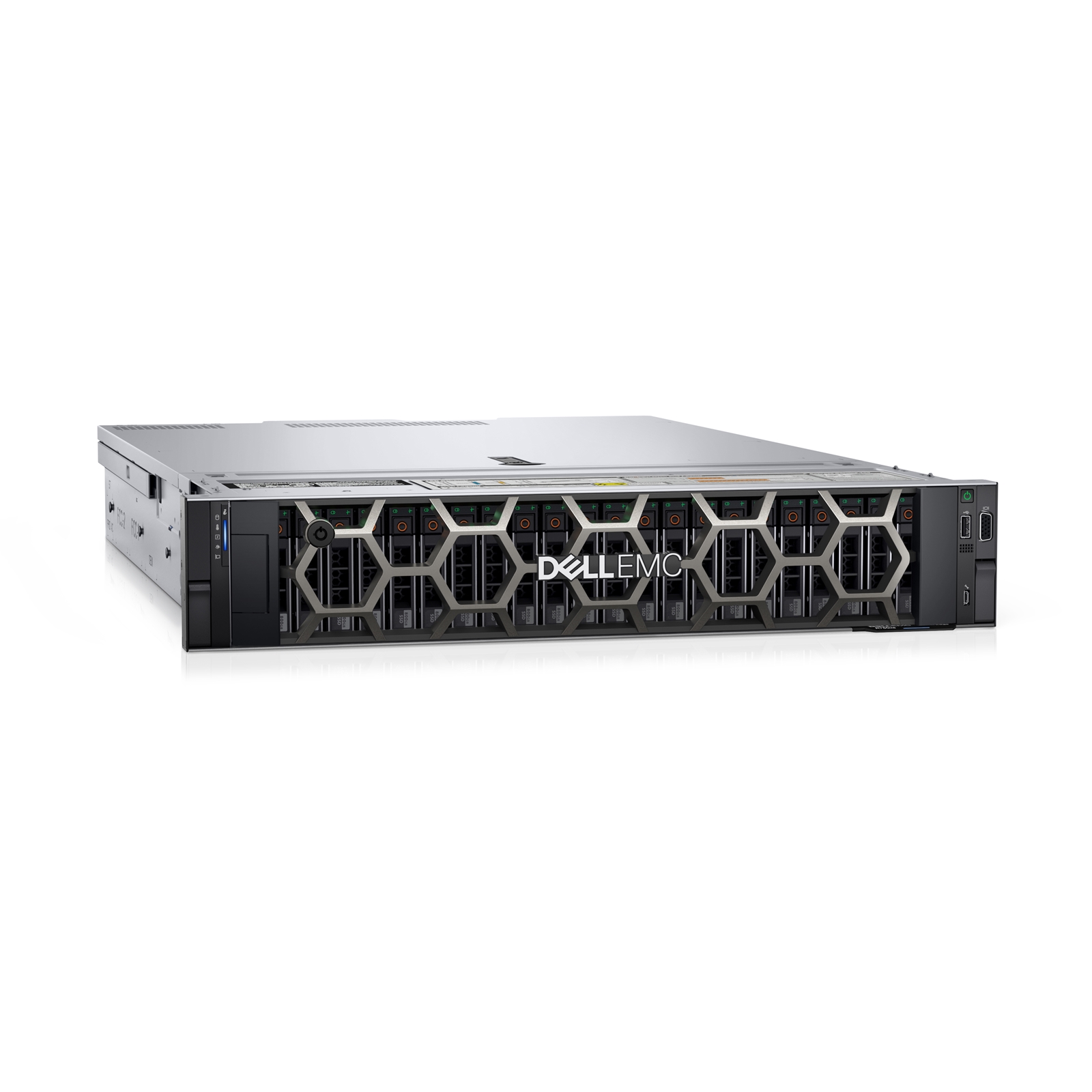

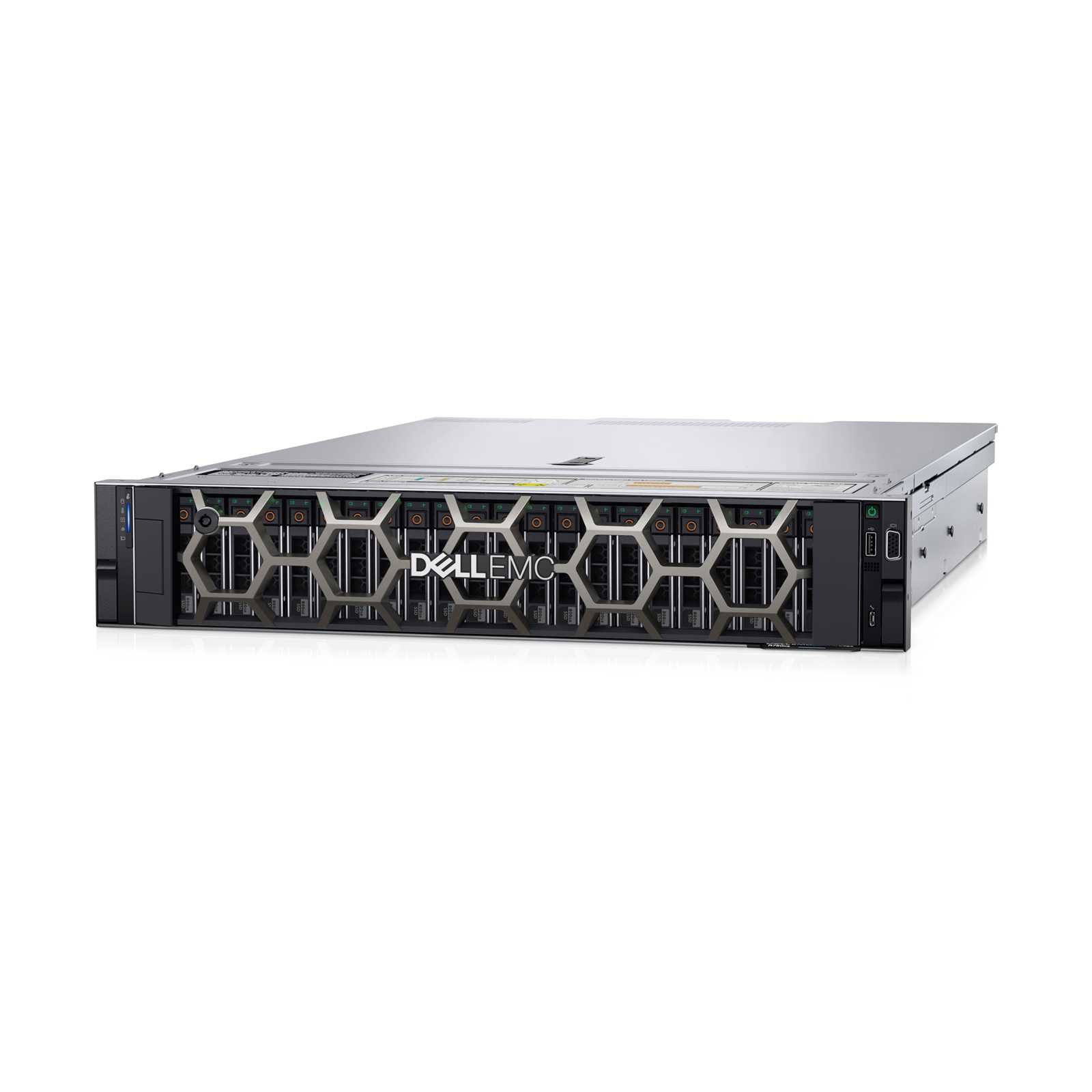

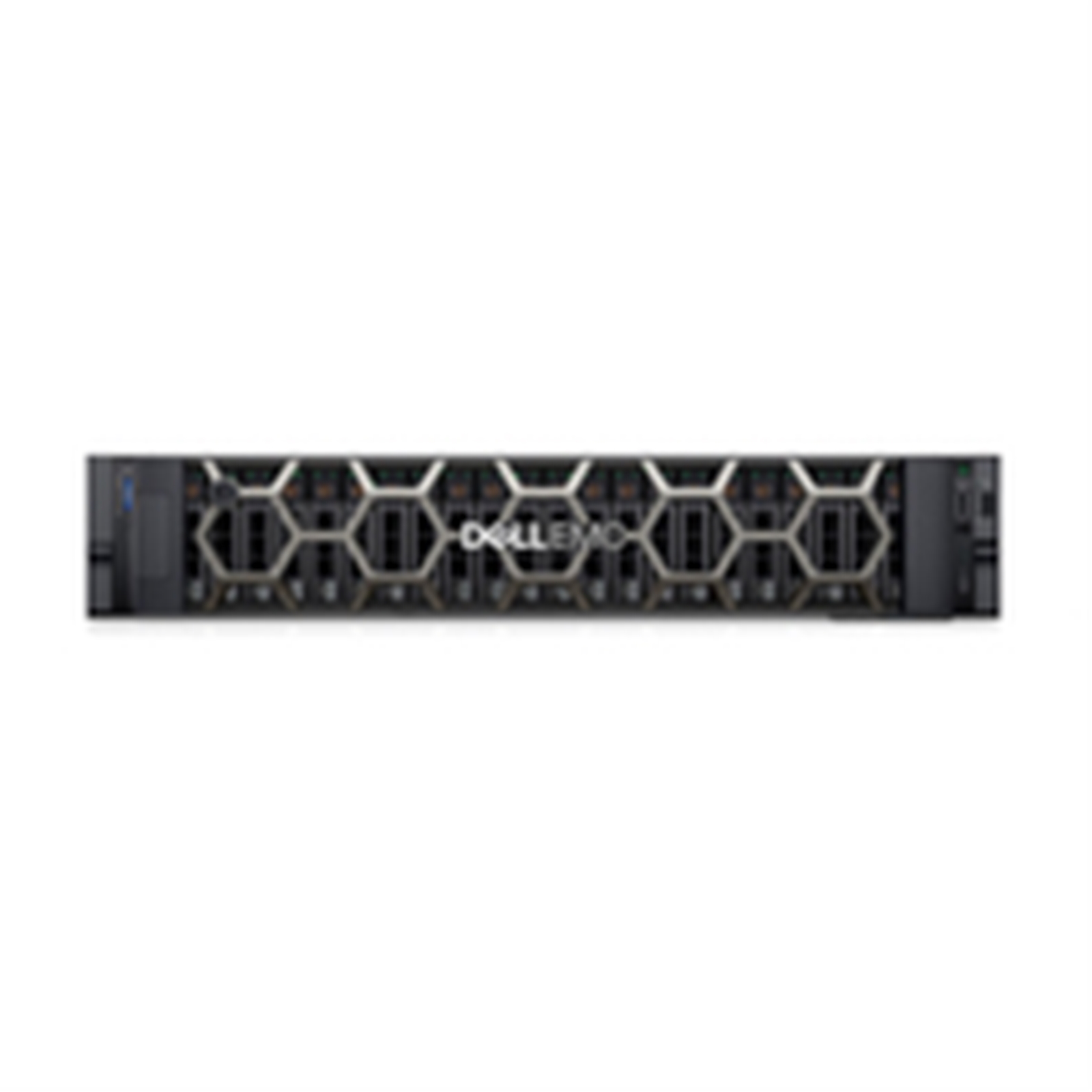

DELL PowerEdge R750XS Rack Server - TVMNT

DELL Logo here

Manufacturer Part Code: TVMNT

Order Code: SVDEL-TVMNT

Category: Dell Rack Servers

PowerEdge R750XS Chassis 8 x 3.5in Hot-Plug Intel Xeon Silver 4310 32GB 480GB SSD Rails Bezel Dual-Port 10GbE SFP+ PERC H755 iDRAC9 Enterprise 800W 3Y Basic NBD

Purpose-built 2U for growing scale-out solutions
The Dell EMC PowerEdge R750xs is purposefully designed with distinctive, customer-defined requirements to deliver enterprise performance for scale-out environments.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.
Need this delivered pre-built? We have configuration and installation options available!

Essential Extras and Accessories

Technical Information

Total carbon footprint
8930 kg of CO2e
Total carbon emissions (Standard deviation)
4770 kg of CO2e
Carbon emissions (Manufacturing)
1037 kg of CO2e
Carbon emissions (Logistics)
162 kg of CO2e
Carbon emissions (Use)
7700 kg of CO2e
Carbon emissions (End-of-Life)
26 kg of CO2e
Total carbon emissions (w/o Use phase)
1225 kg of CO2e
PAIA version
1.3.2, 2022
Chassis type
Rack (2U)
Product colour
Black
Rack rails
Yes
Bezel
Yes
Power supply
800 W
Redundant power supply (RPS) support
Yes
Power cable length
2 m
Number of main power supplies
1
Number of redundant power supplies supported
2
Power cable current
10 A
Power cable connector 1
C13 coupler
Power cable connector 2
C14 coupler
PCI Express x16 slots
1
PCI Express x4 slots
1
On-board graphics card model
Not available
Harmonized System (HS) code
84714100
Internal memory type
DDR4-SDRAM
Memory slots
16x DIMM
Maximum internal memory
1 TB
Memory clock speed
2666 MHz
Memory ranking
2
Memory layout (slots x size)
1 x 32 GB
Internal memory
32 GB
Memory data transfer rate
3200 MT/s
Buffered memory type
Registered (buffered)
Ethernet LAN
Yes
LAN controller
Broadcom 57412
Ethernet interface type
10 Gigabit Ethernet
Compatible operating systems
Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
Operating system installed
No
Operating altitude
0 - 3048 m
Storage temperature (T-T)
-40 - 65 °C
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
5 - 95%
Non-operating altitude
0 - 12000 m
Drive bays
8
Data transfer rate
6 Gbit/s
Bytes per sector
512
Remote administration
iDRAC9, Enterprise 15G
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Harmonized System (HS) code
84714100
USB 2.0 ports quantity
2
Ethernet LAN (RJ-45) ports
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
Power cables quantity
1
Processor model
4310
Number of processors installed
1
Processor manufacturer
Intel
Processor family
Intel Xeon Silver
Processor boost frequency
3.3 GHz
Processor cache
18 MB
Processor frequency
2.1 GHz
Maximum internal memory supported by processor
512 GB
Processor generation
3rd Generation Intel® Xeon® Scalable
Optical drive type
No
Hot-Plug support
Yes
Total storage capacity
480 GB
SSD interface
SATA III
SSD capacity
480 GB
RAID support
Y
Number of SSDs installed
1
Number of SSDs supported
8
Supported RAID controllers
PERC H755
Storage drive adapter included
Yes
Storage drive adapter type
2.5" - 3.5"
SSD size
2.5"
Drive writes per day (DWPD)
1
Supported SSD sizes
3.5"
Height
86.8 mm
