Fujitsu Primergy Rack Servers | FUJITSU PRIMERGY RX2540 M5 Rack Server - VFY:R2545SC010IN | VFY:R2545SC010IN | ServersPlus
L R
FUJITSU VFY:R2545SC010IN | serversplus.comFUJITSU VFY:R2545SC010IN | serversplus.comFUJITSU VFY:R2545SC010IN | serversplus.comFUJITSU VFY:R2545SC010IN | serversplus.comFUJITSU VFY:R2545SC010IN | serversplus.comFUJITSU VFY:R2545SC010IN | serversplus.com

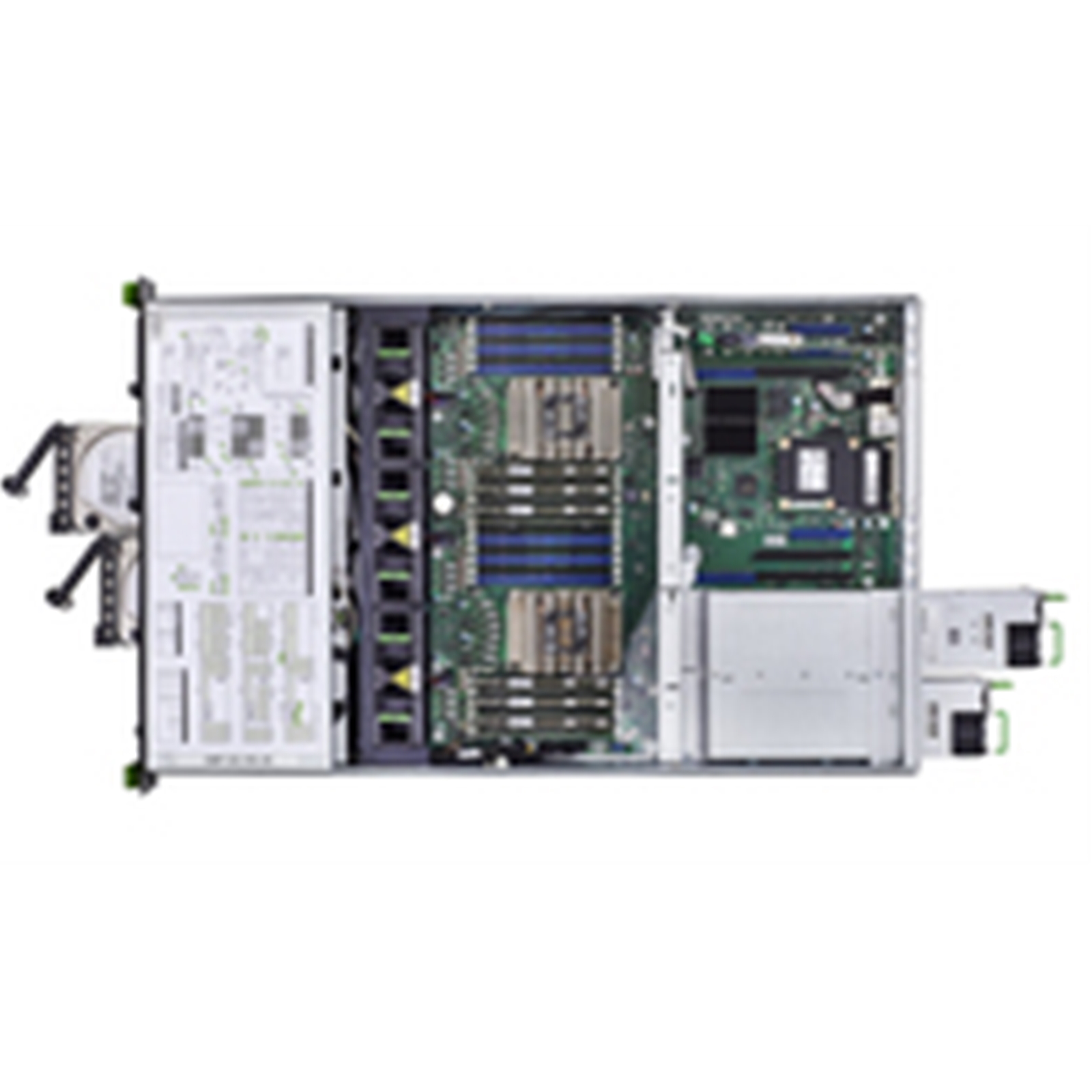

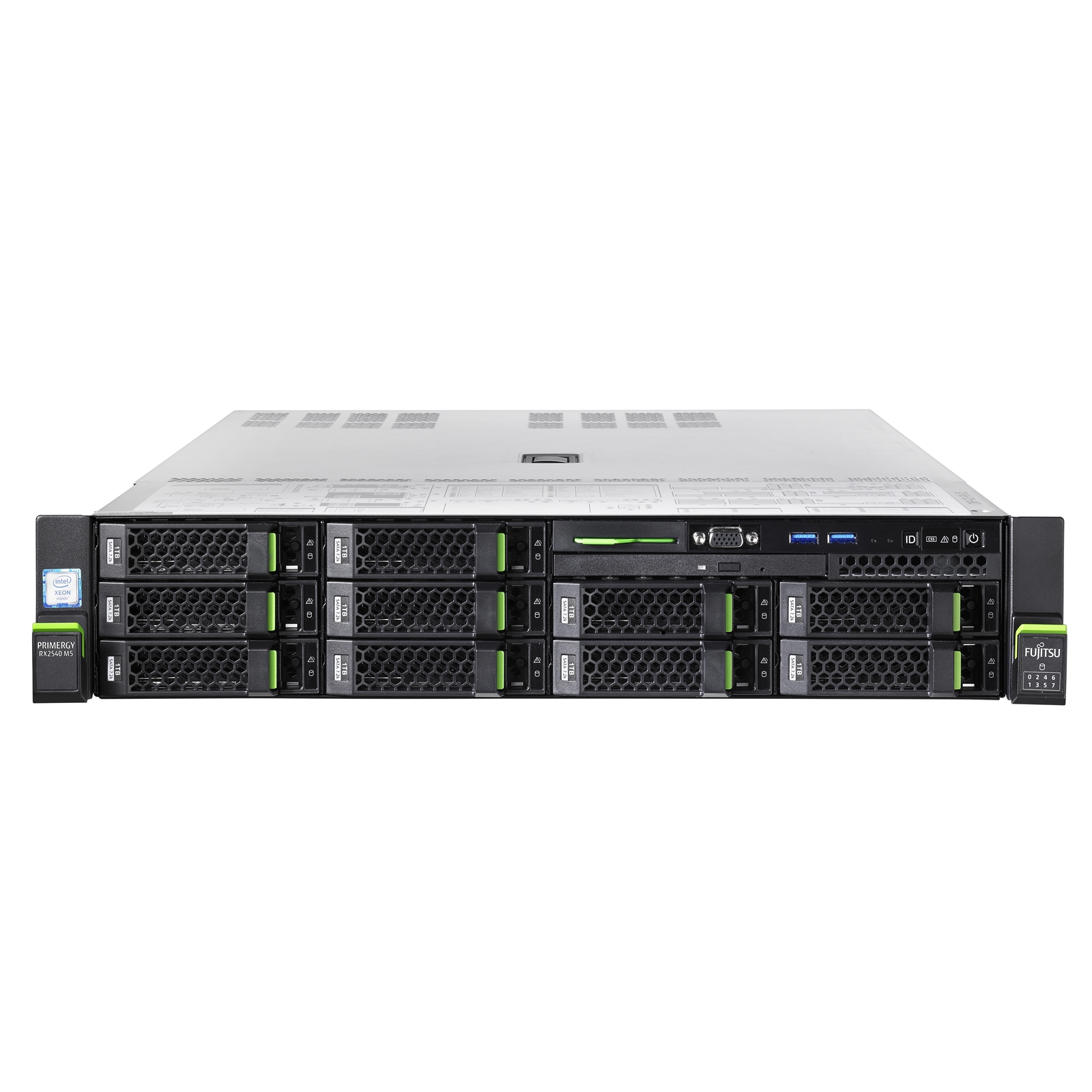

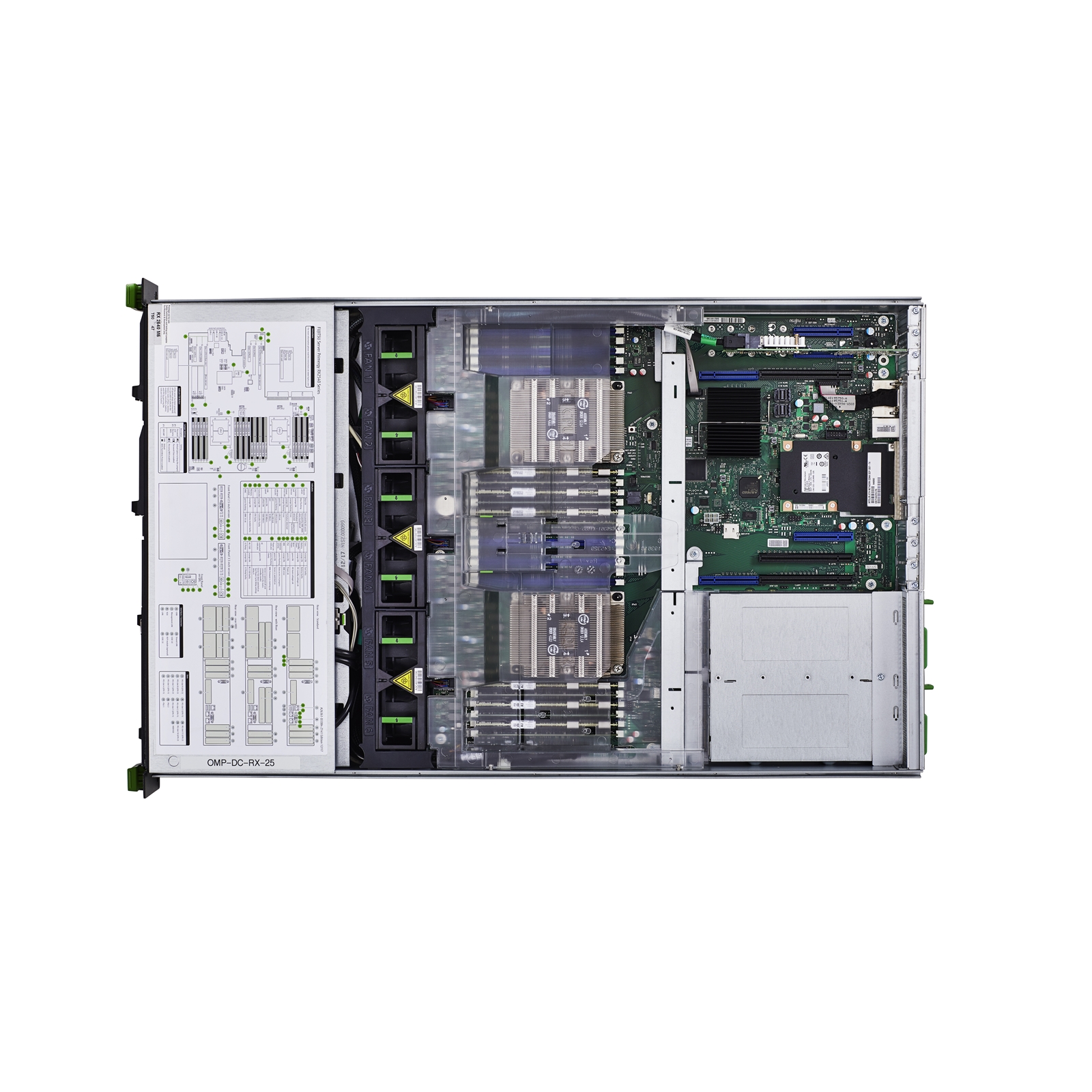

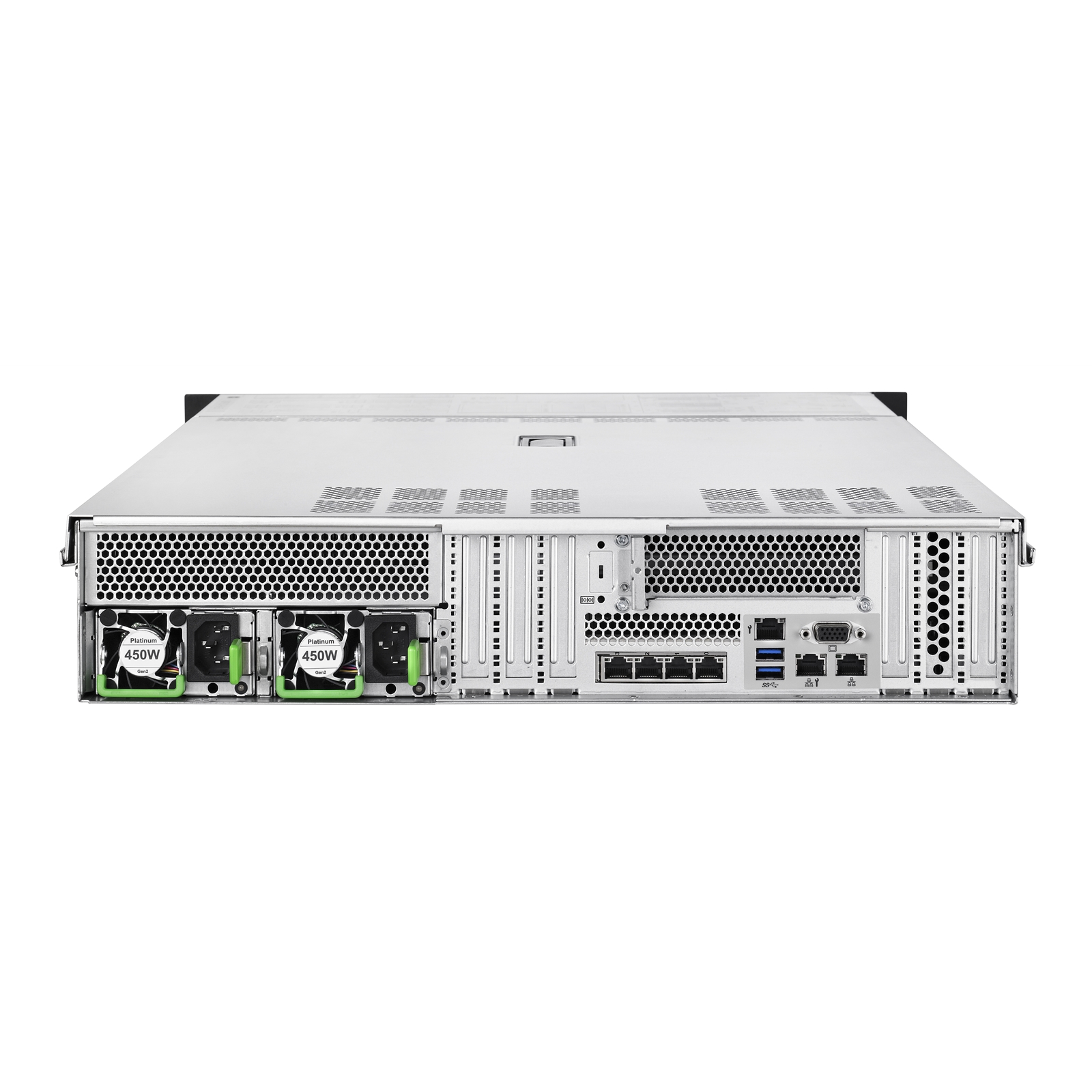

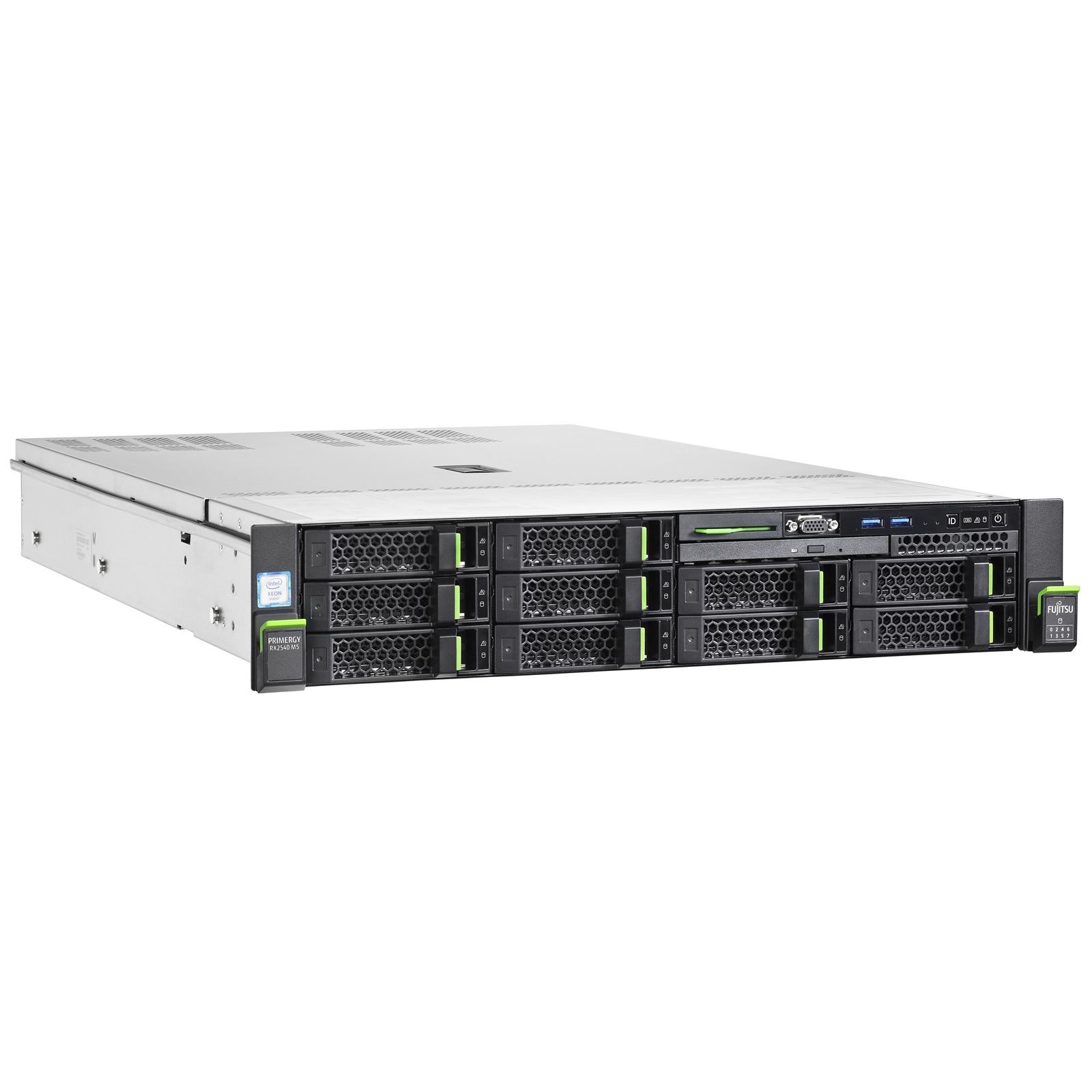

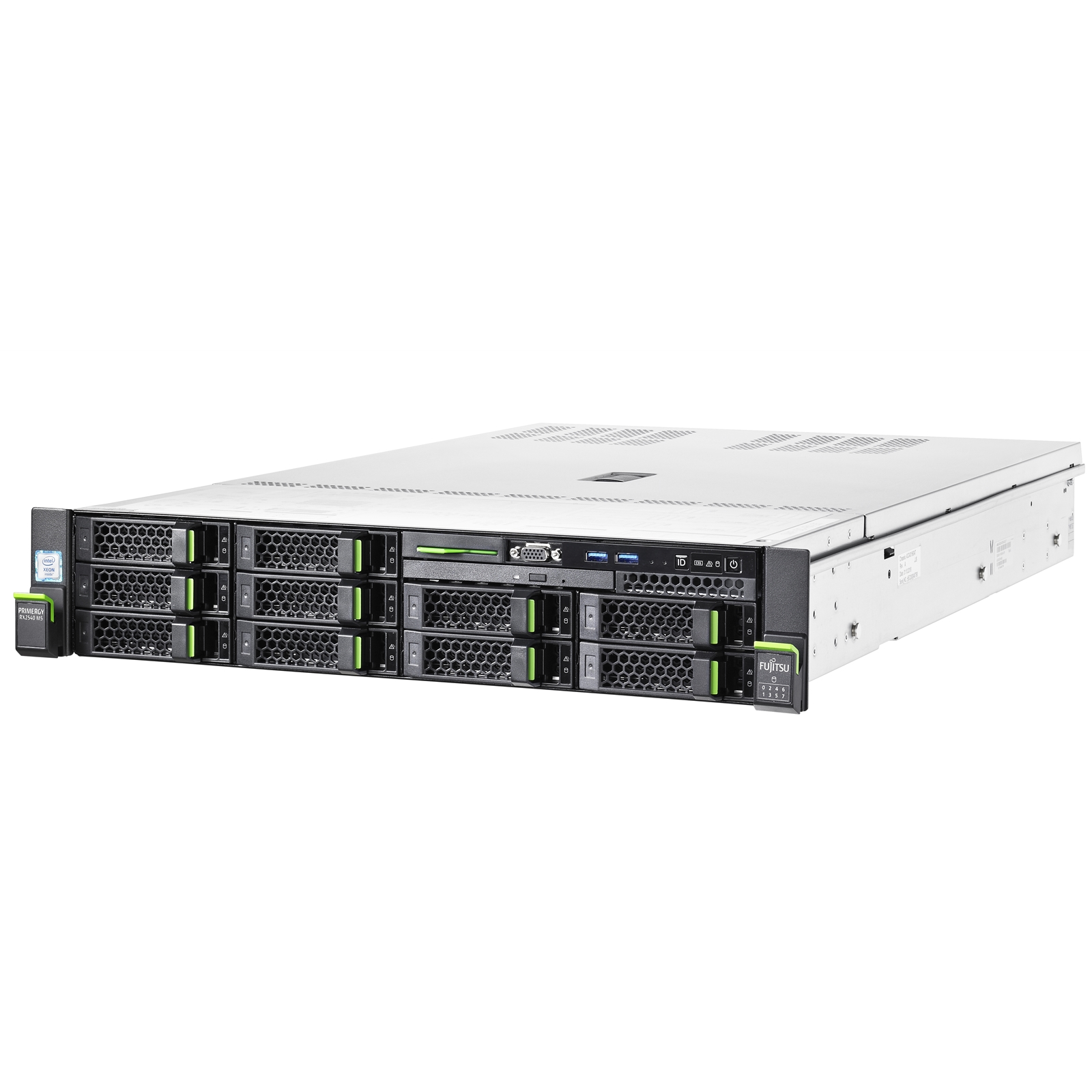

Illustration purposes only

FUJITSU PRIMERGY RX2540 M5 Rack Server - VFY:R2545SC010IN

FUJITSU Logo here

Manufacturer Part Code: VFY:R2545SC010IN

Order Code: SVFUJ-R2545SC010

Category: Fujitsu Primergy Rack Servers

Fujitsu PRIMERGY RX2540 M5 - Server - rack-mountable - 2U - 2-way - 1 x Xeon Silver 4208 / 2.1 GHz - RAM 16 GB - SATA - hot-swap 2.5 - no HDD - DVD SuperMulti - GigE - no OS - monitor: none

This product qualifies for...
Fujitsu Reliability Promise - Get the cost back if it fails within a year!

The FUJITSU Server PRIMERGY RX2540 M5 is the new 2U dual socket rack server for high usability, scalability and cost-efficiency. Its Intel® Xeon® Processor Scalable Family CPUs in conjunction with DDR4 memory technology with up to 3TB up to 12x Intel® Optane™ DC Persistent Memory NV-DIMM modules increases performance to meet the requirements for data center processing, enterprise applications as well as collaboration. The modular design offers excellent expandability of up to 28 disk drives, up to 8 PCIe Gen3 expansion cards, and best-in-class energy efficiency thanks to two hot-plug power supplies with up to 96% efficiency meet the future demands of data growth. To complete the picture, DynamicLoM makes network connections more flexible and ready for future modifications. The Cool-safe® Advanced Thermal Design ensures operation in higher ambient temperatures resulting in lower OPEX.

Wide choice of different types of Intel® Xeon® Scalable Processor Family. Each processor offers up to 28 cores, up to 56 threads, 12 memory channels enabling a significantly higher performance and efficiency. They rely on Intel® UltraPath Interconnect for an increased data rate between the CPUs. Intel® Optane™ DC persistent memory is an innovative memory technology that delivers a unique combination of affordable large capacity and persistence (non-volatility). It revolutionizes the data center memory-storage hierarchy of the past and brings massive data sets closer to the CPU for faster time to insight. In total, up to 7,680 GB main memory in a mixed mode (non-volatile memory + DDR4 @ 2,933 MT/s) are available. What's more is the support for up to 2x GPGPUs for fast processing.

Enhanced Features for enhanced Computing
The RX2540 M5 comes with onboard LAN for basic LAN, DynamicLoM via OCP slot for extended requirements. A mix&match storage drive bay configuration offers the choice of either up to 8x 3.5-inch HDD/SSD + 1x ODD, 12x 3.5-inch or up to 24x 2.5-inch, up to 8x PCIe 2.5-inch SSD + an additional rear option of 4x 2.5-inch drives, complemented by internal M.2 devices for hypervisor installations. Our power supply units with up to 96% energy efficiency and Fujitsu's Cool-safe® Advanced Thermal Design for higher ambient temperatures in the data center are available for this server.

Foundation for Trust and Security
Fujitsu ServerView Suite including tools for installation and deployment, permanent status monitoring and control, free-of-charge BIOS, firmware and selected software updates plus TPM2.0 modules and latest operating system support are a great addition.

Revolutionize data center management
Fujitsu ServerView Suite is a free-of-charge management software including tools for installation and deployment, permanent status monitoring and control as well as BIOS, firmware and selected software updates. In addition FUJITSU Software Infrastructure Manager (ISM) provides converged management across multiple data centers. The new ISM Essential license, available free-of-charge provides essential server management and converged monitoring functions.

Benefits
Ready for the future and data growth scenarios with the performance of two processors – marking the standard of tomorrow with an increase in computing power. Several innovations make this new CPU generation (code-named ?Cascade Lake?) even more powerful than the current-generation Intel® Xeon® Scalable processors, enabling robust compute capability and increased memory bandwidth for demanding workloads. Intel® Optane™ DC persistent memory technology will transform critical data workloads – from cloud and databases, to in-memory analytics, and content delivery networks but also for VDI, CAD or future technologies such as Artificial Intelligence of Virtual Reality applications.

The right Ethernet connection for all: Basic via onboard LAN, extended with DynamicLoM via OCP guarantees the highest flexibility to integrate the server into existing infrastructures – now and in future without overhauling the existing infrastructure. Flexible expandability and diverse options for storage devices permits for the integration of existing and new SSD and HDD as needed. Less today, more in future – or vice versa. On top of that, this server is not only ?greener?, but also less expensive over time. Cool-safe® ATD and highly efficient hot-plug power supplies save energy costs.

These features ensure lifecycle investment protection while the comprehensive tools of the Fujitsu ServerView Suite ease the administrators' life. Moreover, hardware and software security features are very important in a fast-paced world, especially considering cybercrime.

Fujitsu offers comprehensive infrastructure management and server management solutions which is key to efficient data center operations. They provides all the functions for flexible and automated 24x7 IT operations and improves end-user productivity via intelligent and innovative system management solutions. ISM helps improve data center efficiency and overall IT Productivity with converged infrastructure management, paving the path to software-defined data center.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.
Need this delivered pre-built? We have configuration and installation options available!

Technical Information

Rack mounting
Y
Chassis type
Rack (2U)
Product colour
Black
Rack rails
Y
Power supply
800 W
Redundant power supply (RPS) support
Y
Number of main power supplies
1
Number of redundant power supplies supported
2
Number of redundant power supplies installed
1
PCI Express slots version
3.0
PCI Express x8 (Gen 3.x) slots
3
PCI Express x16 (Gen 3.x) slots
3
On-board graphics card model
Not available
Harmonized System (HS) code
84714100
Internal memory type
DDR4-SDRAM
Memory slots
24
Maximum internal memory
1000 GB
Memory clock speed
2933 MHz
Internal memory
16 GB
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN
Y
Ethernet interface type
Gigabit Ethernet
Compatible operating systems
- Microsoft Hyper-V Server R2 2012 - Microsoft Windows Server 2012 R2 Datacenter - Microsoft Windows Server 2012 R2 Standard - Microsoft Windows Server 2012 R2 Essentials - Microsoft Windows Server 2012 R2 Foundation - Microsoft Windows Storage Server 2012 R2 Standard - Microsoft Hyper-V Server 2012 - Microsoft Windows Server 2012 Datacenter - Microsoft Windows Server 2012 Standard - Microsoft Windows Server 2012 Essentials - Microsoft Windows Storage Server 2012 Standard - Microsoft Hyper-V Server 2008 R2 - Microsoft Windows Server 2008 R2 Datacenter - Microsoft Windows Server 2008 R2 Enterprise - Microsoft Windows Server 2008 R2 Standard - Microsoft Windows Small Business Server 2011 Premium Add-On - Microsoft Windows Small Business Server Standard 2011 - Microsoft Windows Server 2008 Datacenter - Microsoft Windows Server 2008 Enterprise - Microsoft Windows Server 2008 Standard - VMware vSphere 5.5 Embedded - VMware vSphere 5.5 - VMware vSphere 5.0 Embedded - VMware vSphere 5.0 - VMware vSphere 4.1 - VMware vSphere 4.1 Embedded - VMware vSphere 4.1 Installable - SUSE Linux Enterprise Server 11 - Red Hat Enterprise Linux 6 - Red Hat Enterprise Linux 5 - Red Hat Enterprise Linux 5 w/XEN - Citrix XenServer
Operating relative humidity (H-H)
10 - 85%
Operating temperature (T-T)
5 - 40 °C
Harmonized System (HS) code
84714100
Serial ports quantity
1
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports
4
VGA (D-Sub) ports quantity
2
RS-232 ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
Processor model
4208
Motherboard chipset
Intel® C624
Number of processors installed
1
Processor manufacturer
Intel
Processor lithography
14 nm
Processor family
Intel Xeon Silver
Processor socket
LGA 3647 (Socket P)
Supported instruction sets
AVX-512
Processor cores
8
Processor threads
16
Processor operating modes
64-bit
Processor boost frequency
3.2 GHz
Processor cache
11 MB
Execute Disable Bit
Y
Scalability
2S
Tcase
78 °C
Embedded options available
N
Processor frequency
2.1 GHz
Thermal Design Power (TDP)
85 W
Processor codename
Cascade Lake
Maximum number of PCI Express lanes
48
Maximum internal memory supported by processor
1024 GB
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
2400 MHz
Processor package size
76.0 x 56.5 mm
Processor generation
2nd Generation Intel® Xeon® Scalable
Intel® Hyper Threading Technology (Intel® HT Technology)
Y
Intel® Turbo Boost Technology
2.0
Intel® AES New Instructions (Intel® AES-NI)
Y
Enhanced Intel SpeedStep Technology
Y
Intel Trusted Execution Technology
Y
Intel VT-x with Extended Page Tables (EPT)
Y
Intel TSX-NI
Y
Intel 64
Y
Intel Virtualization Technology for Directed I/O (VT-d)
Y
Intel Virtualization Technology (VT-x)
Y
Processor ARK ID
193390
RAID levels
5, 6
Maximum storage capacity
12 TB
Supported HDD sizes
2.5,3.5"
RAID support
Y
Supported storage drive interfaces
SAS, Serial ATA, Serial ATA III
Height
86.6 mm
Width
482.4 mm
Depth
770 mm
