Kingston Compatible Memory | KINGSTON KSM52E42BS8KM-16HA | KSM52E42BS8KM-16HA | ServersPlus
KINGSTON KSM52E42BS8KM-16HA | serversplus.com

Illustration purposes only

KINGSTON KSM52E42BS8KM-16HA

KINGSTON Logo here

Manufacturer Part Code: KSM52E42BS8KM-16HA

Order Code: SDKIN-KSM52E42BS

Category: Kingston Compatible Memory

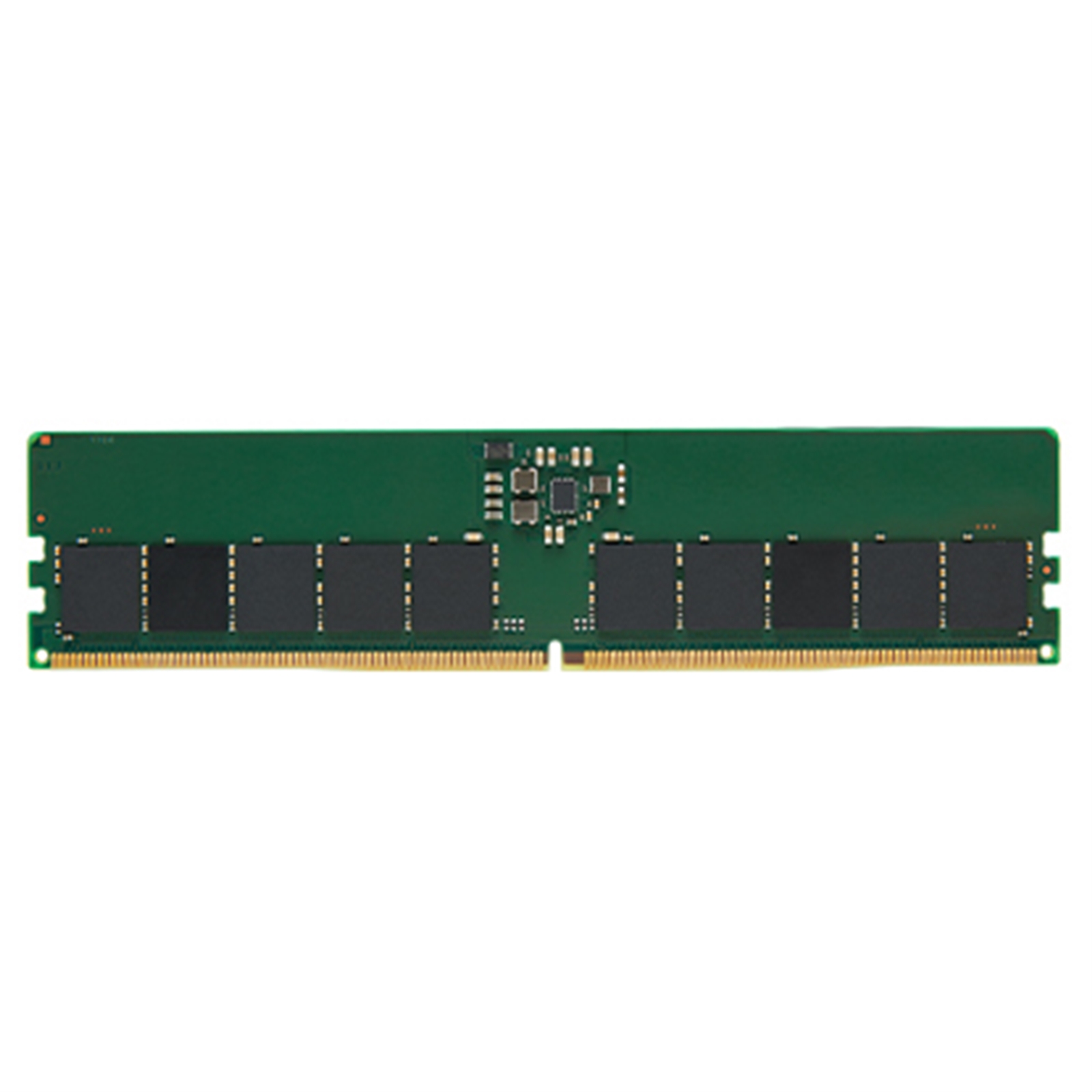

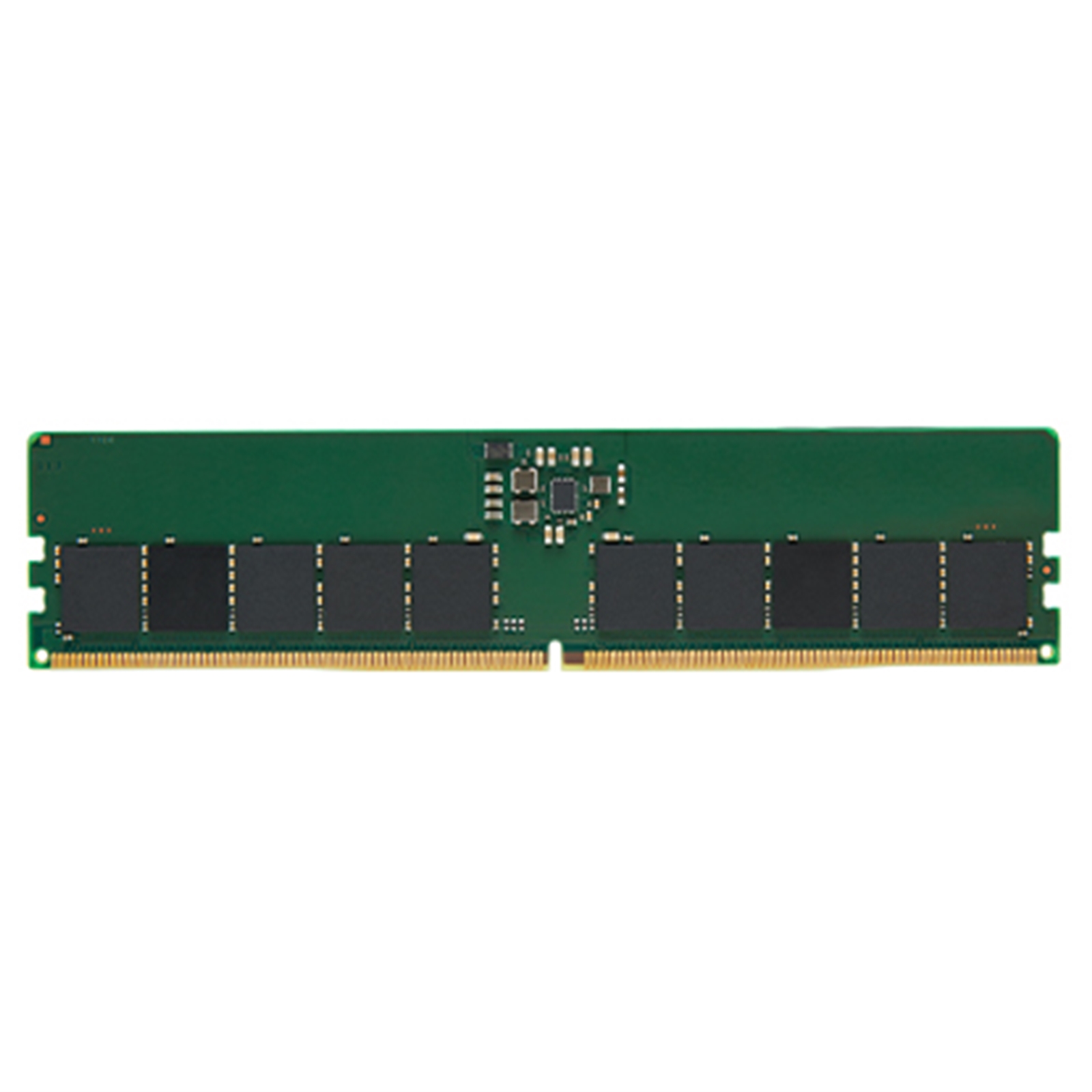

Kingston's KSM52E42BS8KM-16HA is a 2G x 72-bit (16GB) DDR5-5200 CL42 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on ten 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5200 timing of 42-42-42 at 1.1V. Each 288-pin DIMM uses gold contact fingers.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Internal memory type
DDR5
ECC
Yes
Module configuration
2048M x 72
Lead plating
Gold
CAS latency
42
Product colour
Black, Green
Memory clock speed
5200 MHz
Row cycle time
48 ns
Refresh row cycle time
295 ns
Row active time
32 ns
Memory voltage
1.1 V
SPD profile
Yes
Memory form factor
288-pin DIMM
Memory ranking
1
Component for
Server
Internal memory
16 GB
Memory layout (modules x size)
1 x 16 GB
Row Precharge Time (TRP)
16
JEDEC standard
Yes
Programming power voltage (VPP)
1.8 V
Buffered memory type
Unregistered (unbuffered)
On-Die ECC
Yes
Storage temperature (T-T)
-55 - 100 °C
Operating temperature (T-T)
0 - 95 °C
Sustainability compliance
Yes
Doesn't contain
Halogen
Doesn't contain
Halogen
Compliance certificates
RoHS
Height
31.2 mm
Width
133.3 mm
