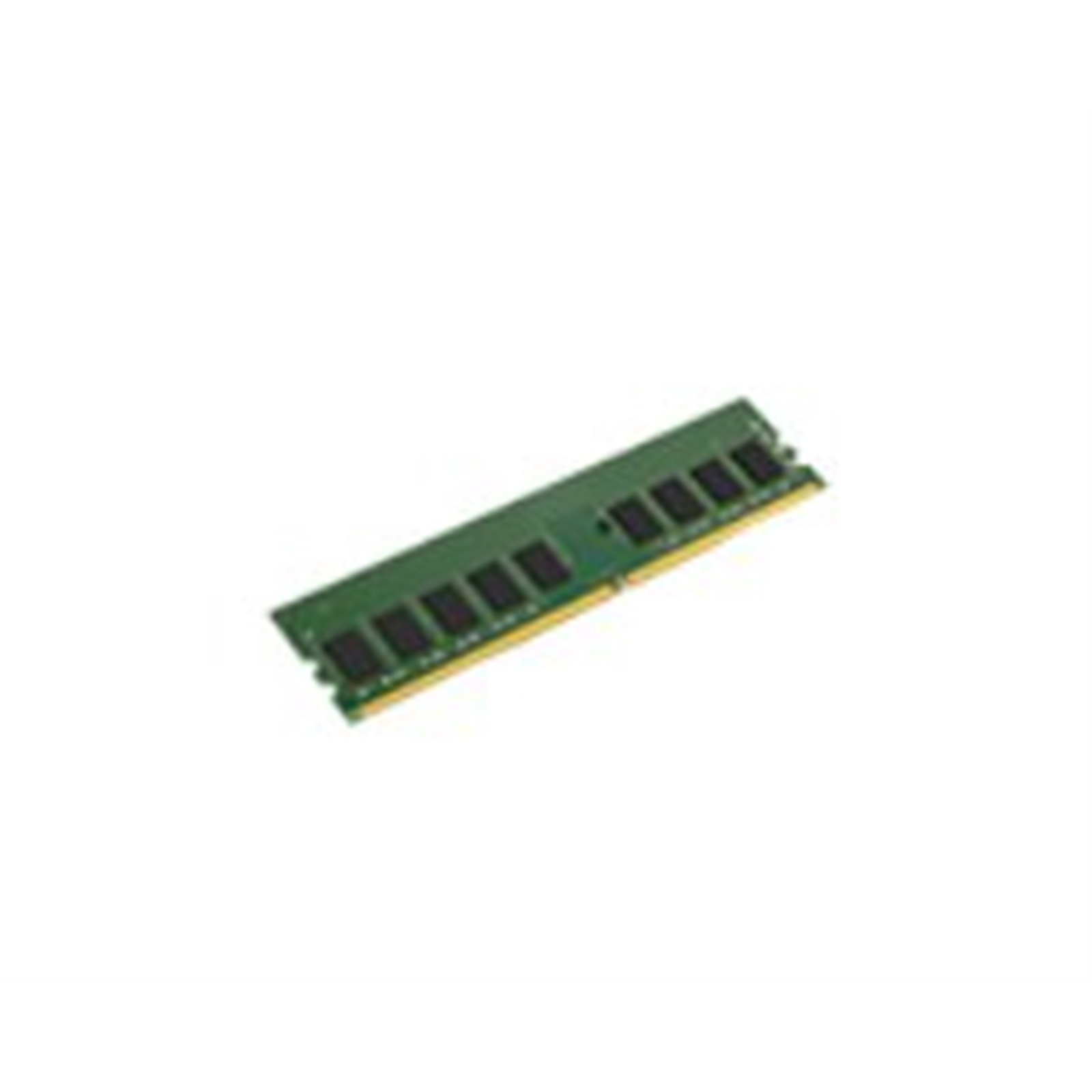

Illustration purposes only

KINGSTON KSM32ES8/8HD

KINGSTON Logo here

Manufacturer Part Code: KSM32ES8/8HD

Order Code: SDKIN-KSM32ES88H

Category: Kingston Compatible Memory

Kingston's KSM32ES8/8HD is a 1G x 72-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on nine 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Internal memory type
DDR4
ECC
Yes
CAS latency
22
Memory clock speed
3200 MHz
Country of origin
Taiwan
Row cycle time
45.75 ns
Refresh row cycle time
350 ns
Row active time
32 ns
Memory voltage
1.2 V
SPD profile
Yes
Memory form factor
288-pin DIMM
Memory ranking
1
Component for
PC/Server
Internal memory
8 GB
Memory layout (modules x size)
1 x 8 GB
JEDEC standard
Yes
Buffered memory type
Registered (buffered)
Harmonized System (HS) code
84733020
Storage temperature (T-T)
-55 - 100 °C
Operating temperature (T-T)
0 - 85 °C
Country of origin
Taiwan
Harmonized System (HS) code
84733020
Doesn't contain
Halogen
Doesn't contain
Halogen
Compliance certificates
RoHS
Height
31.2 mm
Width
133.3 mm
