Lenovo Network Adapters | LENOVO 1Gb 2-port RJ45 LOM | 7ZT7A00544 | ServersPlus

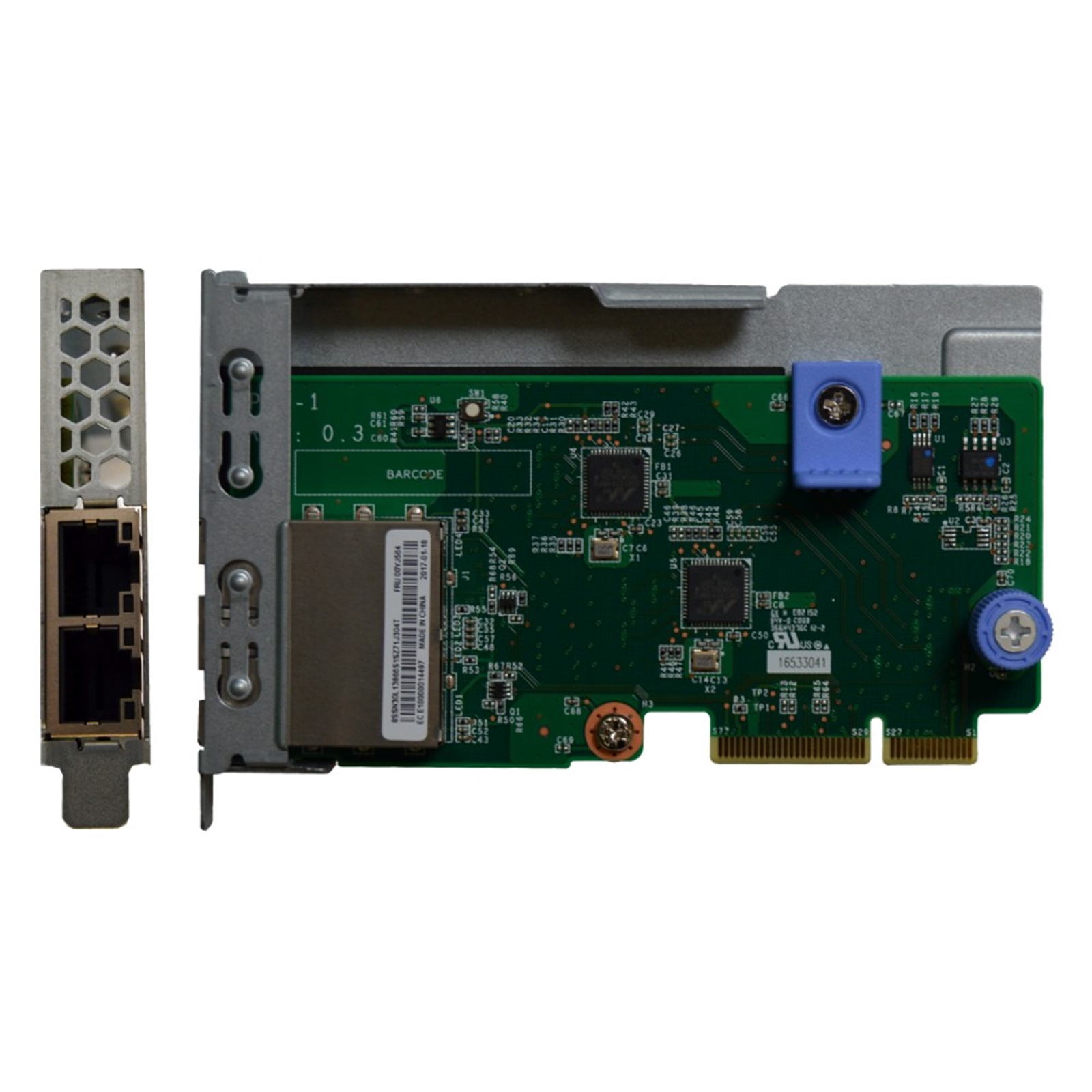

Illustration purposes only

LENOVO 1Gb 2-port RJ45 LOM

LENOVO Logo here

Manufacturer Part Code: 7ZT7A00544

Order Code: NPLEN-7ZT7A00544

Category: Lenovo Network Adapters

Lenovo ThinkSystem - Network adapter - LAN-on-motherboard (LOM) - Gigabit Ethernet x 2 - for ThinkAgile VX Certified Node 7Y94 7Z12 ThinkAgile VX7820 Appliance

Abstract

The Intel Ethernet Connection X722 is a network controller embedded into the Intel C624 "Lewisburg" PCH chipset of Lenovo ThinkSystem servers. The controller connects to available 10 GbE and 1 Gigabit Ethernet LOM adapter cards and onboard connectors to provide a comprehensive 1 GbE / 10 GbE networking solution for ThinkSystem customers.

This product guide provides essential presales information to understand the X722 controller and ThinkSystem LOM adapter offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ThinkSystem Ethernet solution and consider its use in IT solutions.

Introduction

The Intel Ethernet Connection X722 is a network controller embedded into the Intel C624 "Lewisburg" PCH chipset of Lenovo ThinkSystem servers. The controller connects to available 10 GbE and 1 Gigabit Ethernet LAN-on-motherboard (LOM) adapter cards and onboard connectors to provide a comprehensive 1 GbE / 10 GbE networking solution for ThinkSystem customers.

ThinkSystem servers support either 10 Gb Ethernet copper or optical connections, or Gigabit Ethernet connections depending on the server model.

The following figure shows the ThinkSystem 10Gb 4-port SFP+ LOM adapter which provides four SFP+ cages for optical or direct-attach copper (DAC) connectivity.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Quality of Service (QoS) support
Y
Data transfer rate (max)
1000 Mbit/s
Certification
UL recognized to UL60950-1 2nd Edition FCC Rules, Part 15, Class A Australian EMC Framework (RCM) Japan VCCI, Class A Industry Canada, ICES-003, Class A EU (CE Mark) Korea KC-RRA, Class A
Internal
Y
Certification
UL recognized to UL60950-1 2nd Edition FCC Rules, Part 15, Class A Australian EMC Framework (RCM) Japan VCCI, Class A Industry Canada, ICES-003, Class A EU (CE Mark) Korea KC-RRA, Class A
Chipset
Intel® C624
Colour of product
Green, Metallic
Compatible products
SR630 SR650 SR850 SR860 SR950
Security algorithms
SNMP
Supported network protocols
TCP/UDP/IP/SCTP, IPv4/IPv6
Cabling technology
10/100/1000BaseT(X)
Chipset
Intel® C624
Maximum data transfer rate
1000 Mbit/s
Ethernet LAN connection
Y
Networking standards
IEEE 802.1Q,IEEE 802.1Qbg,IEEE 802.1p,IEEE 802.3ad,IEEE 802.3x
Flow control support
Y
LAN controller
Marvell 88E1514
Quality of Service (QoS) support
Y
Jumbo Frames support
Y
Ethernet LAN data transfer rates
10000 Mbit/s
Ethernet interface type
Gigabit Ethernet
VLAN tagging
Y
Jumbo frames
9728
Other operating systems supported
VMware vSphere ESXi
Chipset
Intel® C624
Flow control support
Y
Intel Virtual Machine Device Queues (VMDq)
Y
PCI-SIG* SR-IOV Capable
Y
Intel Data Direct I/O Technology
Y
Receive Side Scaling (RSS)
Y
Jumbo frames
9728
Security algorithms
SNMP
Compatible products
SR630 SR650 SR850 SR860 SR950
Server operating systems supported
SUSE Linux Enterprise Server 11,SUSE Linux Enterprise Server 12,Windows Server 2012 R2,Windows Server 2016
Other operating systems supported
VMware vSphere ESXi
Intel Virtual Machine Device Queues (VMDq)
Y
PCI-SIG* SR-IOV Capable
Y
Intel Data Direct I/O Technology
Y
Receive Side Scaling (RSS)
Y
Interface
Ethernet
Internal
Y
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports quantity
2
Host interface
PCI Express
Supported network protocols
TCP/UDP/IP/SCTP, IPv4/IPv6
Security algorithms supported
SNMP
Sustainability certificates
RoHS
Server operating systems supported
SUSE Linux Enterprise Server 11,SUSE Linux Enterprise Server 12,Windows Server 2012 R2,Windows Server 2016
Other operating systems supported
VMware vSphere ESXi
Colour of product
Green, Metallic
Compatible products
SR630 SR650 SR850 SR860 SR950
Ethernet LAN data transfer rates
10000 Mbit/s
Intel Virtual Machine Device Queues (VMDq)
Y
PCI-SIG* SR-IOV Capable
Y
Sustainability certificates
RoHS
